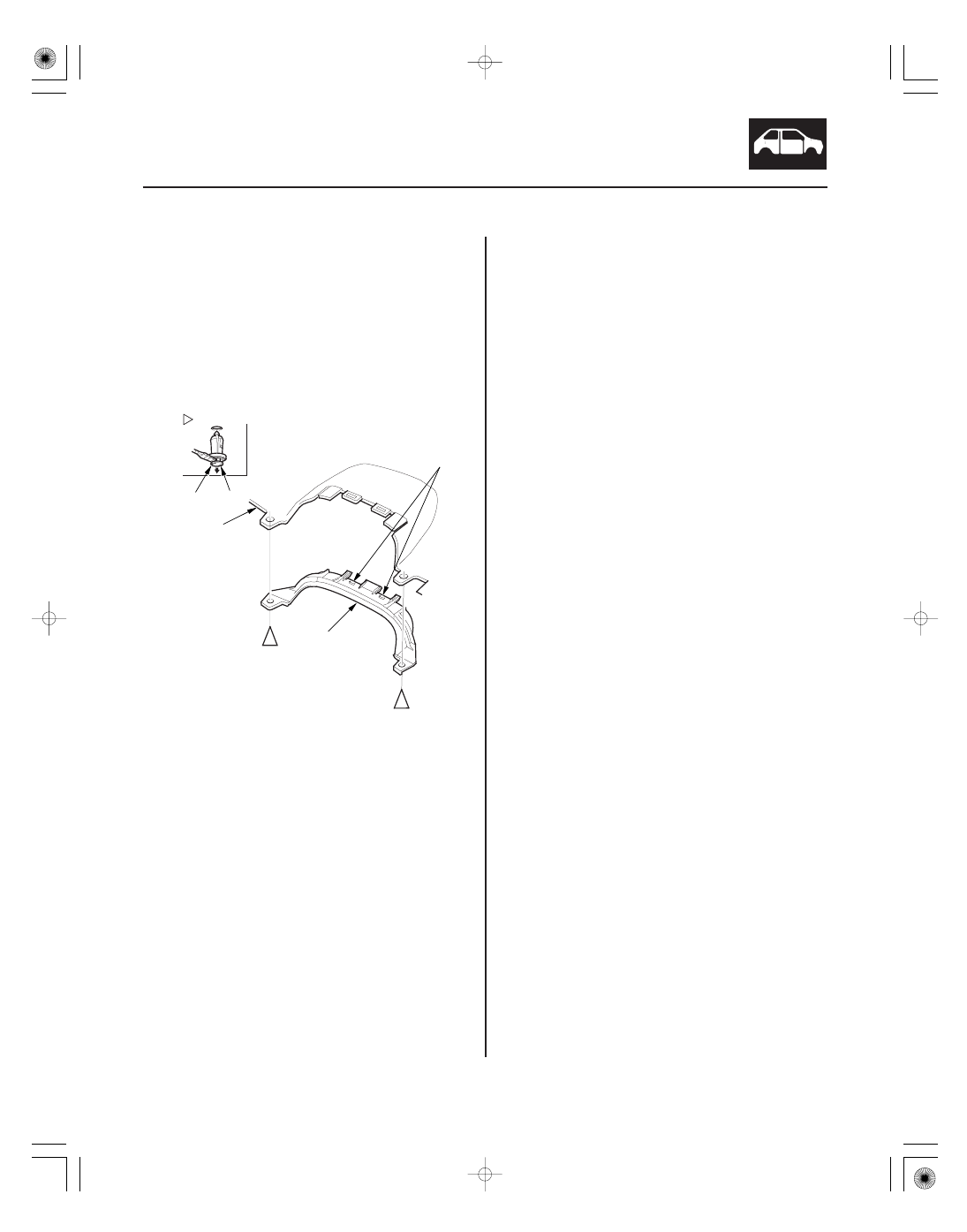

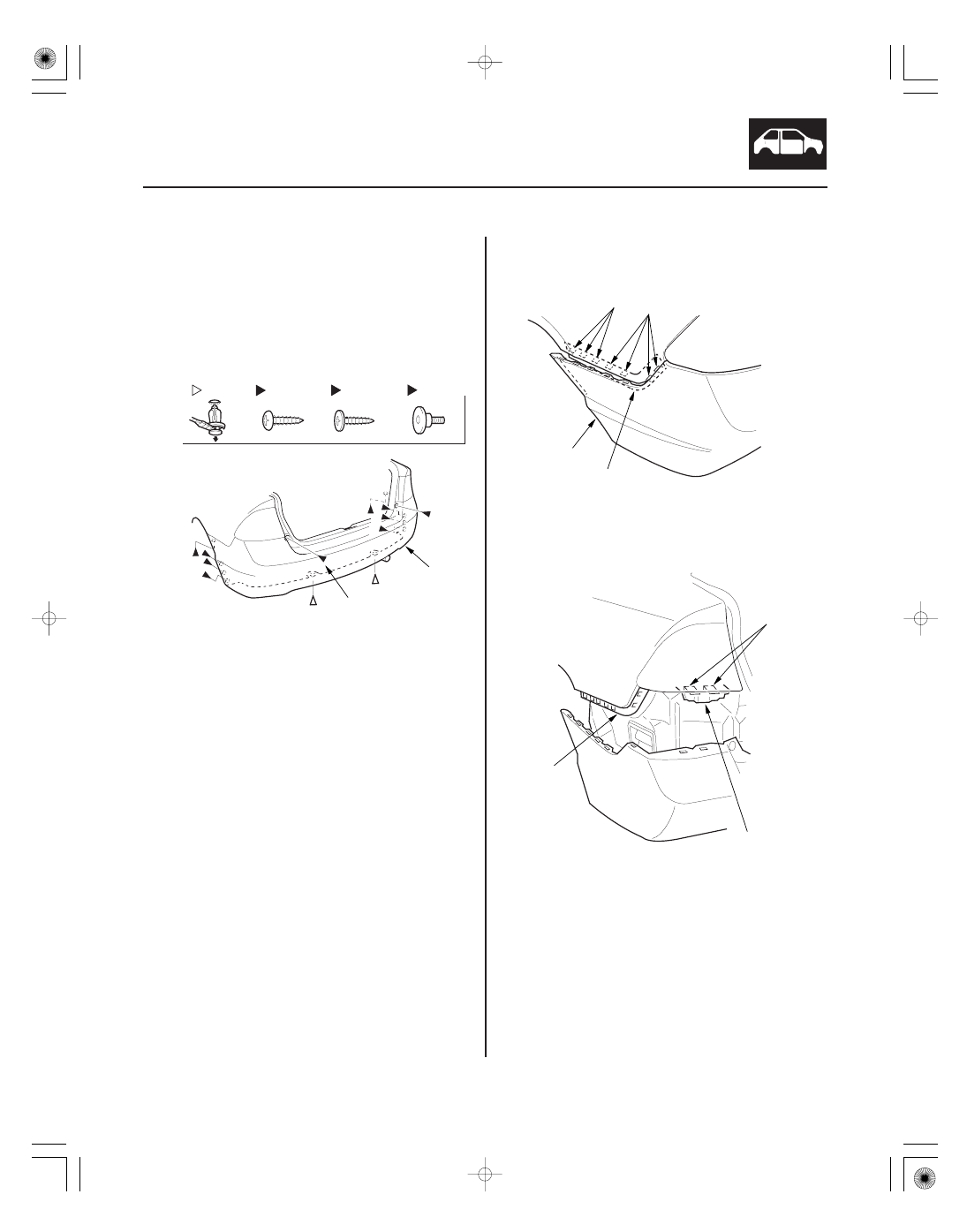

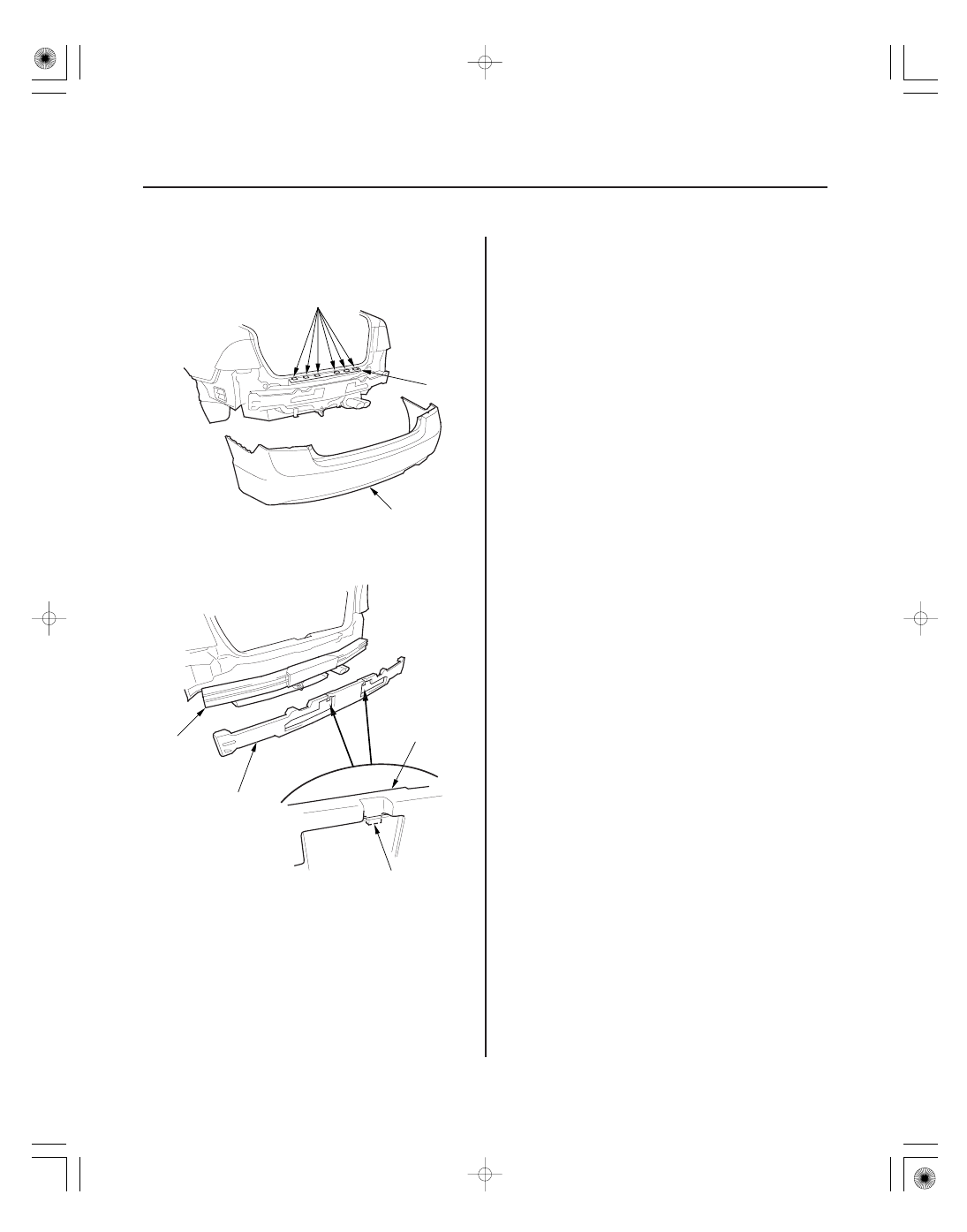

01 02 03 SNR9A00J18513415012KDAT00 20-149 Rear Bumper Removal/Installation 6 x 1.0 mm A B C D E C B D A C C C C Fastener Locations : Clip, 2 A : Screw, 2 B : Bolt, 2 D : Screw, 6 C A B C B A B C NOTE: • Have an assistant help you when removing and installing the rear bumper. • Take care not to scratch the rear bumper or the body. 1. Remove the clips (A), screws (B, C), and bolts (D) securing the rear bumper (E). 2. Pull on the rear bumper (A) at the wheel arch areas to release it from the hooks (B) on the side spacers 3. With the help of an assistant, while pulling the wheel arch portion away from the side spacer (A), 08/08/21 15:04:55 61SNR030_200_0151 |
