Acura CSX. Manual - part 420





01

06

07

08

20-8

Doors

Fastener Locations

A

D

E

F

G

A

: Clip, 6

B

: Clip, 1

C

B

B

B

B

C

B

B

B

A

C

C

A

C

B

A

B

C

D

F

E

G

F

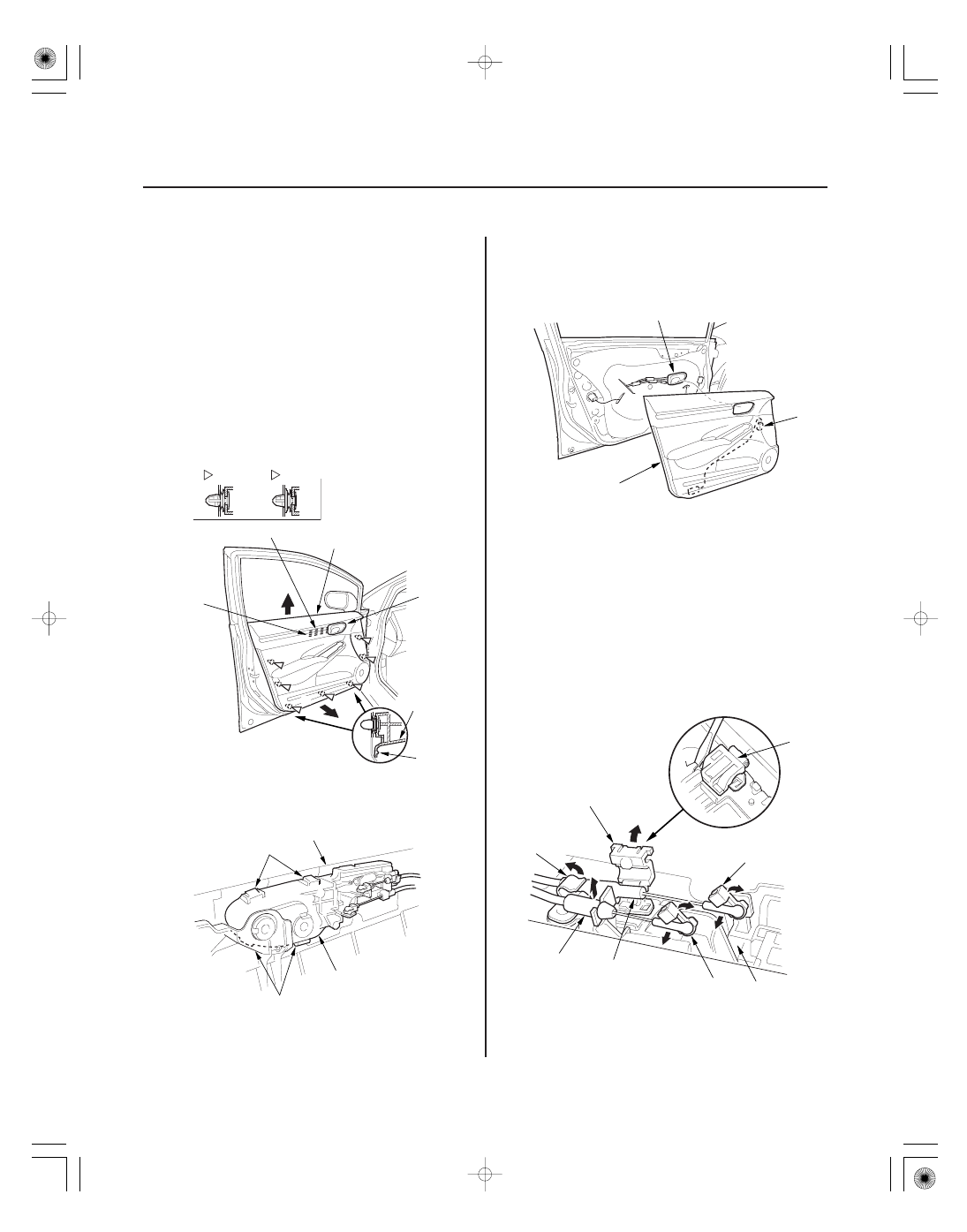

6. Remove the door panel (A) with as little bending as

possible to avoid creasing or breaking it.

–1 Start at the bottom edge of the door panel,

release the clips (B, C) that are just above the
marks (D) on the edge of the panel with a
commercially available trim pad remover.

–2 Detach the upper clips.
–3 Starting at the rear, pull the door panel upward.

NOTE: The inner handle cable (E) and the latch
cable (F) are connected to the inner handle (G).
Do not pull the door panel up too far, or these
cables will be damaged.

7. While holding the door panel (A) away from the

door remove the inner handle (B) from the door
panel by releasing the hooks (C).

8. Remove the door panel (A) while pulling the inner

handle (B) out through the hole in the door panel,
and disconnect the courtesy light subharness
connector (C).

9. If necessary, disconnect the inner handle cable (A)

and the latch cable (B) from the inner handle (C),
then remove the handle.

–1 Detach the inner handle cable fastener (D),

then disconnect the inner handle cable from
the cable fastener (E).

–2 Detach the latch cable fastener (F) with a flat-

tip screwdriver, then disconnect the latch cable
from the cable fastener (G).

NOTE: If the cable fasteners are damaged or
stress-whitened, replace them with new ones.

08/08/21 14:58:58 61SNR030_200_0010

02

01

02

SNR9A00J16126721301KBAT00

20-9

20-9

Front Door Outer Handle
Replacement

A

B

62 mm (2.44 in.)

A

B

C

B

A

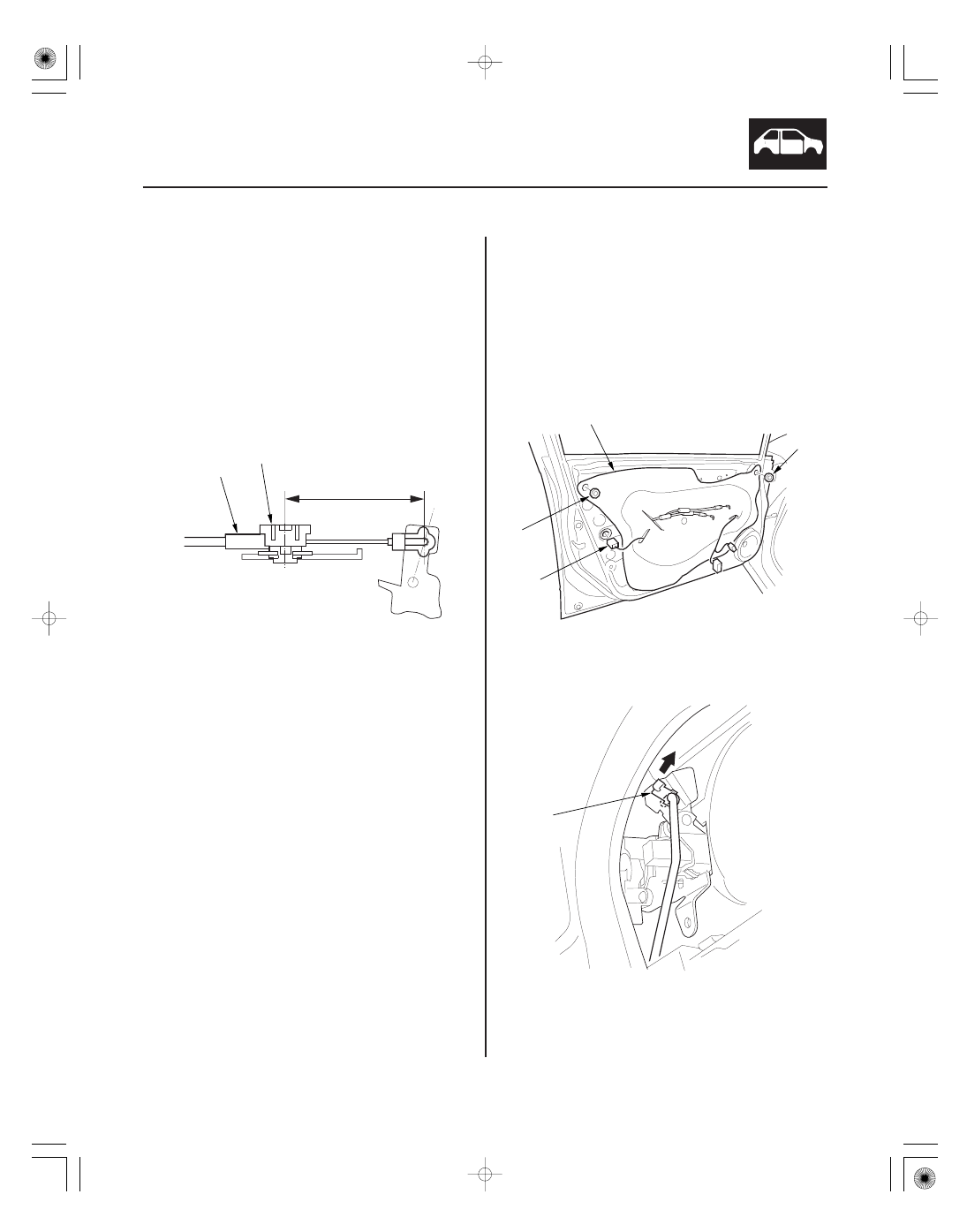

10. Install the door panel in the reverse order of

removal, and note these items:

• If the clips are damaged or stress-whitened,

replace them with new ones.

• Replace any damaged cable fasteners with new

ones.

• The latch cable (A) should be fixed to the cable

fastener (B) with the latch in lock position.

• Make sure the connectors are plugged in

properly, and the cables are connected securely.

• Make sure the window and power door lock

operate properly.

NOTE: Put on gloves to protect your hands.

1. Raise the glass fully.

2. Remove the door panel and inner handle (see page

20-7).

3. Disconnect the power door lock actuator connector

(A).

4. Remove the plug caps (B), then remove the plastic

cover (C), as needed.

5. Detach the rod fastener (A).

08/08/21 14:58:59 61SNR030_200_0011

02

01

02

SNR9A00J16126721301KBAT00

20-9

20-9

Front Door Outer Handle
Replacement

A

B

62 mm (2.44 in.)

A

B

C

B

A

10. Install the door panel in the reverse order of

removal, and note these items:

• If the clips are damaged or stress-whitened,

replace them with new ones.

• Replace any damaged cable fasteners with new

ones.

• The latch cable (A) should be fixed to the cable

fastener (B) with the latch in lock position.

• Make sure the connectors are plugged in

properly, and the cables are connected securely.

• Make sure the window and power door lock

operate properly.

NOTE: Put on gloves to protect your hands.

1. Raise the glass fully.

2. Remove the door panel and inner handle (see page

20-7).

3. Disconnect the power door lock actuator connector

(A).

4. Remove the plug caps (B), then remove the plastic

cover (C), as needed.

5. Detach the rod fastener (A).

08/08/21 14:58:59 61SNR030_200_0011

01

04

05

06

20-10

Doors

A

B

C

A

B

C

D

E

E

B

A

A

6 x 1.0 mm
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

Fastener Location

: Bolt, 1

A

B

A

6 x 1.0 mm
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

Fastener Location

: Bolt, 1

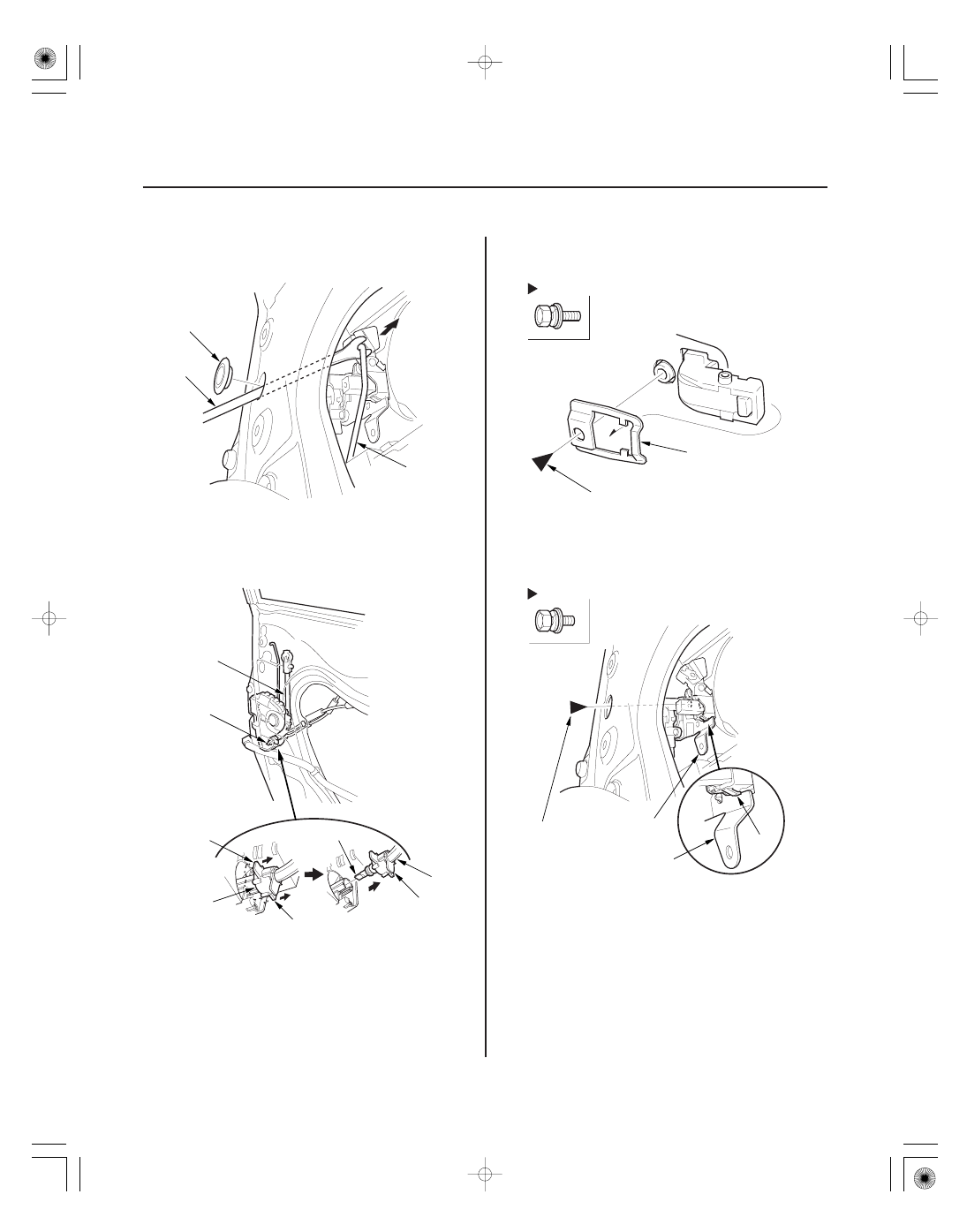

6. Remove the maintenance cap (A). Disconnect the

outer handle rod (B) with a clip remover (C).

7. Driver’s side: Pull both side flanges (A) of the

retainer (B) outward, and pull the middle flange
portion (C) of the outer casing cover (D) out, then
disconnect the cylinder cable (E) from the latch.

8. Remove the bolt, then remove the spacer (A).

9. Remove the bolt securing the outer handle

protector (A), then remove the protector by
releasing the hook (B).

08/08/21 14:59:00 61SNR030_200_0012
