DTC 12-01:

YES

17-34

EPS Components

B (WHT)

EPS CONTROL UNIT CONNECTOR A (2P)

B (WHT)

Low/High VBU Voltage (Regular

Diagnosis)

1. Turn the ignition switch to ON (II).

2. Check the BATTERY in the EPS DATA LIST with the

HDS.

Check for loose terminals or poor

connections. If the connections are good, the
system is OK at this time.

Go to step 3.

3. Turn the ignition switch to LOCK (0).

4. Check the No. 1 (70 A) fuse in the under-hood fuse/

relay box.

Reinstall the checked fuse, then go to step

13.

Go to step 5.

5. Disconnect the EPS control unit connector A (2P).

6. Check for continuity between EPS control unit

connector A (2P) terminal No. 2 and body ground.

Repair short to body ground in the wire

between the EPS control unit and the No. 1 (70 A)
fuse in the under-hood fuse/relay box.

Install a new No. 1 (70 A) fuse in the under-

hood fuse/relay box, then go to step 7.

7. Reconnect the EPS control unit connector A (2P).

8. Turn the ignition switch to ON (II).

9. Clear the DTC with the HDS.

10. Turn the ignition switch to LOCK (0).

11. Start the engine.

12. Check for DTCs with the HDS.

Replace the EPS control unit (see page 17-84).

Troubleshooting is complete. If any other

DTCs are indicated, go to the indicated DTC’s
troubleshooting.

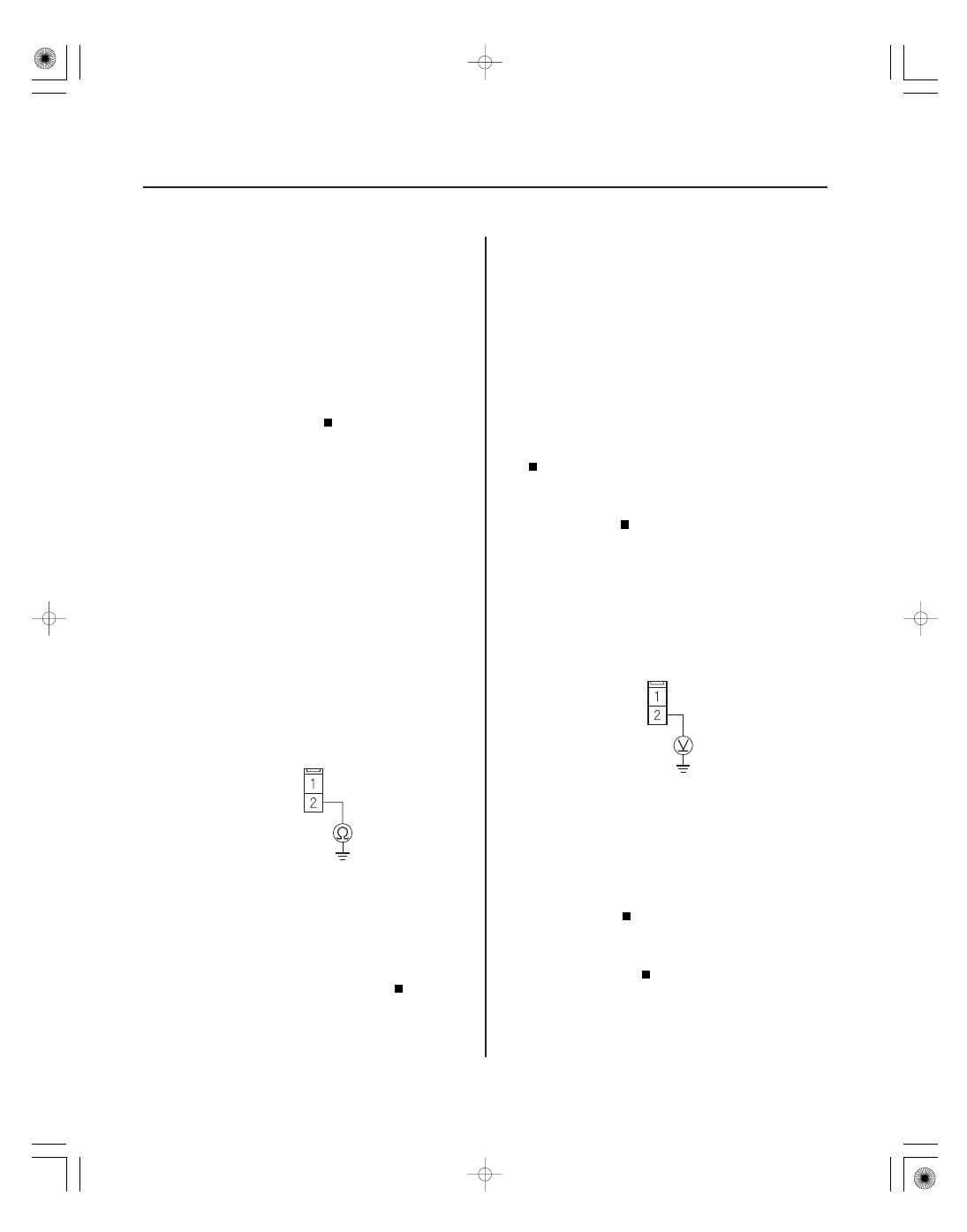

13. Disconnect EPS control unit connector A (2P) and

connector D (28P).

14. Measure the voltage between EPS control unit

connector A (2P) terminal No. 2 and body ground.

Check for loose terminals in the EPS control

unit connectors, and repair if necessary. If no poor
connections are found, replace the EPS control unit
(see page 17-84).

Repair open in the wire between the EPS

control unit and the No. 1 (70 A) fuse in the under-
hood fuse/relay box.

Wire side of female terminals

Is the voltage at 9.2

17 .4 V ?

Is the f use OK ?

Is ther e continuity?

Is DT C 12-01 indicated?

Is ther e batter y voltage?

08/08/21 14:54:03 61SNR030_170_0035

ＳＮＲ９Ａ００Ｋ７２２０００Ｒ２１０１ＦＡＡＴ０１

−

DTC 21-01:

DTC 21-02:

YES

17-35

Excessive Change of the Vehicle

Speed Signal (Regular Diagnosis)

Comparison between the Vehicle

Speed and the Engine Speed Signal (Regular
Diagnosis)

NOTE:

• If the MIL is on, troubleshoot the fuel and emissions

systems first.

• Even though the system is operating normally, the

EPS indicator will come on caused by the detecting
condition of DTC 21-01 or DTC 21-02 when you raise
the engine speed with the vehicle stopped.

• Clear the DTC related to the ABS/VSA.

1. Turn the ignition switch to LOCK (0).

2. Raise the vehicle, and support it with safety stands

in the proper locations (see page 1-11), and allow
all wheels to rotate freely.

3. Connect the HDS to the data link connector (DLC).

4. Turn off VSA by using the VSA OFF switch.

5. Start the engine, run the vehicle in the 4th (M/T), or

D position (A/T).

6. Check the VEHICLE SPEED in the EPS DATA LIST

with the HDS.

The system is OK at this time.

Go to step 7.

7. Check for DTCs in the fuel and emissions system

(M/T) or A/T system (A/T) with the HDS.

Troubleshoot the indicated DTC(s).

Go to step 8.

8. Start the engine, and check the tachometer.

Go to step 9.

Troubleshoot the gauge control module (tach)

(see page 22-241).

9. Turn the ignition switch to LOCK (0).

10. Short the SCS line with the HDS.

11. Disconnect ECM/PCM connector A (44P) and EPS

control unit connector D (28P).

Is the vehicle speed indicated?

Is DT C P07 20, P07 21, P07 22 or P07 23
indicated?

Is the tachometer wor king cor r ectly?

08/08/21 14:54:03 61SNR030_170_0036

＊０１

＊０２

−

YES

17-36

EPS Components

EPS CONTROL UNIT CONNECTOR D (28P)

ECM/PCM CONNECTOR A (44P)

CAN-H (WHT)

EPS CONTROL UNIT CONNECTOR D (28P)

ECM/PCM CONNECTOR A (44P)

CAN-L (RED)

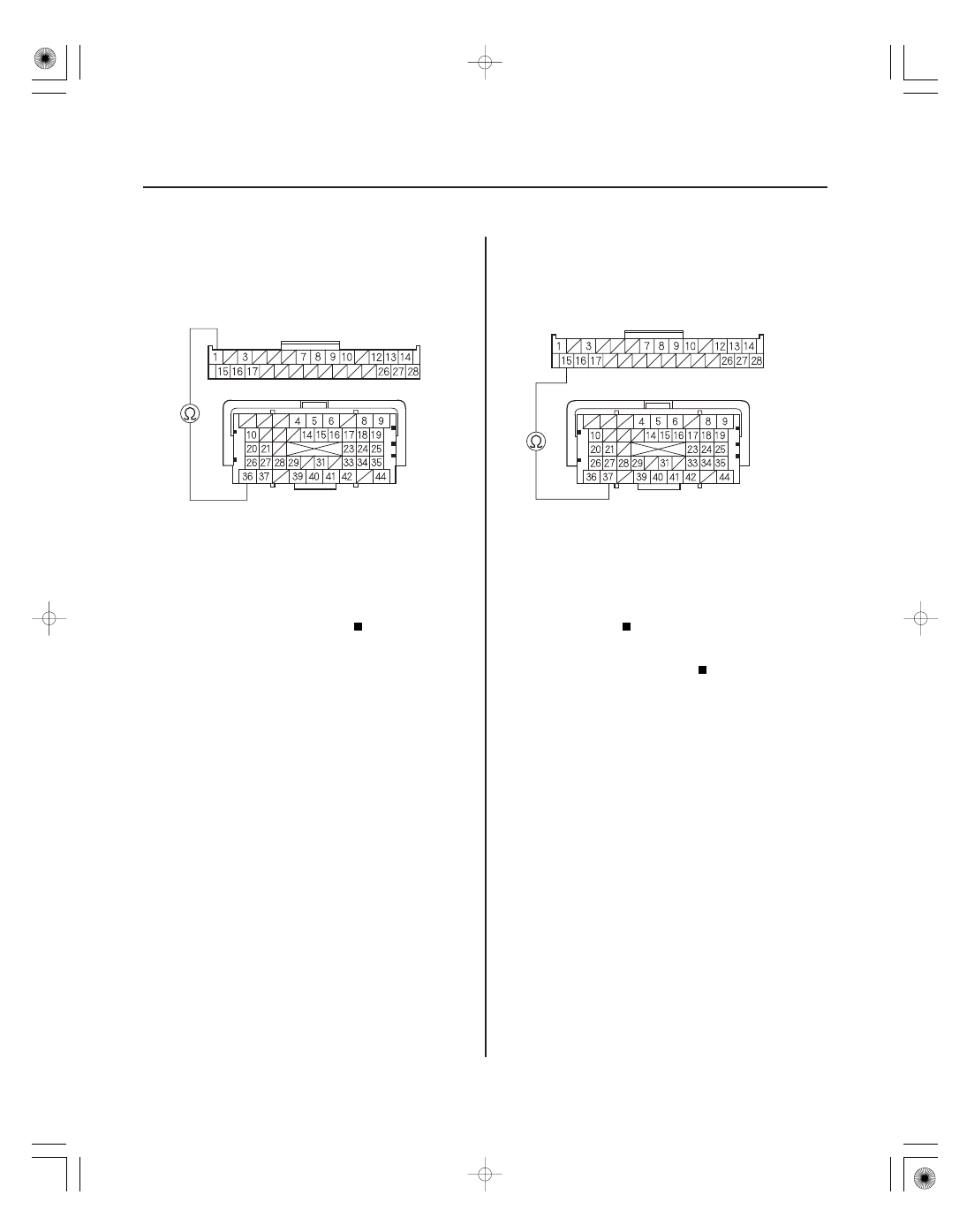

12. Check for continuity between EPS control unit

connector D (28P) terminal No. 1 and ECM/PCM
connector A (44P) terminal No. 36.

Go to step 13.

Repair open in the wire between the EPS

control unit and the ECM/PCM.

13. Check for continuity between EPS control unit

connector D (28P) terminal No. 15 and ECM/PCM
connector A (44P) terminal No. 37.

Check for loose terminals in the EPS control

unit connectors, and repair if necessary. If no poor
connections are found, replace the EPS control unit
(see page 17-84).

Repair open in the wire between the EPS

control unit and the ECM/PCM.

Wire side of female terminals

Terminal side of female terminals

Wire side of female terminals

Terminal side of female terminals

Is ther e continuity?

08/08/21 14:54:04 61SNR030_170_0037

０１

ＳＮＲ９Ａ００Ｋ７２２０００Ｒ２２０１ＦＡＡＴ００

−

DTC 22-01:

YES

17-37

NEP (BLU)

EPS CONTROL UNIT CONNECTOR D (28P)

Engine Speed Signal (Initial

Diagnosis)

NOTE: If the MIL indicator is on, troubleshoot the fuel
and emissions systems first.

1. Turn the ignition switch to LOCK (0).

2. Connect the HDS to the data link connector (DLC).

3. Start the engine.

4. Check the ENGINE SPEED in the EPS DATA LIST

with the HDS.

Go to step 5.

The system is OK at this time.

5. Turn the ignition switch to LOCK (0).

6. Disconnect EPS control unit connector D (28P).

7. Start the engine.

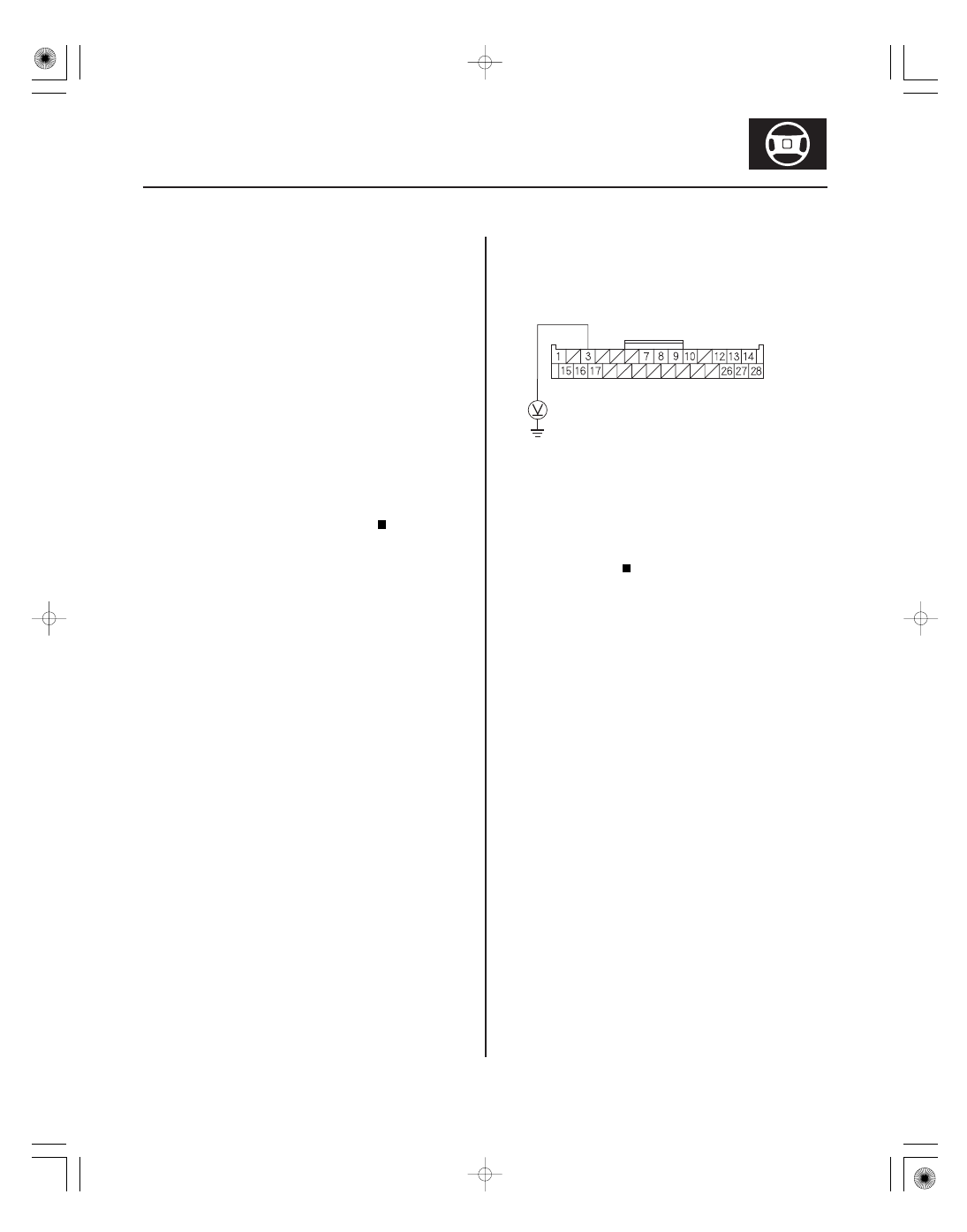

8. Measure the voltage between EPS control unit

connector D (28P) terminal No. 3 and body ground.

Check for loose terminals in the EPS control

unit connectors, and repair if necessary. If no poor
connections are found, replace the EPS control unit
(see page 17-84).

Go to step 9.

Wire side of female terminals

Is ther e 0 r pm at idle?

Is ther e any voltage?

08/08/21 14:54:04 61SNR030_170_0038
