A/T Gear Position Indicator Panel Light Harness/Park Pin Switch
Replacement

NOTE: The A/T gear position indicator light and the park
pin switch are not available separately. Replace the A/T
gear position indicator light and the park pin switch as a
set.

1. Remove the shift lever assembly (see page 14-254).

2. Loosen the A/T gear position indicator panel

(see page 14-256).

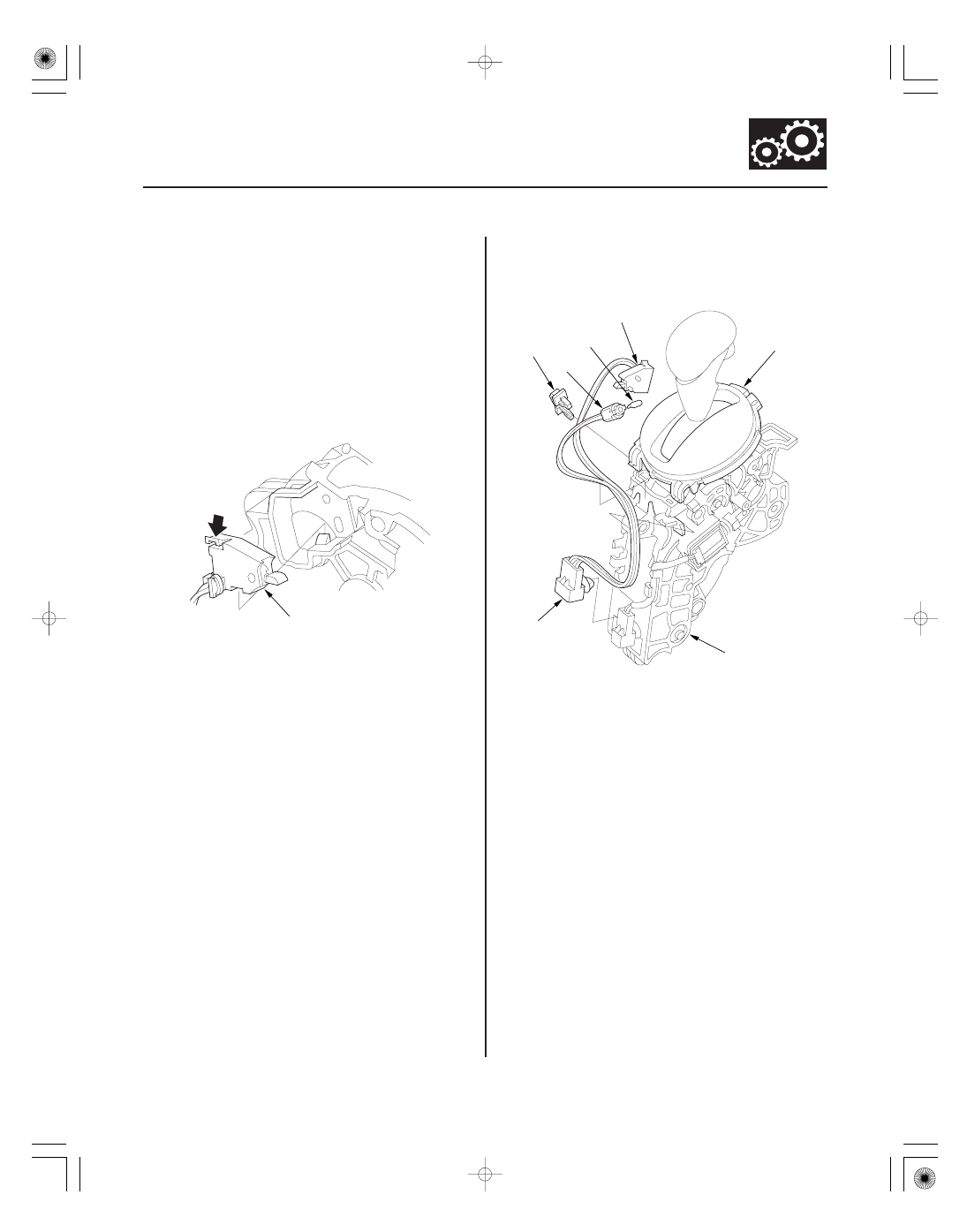

3. Remove the park pin switch (A) while pressing the

park pin switch lock (B).

4. Remove the A/T gear position indicator panel light

bulb (A) and the socket (B) from the indicator panel
(C), and remove the light bulb from the socket.

5. Remove the harness clamp (D), and remove the

park pin switch/A/T gear position indicator panel
light connector (E) from the shift lever assembly/
bracket base (F).

6. Install a new park pin switch (G) on the shift lever.

7. Install the A/T gear position indicator panel light

bulb in a new socket, and install it in the indicator
panel.

8. Clamp the harnesses together with the harness

clamp, then install the harness clamp on the shift
lever bracket base.

9. Route the harnesses along the harness guides, and

install a new connector in the bracket base.

10. Install the A/T gear position indicator panel

(see page 14-256).

11. Install the shift lever assembly (see page 14-255).

12. Install the center console (see page 20-92).

08/08/21 14:49:58 61SNR030_140_0271

０１

＊０１

ＳＮＲ９ＡＡ１Ｅ１０４１０７１２２４９ＫＢＡＴ５３

14-269

A/T Gear Position Indicator Panel Light Harness/Park Pin Switch
Replacement

NOTE: The A/T gear position indicator light and the park
pin switch are not available separately. Replace the A/T
gear position indicator light and the park pin switch as a
set.

1. Remove the shift lever assembly (see page 14-254).

2. Loosen the A/T gear position indicator panel

(see page 14-256).

3. Remove the park pin switch (A) while pressing the

park pin switch lock (B).

4. Remove the A/T gear position indicator panel light

bulb (A) and the socket (B) from the indicator panel
(C), and remove the light bulb from the socket.

5. Remove the harness clamp (D), and remove the

park pin switch/A/T gear position indicator panel
light connector (E) from the shift lever assembly/
bracket base (F).

6. Install a new park pin switch (G) on the shift lever.

7. Install the A/T gear position indicator panel light

bulb in a new socket, and install it in the indicator
panel.

8. Clamp the harnesses together with the harness

clamp, then install the harness clamp on the shift
lever bracket base.

9. Route the harnesses along the harness guides, and

install a new connector in the bracket base.

10. Install the A/T gear position indicator panel

(see page 14-256).

11. Install the shift lever assembly (see page 14-255).

12. Install the center console (see page 20-92).

08/08/21 14:49:58 61SNR030_140_0271

＋

＊０１

０１

０３

ＳＮＲ９ＡＡ１Ｅ１０４１０７４４８５２ＦＡＡＴ００

＋

−

YES

14-270

A/T Gear Position Indicator

Paddle Shifter + (Upshift Switch) Circuit Troubleshooting

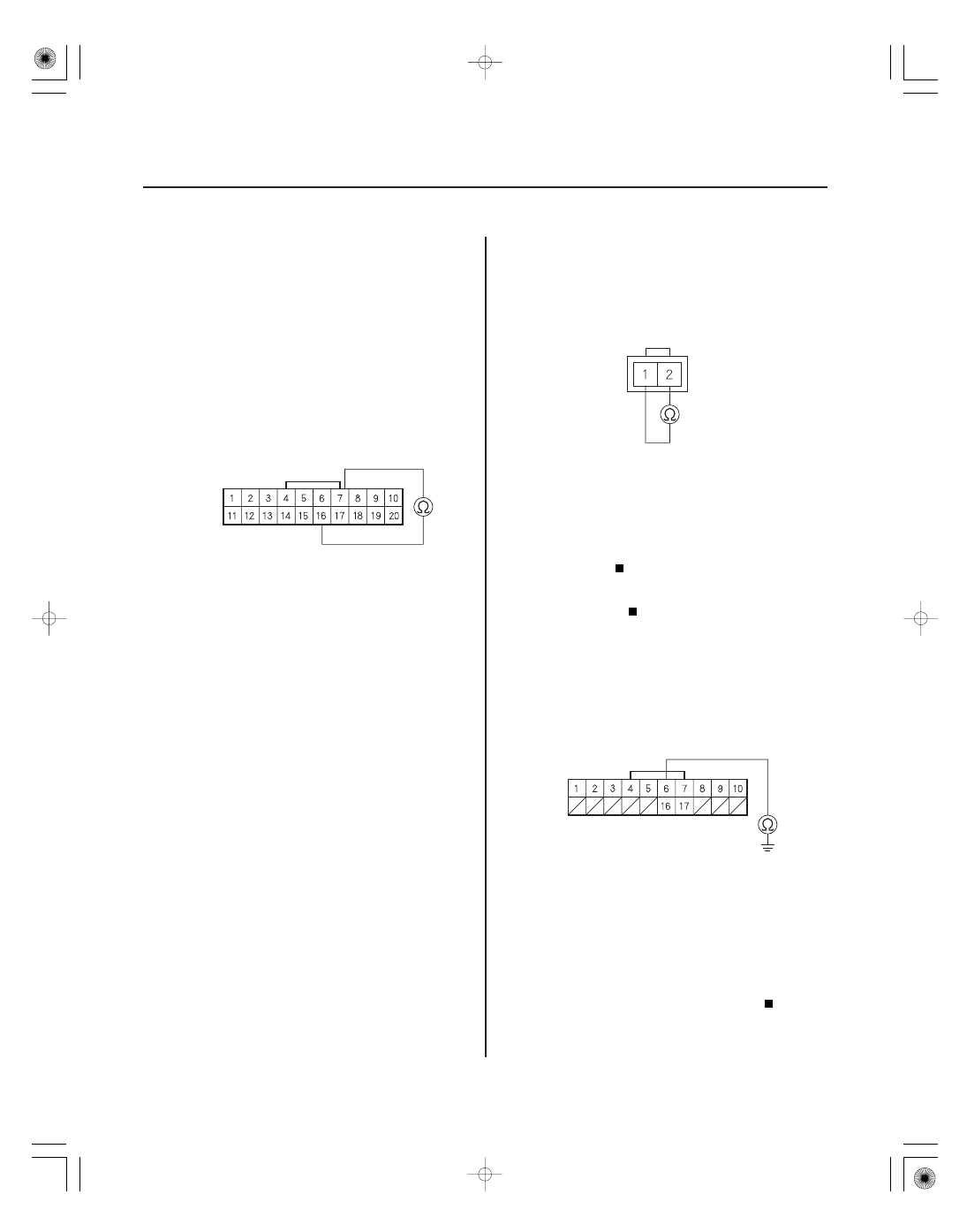

CABLE REEL SUBHARNESS 20P CONNECTOR

GND (LT GRN)

SUPP (GRN/ORN)

PADDLE SHIFTER
(UPSHIFT SWITCH) CONNECTOR

GND (BLK)

CABLE REEL 20P CONNECTOR

SRS components are located in this area. Review the
SRS component locations (see page 24-11) and the
precautions and procedures (see page 24-13) before
doing repair or service.

1. Remove the steering wheel (see page 17-6).

2. Check for continuity between cable reel subharness

20P connector terminals No. 7 and No. 16 when
pressing the paddle shifter

(upshift switch) and

when the switch is released.

Go to step 5.

Go to step 3.

3. Disconnect the paddle shifter

(upshift switch)

connector.

4. Check for continuity between the paddle shifter

(upshift switch) connector terminals when pressing
the switch and when the switch is released.

Replace the steering switch harness

(see page 17-7).

Replace the paddle shifter

(upshift switch)

(see page 14-276).

5. Remove the cable reel (see page 24-200).

6. Check for continuity between cable reel 20P

connector terminal No. 6 and body ground.

Go to step 7.

Repair open in the wire between cable reel

20P connector terminal No. 6 and body ground
(G504), or repair poor body ground (G504).

Wire side of female terminals

Terminal side of male terminals

Wire side of female terminals

Is ther e continuity when pr essing the paddle
shif ter

( upshif t switch) and no continuity when

the switch r eleased?

Is ther e continuity when pr essing the switch and
no continuity when the switch r eleased?

Is ther e continuity?

08/08/21 14:49:59 61SNR030_140_0272

＋

０４

０５

−

YES

14-271

SUPP (BLU)

CABLE REEL 20P CONNECTOR

SUPP (BLU)

CABLE REEL 20P CONNECTOR

GND (BLK)

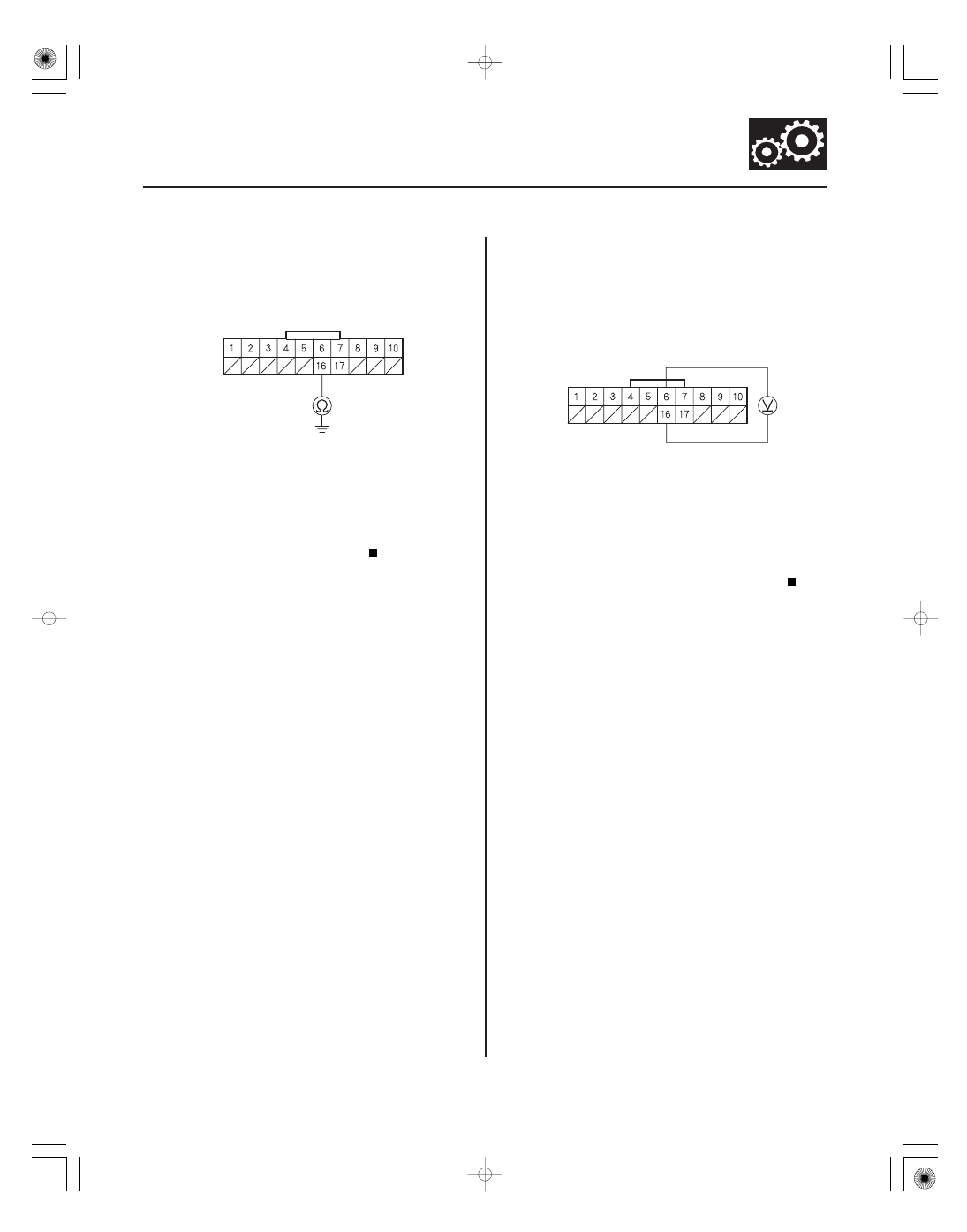

7. Check for continuity between cable reel 20P

connector terminal No. 16 and body ground.

Repair short to body ground in the wire

between cable reel 20P connector terminal No. 16
and PCM connector terminal B16.

Go to step 8.

8. Turn the ignition switch to ON (II), and shift to S.

9. Measure the voltage between cable reel 20P

connector terminals No. 6 and No. 16.

Replace the cable reel (see page 24-200).

Go to step 10.

Wire side of female terminals

Is ther e continuity?

Is ther e about batter y voltage in neutr al position
and no voltage when pr essing the paddle shif ter
( upshif t switch)?

08/08/21 14:49:59 61SNR030_140_0273
