30

31

32

33

14-241

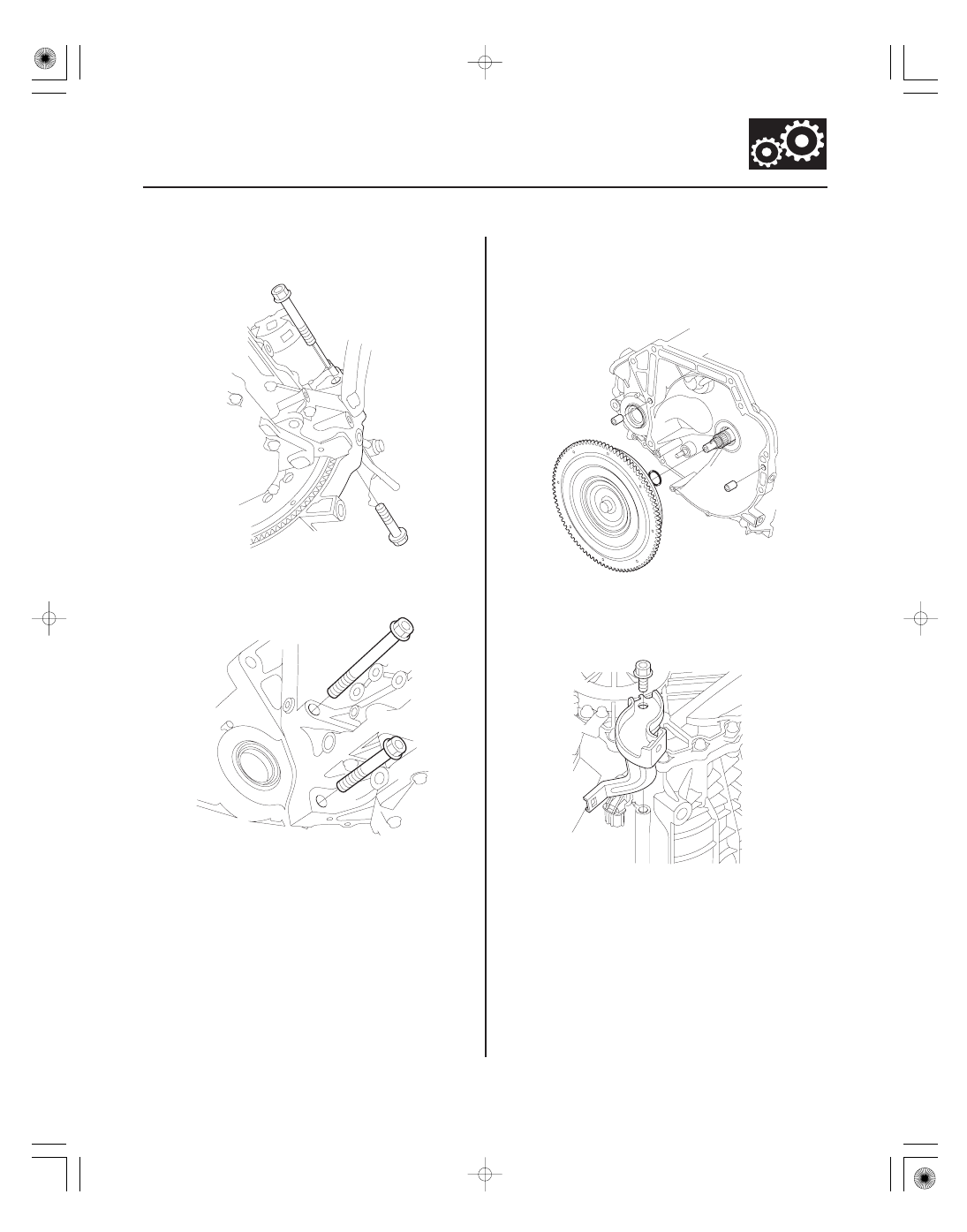

45. Remove the front transmission housing mounting

bolts.

46. Remove the rear transmission housing mounting

bolts.

47. Lower the transmission by loosening the wing nut

of the engine support hanger, and tilt the engine
just enough for the transmission to clear the side
frame.

48. Place a jack under the transmission.

49. Slide the transmission away from the engine to

remove it from the vehicle.

50. Remove the torque converter, the O-ring, and the

dowel pins.

51. Inspect the drive plate, and replace it if it is

damaged.

52. Remove the air cleaner housing mounting bracket.

08/08/21 14:48:42 61SNR030_140_0243

01

SNR9AA1E10410422251KDAT00

01

SNR9AA1E10410400000KCAT00

Special Tools Required

14-242

14-242

Automatic Transmission

Drive Plate Removal and
Installation

Transmission Installation

A

B

12 x 1.0 mm
74 N·m
(7.5 kgf·m, 54 lbf·ft)

6 x 1.0 mm
12 N·m (1.2 kgf·m, 8.7 lbf·ft)

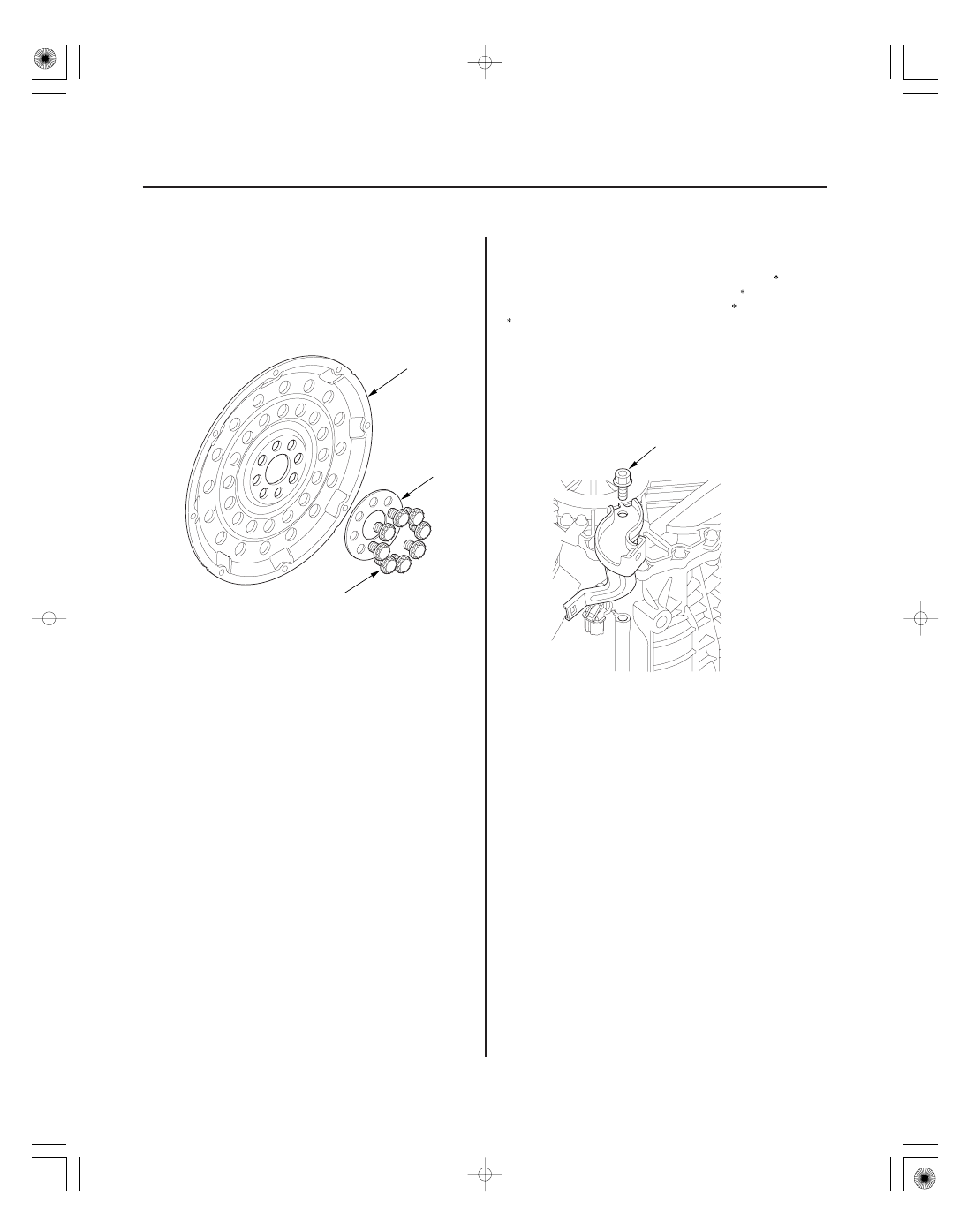

1. Remove the transmission assembly (see page

14-233).

2. Remove the drive plate (A) and the washer (B) from

the engine crankshaft.

3. Install the drive plate and the washer on the engine

crankshaft, and tighten the eight bolts in a
crisscross pattern in at least two steps.

4. Install the transmission assembly (see page 14-242).

• Engine hanger plate 07AAK-SNAA120
• Engine support hanger, A and Reds AAR-T1256
• 2006 Civic engine hanger VSB02C000025
• Front subframe adapter VSB02C000016

Available through Acura Canada Technical Tools
Department; Fax

866-398-8665/

e-mail: ch_technicaltools

ch.honda.com

NOTE: Use fender covers to avoid damaging painted
surfaces.

1. Install the air cleaner housing mounting bracket.

08/08/21 14:48:42 61SNR030_140_0244

*01

03

04

05

14-243

A

B

D

D

C

12 x 1.25 mm
64 N·m (6.5 kgf·m, 47 lbf·ft)

12 x 1.25 mm
64 N·m (6.5 kgf·m, 47 lbf·ft)

12 x 1.25 mm
64 N·m (6.5 kgf·m, 47 lbf·ft)

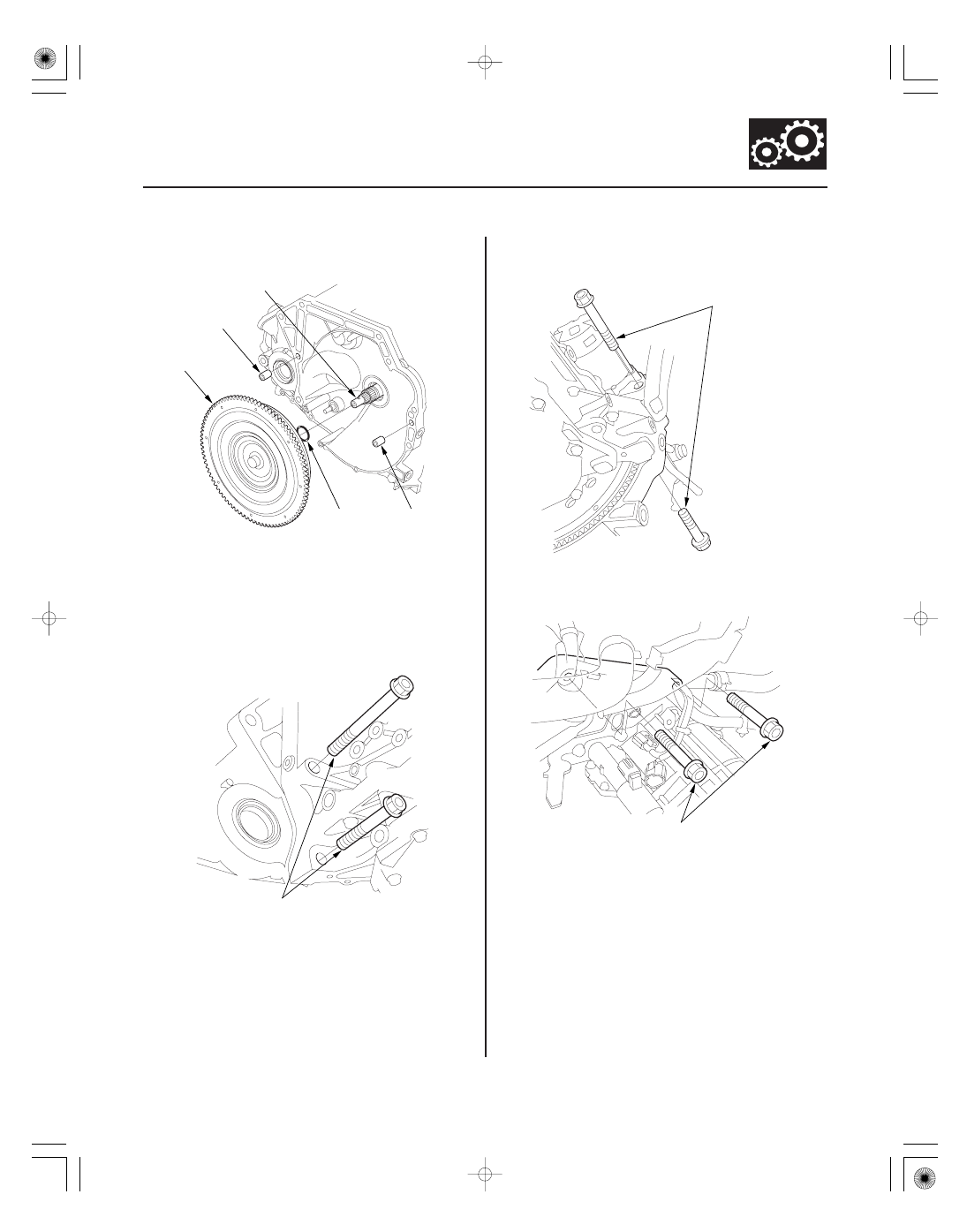

2. Install the torque converter (A) on the mainshaft (B)

with a new O-ring (C).

3. Install the 14 x 20 mm dowel pins (D) in the torque

converter housing.

4. Place the transmission on a jack, and raise the

transmission to the engine level.

5. Install the rear transmission housing mounting

bolts.

6. Install the front transmission housing mounting

bolts.

7. Install the upper transmission housing mounting

bolts.

Replace.

08/08/21 14:48:43 61SNR030_140_0245

06

07

08

14-244

Automatic Transmission

12 x 1.25 mm
59 N·m
(6.0 kgf·m, 43 lbf·ft)

10 x 1.25 mm
39 N·m
(4.0 kgf·m, 29 lbf·ft)

E
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

F
8 x 1.25 mm
22 N·m
(2.2 kgf·m, 16 lbf·ft)

D
8 x 1.25 mm
22 N·m (2.2 kgf·m, 16 lbf·ft)

A

B

C

A

B

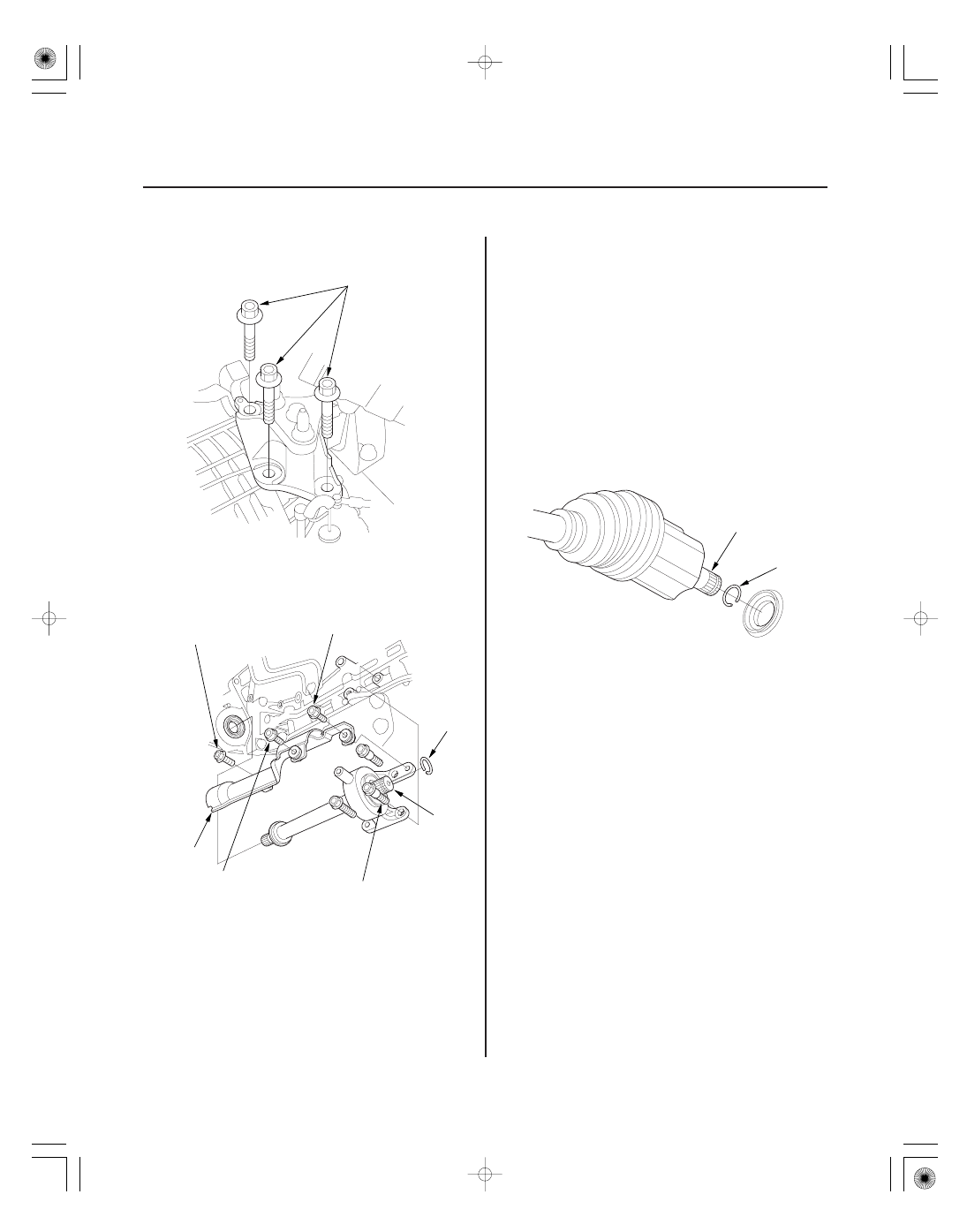

8. Secure the transmission mount bracket on the

transmission housing with new mounting bolts.

9. Install a new set ring (A) on the intermediate shaft

(B).

10. Clean the areas where the intermediate shaft

contacts the transmission (differential) with solvent,
and dry with compressed air. Apply intermediate
shaft splines with ATF, then install the intermediate
shaft, be sure not to allow dust or other foreign
particles to enter the transmission.

11. Install the intermediate shaft cover (C) with

installing the mounting bolts loosely.

12. First tighten the right upper bolt (D) on the cover,

then the right lower bolt (E), and lastly the left bolt
(F).

13. Install a new set ring (A) on the left driveshaft (B).

14. Clean the areas where the left driveshaft contacts

the transmission (differential) with solvent, and dry
with compressed air. Then install the left driveshaft,
be sure not to allow dust or other foreign particles
to enter the transmission. Turn the steering knuckle
fully outward, and slide the driveshaft into the
differential until you feel its set ring fully engage
the side gear.

15. Apply right driveshaft inboard-joint splines with the

recommended grease (P/N 08734-0001).

16. Slide the right driveshaft over the intermediate

shaft splines until you feel the driveshaft fully
engage the intermediate shaft set ring.

Replace.

08/08/21 14:48:44 61SNR030_140_0246
