How to Troubleshoot Circuits at the ECM/
PCM Connectors

11-6

Fuel and Emissions Systems

NOTE: The ECM/PCM overwrites data and monitors the
EVAP system for about 30 minutes after the ignition
switch is turned to LOCK (0) or ACC (I). Jumping the
SCS line after turning the ignition switch to LOCK (0) or
ACC (I) cancels this function. Disconnecting the ECM/
PCM during this function, without jumping the SCS line
first, can damage the ECM/PCM.

1. Make sure the ignition switch is turned to LOCK (0),

then jump the SCS line with the HDS.

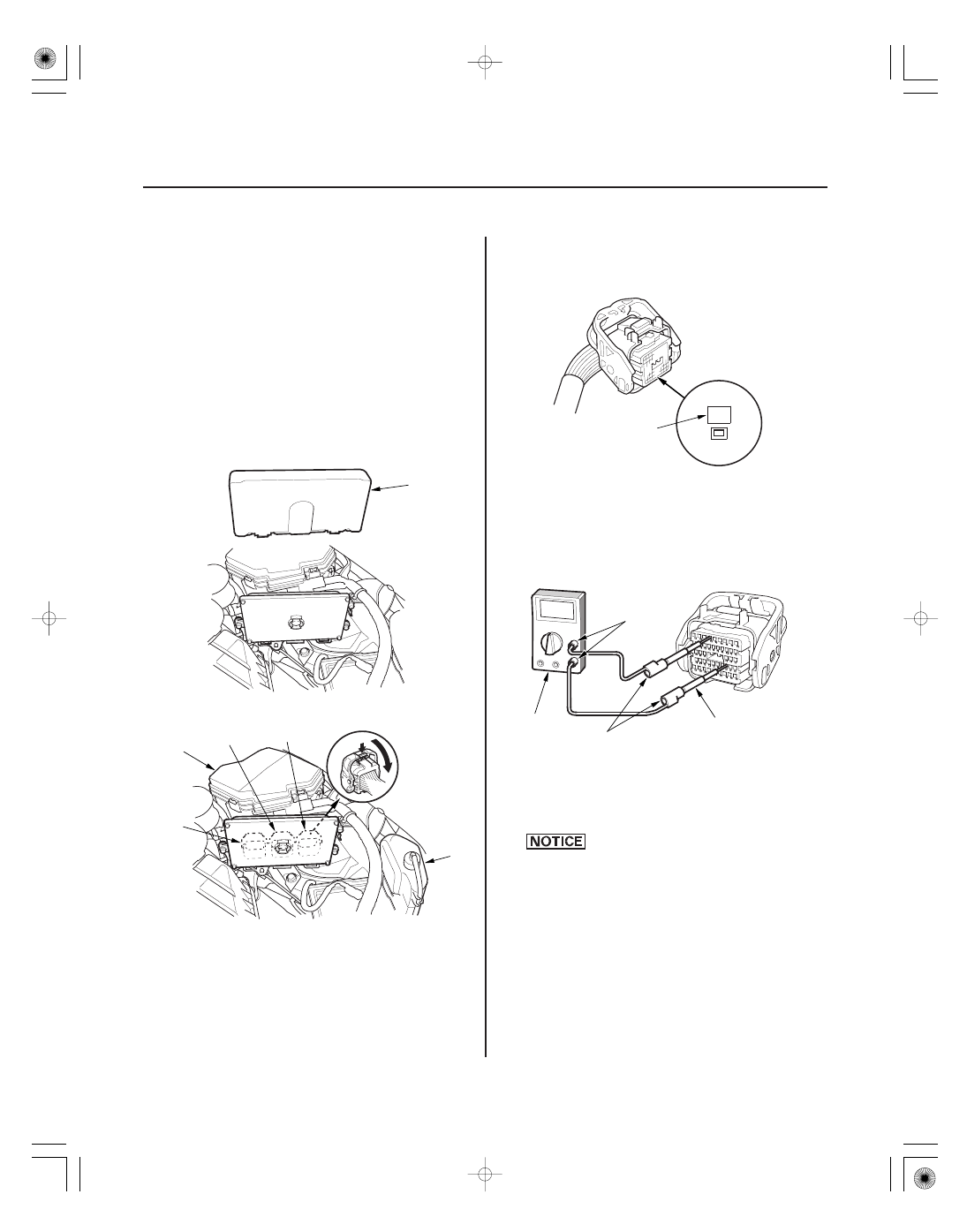

2. Remove the cover (A).

3. Lift up the under-hood fuse/relay box (D).

4. Remove the coolant reservoir (E). Disconnect ECM/

PCM connectors A, B, and C, and probe the
terminals from the terminal side of the connectors.

NOTE: ECM/PCM connectors A, B, and C have
symbols (A=

, B=

, C=

) embosed on them for

identification.

5. When diagnosis/troubleshooting is done at the

ECM/PCM connector, use the terminal test port (A)
above the terminal you need to check.

6. Connect one side of the patch cord’s terminals (A)

to a commercially available digital multimeter (B),
and connect the other side cord’s terminals (C) to a
commercially available banana jack (Pomona
Electronics Tool No. 3563 or equivalent) (D).

7. Gently contact the pin probe (male) at the terminal

test port from the terminal side. Do not force the
tips into the terminals.

• For accurate results, always use the pin

probe (male).

• To prevent damage to the connector

terminals, do not insert test equipment
probes, paper clips, or other substitutes as
they can damage the terminals. Damaged
terminals cause a poor connection and an
incorrect measurement.

• Do not puncture the insulation on a wire.

Punctures can cause poor or intermittent
electrical connections.

08/08/21 14:12:34 61SNR030_110_0006

□

△

○

０８

０９

１０

Substituting the ECM/PCM

Special Tools Required

11-7

D
9.8 N·m
(1.0 kgf·m,
7.2 lbf·ft)

• Honda diagnostic system (HDS) tablet tester
• Honda interface module (HIM) and an iN workstation

with the latest HDS software version

• HDS pocket tester
• GNA600 and an iN workstation with the latest HDS

software version

Any one of the above updating tools can be used.

NOTE: Use this procedure when you need to substitute
a known-good ECM/PCM during troubleshooting
procedures.

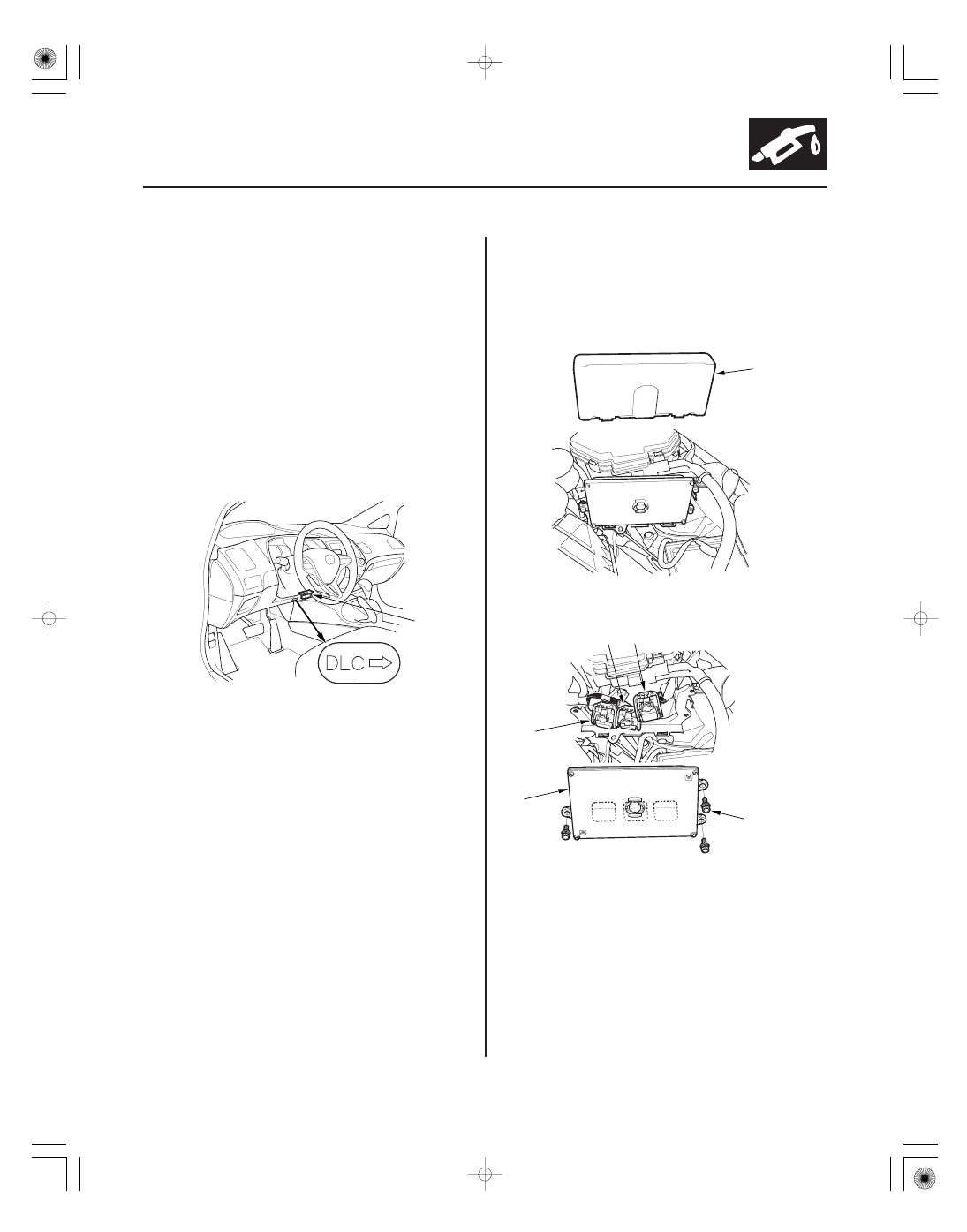

1. Connect the HDS to the data link connector (DLC)

(A) located under the driver’s side of the dashboard.

2. Turn the ignition switch to ON (II).

3. Make sure the HDS communicates with the ECM/

PCM and other vehicle systems. If it doesn’t, go to
the DLC circuit troubleshooting (see page 11-204). If
you are returning from DLC circuit troubleshooting,
skip step 4 and 5, and clean the throttle body after
substituting the ECM/PCM (see page 11-344).

4. Select the INSPECTION MENU with the HDS.

5. Select the ETCS TEST, then select the TP POSITION

CHECK, and follow the screen prompts.

NOTE: If the TP POSITION CHECK indicates FAILED,
continue this procedure.

6. Turn the ignition switch to LOCK (0).

7. Jump the SCS line with the HDS.

8. Do the battery removal procedure (see page 22-69).

9. Remove the cover (A).

10. Remove the bolts (D), then remove the ECM/PCM

(E).

11. Disconnect ECM/PCM connectors A, B, and C.

NOTE: ECM/PCM connectors A, B, and C have
symbols (A=

, B=

, C=

) embossed on them for

identification.

12. Install the parts in the reverse order of removal.

08/08/21 14:12:35 61SNR030_110_0007

OBD Status

11-8

Fuel and Emissions Systems

13. Do the battery installation procedure (see page

22-69).

14. Turn the ignition switch to ON (II).

NOTE: DTC P0630 VIN Not Programmed or
Mismatch may be stored because the VIN has not
been programmed into the ECM/PCM; ignore it,
and continue this procedure.

15. Manually input the VIN to the ECM/PCM with the

HDS.

16. Select the IMMOBI SYSTEM with the HDS.

17. Enter the immobilizer code that you got from the iN,

or use the ECM/PCM replacement procedure in the
HDS; this allows you to start the engine.

18. Reset the ECM/PCM with the HDS.

19. If the TP POSITION CHECK failed in step 5, clean

the throttle body (see page 11-344).

20. Update the ECM/PCM if it does not have the latest

software (see page 11-227).

21. Do the ECM/PCM idle learn procedure (see page

11-310).

22. Do the CKP pattern clear/CKP pattern learn

procedure.

The OBD status shows the current system status of
each DTC and all of the parameters. This function is
used to see if the repair was successfully completed.
The results of diagnostic tests for the DTC are displayed
as:

• PASSED: The on board diagnosis is successfully

finished.

• FAILED: The on board diagnosis has finished but

failed.

• EXECUTING: The vehicle is in enable criteria

conditions for the DTC and the on board diagnosis is
running.

• NOT COMPLETED: The on board diagnosis was

running but is out of the enable conditions of the DTC.

• OUT OF CONDITION: The vehicle has stayed out of

the enable conditions for the DTC.

08/08/21 14:12:35 61SNR030_110_0008

―――

○
○

―――
―――
―――
―――

○

―――
―――

○

―――
―――
―――
―――

○

○
○
○

―――
―――

○

―――

○
○

―――

○
○

―――
―――

○

○
○
○
○
