K20Z2 engine
K20Z3 engine
7-33

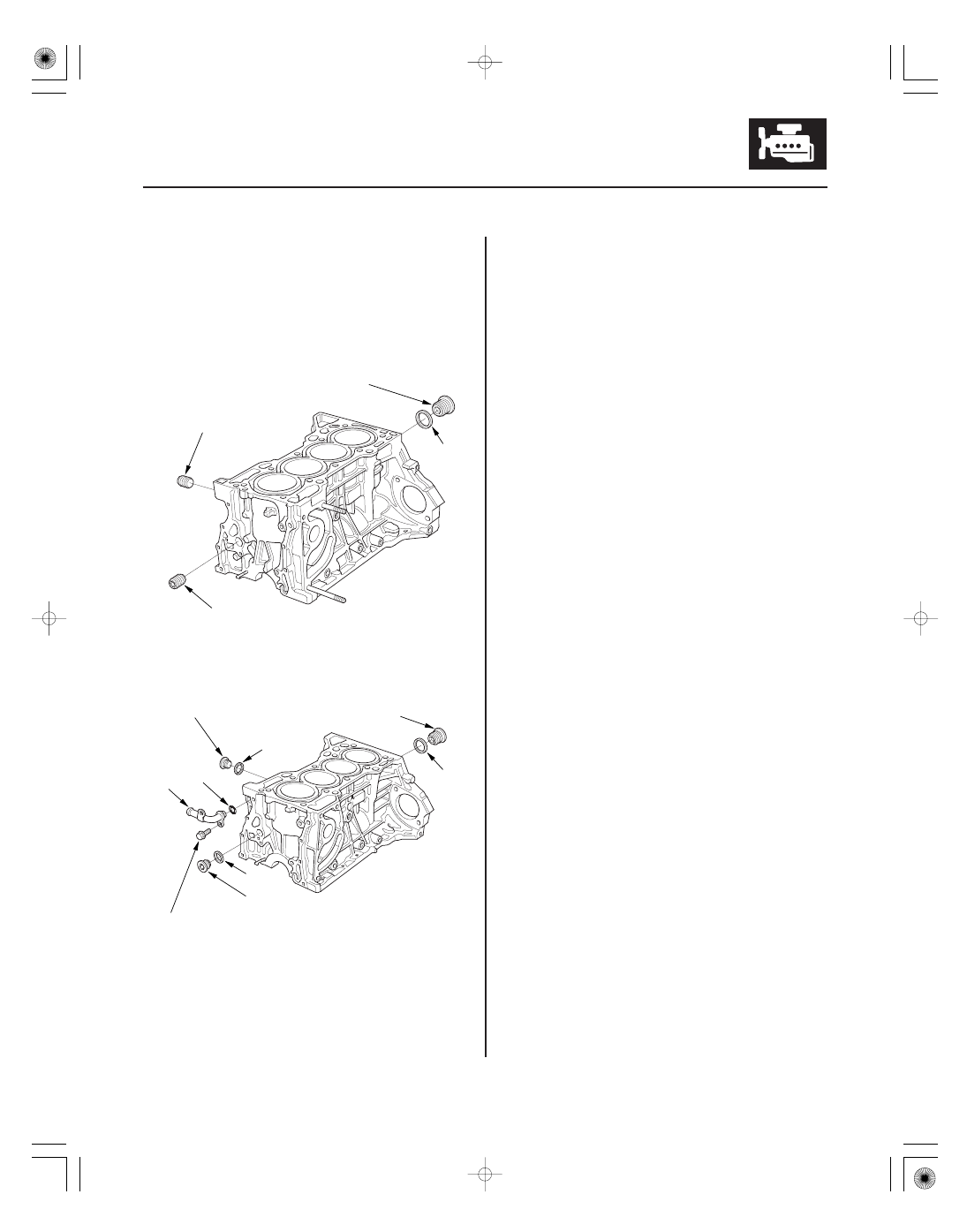

Sealing Bolt Installation
A
18 x 1.0 mm
34 N·m
(3.5 kgf·m, 25 lbf·ft)
A
28 x 1.5 mm
100 N·m (10.0 kgf·m, 72.3 lbf·ft)
A
20 x 1.0 mm
34 N·m (3.5 kgf·m, 25 lbf·ft)
B
A
28 x 1.0 mm
83 N·m
(8.5 kgf·m, 61 lbf·ft)
A
28 x 1.5 mm
100 N·m
(10.0 kgf·m, 72.3 lbf·ft)
6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)
A
20 x 1.0 mm
34 N·m (3.5 kgf·m, 25 lbf·ft)
B
D
B
B
C
NOTE:
• When installing the sealing bolts (A), always use a
new washer (B).
• When installing the joint pipe (C), always use a new
O-ring (D).
