Fig. 49: Identifying Mounting Screw And Scuff Band
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the protector (A) from the cushion frame, then remove the hog-ring clips (B).

Fig. 50: Identifying Protector And Hog-Ring Clips
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the frame (A).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 29

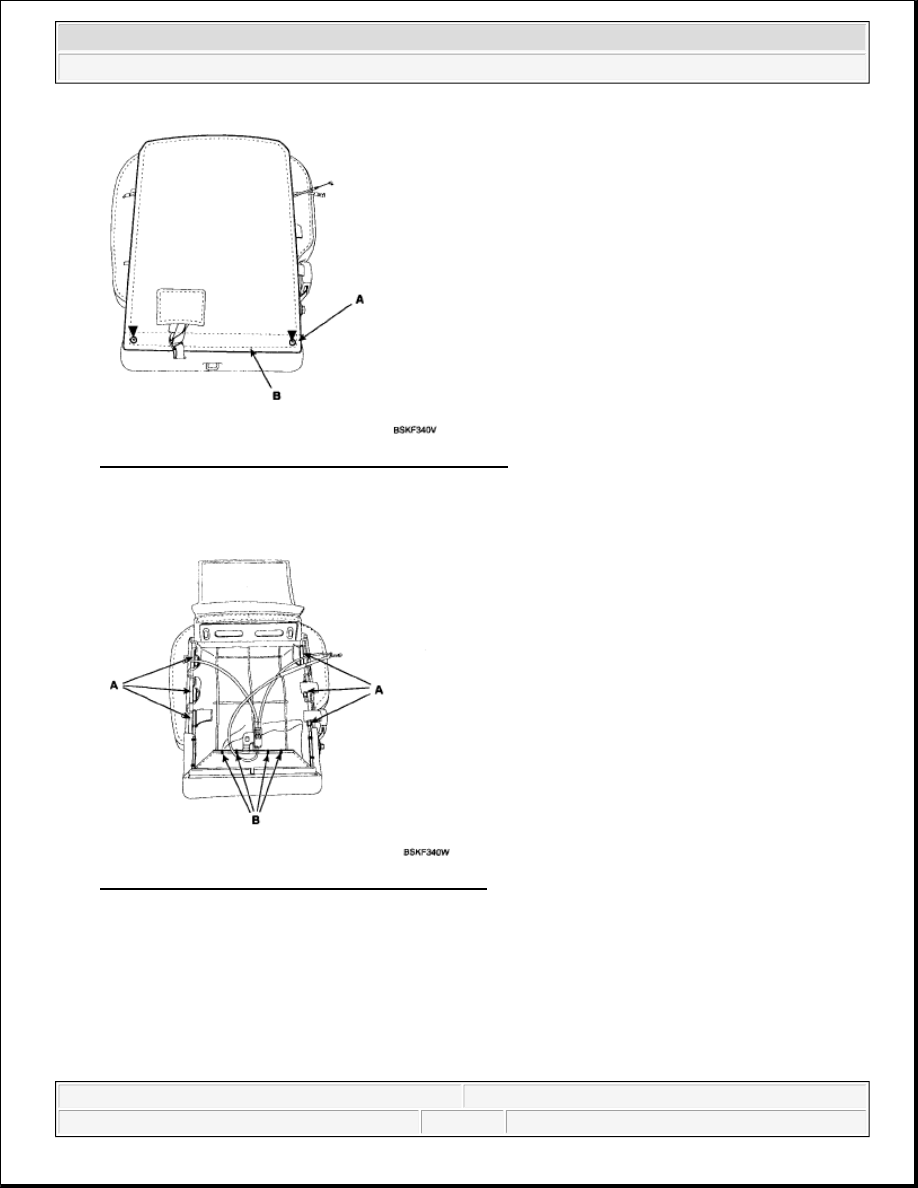

Fig. 51: Identifying Frame
Courtesy of KIA MOTORS AMERICA, INC.

9. After removing the hog-ring clips (A) on the front of seat back remove the back cover (B).

Fig. 52: Identifying Hog-Ring Clips And Back Cover
Courtesy of KIA MOTORS AMERICA, INC.

10. Installation is the reverse of removal.



To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing
the hog-ring clips (B).



Replace the hog-ring clips with new ones using special tool (C).

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 30

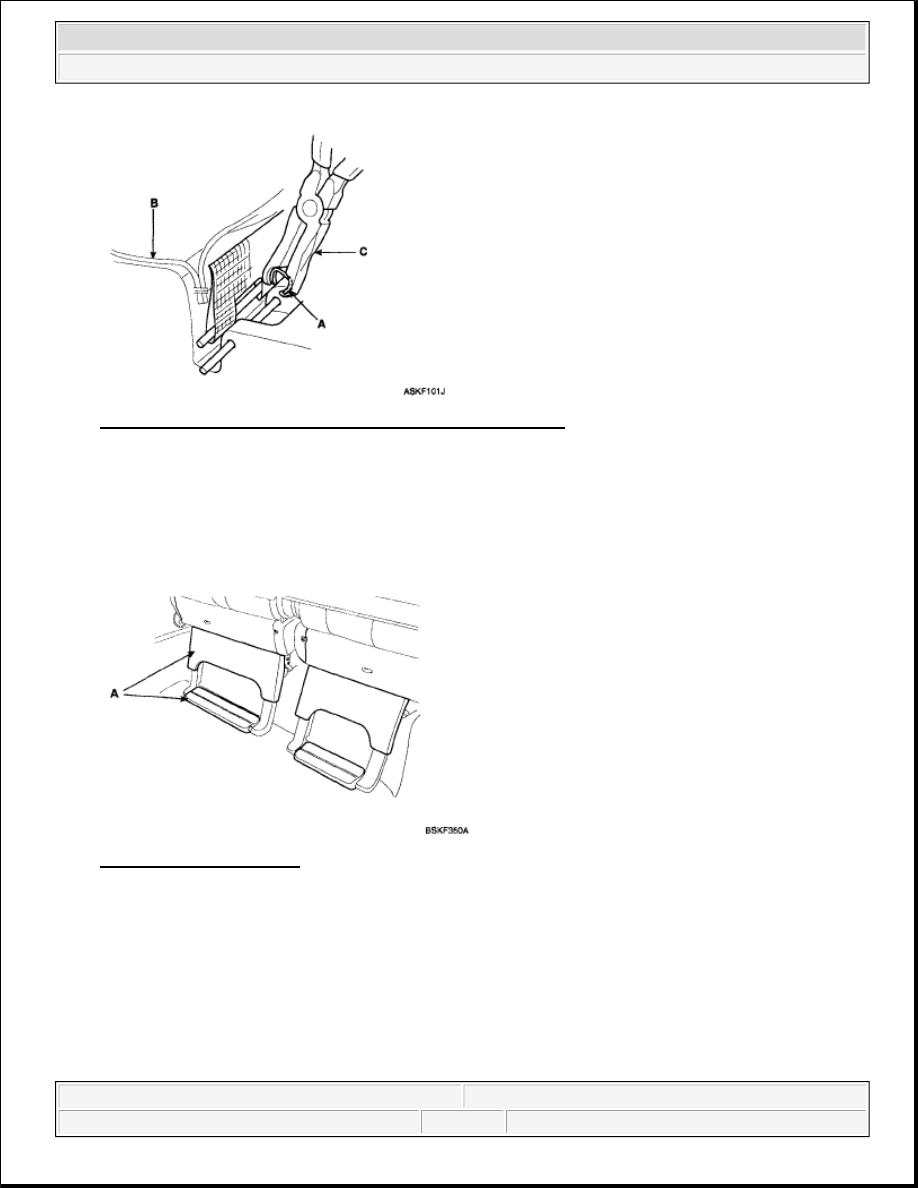

Fig. 53: Identifying Cover, Hog-Ring Clips And Special Tool
Courtesy of KIA MOTORS AMERICA, INC.

THIRD SEAT

SEAT ASSEMBLY REPLACEMENT

1. Remove the cover (A).

Fig. 54: Identifying Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the mounting bolt.

2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona

Microsoft

Monday, May 24, 2010 3:50:58 PM

Page 31

Fig. 55: Identifying Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the seat assembly (A).

Fig. 56: Identifying Seat Assembly
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

RECLINER COVER REPLACEMENT

1. Remove the recliner cover (A).
