Fig. 22: Identifying Cover, Hog-Ring Clips With Special Tool
Courtesy of KIA MOTORS AMERICA, INC.

SEAT BACK FRAME REPLACEMENT

1. Remove the following items.



Recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.



Seat back panel. See ARMREST REPLACEMENT.



Headrest guide. See SEAT CUSHION COVER REPLACEMENT.



Seat back cover. See ARMREST REPLACEMENT.

2. Remove the pad (A) from frame (B).

CAUTION:



Remove the side air bag for replacing side air bag installation
seat.



Before service, be fully aware of precautions and service
procedure relevant to air bag. See AIR BAG MODULE (SIDE AIR
BAG) .



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

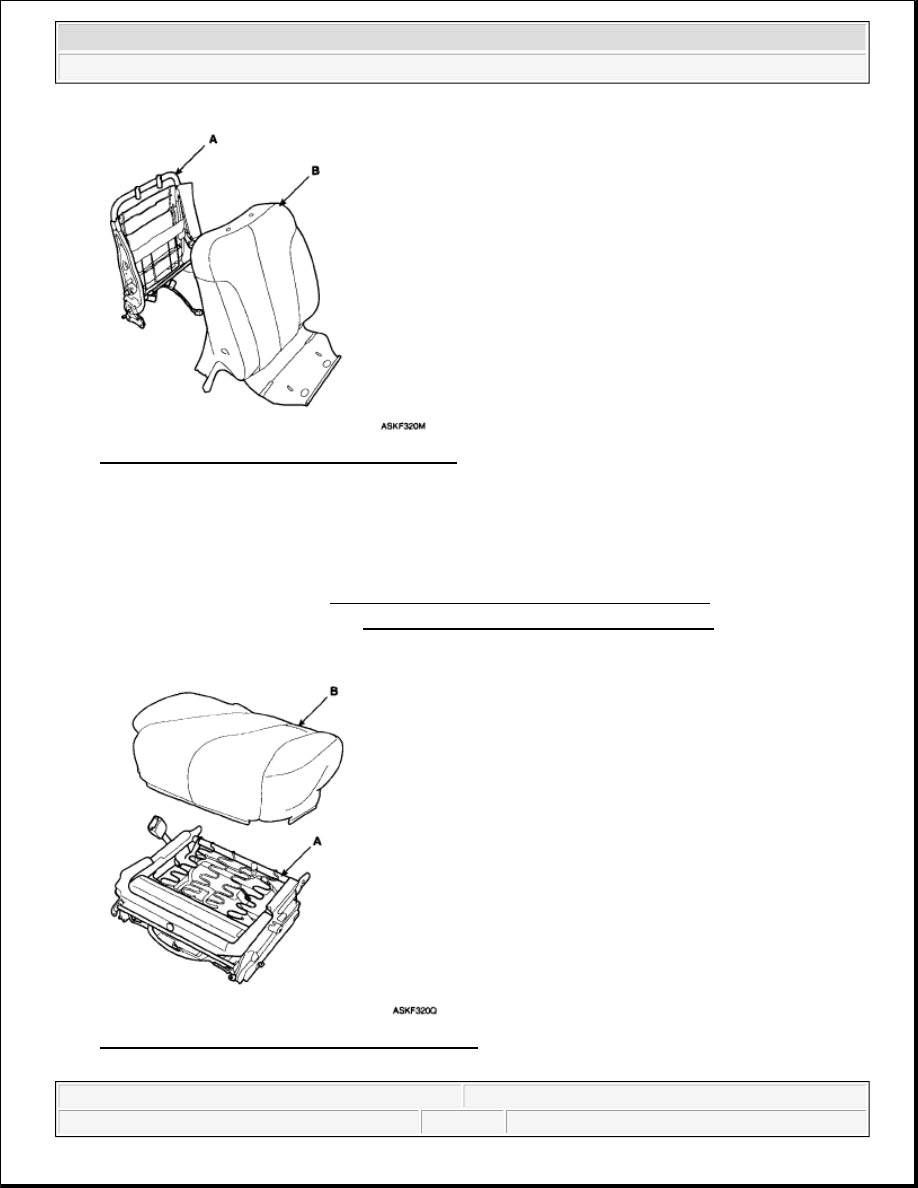

Fig. 23: Identifying Seat Pad And Back Frame
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

SEAT TRACK REPLACEMENT

1. Remove the recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.

2. Remove the seat cushion cover. See SEAT CUSHION COVER REPLACEMENT.

3. Remove the seat track (A).

Fig. 24: Identifying Seat Cushion Pad And Track
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

4. Installation is the reverse of removal.

SEAT BACK HEATER REPLACEMENT

1. Remove the seat back cover. See ARMREST REPLACEMENT.

2. Cut the heater (A) attached to the pad (B), as shown. See Fig. 25.

3. Take off the paper from the backside of the heater assembly.

4. Attach the heater to the main part of pad.

5. Install the seat back cover.

Fig. 25: Identifying Heater And Pad
Courtesy of KIA MOTORS AMERICA, INC.

SEAT CUSHION HEATER REPLACEMENT

1. Remove the seat back cover. See ARMREST REPLACEMENT.

2. Cut the heater (A) attached to the pad (B), as shown. See Fig. 26.

3. Take off the paper from the backside of the heater assembly.

4. Attach the heater to the main part of pad.

5. Install the seat back cover.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

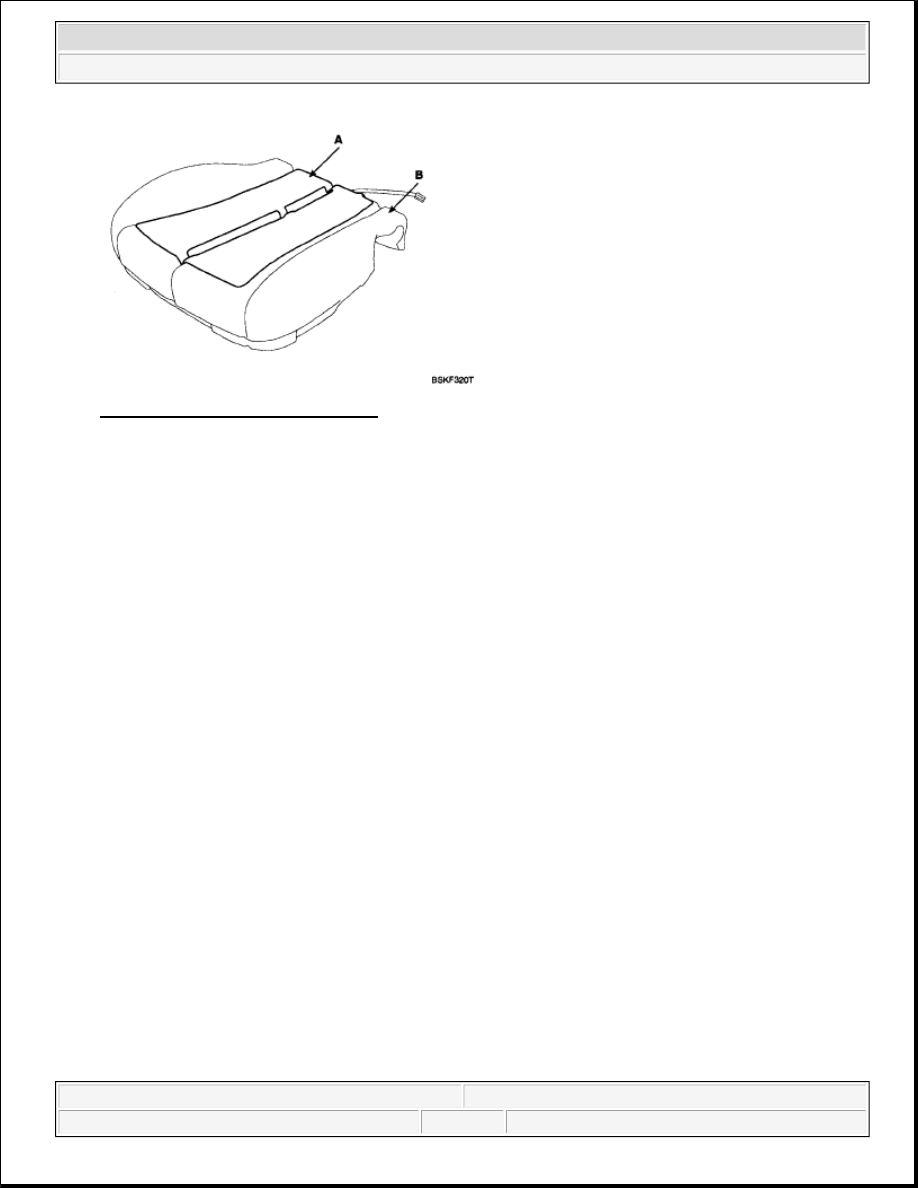

Fig. 26: Identifying Heater And Pad
Courtesy of KIA MOTORS AMERICA, INC.

REAR SEAT

COMPONENTS

SECONDARY SEAT
