Kia Sedona (2008 year). Manual - part 511

Fig. 14: Identifying Hog-Ring Clips And Seat Back Cover
Courtesy of KIA MOTORS AMERICA, INC.

11. Installation is the reverse of removal.



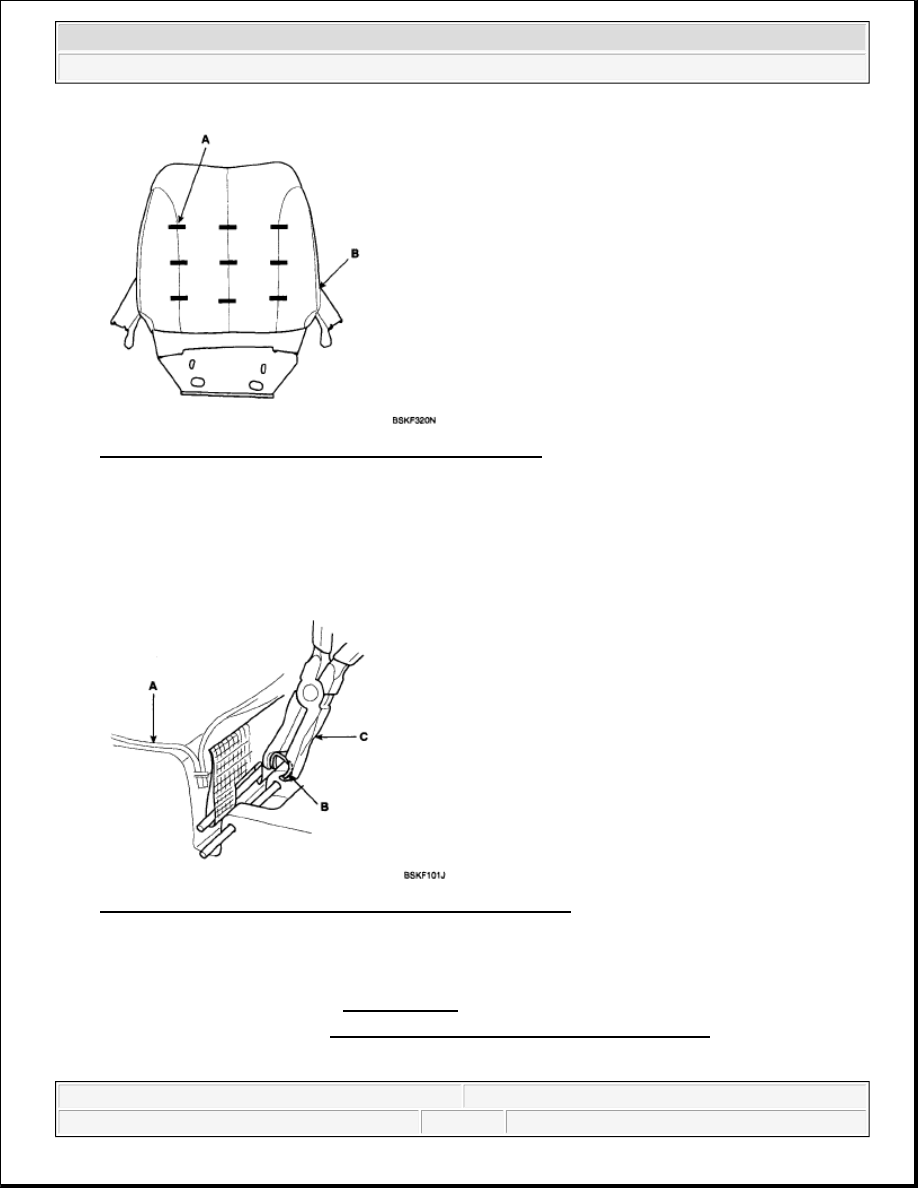

To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing
the hog-ring clips (B)



Replace the hog-ring clips with new ones using special tool (C).

Fig. 15: Identifying Cover, Hog-Ring Clips With Special Tool
Courtesy of KIA MOTORS AMERICA, INC.

SEAT CUSHION COVER REPLACEMENT

1. Remove front seat assembly. See FRONT SEAT.

2. Remove the recliner cover. See LUMBAR SUPPORT LEVER REPLACEMENT.

3. Disconnect the scuff band.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

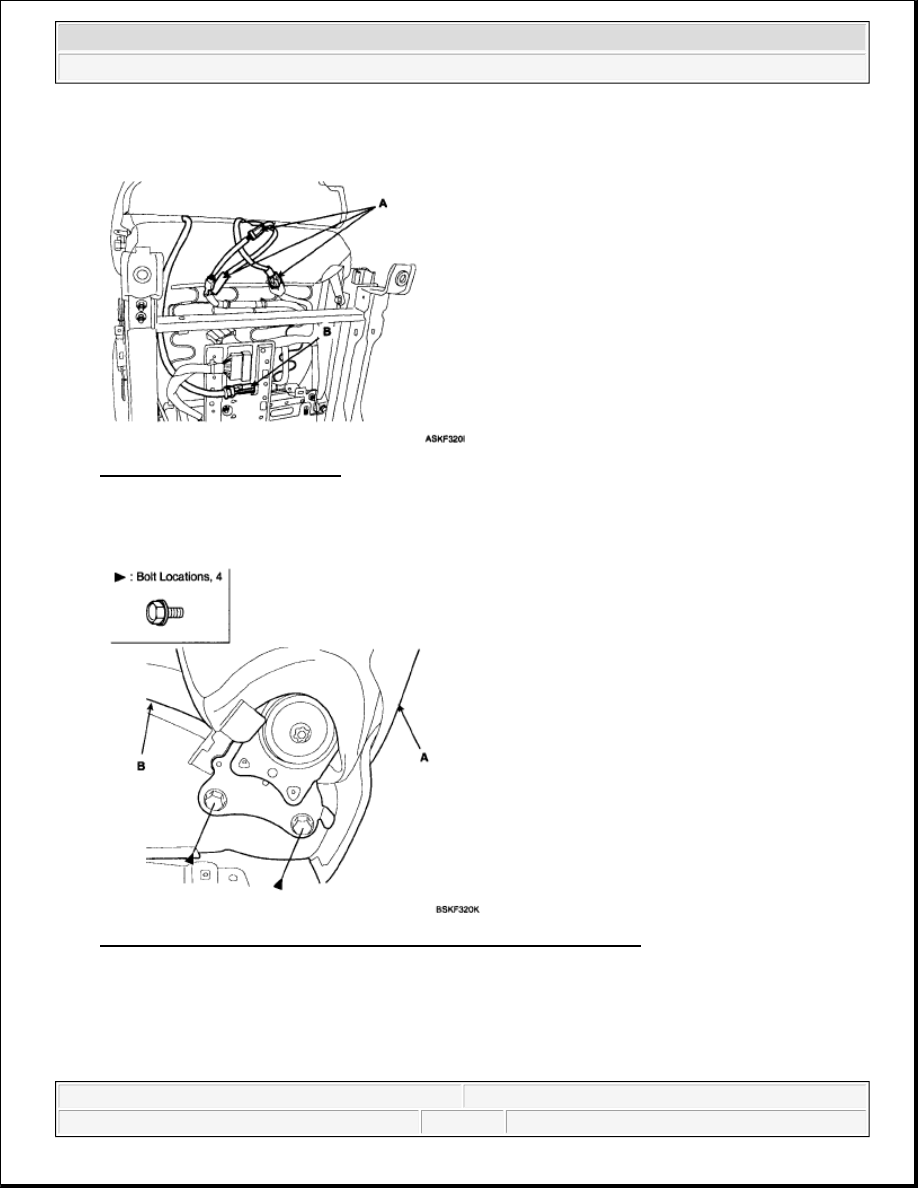

4. Disconnect the connector (A), (B).

Fig. 16: Identifying Connectors
Courtesy of KIA MOTORS AMERICA, INC.

5. Loosen the mounting bolts, then remove the seat back assembly (A).

Fig. 17: Identifying Seat Back Assembly With Mounting Bolt Location
Courtesy of KIA MOTORS AMERICA, INC.

6. Loosen the mounting bolts, then remove the seat leg assembly (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 18: Identifying Seat Leg Assembly With Mounting Nuts Location
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the protector (A) from the cushion frame, then remove the hog-ring clips (B).

Fig. 19: Identifying Protector With Hog-Ring Clips
Courtesy of KIA MOTORS AMERICA, INC.

8. Disconnect the seat cushion pad (B) from the track (A).



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Seat - Sedona



Microsoft



Monday, May 24, 2010 3:50:58 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

Fig. 20: Identifying Seat Cushion Pad And Track
Courtesy of KIA MOTORS AMERICA, INC.

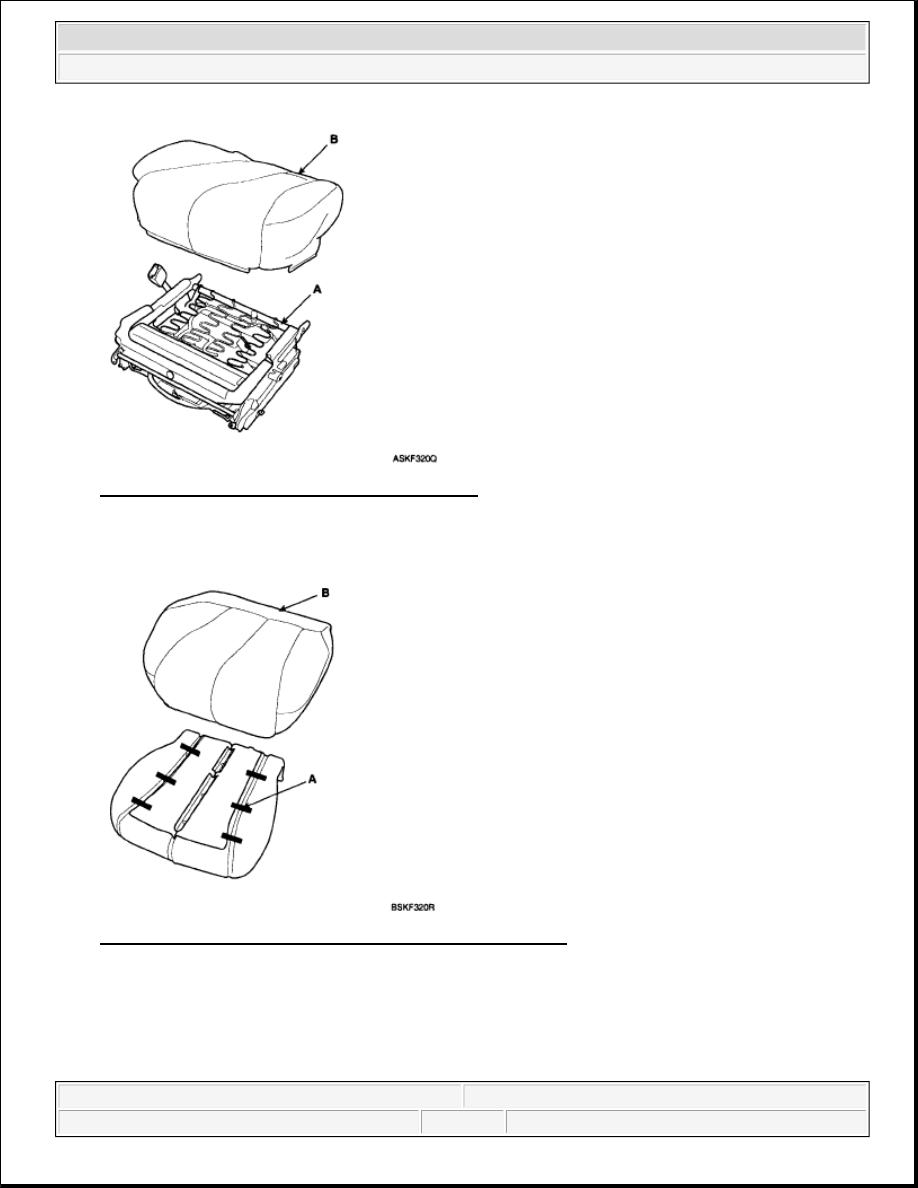

9. After removing the hog-ring clips (A) on the front of seat cushion remove the seat cushion cover (B).

Fig. 21: Identifying Hog-Ring Clips And Seat Cushion Cover
Courtesy of KIA MOTORS AMERICA, INC.

10. Installation is the reverse of removal.



To prevent wrinkles, make sure the material is stretched evenly over the cover (A) before securing
the hog-ring clips (B).



Replace the hog-ring clips with new ones using special tool (C).
