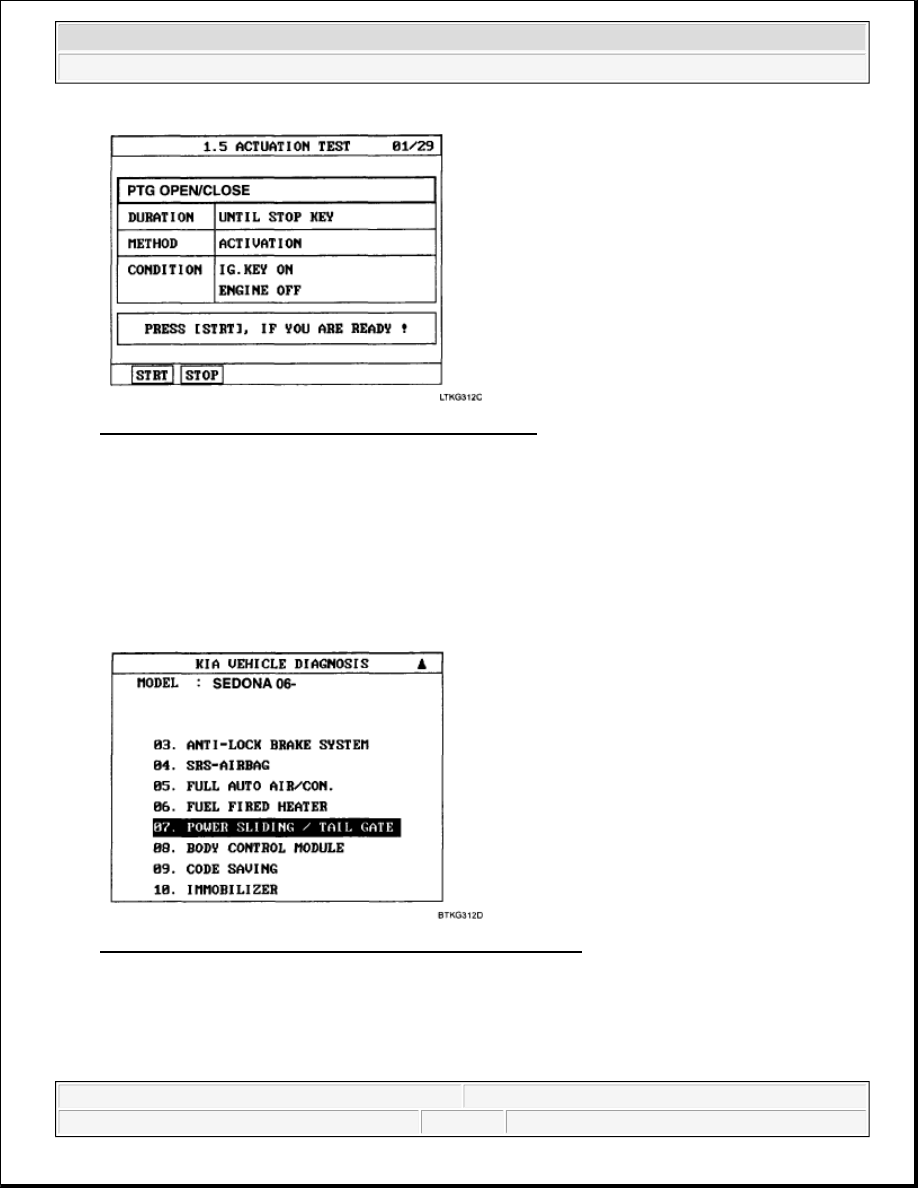

Fig. 10: Identifying Scan Tool Display - PTG Open/Close
Courtesy of KIA MOTORS AMERICA, INC.

5. If there is no working in actuator, change the drive unit.

OPTICAL SENSOR INSPECTION

1. Check the power tailgate control module input/output value by using the diagnostic tool. If the operation

of tailgate control module is abnormal, replace power tailgate drive unit.

2. When checking the optical sensor, select a vehicle type and "POWER SLIDING/TAILGATE" menu.

Fig. 11: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

3. Select "POWER TAILGATE".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

Fig. 12: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the optical sensor volt while operating power tailgate in power

mode.

Fig. 13: Identifying Scan Tool Display - Optical Sensor Volt
Courtesy of KIA MOTORS AMERICA, INC.

5. Change the drive unit, if there is no change during operation.

DRIVE UNIT CLUTCH INSPECTION

1. Check the power tailgate control module input/output value by using the diagnostic tool. If the operation

of tailgate control module is abnormal, replace power tailgate drive unit.

2. To check the clutch operation, select a vehicle type and "POWER SLIDING/TAILGATE" menu.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 16

© 2006 Mitchell Repair Information Company, LLC.

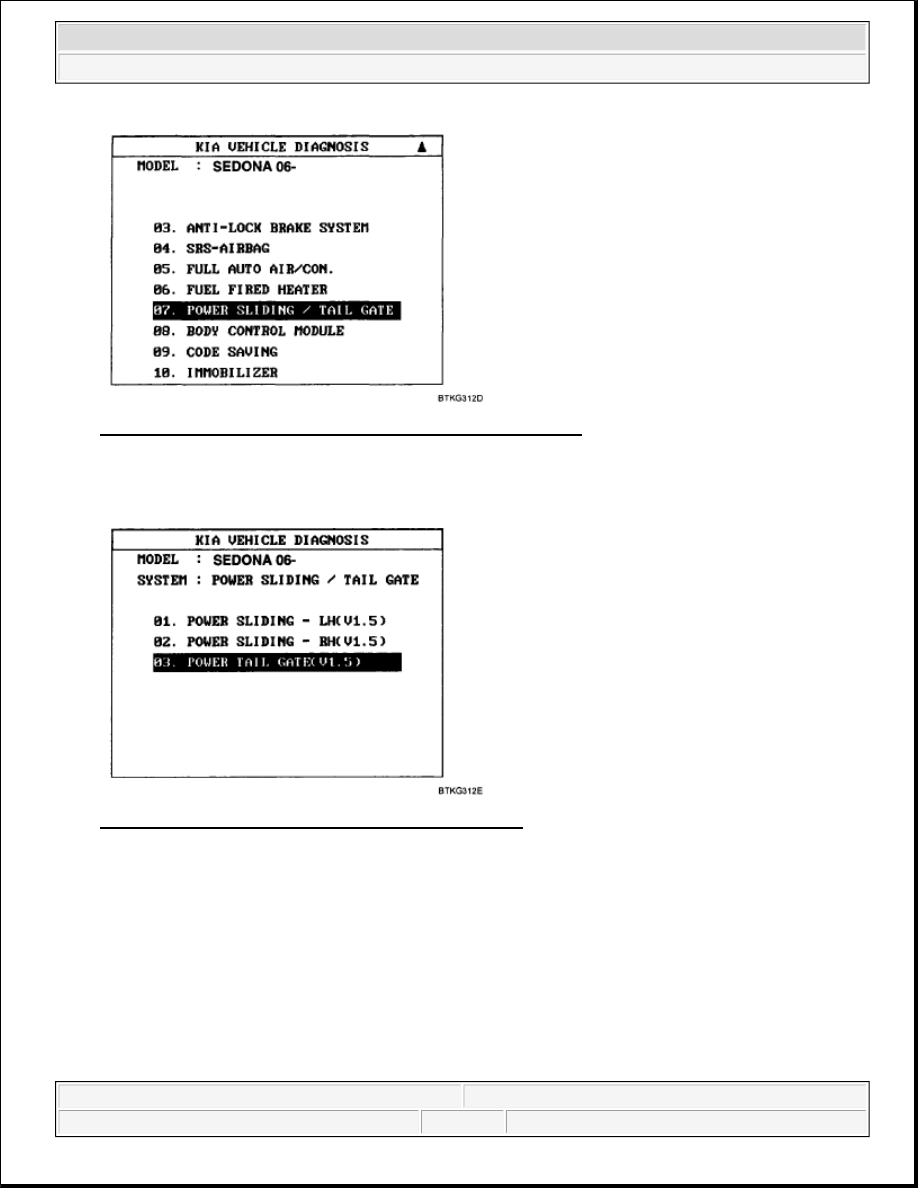

Fig. 14: Identifying Scan Tool Display - Power Sliding/Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

3. Select power tailgate.

Fig. 15: Identifying Scan Tool Display - Power Tailgate
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the clutch feedback sensor output while operating power tailgate

in power mode.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Tailgate System - Sedona



Microsoft



Monday, May 24, 2010 4:16:59 PM

Page 17

© 2006 Mitchell Repair Information Company, LLC.

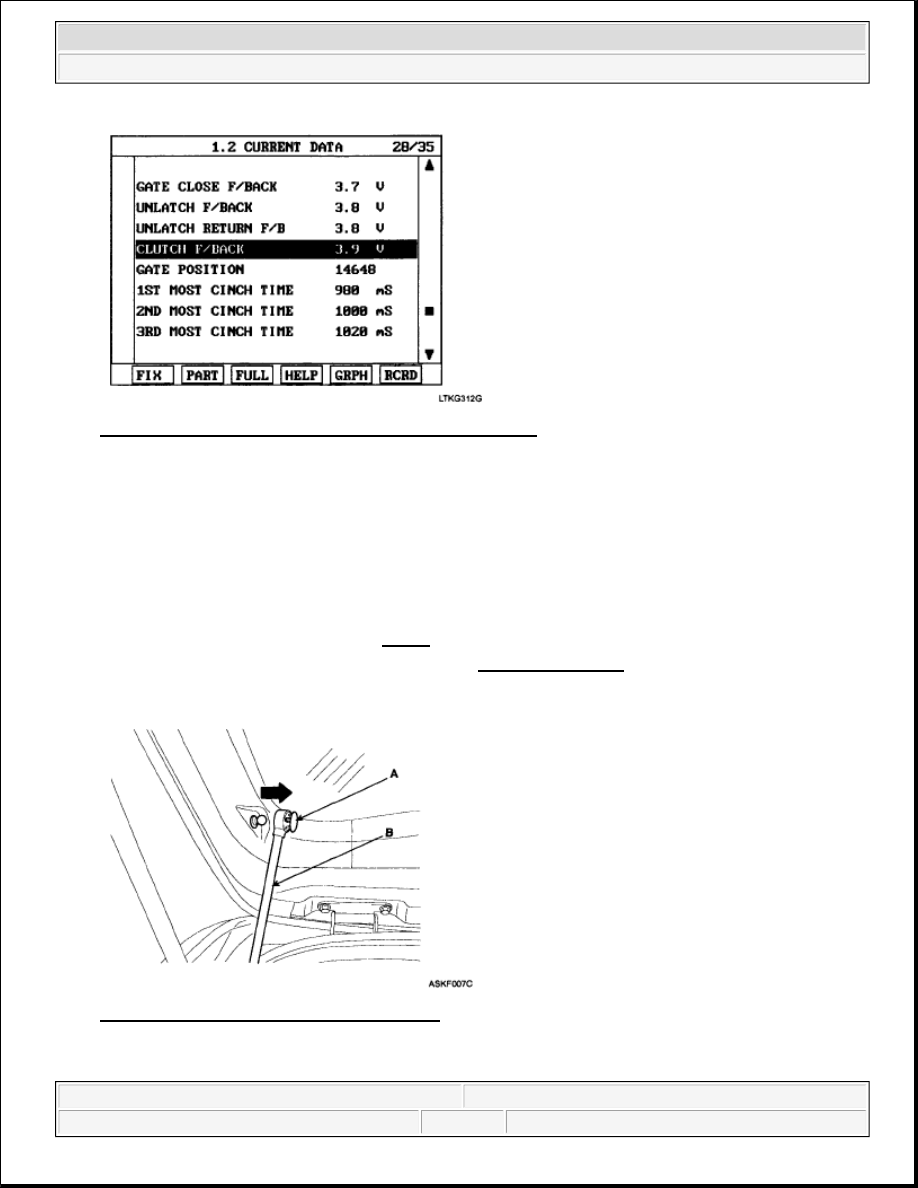

Fig. 16: Identifying Scan Tool Display - Clutch Feedback
Courtesy of KIA MOTORS AMERICA, INC.

Above voltage and numerical value may be different from the real value.

5. Change the drive unit, if there is no change during operation.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the third, fourth seat. Refer to SEAT .

3. Remove the D pillar and luggage side trim. Refer to INTERIOR TRIM .

4. Use a small screw driver to loosen clip (A). But do not remove power tailgate push rod (B).

Fig. 17: Identifying Clip And Tailgate Lifter
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the power tailgate motor mounting bolts (3EA) and connectors (4EA). And then remove the
