Fig. 24: Identifying Roller Hinge Bracket Assembly
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the front cable (A) from center roller hinge (B).

Fig. 25: Identifying Front Cable And Center Roller Hinge
Courtesy of KIA MOTORS AMERICA, INC.

9. Loosen the bolts (2EA) and remove the rear pulley bracket (A). And then remove the front pulley bracket

(B) after loosening the mounting bolts (2EA) and nut (1EA).

TORQUE: 0.07-0.11 N.m (0.007-0.011 kg.m)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 23

© 2006 Mitchell Repair Information Company, LLC.

Fig. 26: Identifying Rear And Front Pulley Brackets
Courtesy of KIA MOTORS AMERICA, INC.

10. Loosen the mounting bolt (1EA) and nuts (2EA). And then remove the power sliding door drive unit

assembly after removing the front cable.

TORQUE: 0.07-0.11 N.m (0.007-0.011 kg.m)

11. Installation is the reverse of removal.

12. When installation, check the grease on the center roller hinge barrel and club contact part (A).

Fig. 27: Identifying Center Roller Hinge Barrel And Club Contact Part
Courtesy of KIA MOTORS AMERICA, INC.

WARNING:



A learn cycle must be performed whenever the power is
removed.



Check the normal operation whenever a power sliding door
component is removed or replaced. If the chime sound is
heard, check the DTC, wiring harness and cable connections.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 24

© 2006 Mitchell Repair Information Company, LLC.

POWER SLIDING DOOR CONTROL MODULE (PSDM)

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the rear trim panel. Refer to INTERIOR TRIM .

3. Remove the connectors and mounting bolts (2EA) from the power sliding door unit (A). And then remove

the power sliding door control module (B).

TORQUE: 0.025-0.035 N.m (0.0025-0.0035 kg.m)

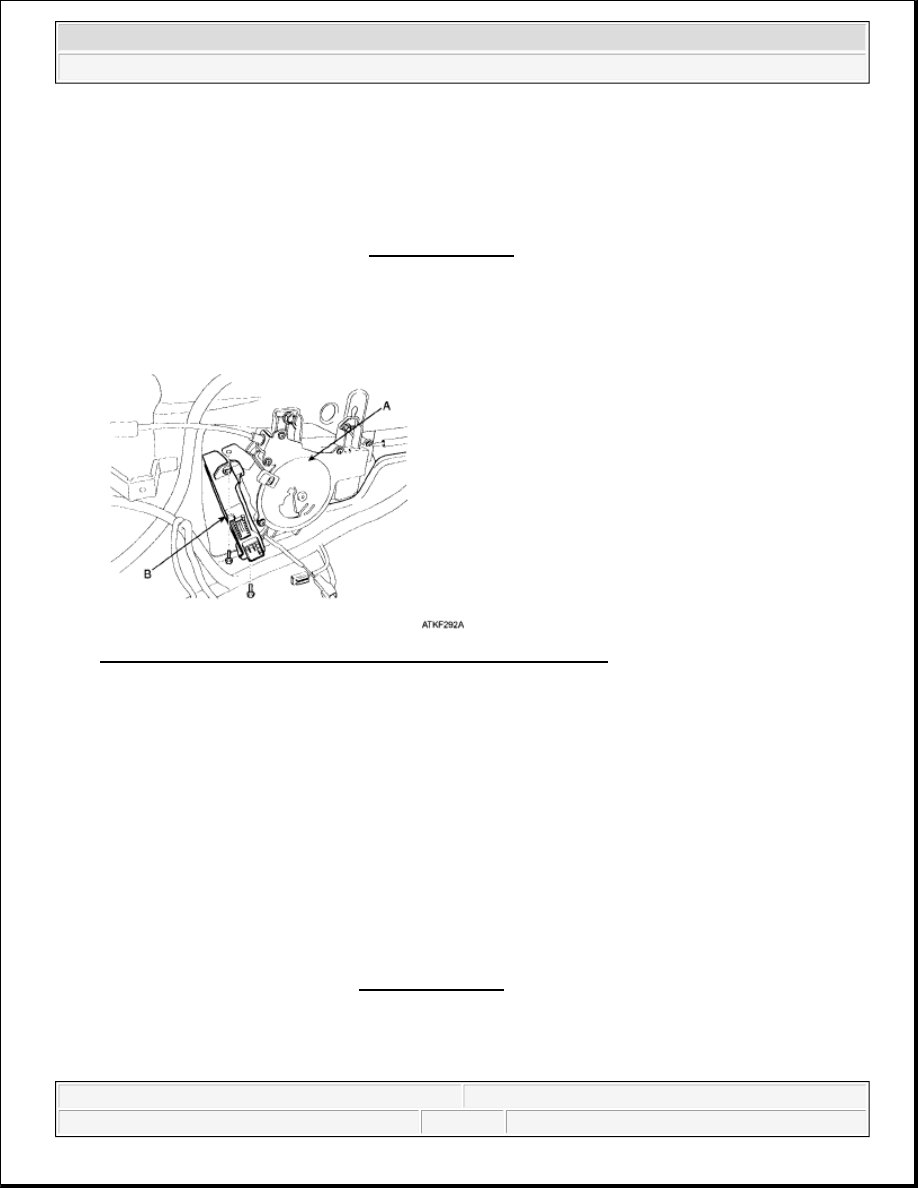

Fig. 28: Identifying Power Sliding Door Unit And Control Module
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal.

POWER SLIDING DOOR CHIME

REPLACEMENT

1. Remove the rear side trim. Refer to INTERIOR TRIM .

2. Disconnect the sliding door chime connector (A) from chime (B).

WARNING:



A learn cycle must be performed whenever the power is
removed.



Check the normal operation whenever a power sliding door
component is removed or replaced. If the chime sound is
heard, check the DTC, wiring harness and cable connections.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 25

© 2006 Mitchell Repair Information Company, LLC.

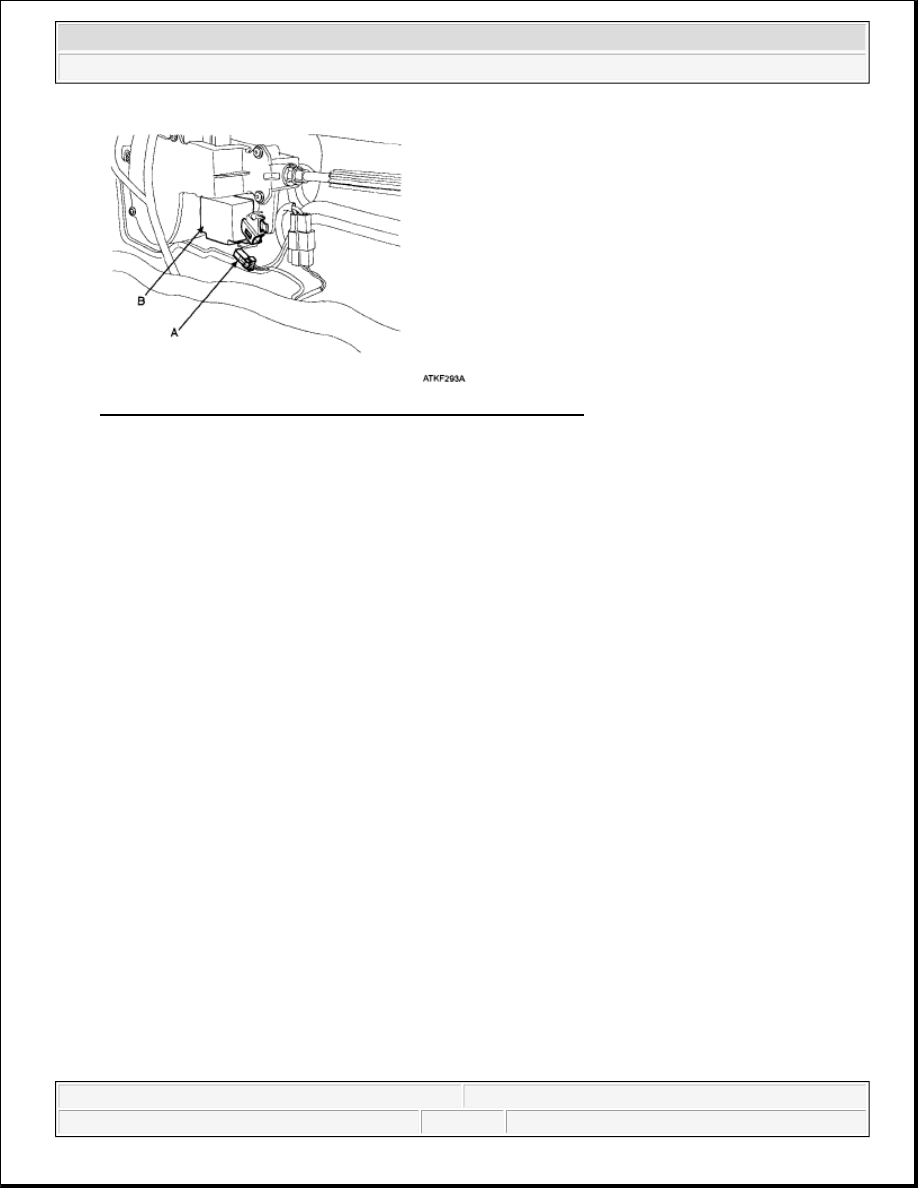

Fig. 29: Identifying Sliding Door Chime Connector And Chime
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the chime from drive unit and replace it with a new one.

ADJUSTMENT

POWER SLIDING DOOR INITIALIZATION

A learn cycle must be performed whenever the power is removed, a Power Sliding Door component is removed
or replaced, or a sliding door adjustment is performed. The learn cycle enables the Power Sliding Door control
module (PSDM) to learn the range of full travel and effort required to power the Sliding Door which allows it to
perform properly and safely.

POWER SLIDING DOOR SYSTEM RESET

Certain conditions may require that the PSD system be reset

1. Remove the MEMORY fuse that provides power to the PSDM.

2. Wait 1 minute. Replace fuse. Initialize PSDM.

INITIALIZATION PROCEDURE

1. Manually close and latch the sliding door.

2. Power the sliding door open using the remote control, Open/Close switch, B-pillar switch, or handle.

3. Power the door close from full open to full closed position.

4. Power the door open again to full open position.

ALTERNATE METHOD

1. Remove the black connector (J2) from the PSDM.

2. Wait a short time. Replace connector. Initialize PSDM.
