Fig. 16: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select the "POWER SLIDING DOOR" to check.

Fig. 17: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the clutch feedback sensor output while operating power sliding

door in power mode.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 19

© 2006 Mitchell Repair Information Company, LLC.

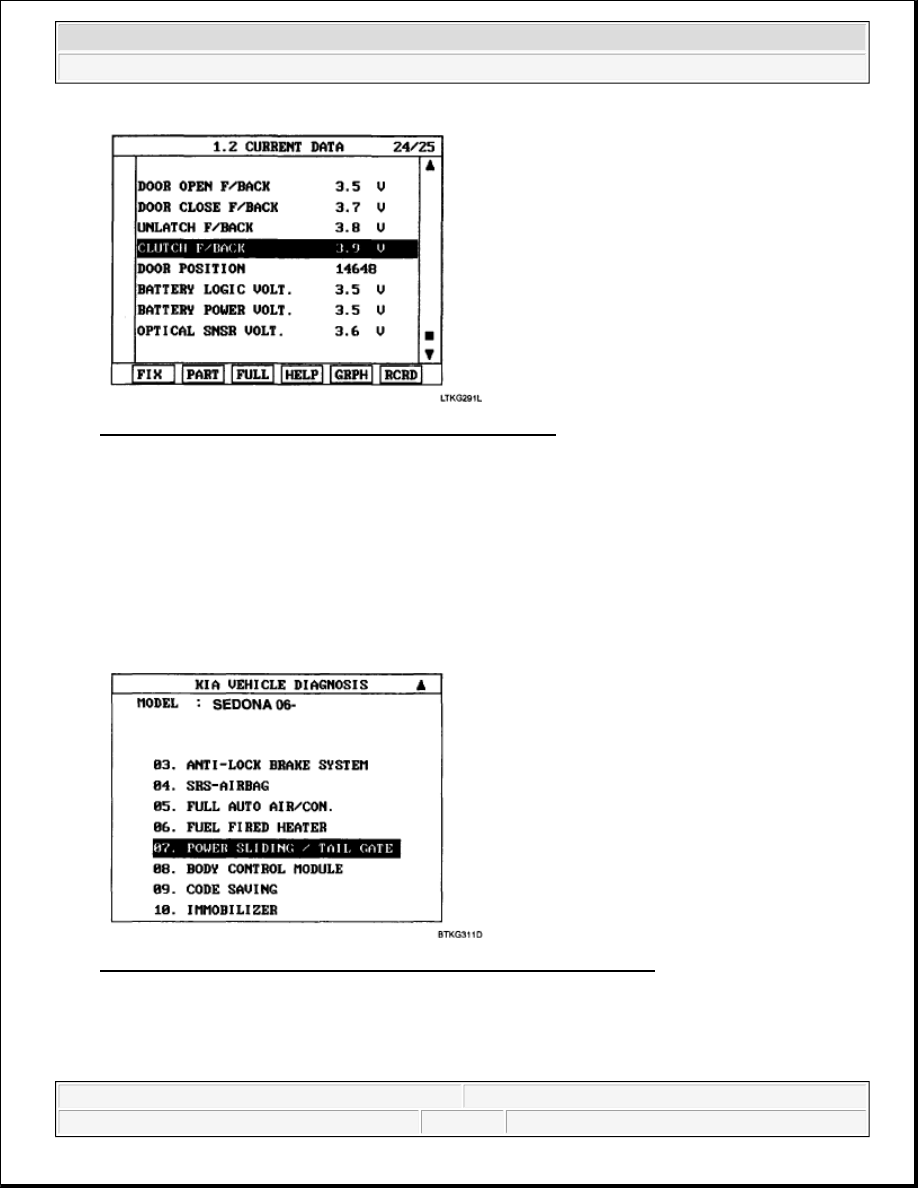

Fig. 18: Identifying Scan Tool Display - CLUTCH F/BACK
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.

5. Change the drive unit, if there is no change during operation.

OPTICAL SENSOR INSPECTION

1. Check the power sliding door control module input/output value by using the diagnostic tool.

2. When checking the optical sensor, select a vehicle type and "Power sliding/tailgate" menu.

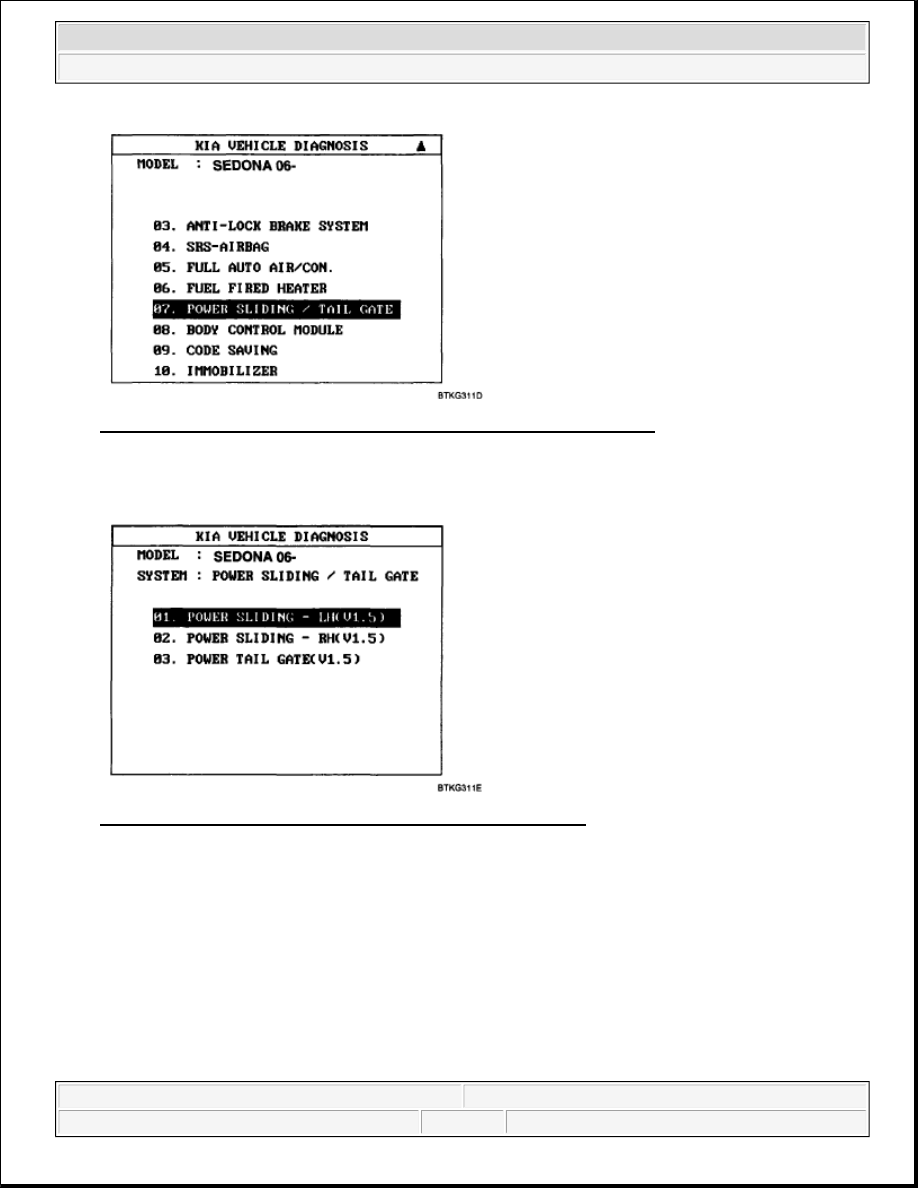

Fig. 19: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select the "POWER SLIDING DOOR" to check.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 20

© 2006 Mitchell Repair Information Company, LLC.

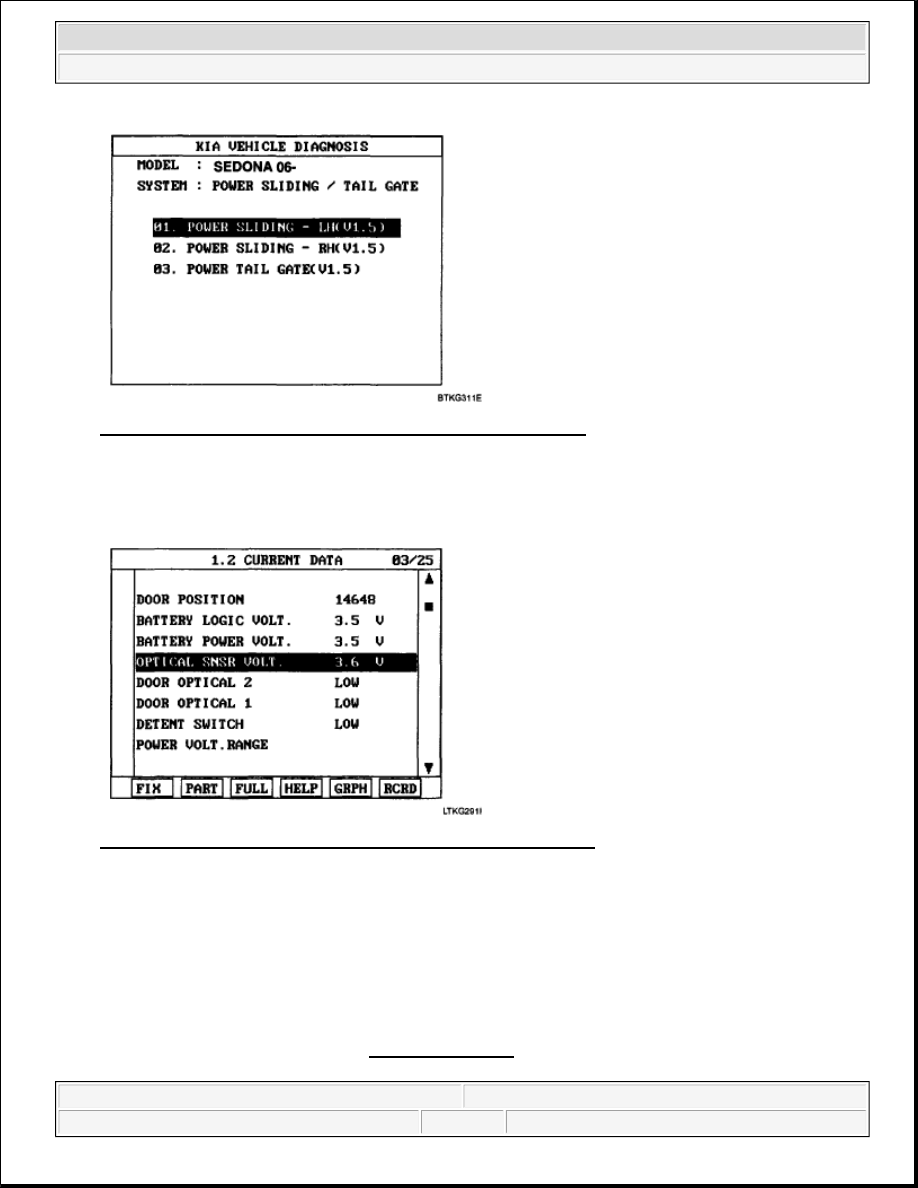

Fig. 20: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the optical sensor volt while operating power sliding door in

power mode.

Fig. 21: Identifying Scan Tool Display - OPTICAL SNSR VOLT
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.

5. Change the drive unit, if there is no change during operation.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the rear trim panel. Refer to INTERIOR TRIM .

3. Disconnect the connectors (6EA) from the power sliding door drive unit.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 21

© 2006 Mitchell Repair Information Company, LLC.

4. Remove the rear combination lamp. Refer to REAR BUMPER .

5. Remove the mounting bolts (4EA) and rail cover (A).

Fig. 22: Identifying Rail Cover
Courtesy of KIA MOTORS AMERICA, INC.

6. Pull the rear cable (A) and draw the cable clip (B) to bottom of roller hinge post and then remove the rear

cable (A).

Fig. 23: Identifying Rear Cable And Cable Clip
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the roller hinge bracket assembly (A) as below.
