Fig. 3: Identifying Power Sliding Door Control Module
Courtesy of KIA MOTORS AMERICA, INC.

3. SLIDING DOOR CHIME (C)

When the power sliding door detect the resistance or abnormal operation, the chime will sound.

Fig. 4: Identifying Sliding Door Chime
Courtesy of KIA MOTORS AMERICA, INC.

4. ANTI-PINCH STRIP (D)

Secondary Obstacle Detection is provided by means of a contact type strip. Strip is composed of two
conductive zones separated by an air gap. When strip is compressed, conductive zones make contact,
activating the switch signal.

Copper wire is extruded through conductive material to prevent resistive buildup. Terminating resistor is
molded into end of strip to detect failures of strip.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

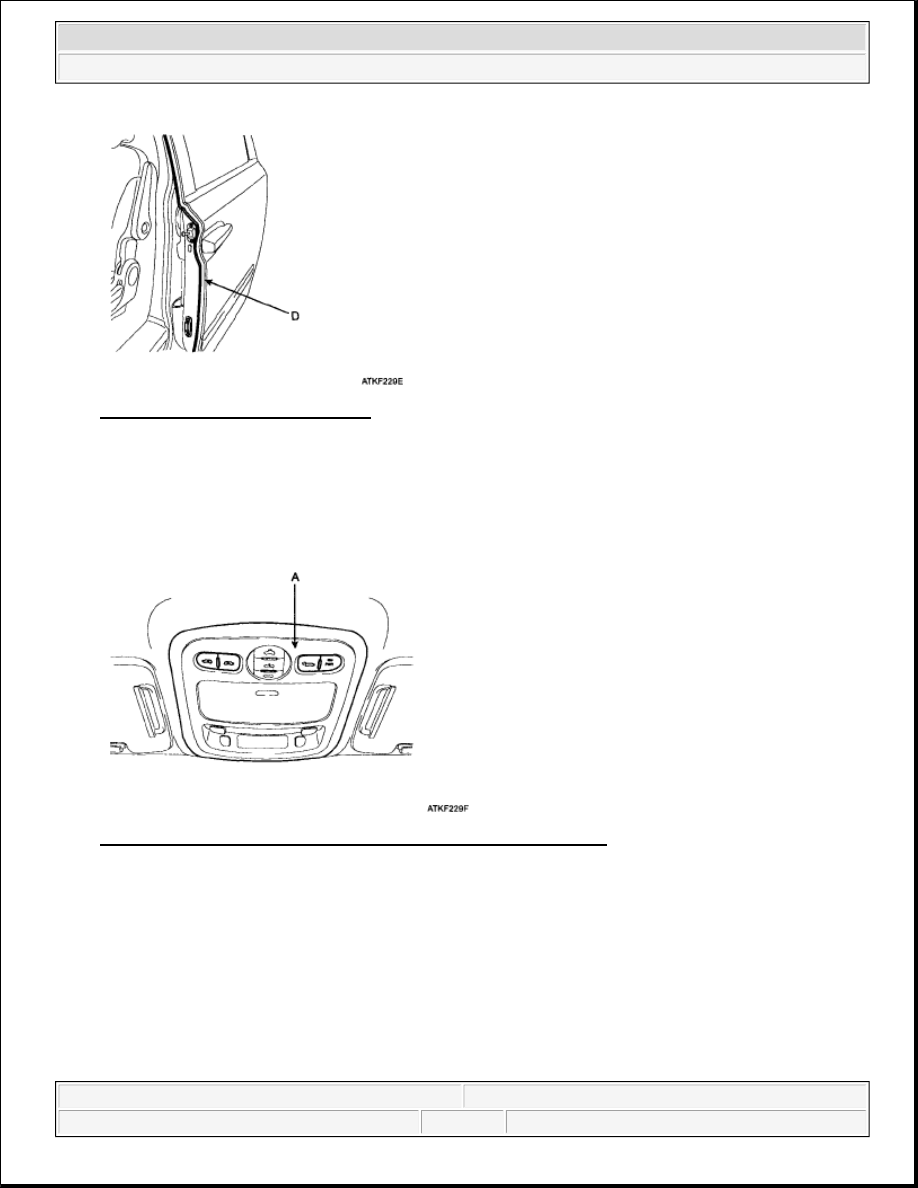

Fig. 5: Identifying Anti-Pinch Strip
Courtesy of KIA MOTORS AMERICA, INC.

5. OVERHEAD CONSOLE AND REMOTE CONTROL SWITCH (A)

The power sliding doors can be opened and closed automatically with the RKE and the main control
button on the overhead console.

Fig. 6: Identifying Overhead Console And Remote Control Switch
Courtesy of KIA MOTORS AMERICA, INC.

6. DOOR LATCH (B)

The door latch contains a detent switch [C] used to detect the latch state and report the latch state to the
power sliding door module.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

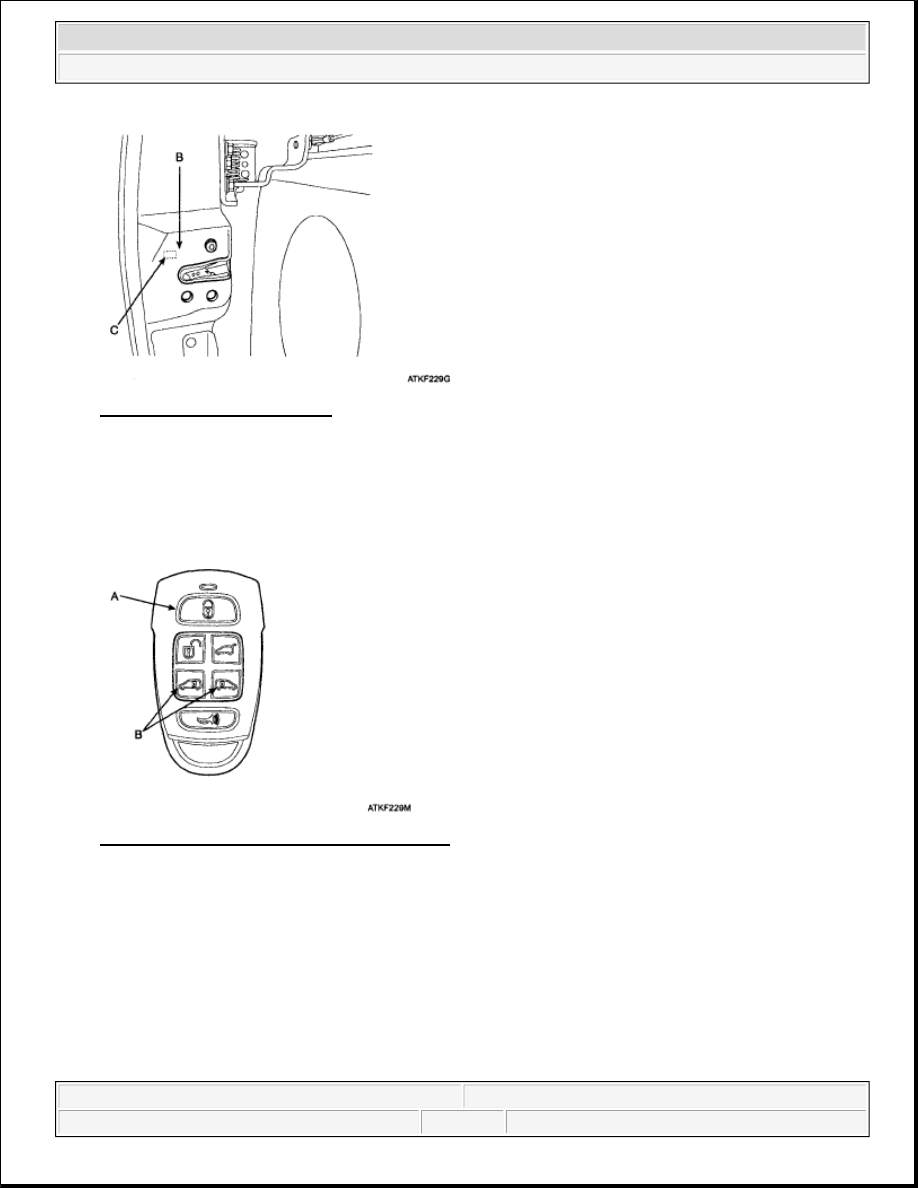

Fig. 7: Identifying Door Latch
Courtesy of KIA MOTORS AMERICA, INC.

7. KEYLESS ENTRY (A)

Power sliding doors can be opened and closed by pressing the button on the RKE more than 0.5 sec.
Open operation shall be reserved when an additional open/close signal is received during power opening.

Fig. 8: Identifying Keyless Entry Transmitter
Courtesy of KIA MOTORS AMERICA, INC.

8. INSIDE/OUTSIDE DOOR HANDLE SWITCH

Power sliding door can be opened and closed manually/automatically from inside or outside vehicle.

Outside door handle switch (A)



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

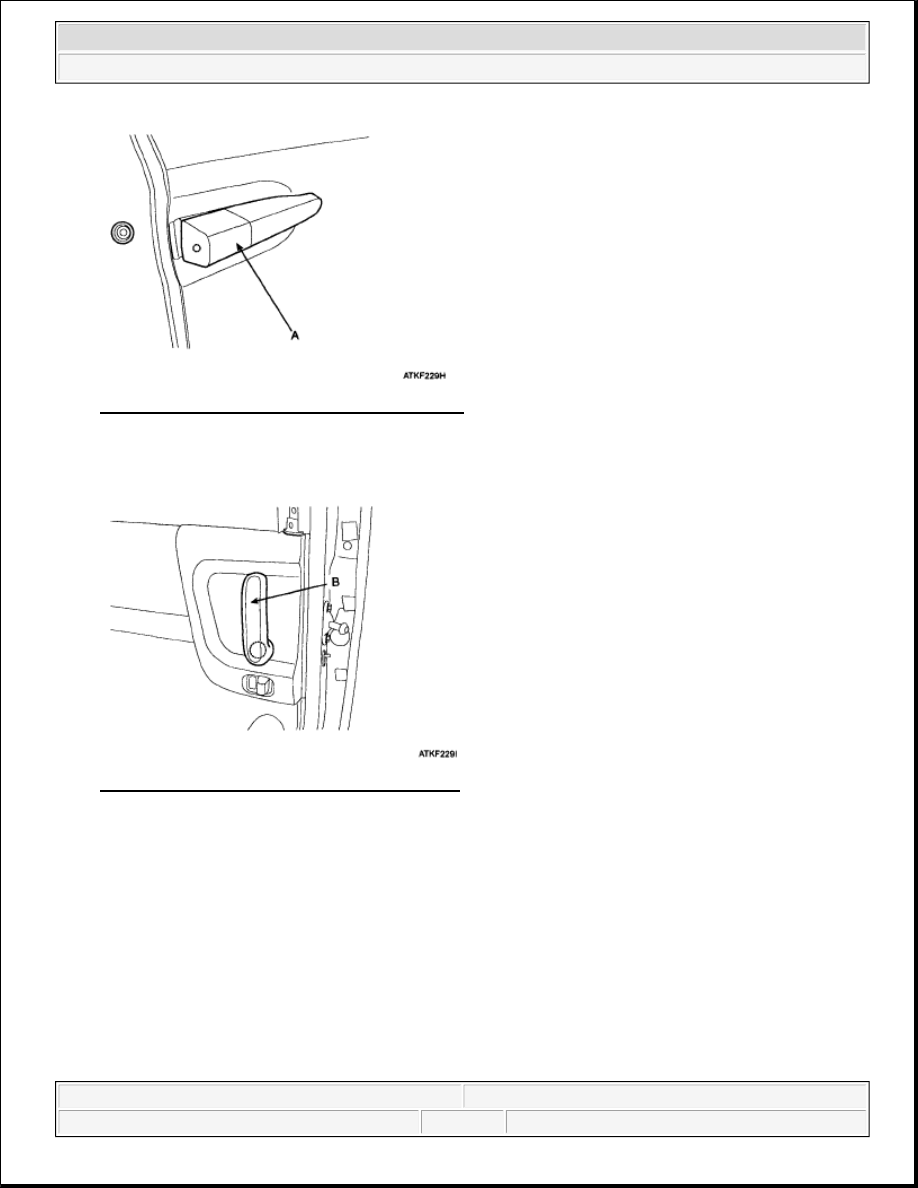

Fig. 9: Identifying Outside Door Handle Switch
Courtesy of KIA MOTORS AMERICA, INC.

Inside door handle switch (B)

Fig. 10: Identifying Inside Door Handle Switch
Courtesy of KIA MOTORS AMERICA, INC.

OPERATION

POWER SLIDING DOOR OPEN/CLOSE

1. The right/left sliding door is opened and closed automatically if the main switch (A) is pressed on the

overhead console.
