Power Door Mirrors - Sedona

COMPONENT LOCATION

Fig. 1: Power Door Mirror Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

POWER DOOR MIRROR ACTUATOR

INSPECTION

1. Remove the front door quadrant inner cover (A). Take care not to damage fixing clips. Refer to FRONT

DOOR .



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona



Microsoft



Monday, May 24, 2010 4:12:07 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:12:11 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

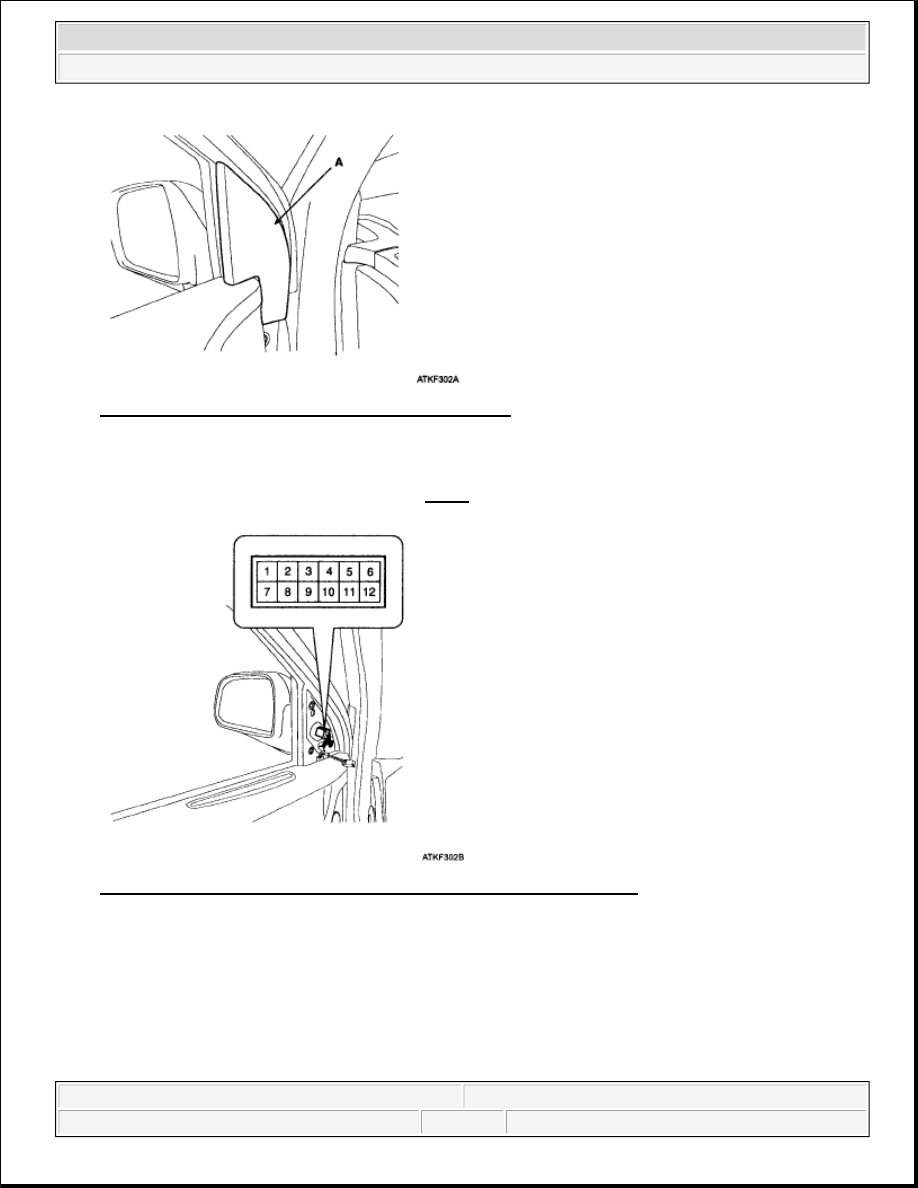

Fig. 2: Identifying Front Door Quadrant Inner Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Disconnect the power door mirror connector from the harness.

3. Verify that the mirror operates properly. See Fig. 4.

Fig. 3: Identifying Power Door Mirror Actuator Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona



Microsoft



Monday, May 24, 2010 4:12:07 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

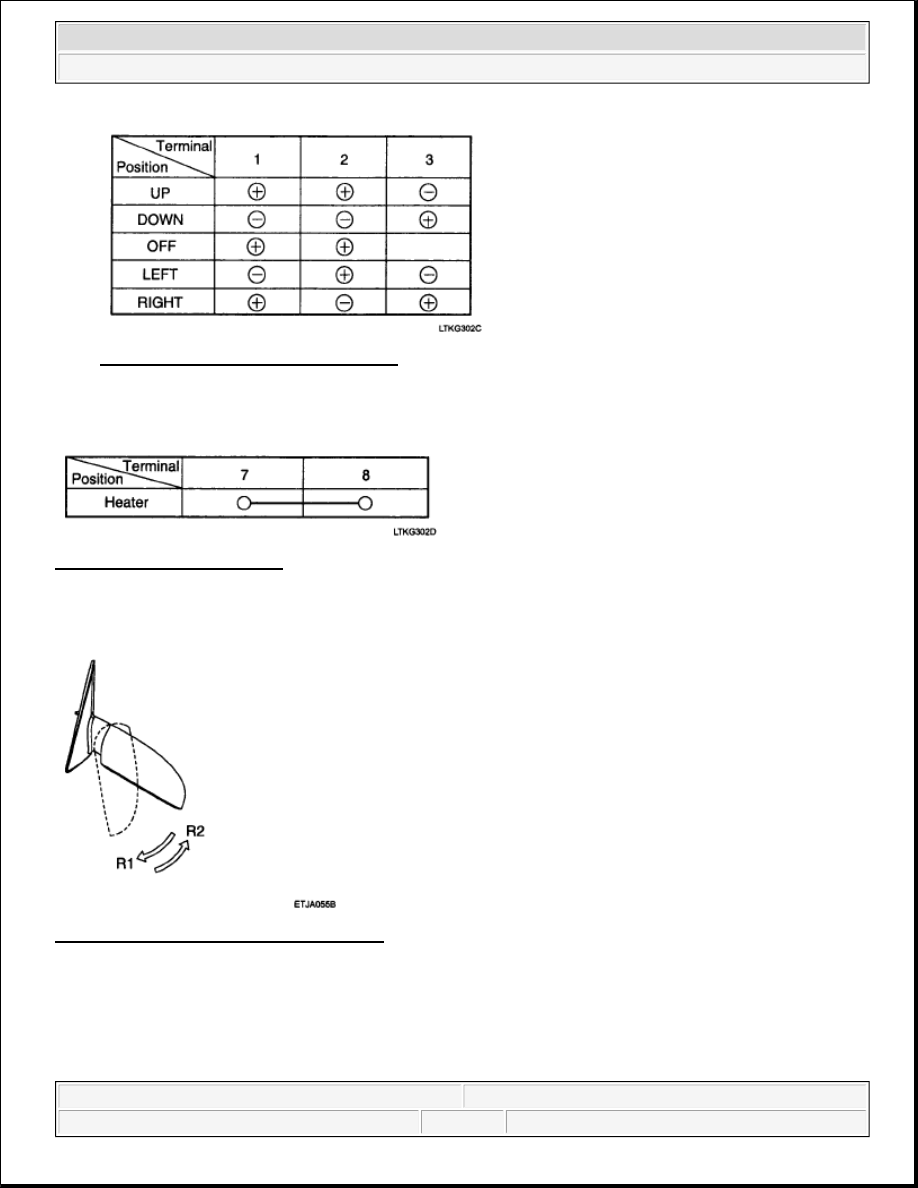

Fig. 4: Testing Power Mirror Actuator
Courtesy of KIA MOTORS AMERICA, INC.

MIRROR HEATER

Fig. 5: Testing Mirror Heater
Courtesy of KIA MOTORS AMERICA, INC.

FOLDING MIRROR

Fig. 6: Identifying Folding Mirror Position
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Mirrors - Sedona



Microsoft



Monday, May 24, 2010 4:12:07 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 7: Testing Folding Mirror
Courtesy of KIA MOTORS AMERICA, INC.

OUTSIDE FOLDING MIRROR SWITCH

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the front door trim panel. Refer to FRONT DOOR .

3. Remove the power window main switch mounting screws (3 each) (A) after disconnecting the switch

connector (12-pin) from the switch.

Fig. 8: Identifying Power Window Main Switch And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the switch from the front door trim panel.

5. Installation is the reverse of removal.
