Kia Sedona (2008 year). Manual - part 466

Fig. 21: Identifying Hub Cap And Disc
Courtesy of KIA MOTORS AMERICA, INC.

10. Install the rear wheels and tires from the rear hubs.

11. Tighten the parking brake adjusting nut.

12. Install the parking brake wire and the pedal assembly.

ADJUSTMENT

ADJUSTMENT OF REAR BRAKE SHOE CLEARANCE

1. Raise the vehicle, and make sure it is securely supported.

2. Remove the rear wheel and tire from the rear hub.

3. After removing the plug from the disc, rotate the toothed wheel by a screw driver until the disc is not

moving, and then return it by 5 notches.



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

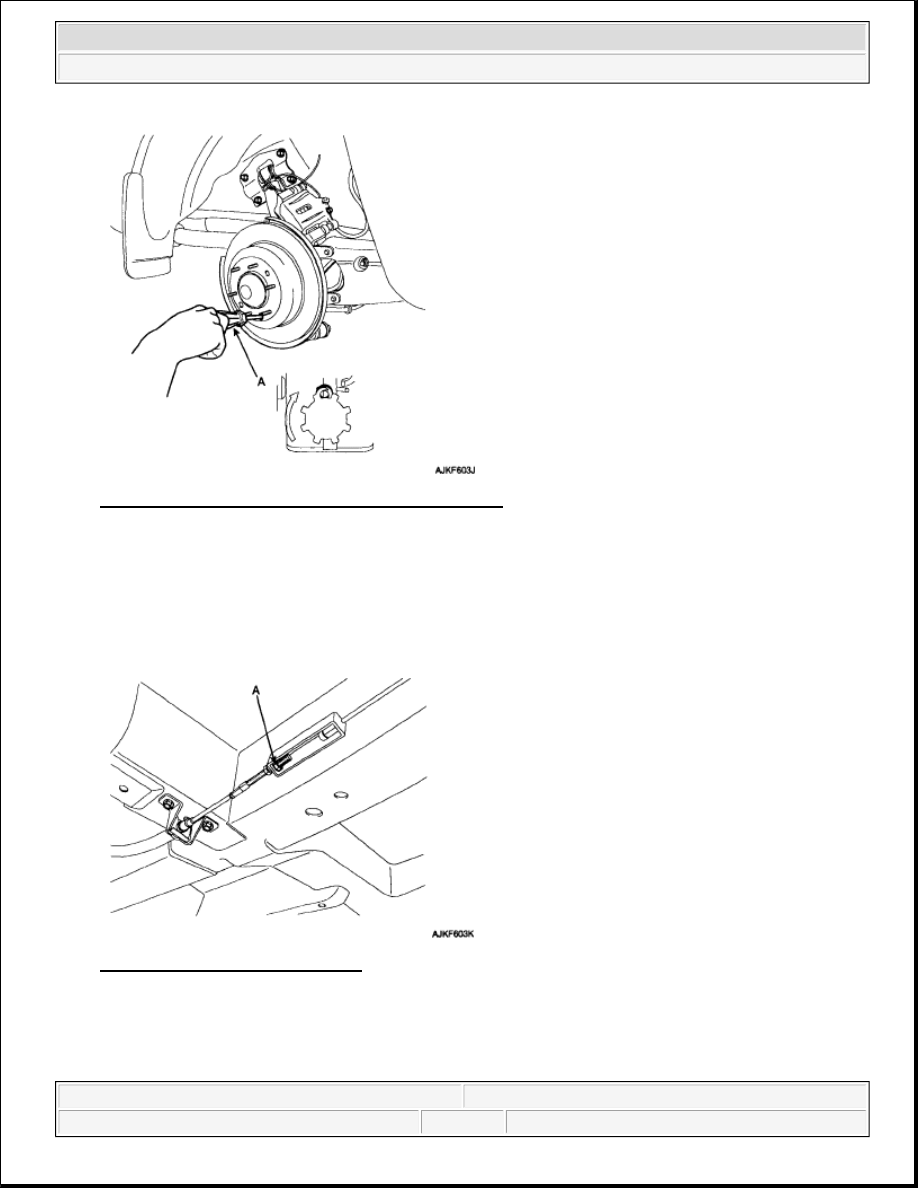

Fig. 22: Rotating Toothed Wheel With Screw Driver
Courtesy of KIA MOTORS AMERICA, INC.

ADJUSTMENT PROCEDURE OF DIH FOOT PARKING BRAKE

1. Adjust the adjusting nut (A) so that parking pedal stoke is to be 88-98 mm (3.46-3.86 in) when operating

effort is 200 N (20 kgf, 44 lb) after full stroke operation of parking pedal over 3 times for setting parking
wire.

Fig. 23: Identifying Adjusting Nut
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

1. The parking brake adjustment must be carried out after

adjusting the rear shoe.



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

BED-IN PROCEDURE FOR DIH FOOT PARKING BRAKE

1. While operating the parking brake pedal for 100 N(10 kgf, 22 lb) effort, drive the vehicle 500 meters

(0.31 miles) at the speed of 60 kph (37.3 mph).

2. Repeat the above procedure more than two times.

3. Must be held on at 30% uphill.

1. Must be free from troubles when the parking pedal is operated at 1 kN (100 kgf, 220 lb).

2. Check that all parts move smoothly.

3. the parking brake indicator lamp must be on after the parking pedal is worked and must be off after

the pedal is released.

PARKING BRAKE SWITCH

INSPECTION

1. Remove the floor console and the connector (B) from the switch (A).

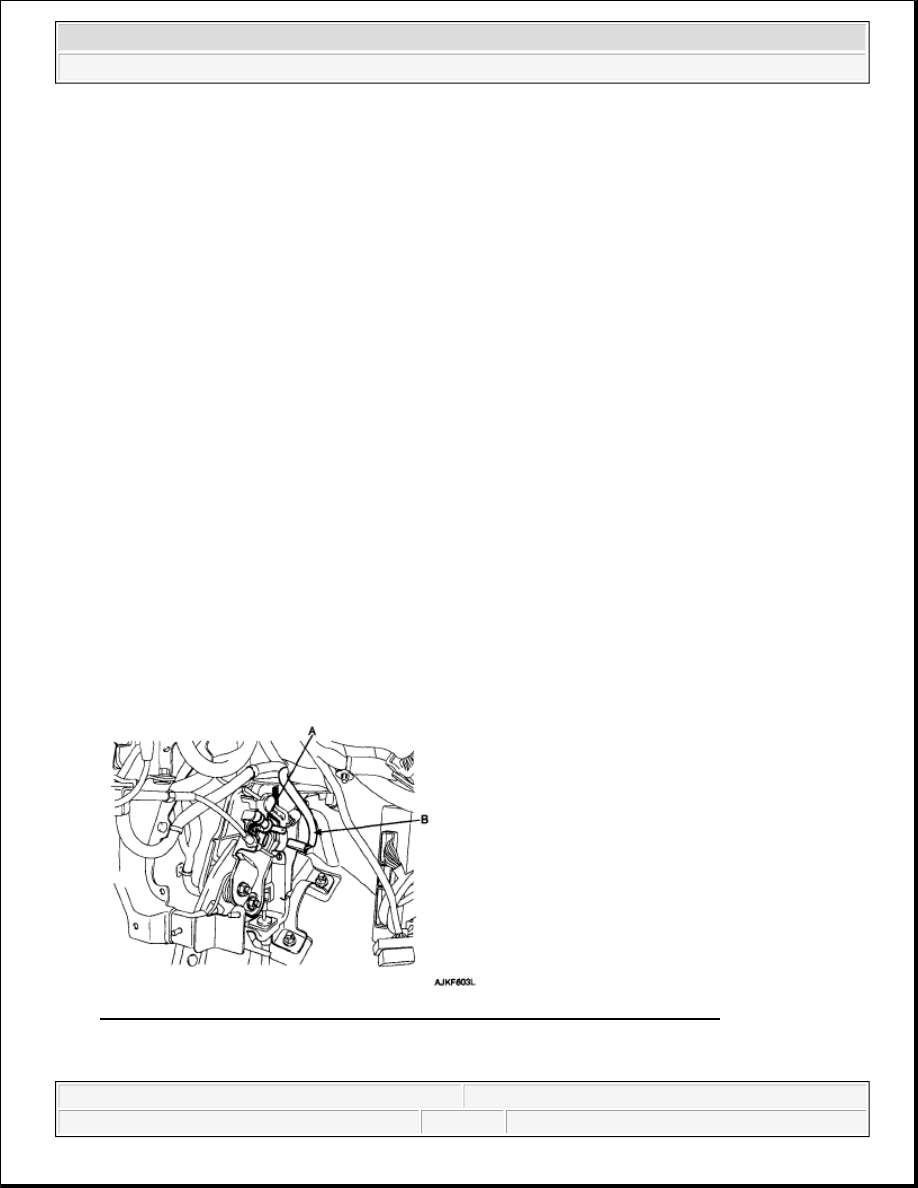

Fig. 24: Identifying Parking Brake Switch And Parking Brake Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

2. Inspect the continuity between (-) terminal and the ground.

2. After adjusting parking brake, notice following matter;

a. Must be free from clearance between adjusting nut and

pin.

b. Check securely that the bake is not dragging

CAUTION: After adjusting parking brake, notice following matter;



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.



When the brake lever is pulled, there should be the continuity between them.



When the brake lever is released, there should be no continuity between them.



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.
