4. Inspect the electrodes (A) and ceramic insulator (B).

Fig. 10: Identifying Electrodes And Ceramic Insulator
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION OF ELECTRODES

INSPECTION OF ELECTRODES

5. Check the electrode gap (A).

Standard :

Unleaded: 1.0-1.1 mm (0.0394-0.0433 in.)

Fig. 11: Checking Electrode Gap
Courtesy of KIA MOTORS AMERICA, INC.

Condition

Dark deposits

White deposits

Description



Fuel mixture too rich



Low air intake



Fuel mixture too lean



Advanced ignition timing



Insufficient plug tightening torque



2008 Kia Sedona

2008 ENGINE Ignition System - Sedona



Microsoft



Saturday, May 22, 2010 4:01:05 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

INSPECT IGNITION COIL

1. Measure the primary coil resistance between terminals (+) and (-).

Fig. 12: Identifying Ignition Coil Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Standard value: 0.62ohms ± 10%



2008 Kia Sedona

2008 ENGINE Ignition System - Sedona



Microsoft



Saturday, May 22, 2010 4:01:05 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Interior - Sedona

CONSOLE

COMPONENTS

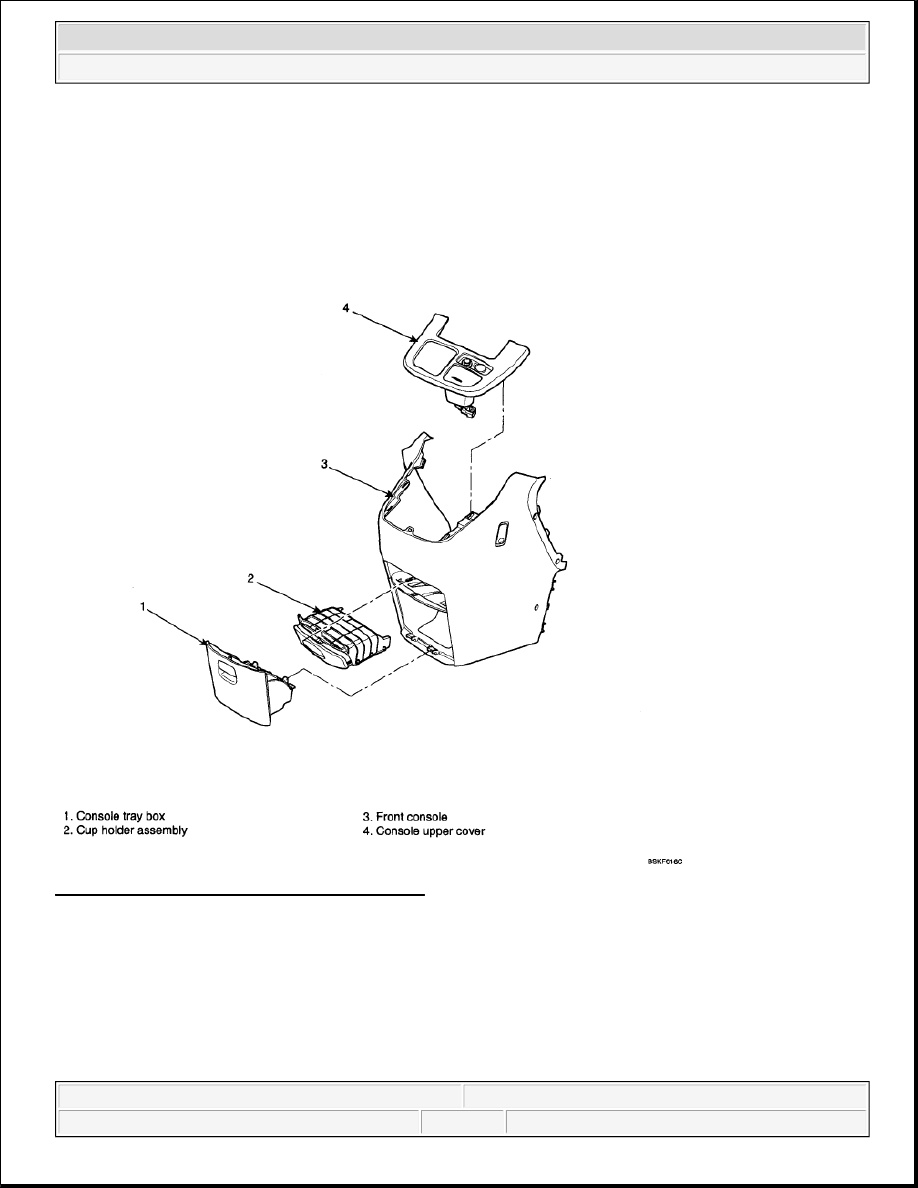

Fig. 1: Identifying Console Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Interior - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Interior - Sedona



Microsoft



Monday, May 24, 2010 4:05:48 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:05:51 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

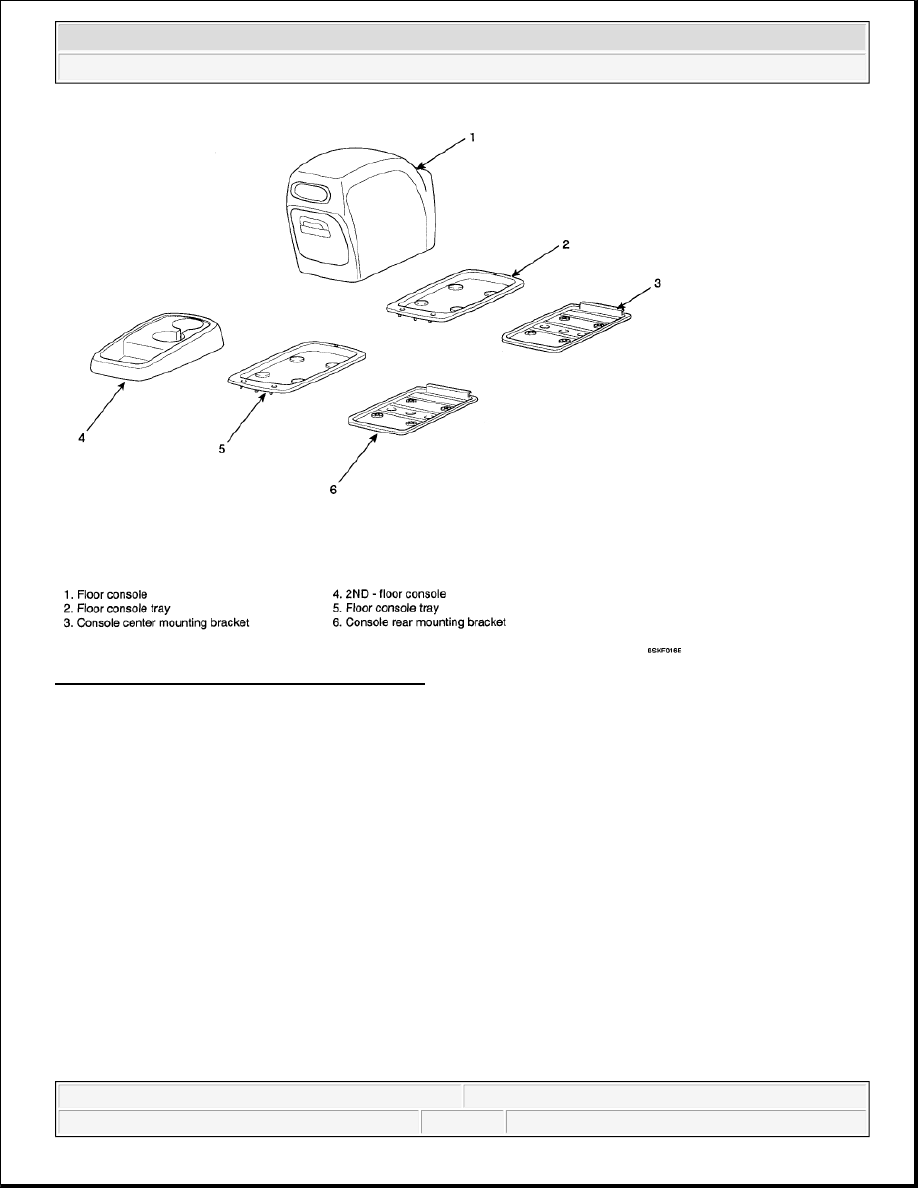

Fig. 2: Identifying Console Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

FLOOR CONSOLE REPLACEMENT

1. After the center cover is removed (A), disconnect the connector (B).

NOTE:



When prying with a flat-tipped screwdriver, wrap it with protective tape,
and apply protective tape around the related parts, to prevent damage.



Put on gloves to protect your hands.
