TROUBLESHOOTING

PROBLEM SYMPTOMS TABLE

Before replacing or repairing air conditioning components, first determine if the malfunction is due to the
refrigerant charge, air flow or compressor.

Use the Troubleshooting table to help you find the cause of the problem. See TROUBLESHOOTING
CHART. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If
necessary, replace these parts.

After correcting the malfunction, check the complete system to ensure that performance is satisfactory.

STANDARD:

TROUBLESHOOTING CHART

A/C ON/OFF °C (°F)]

ON: 2.6 ± 0.5 (36.7 ± 0.9)

OFF: 1.1 ± 0.5 (34.0 ± 0.9)

Symptom

Suspect Area

No blower operation

1. Blower fuse

2. Blower relay

3. Blower motor

4. Power Mosfet

5. Blower speed control switch

6. Wire harness

No air temperature control

1. Engine coolant capacity

2. Heater control assembly

No compressor operation

1. Refrigerant capacity

2. A/C Fuse

3. Magnetic clutch

4. Compressor

5. A/C pressure transducer

6. A/C switch

7. Evaporator temperature sensor

8. Wire harness

No cool air comes out

1. Refrigerant capacity
2. Refrigerant pressure

3. Drive belt

4. Magnetic clutch

5. Compressor

6. A/C pressure transducer

7. Evaporator temperature sensor

8. A/C switch

2008 Kia Sedona EX

2008 HVAC HVAC General - Sedona

Microsoft

Monday, May 24, 2010 4:02:38 PM

Page 2

SPECIAL TOOLS

SPECIAL TOOLS CHART

9. Heater control assembly

10. Wire harness

Insufficient cooling

1.Refrigerant capacity

2. Drive belt

3. Magnetic clutch

4. Compressor

5. Condenser

6. Expansion valve

7. Evaporator

8. Refrigerant lines

9. A/C pressure transducer

10. Heater control assembly

No engine idle-up when A/C switch ON

1. Engine ECM
2. Wire harness

No air inlet control

1. Heater control assembly

No mode control

1. Heater control assembly

2. Mode actuator

No cooling fan operation

1. Cooling fan fuse

2. Fan motor

3. Engine ECM
4. Wire harness

Tool (Number and name)

Illustration

Use

09977-29000
Disc & hub assembly bolt remover

Removal and installation of the

disc & hub assembly bolt

2008 Kia Sedona EX

2008 HVAC HVAC General - Sedona

Microsoft

Monday, May 24, 2010 4:02:38 PM

Page 3

2008 ENGINE

Ignition System - Sedona

DESCRIPTION

Ignition timing is controlled by the electronic control ignition timing system. The standard reference ignition
timing data for the engine operating conditions are preprogrammed in the memory of the ECM (Engine Control
Module).

The engine operating conditions (speed, load, warm-up condition, etc.) are detected by the various sensors.
Based on these sensor signals and the ignition timing data, signals to interrupt the primary current are sent to the
ECM. The ignition coil is activated, and timing is controlled.

REMOVAL

IGNITION COIL

1. Remove the engine cover.

2. Disconnect the ignition coil connector (A).

Fig. 1: Locating Ignition Coil Connectors And Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push
the clip (B).

2008 Kia Sedona

2008 ENGINE Ignition System - Sedona

2008 Kia Sedona

2008 ENGINE Ignition System - Sedona

Microsoft

Saturday, May 22, 2010 4:01:05 PM

Page 1

Microsoft

Saturday, May 22, 2010 4:01:09 PM

Page 1

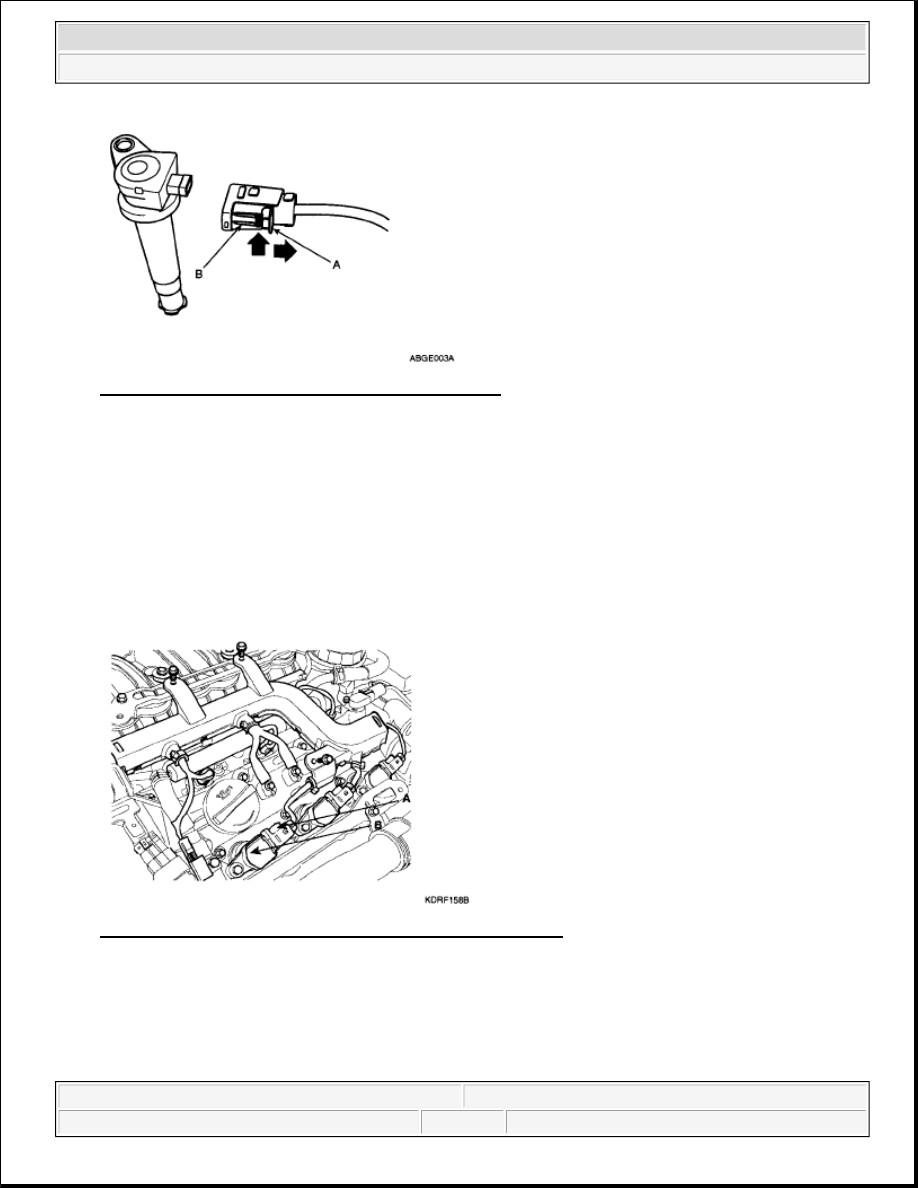

Fig. 2: Identifying Ignition Coil Connector Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the ignition coil (B).

4. Installation is the reverse of removal.

ON-VEHICLE INSPECTION

SPARK TEST

1. Remove the ignition coil connector (A).

Fig. 3: Locating Ignition Coil Connectors And Ignition Coils
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push
the clip (B).

2008 Kia Sedona

2008 ENGINE Ignition System - Sedona

Microsoft

Saturday, May 22, 2010 4:01:05 PM

Page 2
