Kia Sedona (2008 year). Manual - part 435

Fig. 2: Identifying Rear Heater Unit Components (1 Of 2)



2008 Kia Sedona EX

2008 HVAC Rear Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:45 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Fig. 3: Identifying Rear Heater Unit Components (2 Of 2)

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Recover the refrigerant with a recovery/recycling/charging station.

3. When the engine is cool, drain the engine coolant from the radiator.

4. Remove luggage side trim. Refer to LUGGAGE SIDE TRIM REPLACEMENT .

5. Remove the rear speaker.



2008 Kia Sedona EX

2008 HVAC Rear Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:45 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

6. Loosen the air duct mounting screw, and then remove the rear air duct (A).

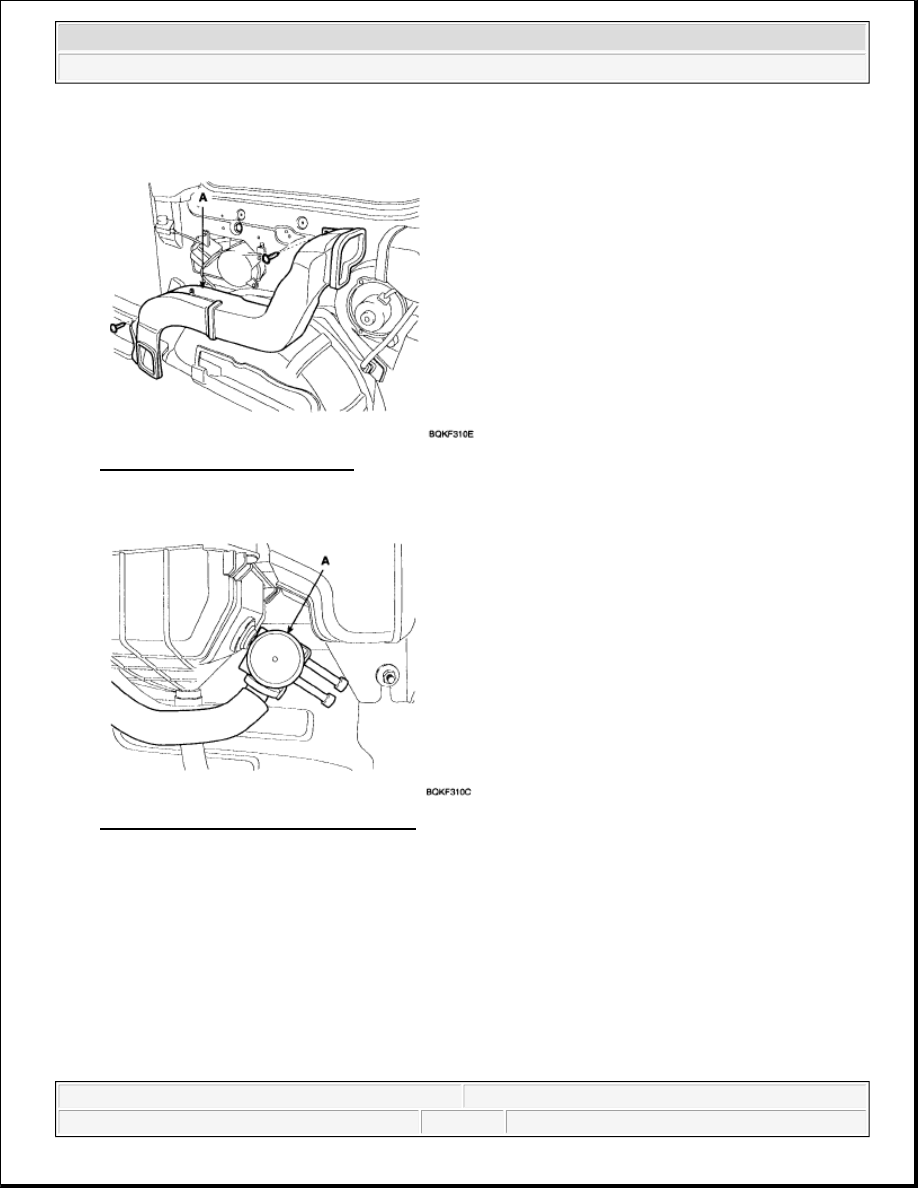

Fig. 4: Identifying Rear Air Duct

7. Loosen the refrigerant line mounting bolts, and then remove the rear refrigerant line (A).

Fig. 5: Identifying Rear Refrigerant Line

8. Remove the heater hose (A), drain hose (B).



2008 Kia Sedona EX

2008 HVAC Rear Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:45 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

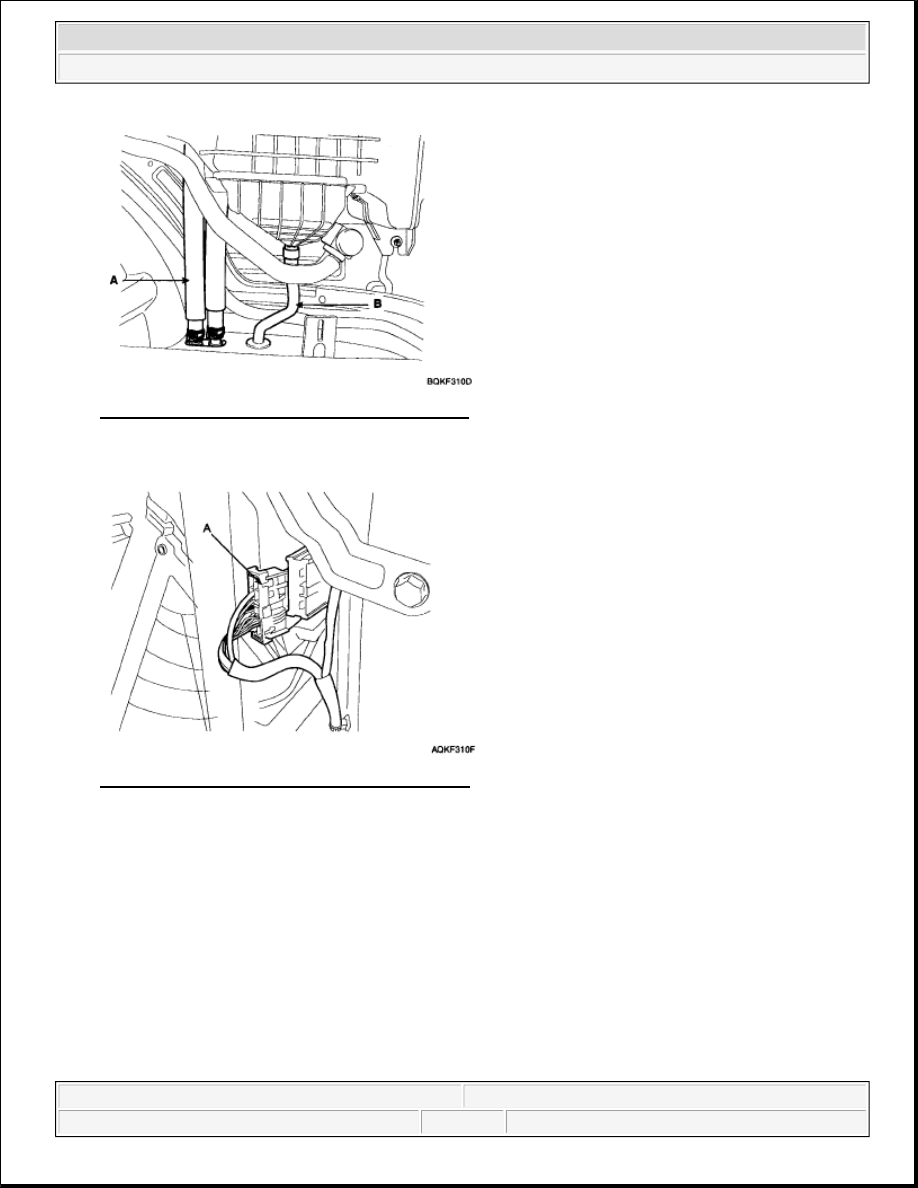

Fig. 6: Identifying Heater Hose And Drain Hose

9. Remove the rear heater main connector (A).

Fig. 7: Identifying Rear Heater Main Connector

10. Loosen the rear heater mounting nuts, and then remove the rear heater unit (A).
