Verify that the temperature control actuator operates to the cool position when connecting in the reverse.

[PASSENGER]

Fig. 12: Temperature Control Actuator Circuit (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.

SPECIFICATION

DOOR POSITION CHART

[DRIVER]

Fig. 13: Temperature Control Actuator Circuit (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

SPECIFICATION

Door position Voltage (6-7)

Error detecting

Max. cooling 0.3 ± 0.15V

Low voltage: 0.1V or less

Max. heating 4.7 ± 0.15V High voltage: 4.9V or more



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

DOOR POSITION CHART

It will feedback current position of actuator to controls.

4. If the measured voltage is not as specified, substitute with a known-good temperature control actuator and

check for proper operation.

5. If the problem is corrected, replace the temperature control actuator.

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the driver' s crash pad lower panel. Refer to CRASH PAD .

3. Disconnect the temperature control actuator connector (A) after removing the air duct.

4. Loosen the mounting screw and then remove the temperature control actuator (B).

[PASSENGER]

Fig. 14: Identifying Temperature Control Actuator And Connector (Passenger)
Courtesy of KIA MOTORS AMERICA, INC.

[DRIVER]

Door position Voltage (6-5)

Error detecting

Max. cooling 0.3 ± 0.15V

Low voltage: 0.1V or less

Max. heating 4.7 ± 0.15V High voltage: 4.9V or more



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

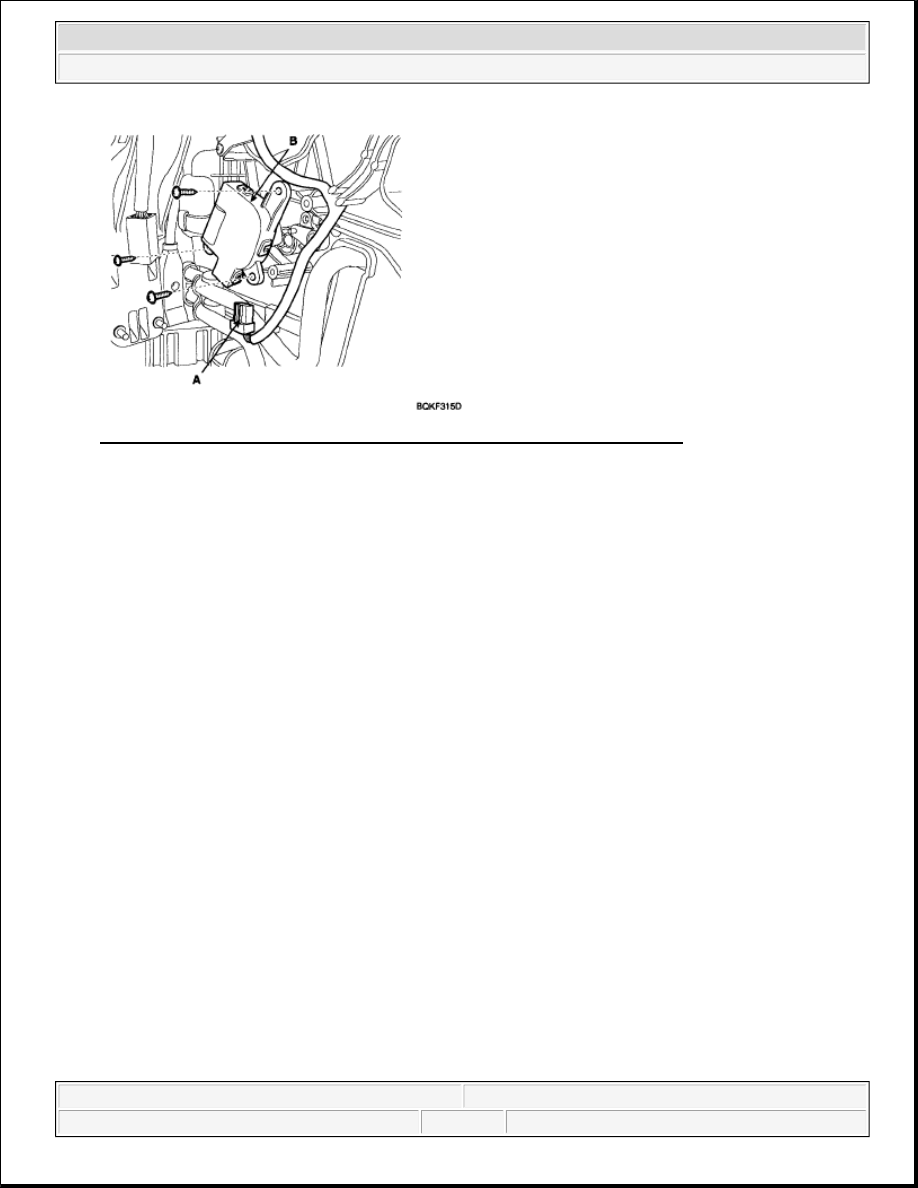

Fig. 15: Identifying Temperature Control Actuator And Connector (Driver)
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse order of removal.

MODE CONTROL ACTUATOR

COMPONENT LOCATION



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

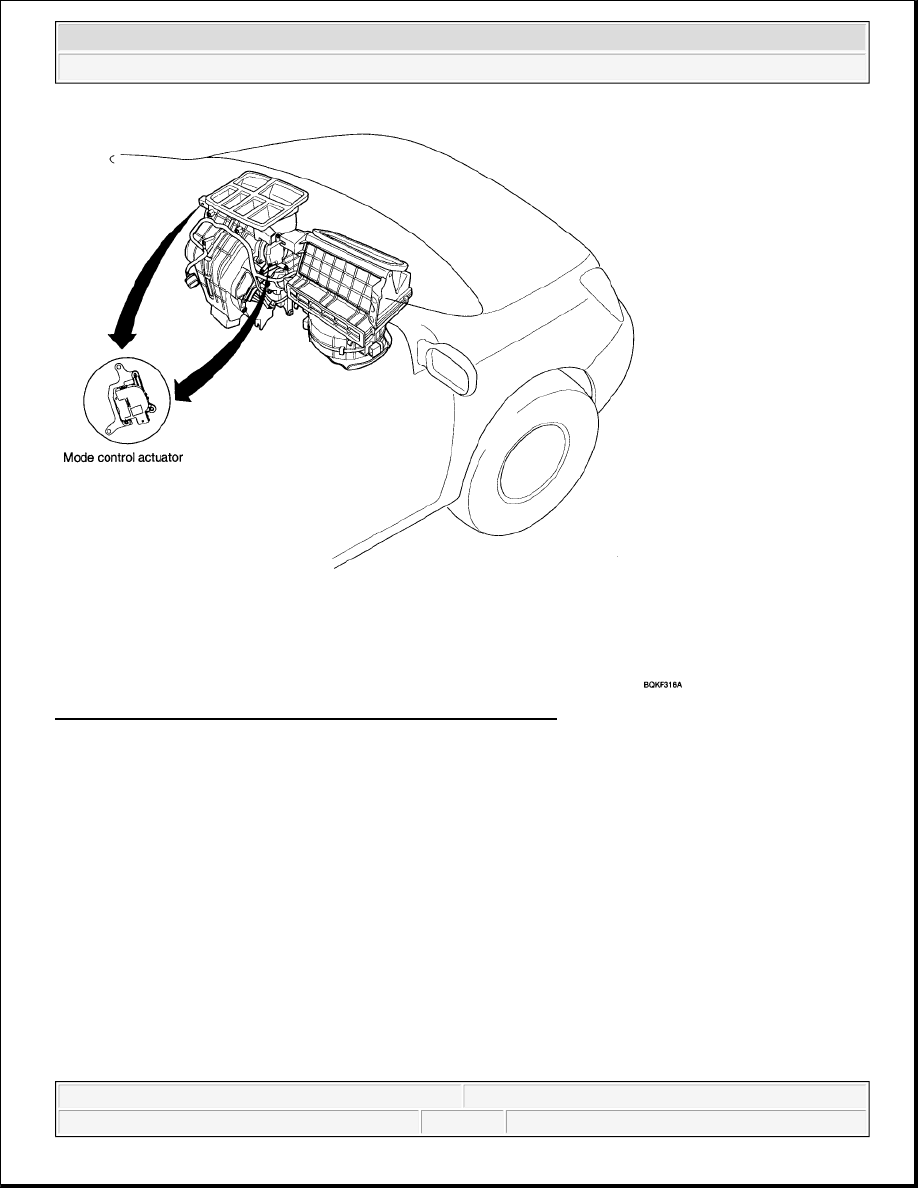

Fig. 16: Identifying Mode Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

The mode control actuator is located at the heater unit. It adjusts position of mode door by operating mode
control actuator based on signal of A/C control unit. Pressing mode select switch makes the mode control
actuator shift in order of vent --> B/L --> floor --> mix.

INSPECTION

1. Ignition "OFF"

2. Disconnect the connector of mode control actuator.

3. Verify that the mode control actuator operates to the defrost mode when connecting 12V to the terminal 3

and grounding terminal 4.

4. Verify that the mode control actuator operates to the vent mode when connecting in the reverse.

[PASSENGER]
