Fig. 6: Identifying Heater & Blower Unit Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the blower unit (B) from heater unit after loosening 2 screws.

Fig. 7: Identifying Blower Unit And Screws
Courtesy of KIA MOTORS AMERICA, INC.

11. Remove the heater core (B) after removing the cover.



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

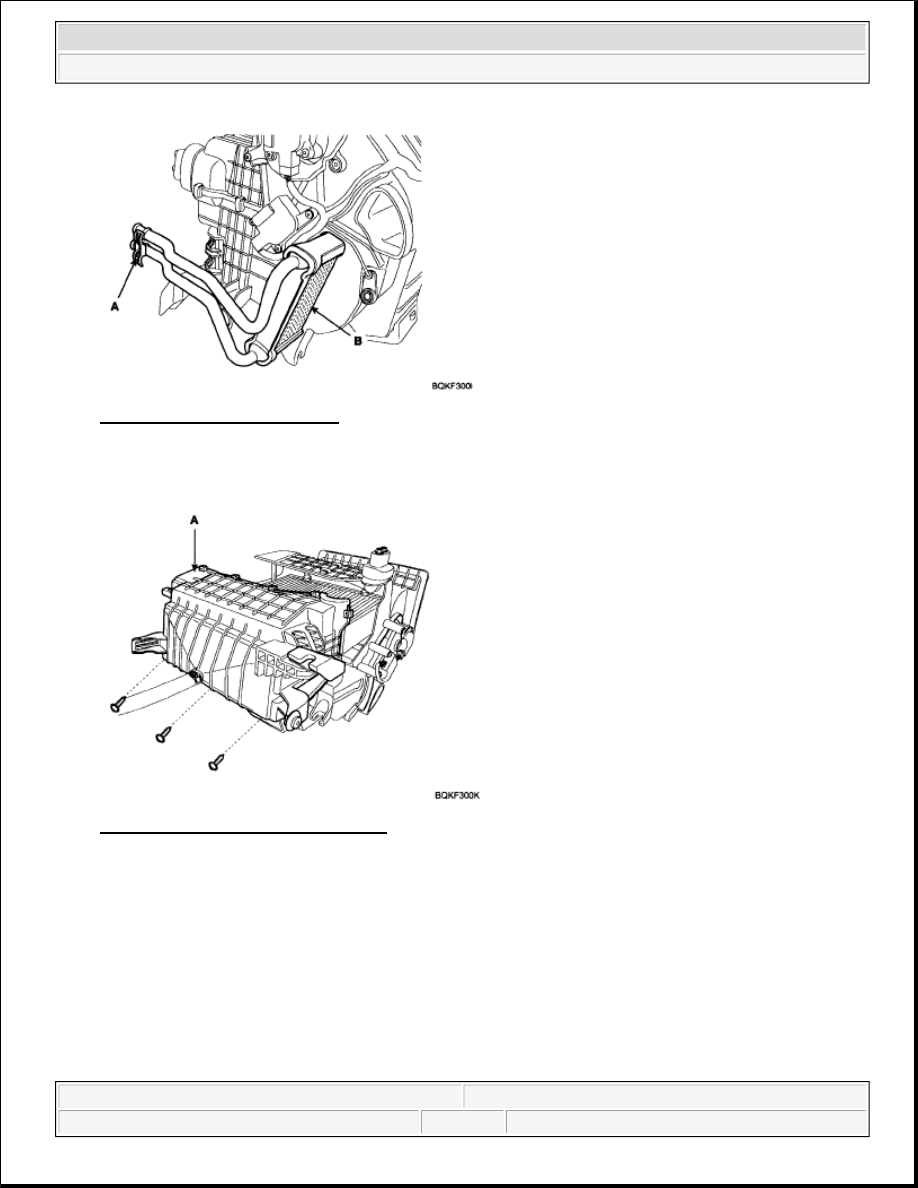

Fig. 8: Identifying Heater Core
Courtesy of KIA MOTORS AMERICA, INC.

12. Loosen the heater unit mounting screw and clip and then remove the heater unit cover (A).

Fig. 9: Identifying Heater Unit Cover
Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the evaporator core (A).



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

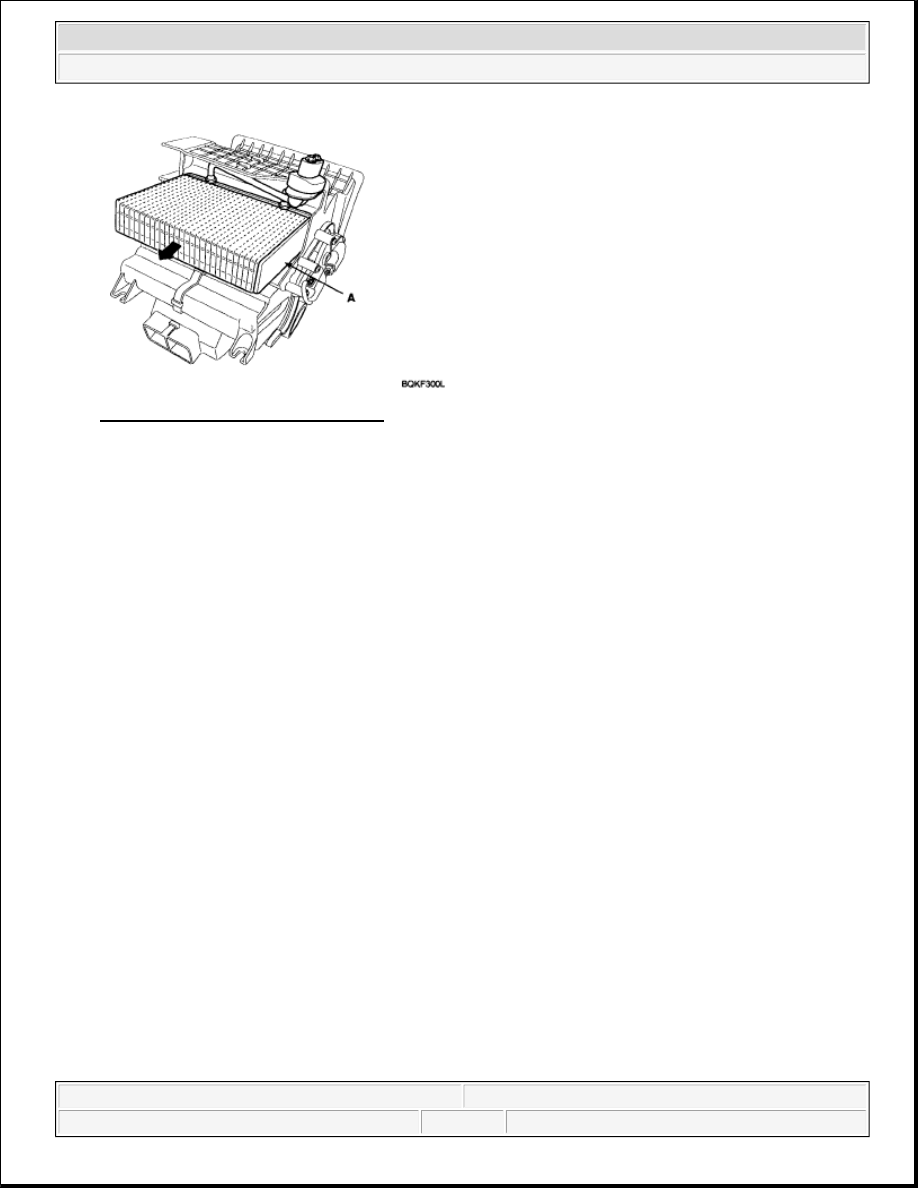

Fig. 10: Identifying Evaporator Core
Courtesy of KIA MOTORS AMERICA, INC.

14. Be careful that the inlet and outlet pipe are not bent during heater core removal, and pull out the heater

core.

15. Installation is the reverse order of removal, and note these items:



If you're installing a new evaporator, add refrigerant oil (ND-OIL8).



Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before
installing them. Be sure to use the right O-rings for R-134a to avoid leakage.



Immediately after using the oil, replace the cap on the container, and seal it to avoid moisture
absorption.



Do not spill the refrigerant oil on the vehicle ; it may damage the paint; if the refrigerant oil
contacts the paint, wash it off immediately



Apply sealant to the grommets.



Make sure that there is no air leakage.



Charge the system and test its performance.



Do not interchange the inlet and outlet heater hoses and install the hose clamps securely.



Refill the cooling system with engine coolant.

TEMPERATURE CONTROL ACTUATOR

COMPONENT LOCATION



2008 Kia Sedona EX

2008 HVAC Heater - Sedona



Microsoft



Monday, May 24, 2010 4:03:13 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

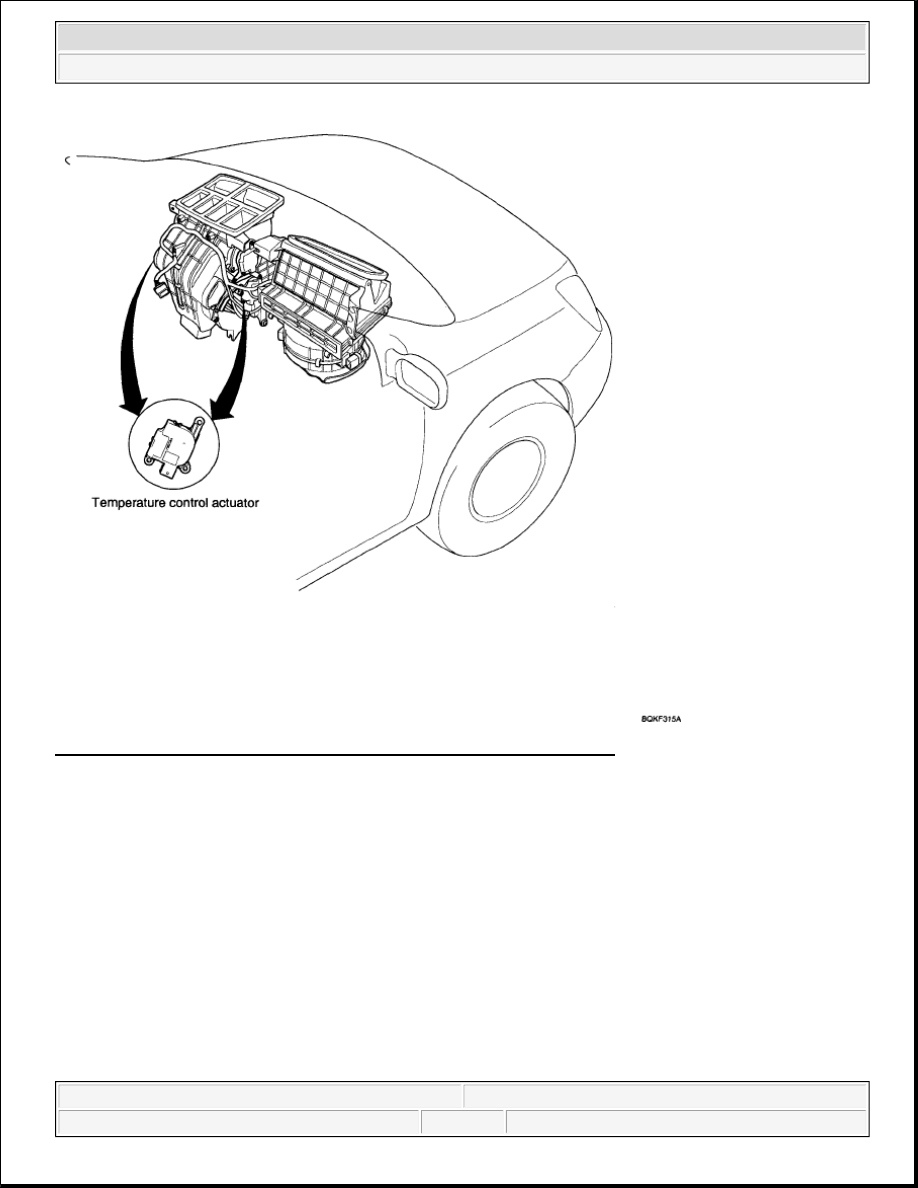

Fig. 11: Identifying Temperature Control Actuator Component Location
Courtesy of KIA MOTORS AMERICA, INC.

DESCRIPTION

1. Heater unit includes mode control actuator and temperature control actuator.

2. Temperature control actuator is located at the heater unit. It regulates the temperature by the procedure as

follows. Signal from control unit adjusts position of temperature door by operating temperature switch
and then temperature will be regulated by the hot/cold air ratio decided by position of temperature door

INSPECTION

1. Ignition "OFF"

2. Disconnect the connector of temperature control actuator.

3. Verify that the temperature control actuator operates to the hot position when connecting 12V to the

terminal 3 and grounding terminal 4.
