Kia Sedona (2008 year). Manual - part 418

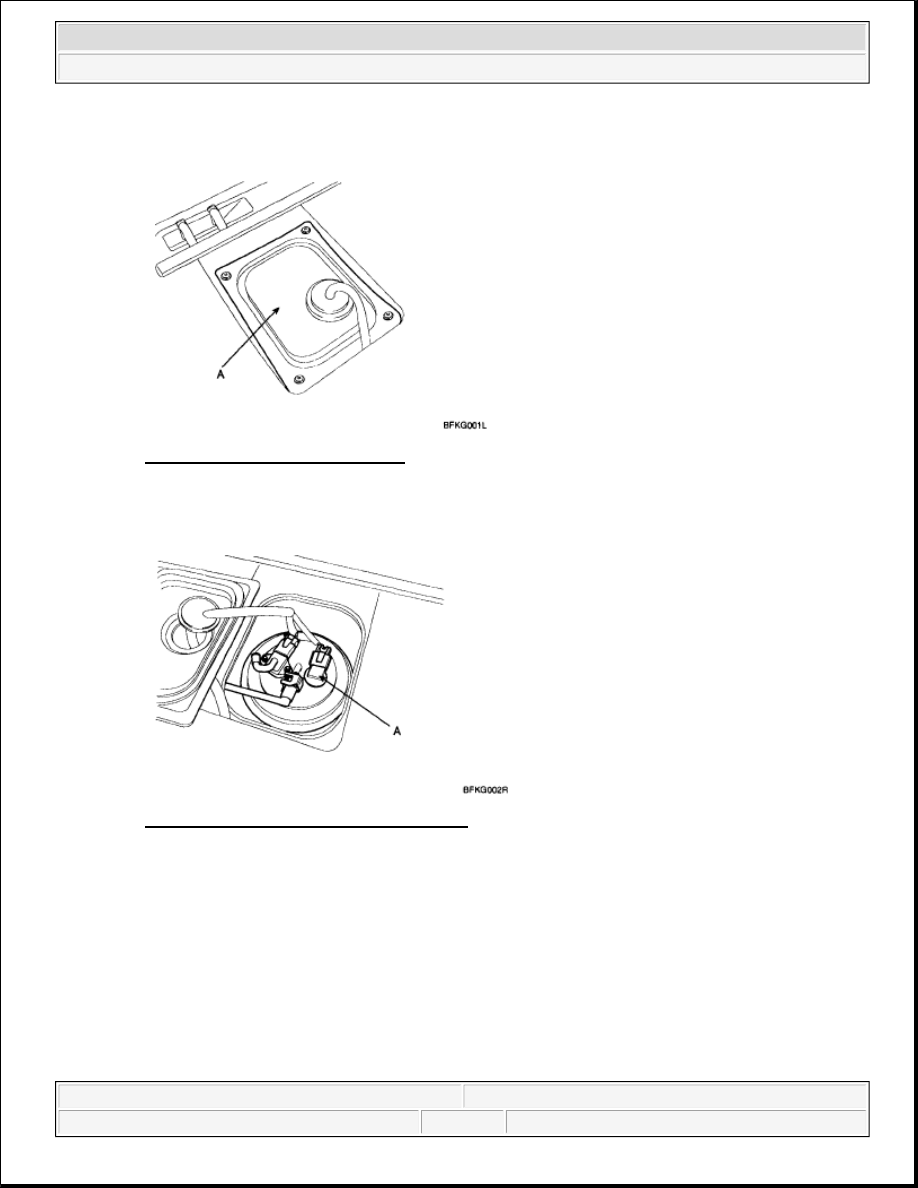

2. Remove the Service Cover (A).

Fig. 11: Identifying Service Cover
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the Fuel Pump Connector (A).

Fig. 12: Identifying Fuel Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Start the engine and wait until fuel in fuel line is exhausted.

5. After the engine stalls, turn the ignition switch OFF.

2. Disconnect the fuel pump connector (A) and the fuel tank pressure sensor connector (B).

2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona

Microsoft

Saturday, May 22, 2010 3:59:05 PM

Page 8

Fig. 13: Identifying Fuel Pump Connector And Fuel Tank Pressure Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Lift the vehicle and support in with a jack.

Fig. 14: Supporting Vehicle With Jack
Courtesy of KIA MOTORS AMERICA, INC.

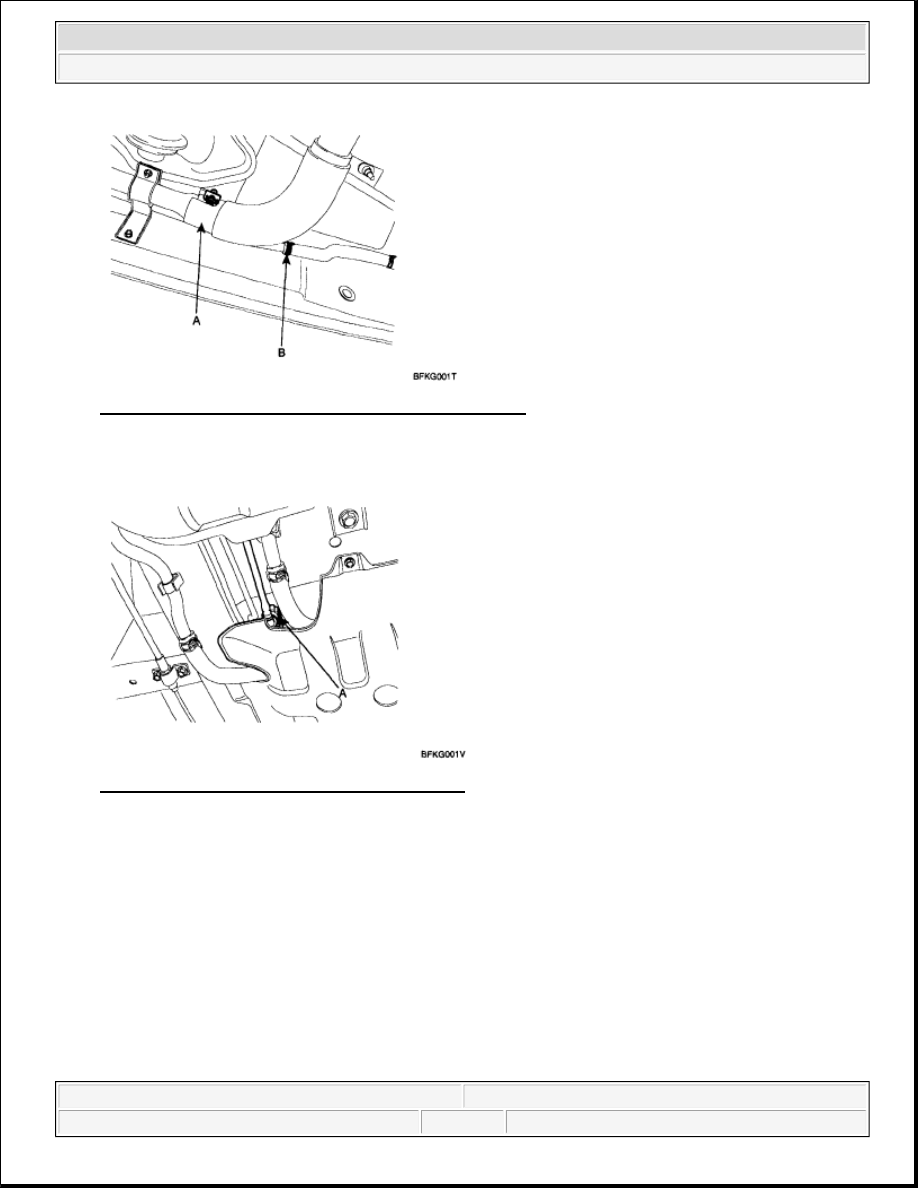

4. Disconnect the fuel filler hose (A) and the leveling hose (B).

2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona

Microsoft

Saturday, May 22, 2010 3:59:05 PM

Page 9

Fig. 15: Identifying Fuel Filler Hose And Leveling Hose
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect the fuel feed quick connector (A) near canister.

Fig. 16: Identifying Fuel Feed Quick Connector
Courtesy of KIA MOTORS AMERICA, INC.

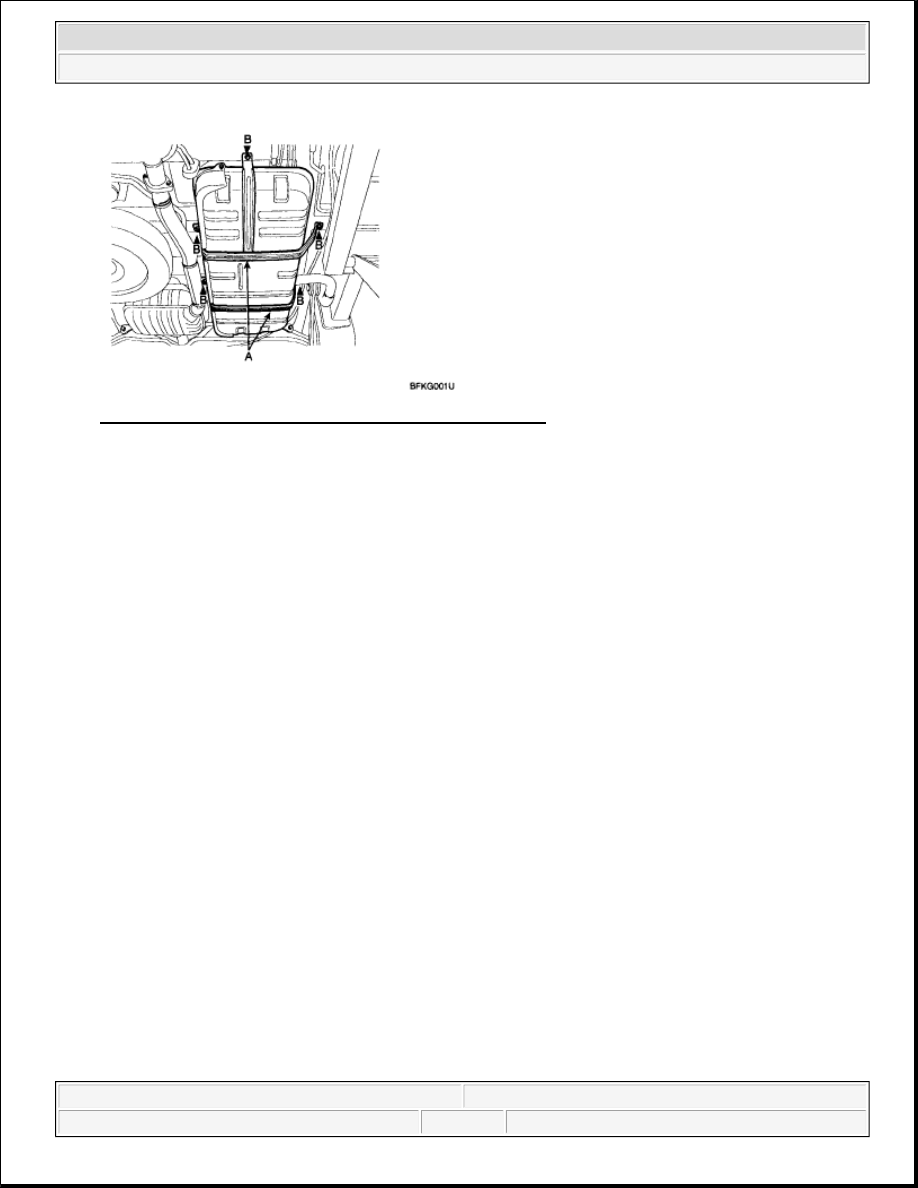

6. Remove the fuel tank band (A) with unscrewing the mounting bolts (B) and remove the fuel tank from the

vehicle.

2008 Kia Sedona

2008 ENGINE PERFORMANCE Fuel Delivery System - Sedona

Microsoft

Saturday, May 22, 2010 3:59:05 PM

Page 10

Fig. 17: Identifying Fuel Tank Bands And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the Fuel Tank according to the reverse order of "REMOVAL" procedure.

Tightening Torque

39.2-53.9 N.m (40.-5.5 kgf.m, 28.9-39.8 lbf.ft)
