2. Remove the spring retainer.

3. Remove the valve spring.

4. Remove the valve.

5. Using SST (09222-29000), remove the valve stem seal.

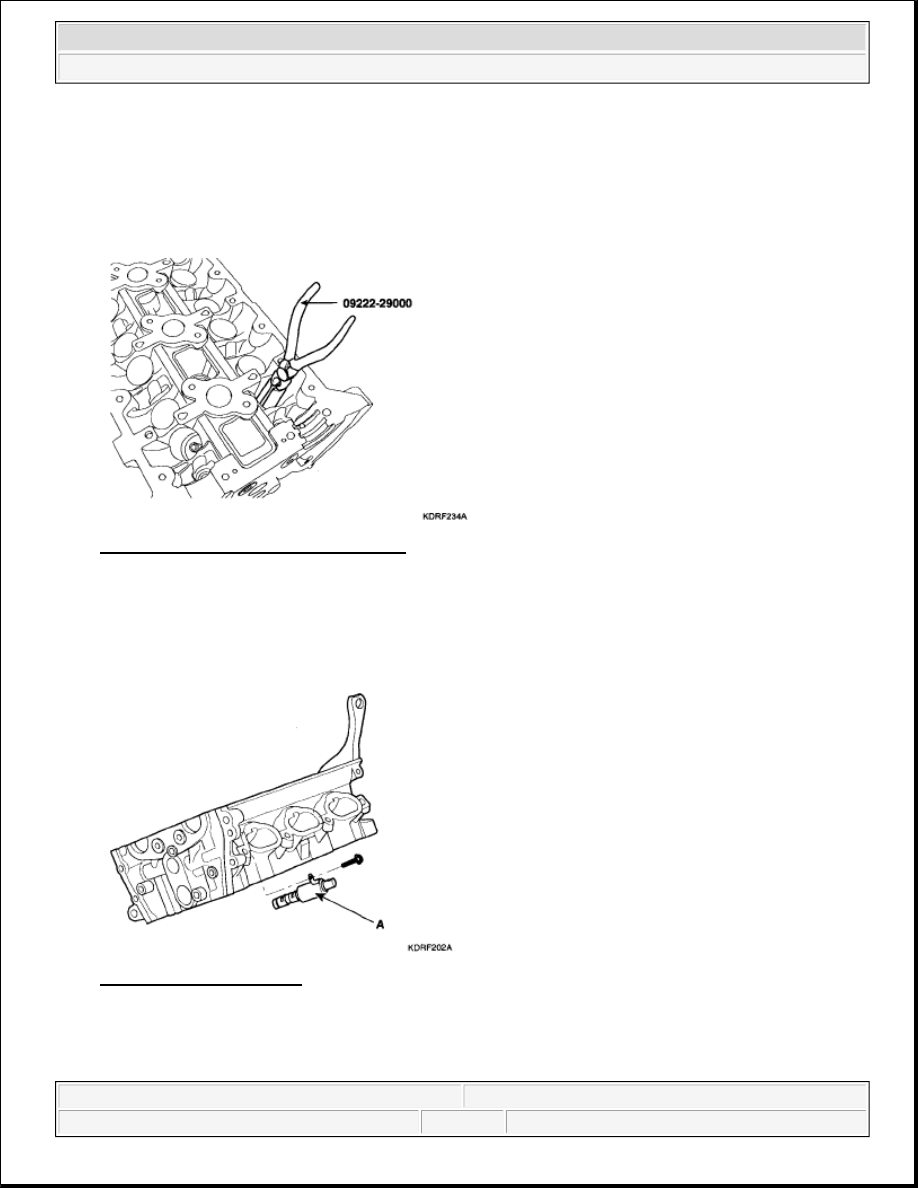

Fig. 108: Identifying SST (09222-29000)
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove OCV (A).

Fig. 109: Identifying OCV
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

CYLINDER HEAD

NOTE:

Do not reuse old valve stem seals.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 74

© 2006 Mitchell Repair Information Company, LLC.

1. Inspect for flatness.

Using a precision straight edge and feeler gauge, measure the surface the contacting the cylinder block
and the manifolds for warpage.

Flatness of cylinder head gasket surface

Standard: Less than 0.05 mm (0.002 in.) [Less than 0.02 mm (0.0008 in.)/150x150]

Flatness of manifold gasket surface

Standard: Less than 0.03 mm (0.001 in.)/110x110

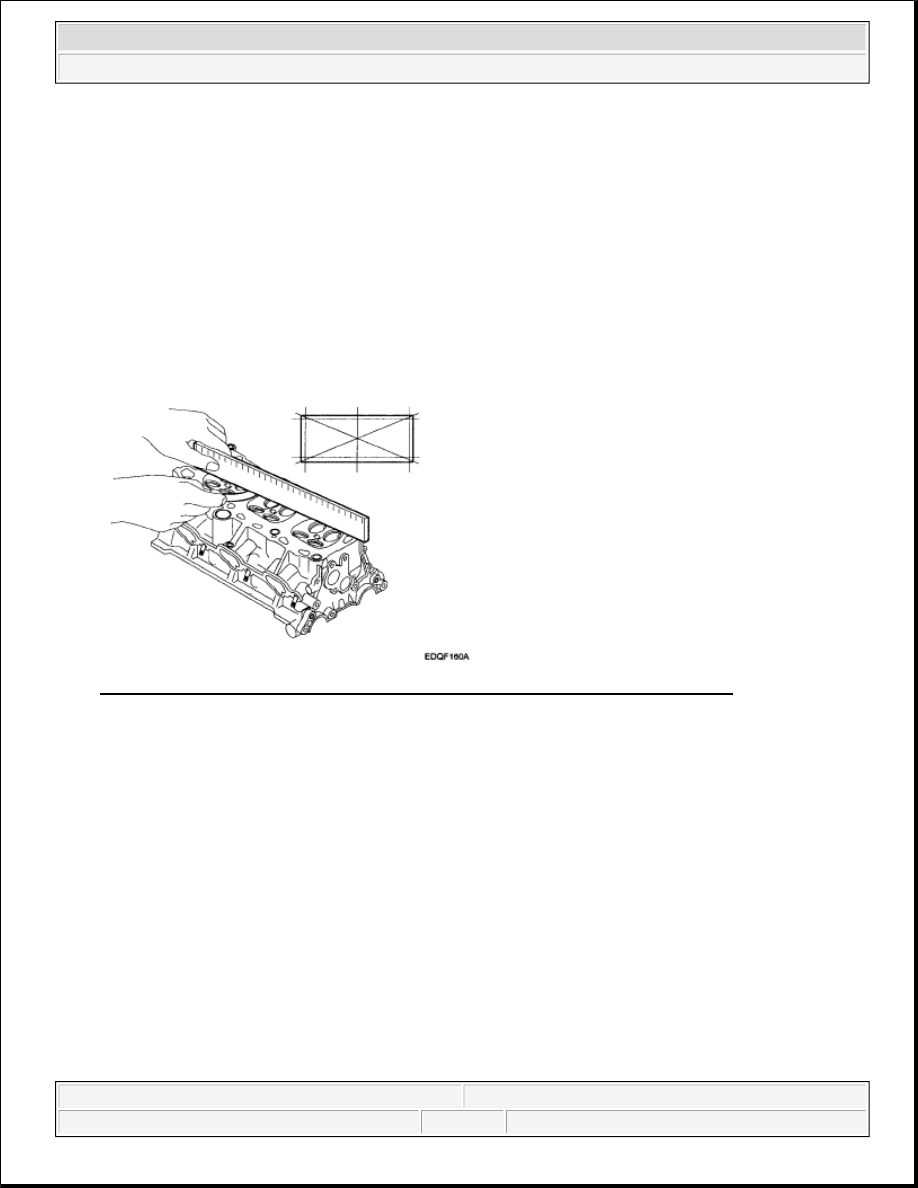

Fig. 110: Measuring Surface Contact Cylinder Block And Manifolds For Warpage
Courtesy of KIA MOTORS AMERICA, INC.

2. Inspect for cracks.

Check the combustion chamber, intake ports, exhaust ports and cylinder block surface for cracks. If
cracked, replace the cylinder head.

VALVE AND VALVE SPRING

1. Inspect valve stems and valve guides.

1. Using a caliper gauge, measure the inside diameter of the valve guide.

Valve guide I.D.

Intake/Exhaust: 5.500-5.512 mm (0.216-0.217 in.)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 75

© 2006 Mitchell Repair Information Company, LLC.

Fig. 111: Measuring Inside Diameter Of Valve Guide
Courtesy of KIA MOTORS AMERICA, INC.

2. Using a micrometer, measure the diameter of the valve stem.

Valve stem O.D.

Intake: 5.465-5.480 mm (0.2151-0.2157 in.)

Exhaust: 5.458-5.470 mm (0.2149-0.2153 in.)

Fig. 112: Measuring Outer Diameter Of Valve Stem
Courtesy of KIA MOTORS AMERICA, INC.

3. Subtract the valve stem diameter measurement from the valve guide inside diameter measurement.

Valve stem-to-guide clearance

[Standard]



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 76

© 2006 Mitchell Repair Information Company, LLC.

Intake: 0.020-0.047 mm (0.0008-0.0018 in.)

Exhaust: 0.030-0.054 mm (0.0012-0.0021 in.)

[Limit]

Intake: 0.07 mm (0.0027 in.)

Exhaust: 0.09 mm (0.0035 in.)

2. Inspect valves.

1. Check the valve is ground to the correct valve face angle.

2. Check that the surface of the valve for wear. If the valve face is worn, replace the valve.

3. Check the valve head margin thickness.

If the margin thickness is less than minimum, replace the valve.

Margin

[Standard]

Intake: 1.56-1.86 mm (0.06142-0.07323 in.)

Exhaust: 1.73-2.03 mm (0.06811-0.07992 in.)

Fig. 113: Identifying Valve Head Margin Thickness
Courtesy of KIA MOTORS AMERICA, INC.

4. Check the valve length.
