96.04-99.96 N.m (9.8-10.2 kgf.m, 70.85-73.74 lb-ft)

17.64-21.56 N.m (1.8-2.2 kgf.m, 13.02-15.91 lb-ft)

Fig. 95: Locating Drive Belt Auto Tensioner
Courtesy of KIA MOTORS AMERICA, INC.

4. Install drive belt idler (A).

Tightening torque

52.92-57.82 N.m (5.4-5.9 kgf.m, 39.06-42.67 lb-ft)

Fig. 96: Locating Drive Belt Idler
Courtesy of KIA MOTORS AMERICA, INC.

5. Install generator (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 66

© 2006 Mitchell Repair Information Company, LLC.

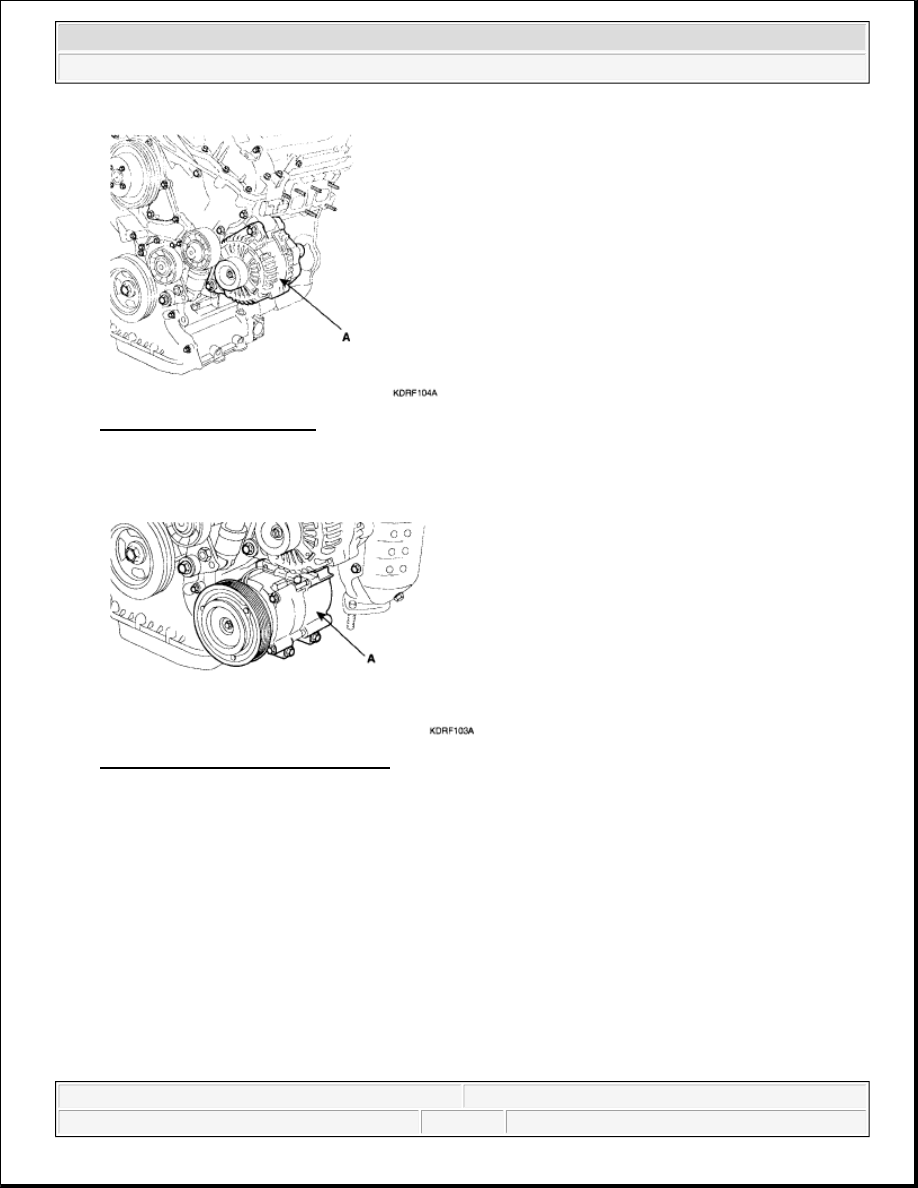

Fig. 97: Locating Generator
Courtesy of KIA MOTORS AMERICA, INC.

6. Install air conditioner compressor A).

Fig. 98: Locating Air Compressor (A)
Courtesy of KIA MOTORS AMERICA, INC.

7. Install power steering pump (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 67

© 2006 Mitchell Repair Information Company, LLC.

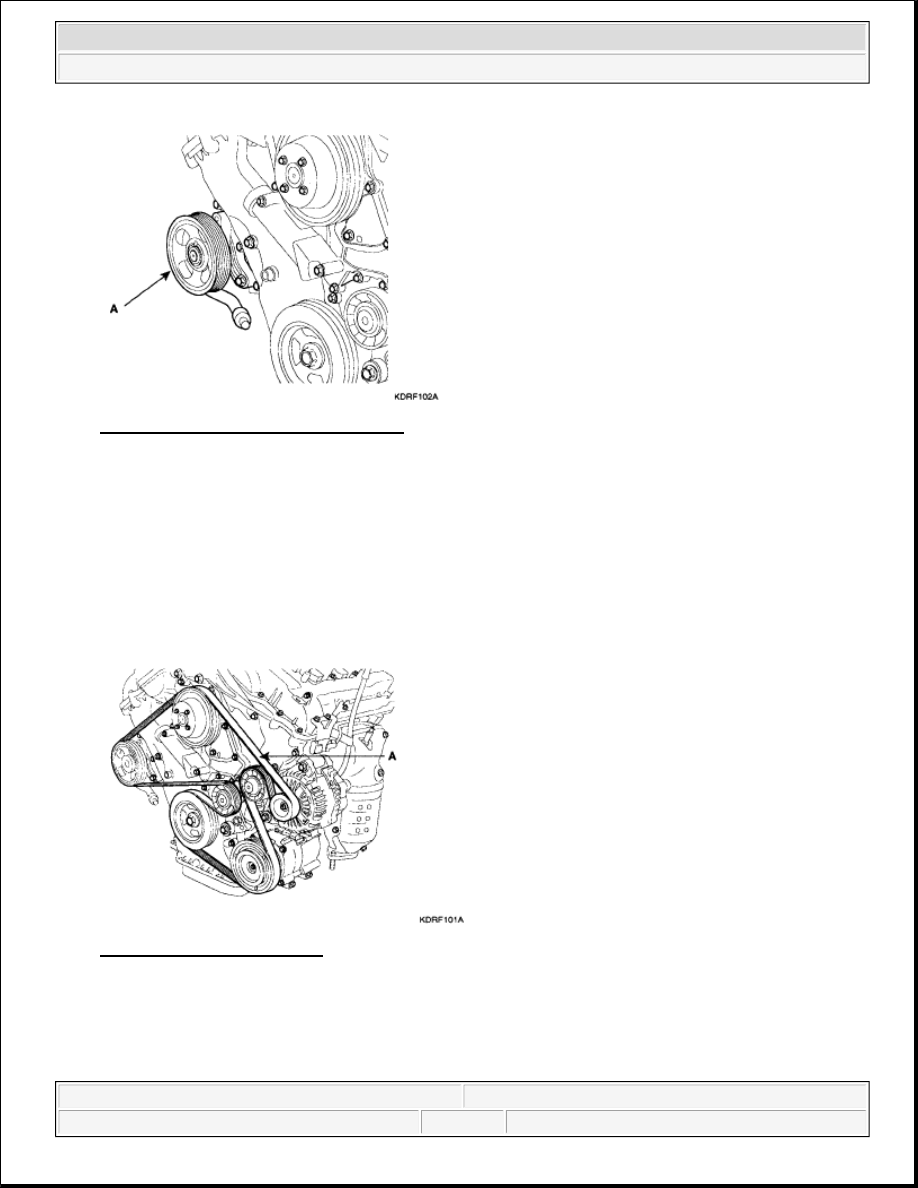

Fig. 99: Locating Power Steering Pump
Courtesy of KIA MOTORS AMERICA, INC.

8. Install drive belt (A).

Crankshaft pulley --> A/C pulley --> idler pulley --> generator pulley --> water pump pulley --> P/S
pump pulley --> tensioner pulley.

Rotate auto tensioner arm in the counter - clockwise moving auto tensioner pulley bolt with wrench.

After putting belt on auto tensioner pulley, release the auto tensioner pulley slowly.

Fig. 100: Locating Drive Belt
Courtesy of KIA MOTORS AMERICA, INC.

CYLINDER HEAD ASSEMBLY

COMPONENTS



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 68

© 2006 Mitchell Repair Information Company, LLC.

Fig. 101: Identifying Cylinder Head Assembly Components And Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
