Fig. 21: Locating Relay Box Cover, PCM Connectors And FAM Connectors
Courtesy of KIA MOTORS AMERICA, INC.

4. Unscrew the FAM mounting bolts (D-3 EA) and take the FAM (E) out of the splash shield (F).

5. Disconnect the connector (G) from the splash shield (B).

Fig. 22: Locating FAM mounting Bolts, FAM, Splash Shield And FAM Connector
Courtesy of KIA MOTORS AMERICA, INC.

13. Disconnect the transaxle wire harness connector and remove the transaxle control cable. Refer to

AUTOMATIC TRANSAXLE SYSTEM .

14. Remove heater hose (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 26

© 2006 Mitchell Repair Information Company, LLC.

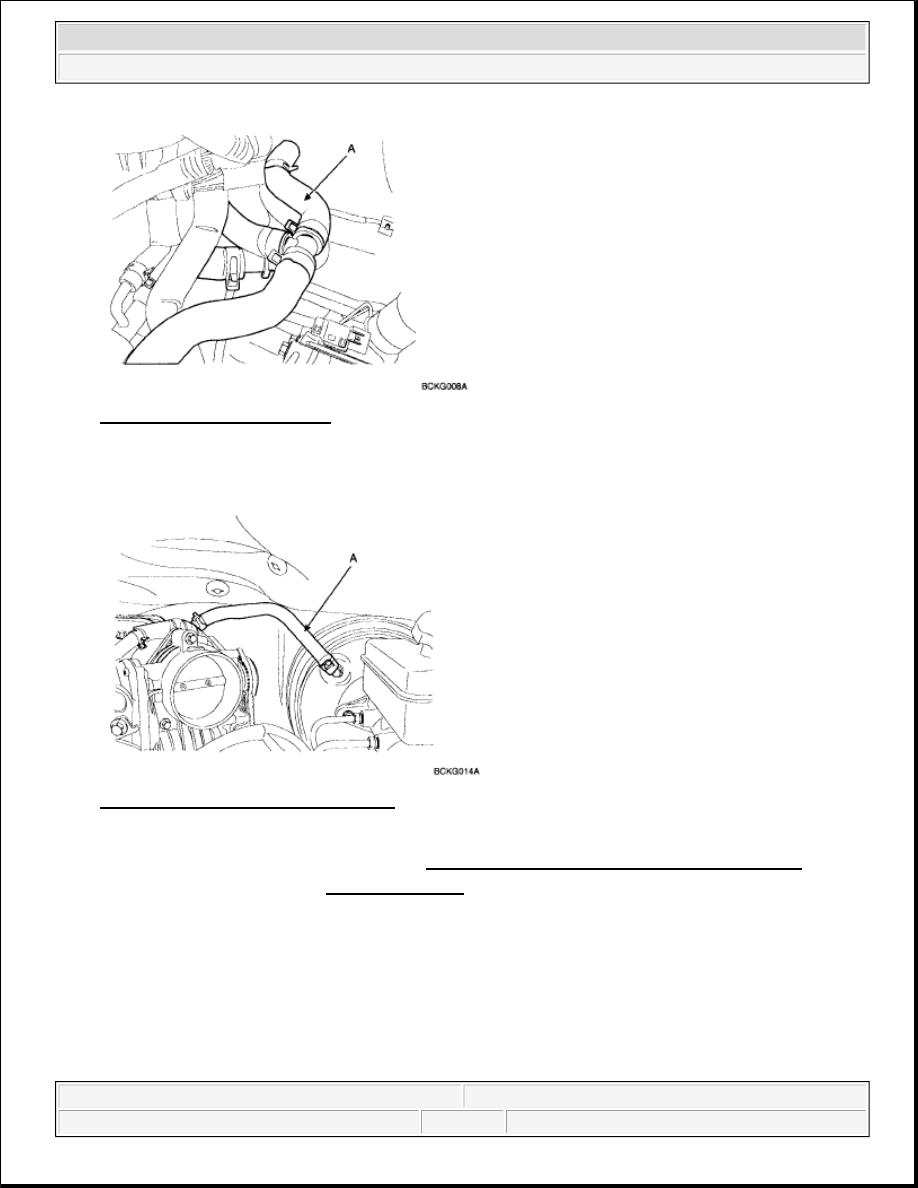

Fig. 23: Locating Heater Hose
Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the brake vacuum hose (A).

Fig. 24: Locating Brake Vacuum Hose
Courtesy of KIA MOTORS AMERICA, INC.

16. Remove power steering pump hose. Refer to MECHANICAL POWER STEERING SYSTEM .

17. Remove front wheels. Refer to TIRES/WHEELS .

18. Remove the radiator grille upper cover (A) for convenience sake.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

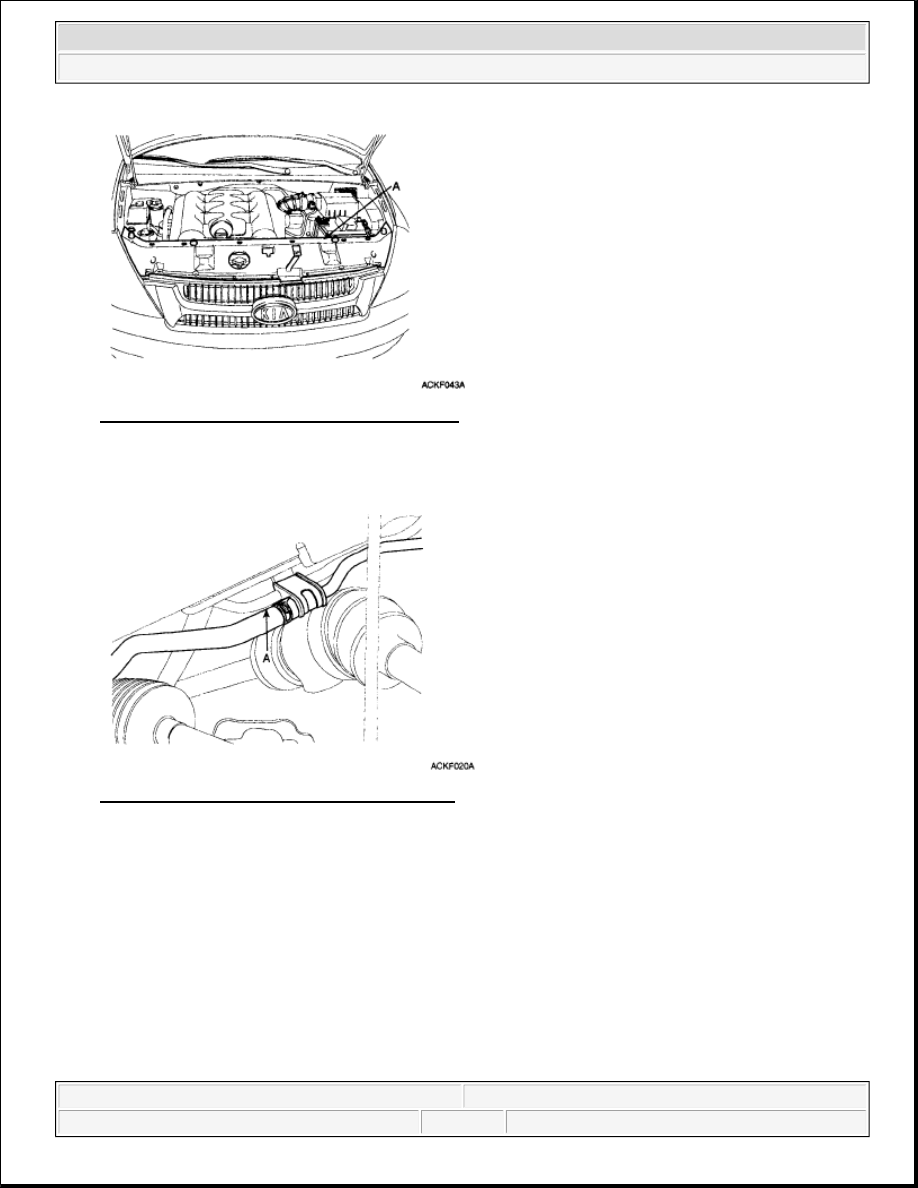

Fig. 25: Locating Radiator Grille Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

19. Disconnect the power steering return hose (A).

Fig. 26: Locating Power Steering Return Hose
Courtesy of KIA MOTORS AMERICA, INC.

20. Remove the under cover (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:36 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

Fig. 27: Locating Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

21. Remove the radiator support upper member assembly for convenience sake.

Fig. 28: Locating Radiator Support Upper Member Assembly
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

The bottom side bolt (A) which can be seen after removing the under cover
should be loosened for removal of the radiator support upper member
assembly.
