Fig. 13: Locating Battery
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the intake air hose and air cleaner assembly.

1. Disconnect the MAF connector (A).

2. Disconnect the breather hose (B) from air cleaner hose.

3. Remove the intake air hose and air cleaner assembly (C).

Fig. 14: Locating MAF Connector, Breather Hose And Air Cleaner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the battery tray (A).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 22

Fig. 15: Locating Battery Tray
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the radiator grille upper cover (A).

Fig. 16: Locating Radiator Grille Upper Cover
Courtesy of KIA MOTORS AMERICA, INC.

7. Disconnect the RH and LH oxygen sensor connectors (A, B).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 23

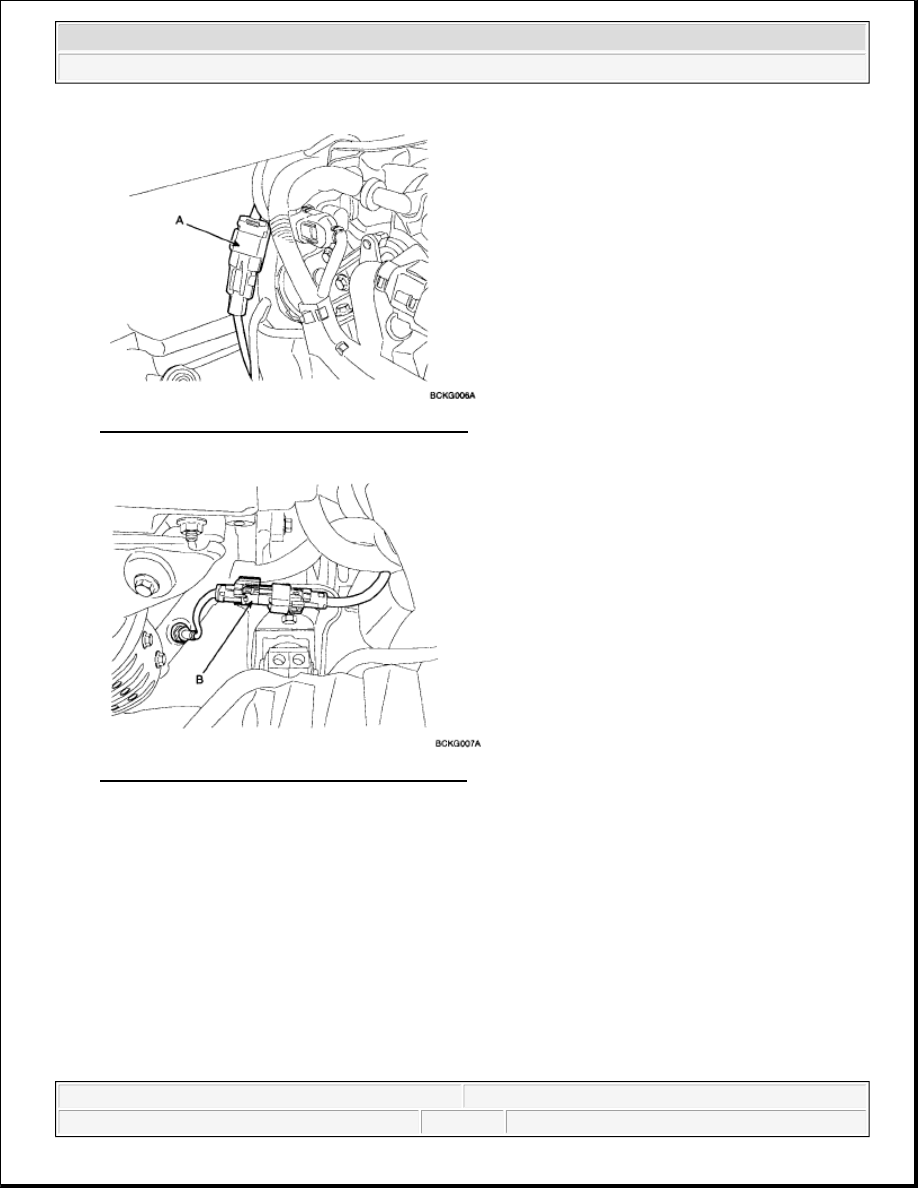

Fig. 17: Locating RH Oxygen Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 18: Locating LH Oxygen Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

8. Coolant should be drained.

9. Remove the radiator upper and lower hoses (A).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:36 PM

Page 24

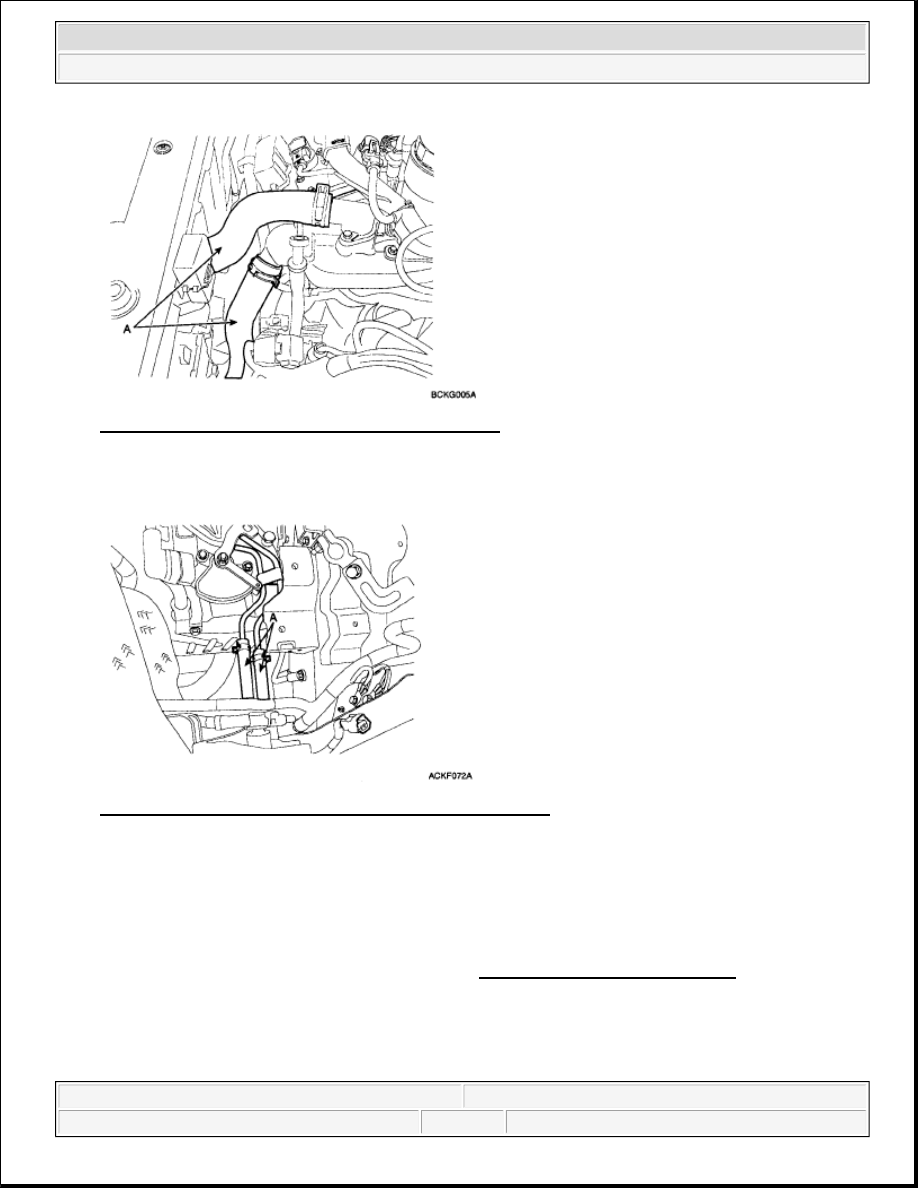

Fig. 19: Locating Radiator Upper And Lower Hoses
Courtesy of KIA MOTORS AMERICA, INC.

10. Disconnect the automatic transaxle fluid cooler hoses (A).

Fig. 20: Locating Automatic Transaxle Fluid Cooler Hoses
Courtesy of KIA MOTORS AMERICA, INC.

11. Disconnect the high and low pressure pipes from the radiator or the compressor.

12. Disconnect engine wiring.

1. Remove the engine room fuse and relay box cover (A).

2. Disconnect the PCM connectors (B).

3. Disconnect the FAM connectors (C). Refer to AIR CONDITIONING SYSTEM .
