Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Substitute with a known-good actuator and check for proper operation. If the problem is corrected,
replace actuator and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

3. Check A/C Control Unit.

1. Engine: "ON"

2. Connect A/C Control Unit.

3. Measure voltage between terminal "15" and "16" of A/C Control Unit while operating the mode

switch.

Specification :Approx. 12V

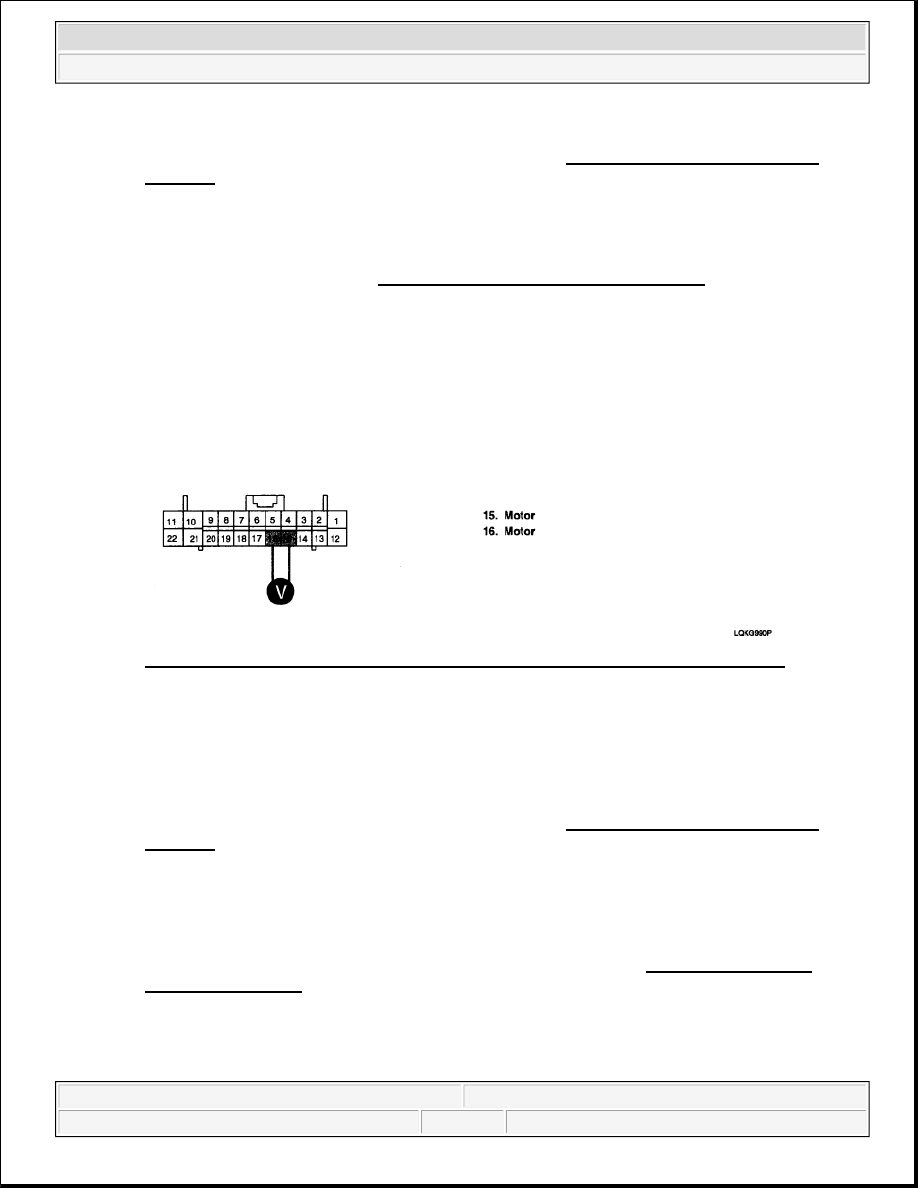

Fig. 202: Checking Voltage Between Terminal "15" And "16" Of A/C Control Unit
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Substitute with a known-good A/C Control Unit and check for proper operation.

If the problem is corrected, replace A/C Control Unit and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

After a repair, it is essential to verify that the fault has been corrected.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:10 PM

Page 178

© 2006 Mitchell Repair Information Company, LLC.

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode and then clear DTC.

2. Operate the vehicle and monitor the DTC on the scan tool.

3. Are any DTCs present?

YES

Go to the applicable troubleshooting procedure.

NO

System is performing to specification at this time.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:10 PM

Page 179

© 2006 Mitchell Repair Information Company, LLC.

2008 ACCESSORIES & BODY, CAB

Body (Interior & Exterior) - General - Sedona

SPECIFICATIONS

GENERAL SPECIFICATIONS

TIGHTENING TORQUE

TIGHTENING TORQUE SPECIFICATIONS

HOOD

Type

Rear hinged, gas lifter type

FRONT DOOR

Construction

Front hinged, full door

construction

Regulator system

X-ARM type

Locking system

Pin-fork system

REAR DOOR

Construction

Sliding door construction

Regulator system

Wire drum type

Locking system

Pin-fork system

TAILGATE

Type

Inner hinged, gas lifter type

GLASS THICKNESS

Windshield glass

5 mm

Front door glass

4 mm

Rear door glass

4 mm

Rear window glass

3.5 mm

SEAT BELTS

Front

3 point type with Emergency

Locking Retractor (ELR)

Rear

3 point type with Emergency

Locking Retractor (ELR)

Items

N.m

Kgf. m

Lbf. ft

Front and rear doors Door hinge to body

33.3-41.2

3.4-4.2

24.6-30.4

Door hinge to door

21.6-26.5

2.2-2.7

15.9-19.5

Striker

6.9-10.8

0.7-1.1

5.1-8.0

Glass mounting bolt

7.8-11.8

0.8-1.2

5.8-8.7

Outside handle
mounting bolt

6.9-10.8

0.7-1.1

5.1-8.0

Rear channel
mounting nut

7.8-11.8

0.8-1.2

5.8-8.7

Tailgate

Tailgate hinge to
body

6.9-8.8

0.7-0.9

5.1-6.5

Tailgate hinge to
tailgate

6.9-8.8

0.7-0.9

5.1-6.5

Tailgate lift
mounting bolt

6.9-8.8

0.7-0.9

5.1-6.5



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Body (Interior & Exterior) - General - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Body (Interior & Exterior) - General - Sedona



Microsoft



Monday, May 24, 2010 4:05:08 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:05:11 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

SPECIAL TOOLS

SPECIAL TOOLS REFERENCE CHART

Key cylinder
mounting nut

6.9-10.8

0.7-1.1

5.1-8.0

Hood

Hood hinge to body

21.6-26.5

2.2-2.7

15.9-19.5

Hood hinge to hood

21.6-26.5

2.2-2.7

15.9-19.5

Hood latch to body

6.9-10.8

0.7-1.1

5.1-8.0

Seat

Front seat mounting
bolts

43.1-64.7

4.4-6.6

31.8-47.7

Rear seat mounting
bolts

43.1-64.7

4.4-6.6

31.8-47.7

Seat belt

Front seat belt
height adjuster

39.2-53.9

4.0-5.5

28.9-39.8

Front seat belt
buckle mounting
bolt

39.2-53.9

4.0-5.5

28.9-39.8

Front seat belt
anchor mounting
bolt

39.2-53.9

4.0-5.5

28.9-39.8

Front seat belt lower
anchor

39.2-53.9

4.0-5.5

28.9-39.8

Front seat belt upper
anchor

39.2-53.9

4.0-5.5

28.9-39.8

Rear seat belt
anchor attaching
bolt

39.2-53.9

4.0-5.5

28.9-39.8

Rear seat belt
retractor mounting
bolt

39.2-53.9

4.0-5.5

28.9-39.8

Tool (Number and name)

Illustration

Use

09793-2100
Door hinge adjusting wrench

Adjustment, removal and
installation
Of the door hinge

09800-21000
Ornament remover

Trim removal
