Kia Sedona (2008 year). Manual - part 263

Specification: Approx. 0 ohms

Fig. 196: Checking Resistance Between Terminal "3, 4" Of Passenger Direction Motor And
Terminal "15, 16" Of A/C Control Unit
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check for short to ground in harness.

1. Ignition "OFF"

2. Disconnect Passenger mode Actuator.

3. Measure resistance between terminal "3, 4" of Passenger Direction Motor and chassis ground.

Specification: Approx. infinity ohms



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 174

© 2006 Mitchell Repair Information Company, LLC.

Fig. 197: Checking Resistance Between Terminal "3, 4" Of Rear Air Mix Motor And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "VISUAL/PHYSICAL INSPECTION" procedure.

NO

Check for short to ground in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

VISUAL/PHYSICAL INSPECTION

1. Check actuator.

Check if Passenger Direction Actuator works properly through ACTUATION TEST.

1. Ignition: ON

2. Connect scan tool and select "ACTUATION TEST" mode and press [F1]

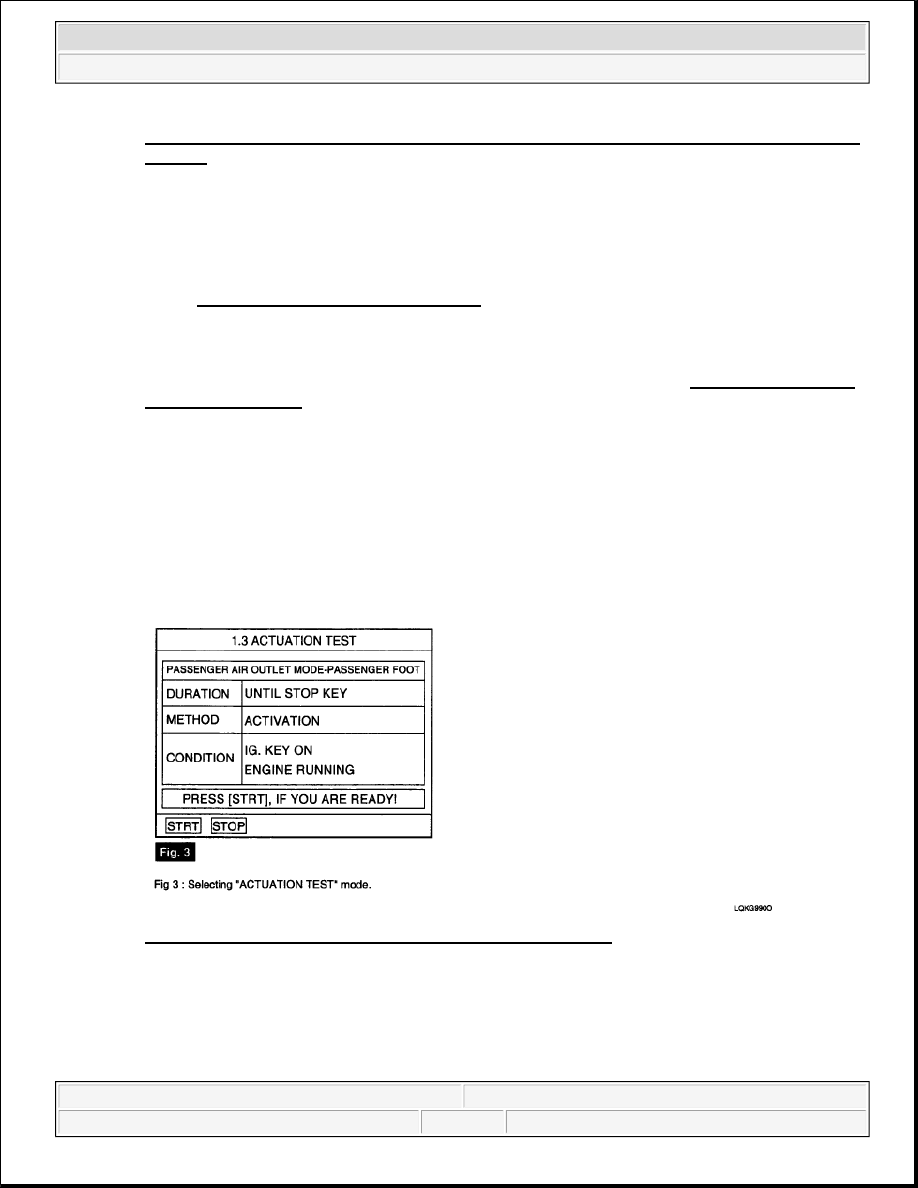

Fig. 198: Diagnosis Function Screen Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

3. Does Passenger Direction Actuator work properly?

YES



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:09 PM

Page 175

© 2006 Mitchell Repair Information Company, LLC.

Go to "COMPONENT INSPECTION" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

COMPONENT INSPECTION

1. Check actuator.

1. Ignition "OFF"

2. Disconnect Passenger Direction potentiometer.

3. Verify that the mode actuator operates to the vent mode when connecting 12V to the terminal "3

and grounding terminal "4.

4. Verify that the mode actuator operates to the def mode when the connections are reversed.

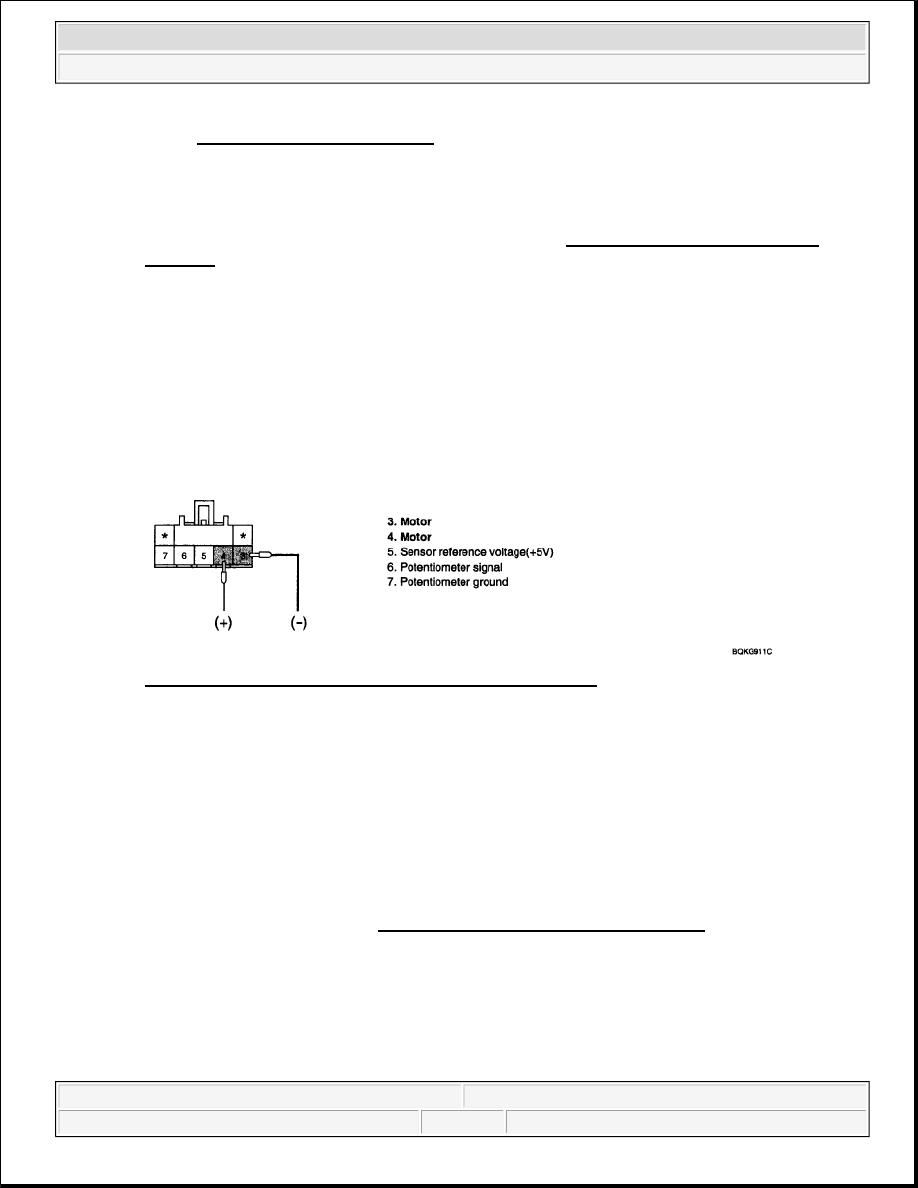

Fig. 199: Checking Terminal 3 And Grounding Terminal 4
Courtesy of KIA MOTORS AMERICA, INC.

5. Does the actuator work properly?

YES

Go to step 2.

NO

Substitute with a known-good actuator and check for proper operation. If the problem is corrected,
replace actuator and then go to "VERIFICATION OF VEHICLE REPAIR" procedure.

2. Check potentiometer

1. Ignition "ON"

2. Connect Passenger Direction potentiometer.

3. Measure voltage between terminal "5" and "6" of Passenger Direction potentiometer as the mode

switch is operated.



2008 Kia Sedona EX

2008 HVAC Blower & A/C Controls (Automatic) - Sedona



Microsoft



Monday, May 24, 2010 3:56:10 PM

Page 176

© 2006 Mitchell Repair Information Company, LLC.

Specification: Refer to DOOR POSITION CHART

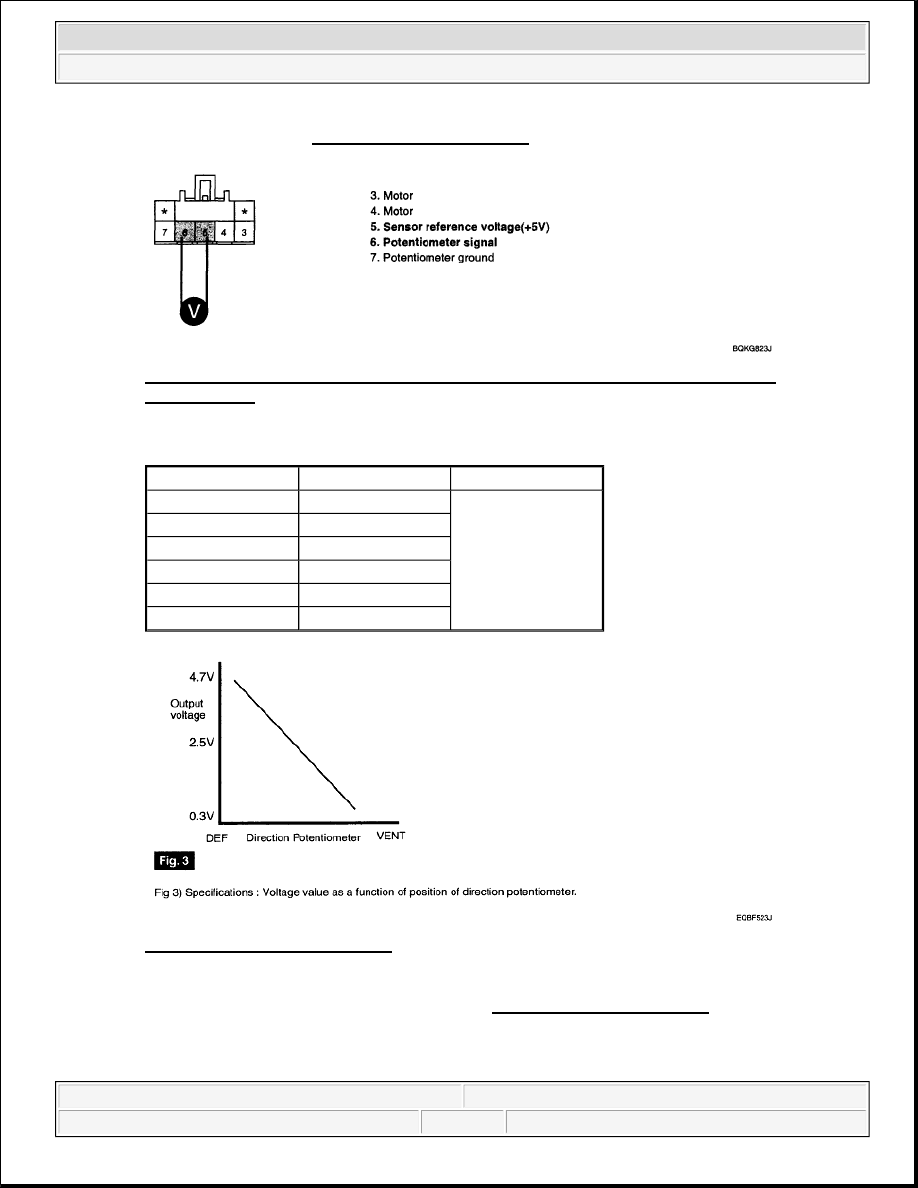

Fig. 200: Checking Voltage Between Terminal "5" And "6" Of Passenger Air Mix
Potentiometer
Courtesy of KIA MOTORS AMERICA, INC.

DOOR POSITION CHART

Fig. 201: Output Voltage Graph
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications in DOOR POSITION CHART?

YES

Door position

Voltage (5-6)

Error detecting

VENT

0.3 ± 0.15V

Under voltage:

0.08V or less

Over voltage: 4.92V

or more

BI-LEVEL(1)

1.35 ± 0.4V

BI-LEVEL(2)

2.25 ± 0.4V

FLOOR

3.0 ± 0.4V

MIX

3.6 ± 0.4V

DEF

4.7 ± 0.15V
