Go to TERMINAL AND CONNECTOR INSPECTION.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between parking lamp power circuit of FAM (BCM-FE-1 ) and parking

lamp (E25-2).

Specification: 0 ohms

Fig. 261: Measuring Resistance Between Parking Lamp Power Circuit Of FAM (BCM-FE-1 )
And Parking Lamp (E25-2)
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 305

© 2006 Mitchell Repair Information Company, LLC.

NO

Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between parking lamp ground circuit (E25-3) and chassis ground.

Specification: 0 ohms

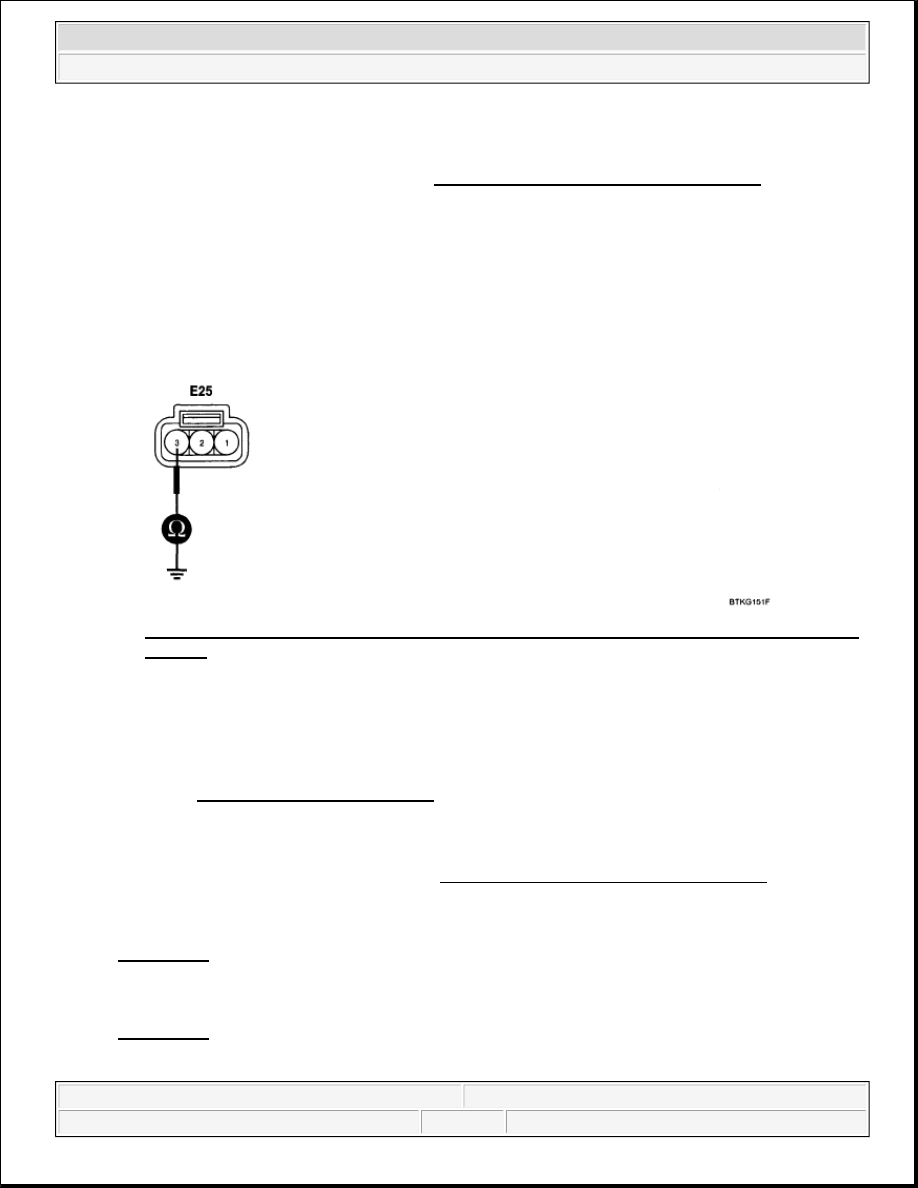

Fig. 262: Measuring Resistance Between Parking Lamp Ground Circuit (E25-3) And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

Refer to DTC B2563.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2571 RIGHT PARKING LAMP CIRCUIT SHORT TO GROUND ERROR



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 306

© 2006 Mitchell Repair Information Company, LLC.

COMPONENT LOCATION

Refer to DTC B2535.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC B2571 if short to ground in Right parking lamp circuit is detected.

DTC DETECTING CONDITION

Refer to DTC B2543.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

Fig. 263: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2571 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.

NO



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 307

© 2006 Mitchell Repair Information Company, LLC.

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2543.

POWER SUPPLY CIRCUIT INSPECTION

1. Check short in power circuit

1. Ignition "ON" & engine "OFF".

2. Disconnect parking lamp.

3. Measure the resistance between parking lamp power circuit of FAM (BCM-FE-1) and chassis

ground.

Specification: infinity ohms

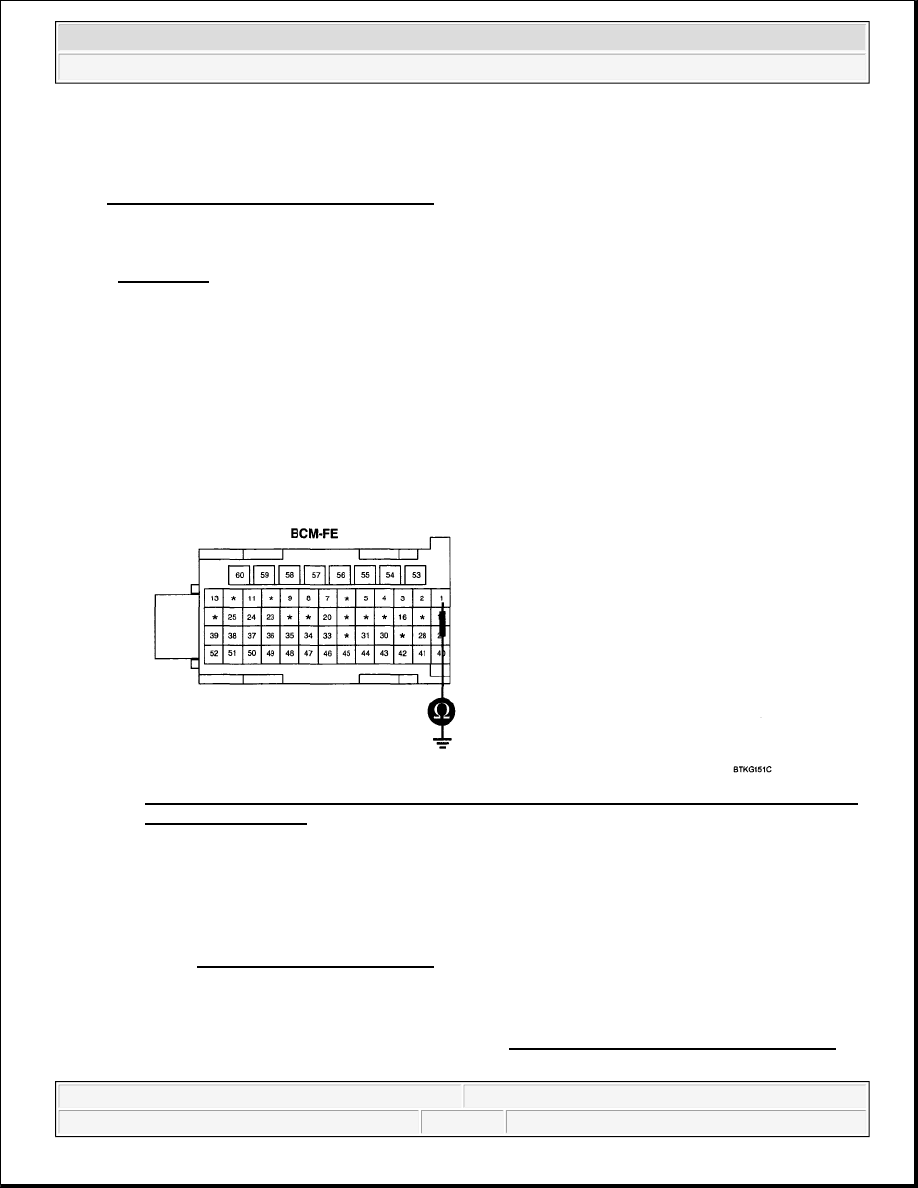

Fig. 264: Measuring Resistance Between Parking Lamp Power Circuit Of FAM (BCM-FE-1)
And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair short to ground in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".
