Specification: approx. 0.04 ohms

(If light bulb fails, infinity ohms is measured.)

Fig. 253: Measuring Resistance Between Both Terminals Of Turn Signal Lamp Light Bulb
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to step 2.

NO

Replacing the light bulb with `light bulb for test', if normal operating condition is confirmed,
Replace `light bulb for test' with `new light bulb' and go to "VERIFICATION OF VEHICLE
REPAIR".

2. Check FAM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Check if DTC is erased after replacing FAM with "FAM for test".

4. Is the DTC erased?

YES

Replace "FAM for test" with "new FAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage. Repair or replace if necessary and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 297

© 2006 Mitchell Repair Information Company, LLC.

Refer to DTC B2119.

DTC B2561 RIGHT FRONT FOG LAMP CIRCUIT OPEN ERROR

COMPONENT LOCATION

Refer to DTC B2535.

GENERAL DESCRIPTION

Refer to DTC B2535.

DTC DESCRIPTION

The ECM sets DTC B2561 if open in Right fog lamp circuit is detected.

DTC DETECTING CONDITION

Refer to DTC B2545.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.

Fig. 254: Identifying Scan Tool Display - Diagnostic Trouble Codes (DTCs)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the DTC B2561 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 298

© 2006 Mitchell Repair Information Company, LLC.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B2119.

POWER SUPPLY CIRCUIT INSPECTION

1. Check open in power circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between fog lamp power circuit of FAM (BCM-FE-3)and fog lamp (E19-2).

Specification: 0 ohms

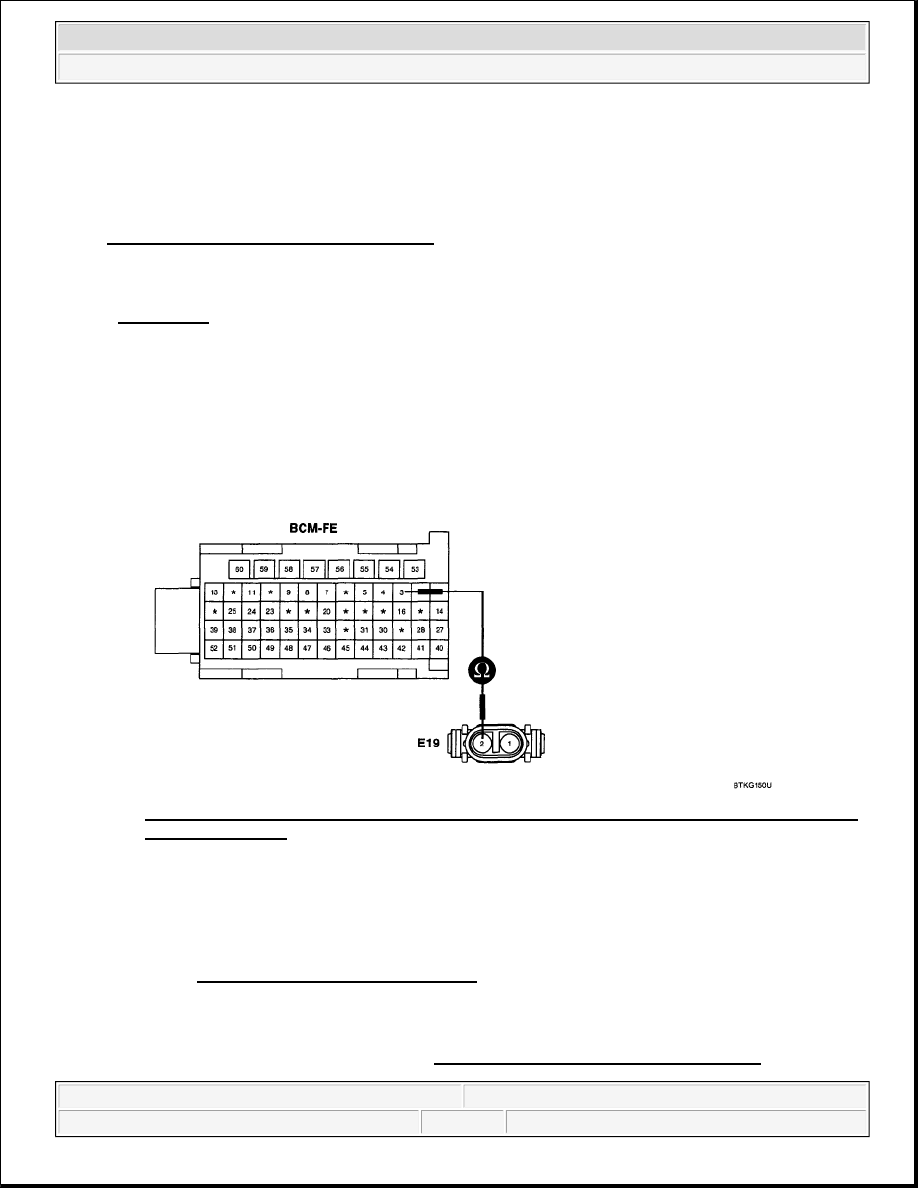

Fig. 255: Measuring Resistance Between Fog Lamp Power Circuit Of FAM (BCM-FE-3)And
Fog Lamp (E19-2)
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "GROUND CIRCUIT INSPECTION".

NO

Repair open in power circuit and go to "VERIFICATION OF VEHICLE REPAIR".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:21 PM

Page 299

© 2006 Mitchell Repair Information Company, LLC.

GROUND CIRCUIT INSPECTION

1. Check open in ground circuit

1. Ignition "ON" & engine "OFF".

2. Measure the resistance between Left turn signal lamp ground circuit (E19-1) and chassis ground.

Specification: 0 ohms

Fig. 256: Measuring Resistance Between Left Turn Signal Lamp Ground Circuit (E19-1) And
Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in ground circuit and go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

Refer to DTC B2551.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2119.

DTC B2563 LEFT FRONT FOG LAMP CIRCUIT SHORT TO GROUND ERROR

COMPONENT LOCATION

Refer to DTC B2539.
