Go to SIGNAL CIRCUIT INSPECTION procedure.

SIGNAL CIRCUIT INSPECTION

1. Check for open in harness

1. Ignition "OFF".

2. Disconnect assist door lamp.

3. Measure resistance between terminal "7" of ADM and chassis ground.

Specification :Approx. infinity ohms

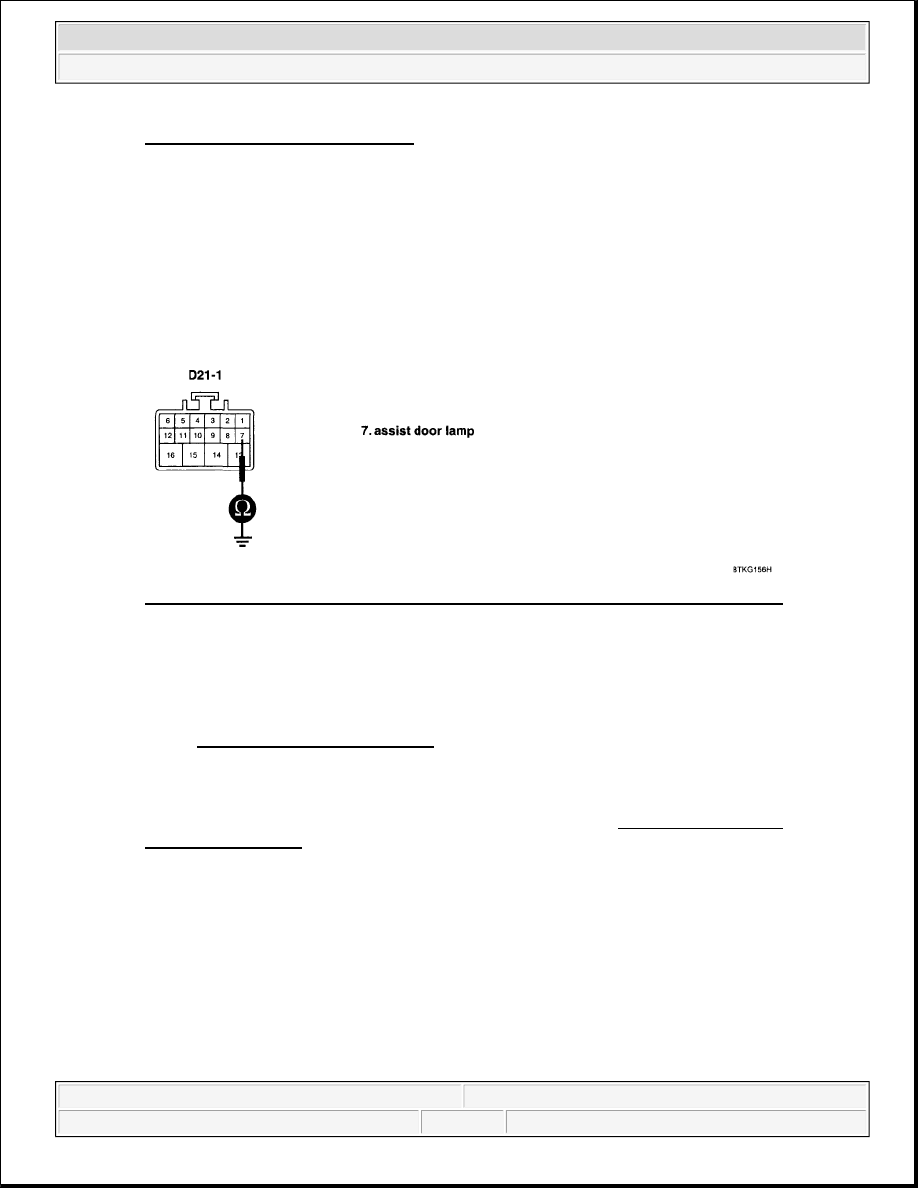

Fig. 211: Measuring Resistance Between Terminal 7 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Motor Power circuit Inspection

1. Ignition "OFF"

2. Disconnect assist door lamp.

3. Measure resistance between terminal "7" of ADM and chassis ground.

Specification :Approx. infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 253

© 2006 Mitchell Repair Information Company, LLC.

Fig. 212: Measuring Resistance Between Terminal 7 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. Check assist door lamp

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST' mode on scan tool and press [F1] to start



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 254

© 2006 Mitchell Repair Information Company, LLC.

Fig. 213: Identifying Scan Tool Display - Actuation Test Of Assist Door Lamp
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose assist door lamp work properly?

YES

Go to step 2.

NO

Substitute with a known-good assist door lamp and check for proper operation.

If the problem is corrected, replace assist door lamp and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check ADM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Substitute with a known-good ADM and Check if the DTC is erased.

4. Is the DTC erased?

YES

Substitute with a known-good ADM and check for proper operation.

If the problem is corrected, replace ADM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1912.

DTC B2535 RIGHT TURN SIGNAL LAMP CIRCUIT SHORT TO GROUND ERROR

COMPONENT LOCATION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 255

© 2006 Mitchell Repair Information Company, LLC.

Fig. 214: Identifying Washer Fluid Reservoir, Headlight, Turn Signal & Fog Lamp Connectors
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

Refer to DTC B2119.

DTC DESCRIPTION

The ECM sets DTC B2535 if short to ground in Right turn signal lamp circuit is detected.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF" & FAM: "ON".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

Item

Detecting Condition

Possible Cause

DTC Strategy



Check resistance & chassis ground



Short in power circuit



Right bulb failure

Enable Conditions



IGN: ON, ENG: OFF

Threshold value



0 ohms

Detecting time

-
