2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO

Go to POWER SUPPLY CIRCUIT INSPECTION procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Motor Power circuit Inspection

1. Ignition "OFF"

2. Disconnect driver door lamp.

3. Measure resistance between terminal "7" of DDM and chassis ground.

Specification :Approx. infinity ohms

Fig. 208: Measuring Resistance Between Terminal 7 Of DDM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 249

© 2006 Mitchell Repair Information Company, LLC.

COMPONENT INSPECTION

1. Check driver door lamp

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select `ACTUATION TEST' mode on scan tool and press [F1] to start

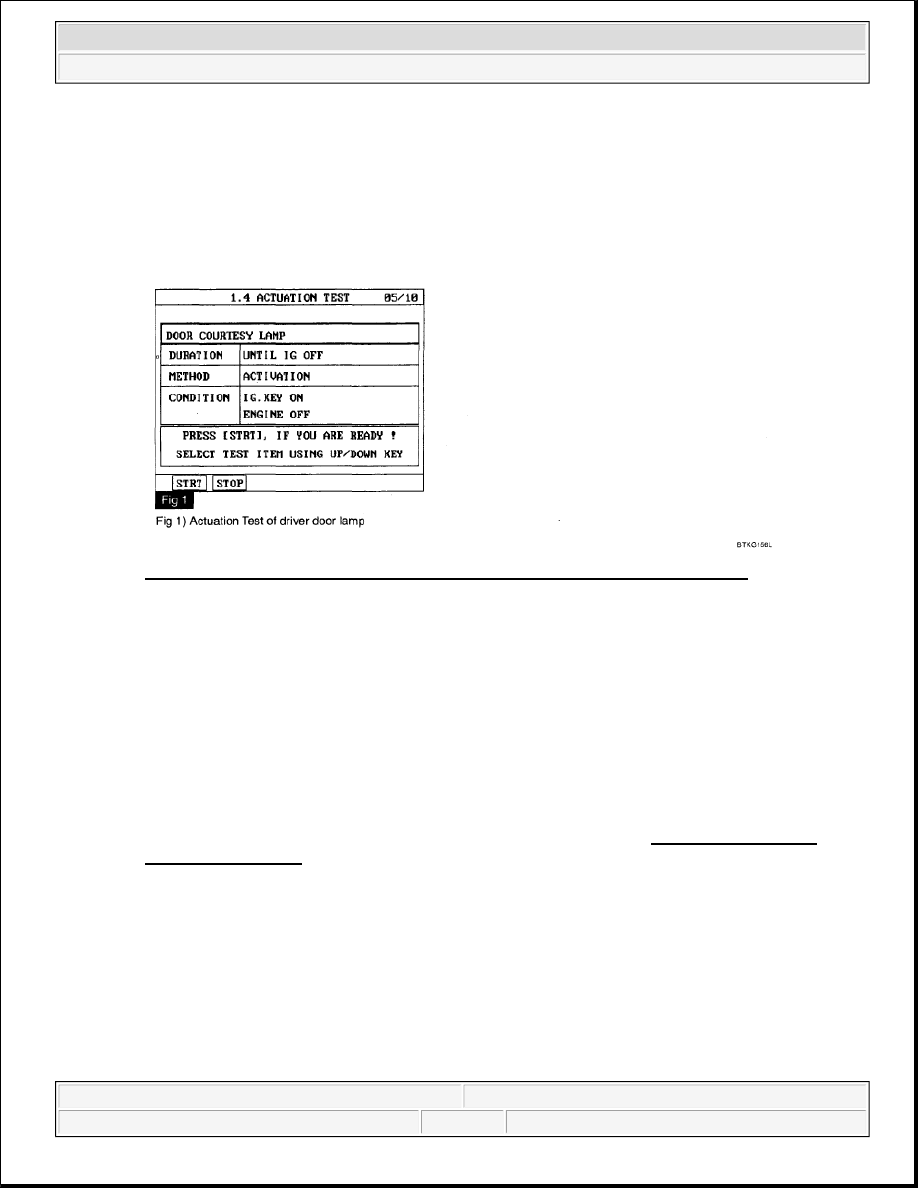

Fig. 209: Identifying Scan Tool Display - Actuation Test Of Driver Door Lamp
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose driver door lamp work properly?

YES

Go to step 2.

NO

Substitute with a known-good left outside mirror and check for proper operation.

If the problem is corrected, replace left outside mirror and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check DDM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Substitute with a known-good DDM and Check if the DTC is erased.

4. Is the DTC erased?

YES



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 250

© 2006 Mitchell Repair Information Company, LLC.

Substitute with a known-good DDM and check for proper operation.

If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1910.

DTC B2533 ASSIST COURTESY LAMP ERROR

COMPONENT LOCATION

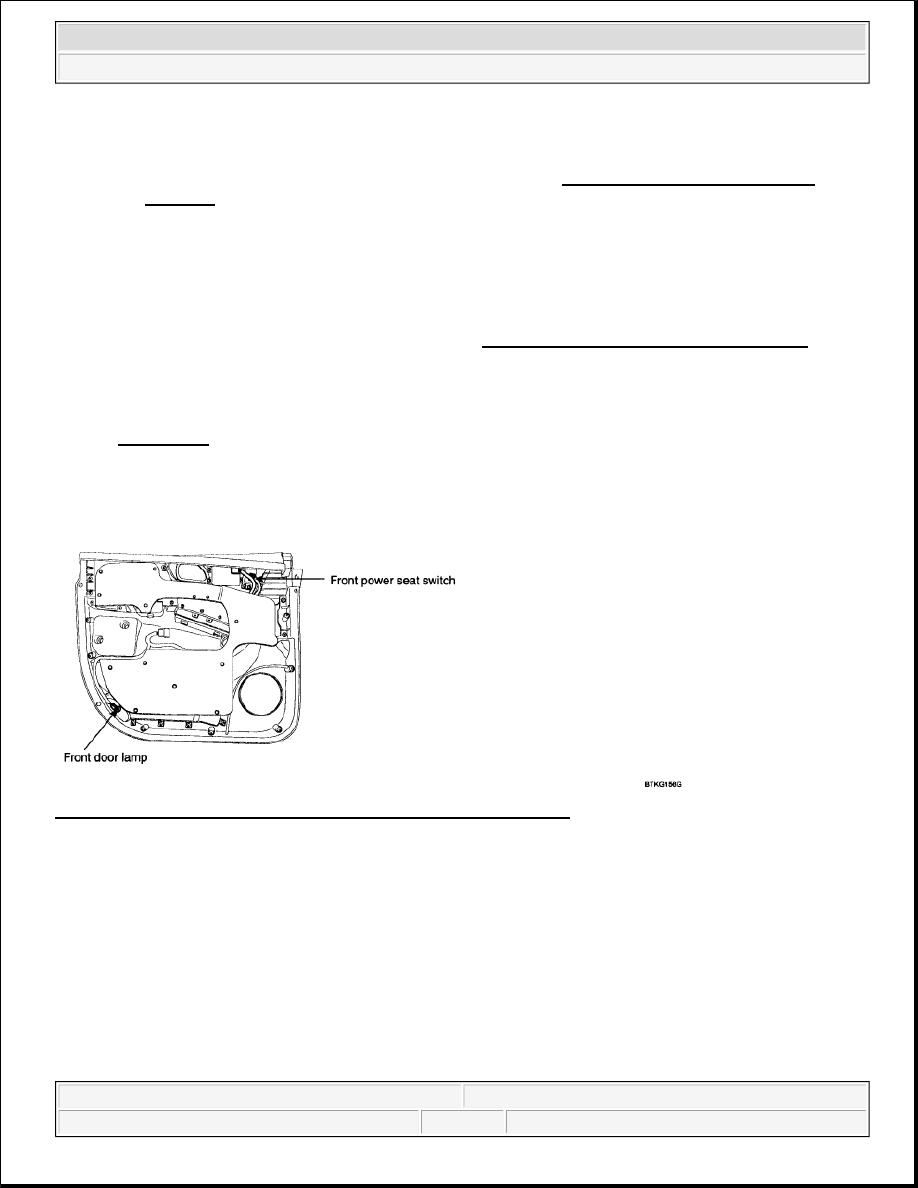

Fig. 210: Identifying Front Door Lamp & Front Power Seat Switch
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

ADM is a node of CAN communication system which consists of IPM, FAM, RAM, DDM, IMS. Main
function of ADM is lock/unlock of door and window, adjusting position and fold/unfold of outside mirror
Beside that, for the convenience of driver in dark area, ADM controls all sorts of switch illumination (outside
mirror s/w, front power seat s/w etc.) and door lamp.

DTC DESCRIPTION

The ECM sets DTC B2533 if there's short circuit in driver door lamp circuit harness.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:20 PM

Page 251

© 2006 Mitchell Repair Information Company, LLC.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

4. Is the DTC B2533 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Many malfunctions in the electrical system are caused by poor harness and terminals.

Faults can also be caused by interference from other electrical systems, and mechanical or chemical
damage.

2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination,

deterioration, or damage.

3. Has a problem been found?

YES

Repair as necessary and go to "VERIFICATION VEHICLE REPAIR" procedure.

NO

Item

Detecting Condition

Possible Cause

DTC Strategy



Check Resistance



short in signal harness



short in power harness



Faulty assist door lamp



Faulty ADM

Enable Conditions



IGN `ON' & Engine `OFF'

Threshold value



infinity ohms

Detecting time



50 ms

FAIL SAFE

-
