Substitute with a known-good DDM and check for proper operation.

If the problem is corrected, replace DDM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1910.

DTC B2441 REAR WIPER PARK POSITION DETECTION FAILURE

COMPONENT LOCATION

Fig. 182: Locating Tailgate Switch, Rear Wiper Motor, Tail License Side Marker, Tailgate Lock & Rear
Camera
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

RAM is a component of BCM that consists of DDM, ADM, IPM, FAM, IMS and cluster module. Each part of
BCM is connected to one another through CAN communication line for efficient communication. Those
modules control front/rear, driver/passenger seat, cluster with electrical signal and they share information with
other modules. RAM (Rear Area Module) set up at rear-left of passenger room controls various rear lamps (tail
lamp, rear turn signal lamp, backup lamp, stop lamp, cabin lamp), window (sliding door power window, quarter
glass, rear defogger), rear wiper and oil cap door. Received multi function switch rear wiper signal from IPM
through CAN line, RAM controls rear wiper. Auto parking switch is set up inside of rear wiper, and it transfers
wiper operating condition to RAM as monitoring.

DTC DESCRIPTION

B2441 is set when PARK signal is not detected for more than 5 sec. in rear wiper.

DTC DETECTING CONDITION

DTC DETECTING CONDITION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 217

© 2006 Mitchell Repair Information Company, LLC.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

4. Is the DTC B2441 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

1. Electrical systems consist of a lot of harness and connectors, poor connection of terminals can cause

various problems and damage of component.

2. Check poor connection, bedding, corrosion, contamination, deformation of connector and its terminals.

3. Is any problem found?

YES

Repair if necessary and go to "VERIFICATION OF VEHICLE REPAIR".

NO

Go to SIGNAL CIRCUIT INSPECTION.

SIGNAL CIRCUIT INSPECTION

1. Check short in signal circuit

1. Ignition "ON" & engine "OFF"

Item

Detecting Condition

Possible Cause

DTC Strategy



Check wiper park position
signal frequency



Open in power circuit



RAM error

Enable Conditions



IGN: ON, ENG: OFF

Threshold value



more than 5 sec

Detecting time

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 218

© 2006 Mitchell Repair Information Company, LLC.

2. Disconnect rear wiper motor.

3. Measure the resistance between rear wiper motor signal circuit connector terminal at RAM side

(BCM-RR2-6) and chassis ground.

Specification: infinity ohms

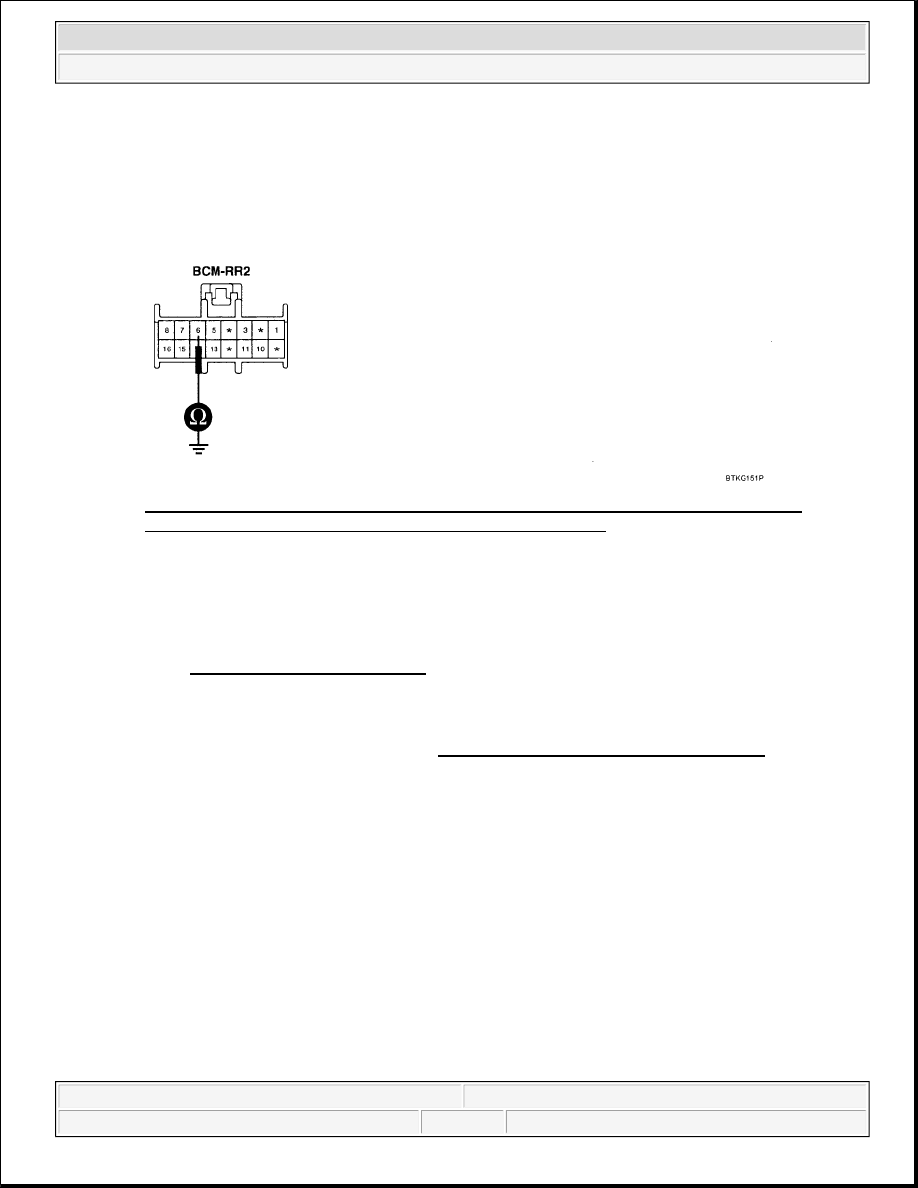

Fig. 183: Measuring Resistance Between Rear Wiper Motor Signal Circuit Connector
Terminal At RAM Side (BCM-RR2-6) And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to COMPONENT INSPECTION.

NO

Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR".

COMPONENT INSPECTION

1. Check rear wiper

1. Ignition "ON" & engine "OFF"

2. Disconnect rear wiper motor.

3. Measure the resistance between rear wiper motor signal circuit connector terminal (R16-3) and

ground circuit connector terminal (R16-1).

Specification: infinity ohms



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 219

© 2006 Mitchell Repair Information Company, LLC.

Fig. 184: Measuring Resistance Between Rear Wiper Motor Signal Circuit Connector
Terminal (R16-3) And Ground Circuit Connector Terminal (R16-1)
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within the specification?

YES

Go to "COMPONENT INSPECTION".

NO

Repair open in power circuit and Go to "VERIFICATION OF VEHICLE REPAIR".

2. Check RAM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Check if DTC is erased after replacing RAM with "RAM for test".

4. Is the DTC erased?

YES

Replace "RAM for test" with "new RAM" and go to "VERIFICATION OF VEHICLE
REPAIR".

NO

Check connecting condition of connector and go to "VERIFICATION OF VEHICLE REPAIR".

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B2115.

DTC B2455 SAFETY POWER WINDOW MOTOR POWER FEED ERROR
