Fig. 175: Identifying Scan Tool Display - Actuation Test Of Assist Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

4. Dose assist Door lock actuator work properly?

YES

Go to step 2.

NO

Substitute with a known-good assist Door lock actuator and check for proper operation. If the
problem is corrected, replace assist Door lock actuator and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check assist Door lock monitoring switch

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "9" of ADM and chassis ground. While operating assist

door lock actuator.

Specification: Door lock --> 5V, Door unlock --> 0V

Fig. 176: Measuring Voltage Value Between Terminal 9 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Go to step 2.

NO



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 209

© 2006 Mitchell Repair Information Company, LLC.

Substitute with a known-good assist Door lock actuator and check for proper operation. If the
problem is corrected, replace assist Door lock actuator and then go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

3. Check DDM

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Measure voltage value between terminal "5" of ADM and chassis ground. While operating assist

door lock switch.

Specification: 9-16V

Fig. 177: Measuring Voltage Value Between Terminal 5 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured voltage within specifications?

YES

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

NO

Substitute with a known-good ADM and check for proper operation.

If the problem is corrected, replace ADM and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1912.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 210

© 2006 Mitchell Repair Information Company, LLC.

DTC B2333 ASSIST DOOR UNLOCK ACTUATOR ERROR

COMPONENT LOCATION

Refer to DTC B1912.

GENERAL DESCRIPTION

Refer to DTC B2332.

DTC DESCRIPTION

The ECM sets DTC B2333 if there's short circuit in assist door unlock actuator circuit harness.

DTC DETECTING CONDITION

Refer to DTC B2332.

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs) "mode and monitor "DTC Status" parameter.

4. Is the DTC B2333 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,
corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1912.

SIGNAL CIRCUIT INSPECTION

Refer to DTC B2332.

POWER SUPPLY CIRCUIT INSPECTION

1. Motor Power circuit Inspection



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 211

© 2006 Mitchell Repair Information Company, LLC.

1. Ignition "OFF"

2. Disconnect assist Door lock actuator.

3. Measure resistance between terminal "4" of ADM and chassis ground.

Specification :Approx. infinity ohms

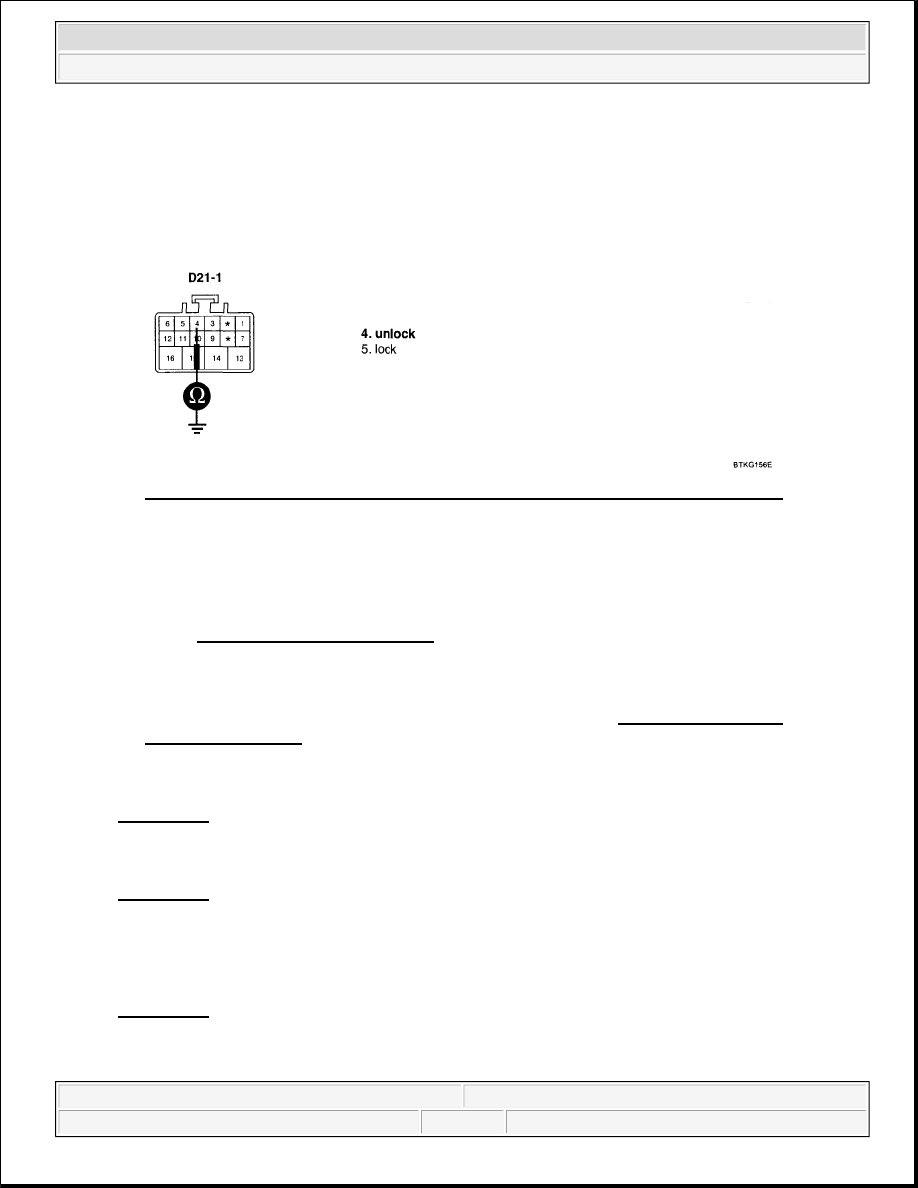

Fig. 178: Measuring Resistance Between Terminal 4 Of ADM And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "COMPONENT INSPECTION" procedure.

NO

Check for short in power harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

Refer to DTC B2332.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1912.
