MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON".

3. Monitor the "OD SOL. VALVE" parameter on the scan tool.

4. Shift gear at each position.

Fig. 108: Scan Tool Display - OD Solenoid Duty



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 123

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

5. Does "OD SOLENOID DUTY" follow the reference data?

YES



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was
repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0750.

POWER SUPPLY CIRCUIT INSPECTION

Refer to DTC P0755.

SIGNAL CIRCUIT INSPECTION

1. Check signal circuit open inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "12" of the ATM SOLENOID VALVE harness connector and

terminal "42" of the PCM/TCM harness connector.

Specification: approx. 0 ohms



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 124

© 2006 Mitchell Repair Information Company, LLC.

Fig. 109: Measuring Resistance Between Terminal ATM Solenoid Valve And PCM/TCM
Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to step 2.

NO



Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

2. Check signal circuit short inspection

1. Ignition "OFF" & Engine "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "12" of the ATM SOLENOID VALVE harness and chassis

ground.

Specification: Infinite



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 125

© 2006 Mitchell Repair Information Company, LLC.

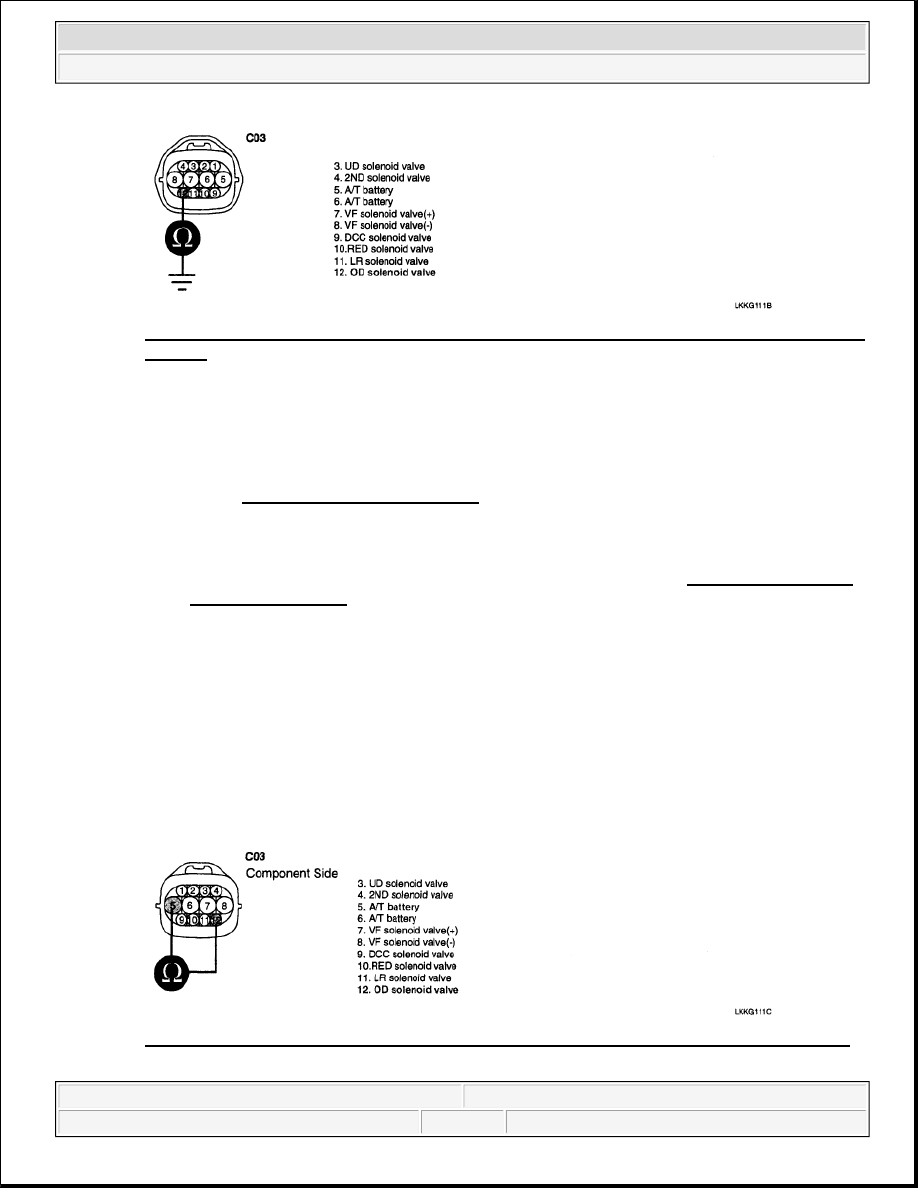

Fig. 110: Measuring Resistance Between Terminal ATM Solenoid Valve Harness And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for short to ground in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. CHECK SOLENOID VALVE

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector.

3. Measure resistance between terminal "5" and terminal "12" of the ATM SOLENOID VALVE

harness connector.

Specification: Approximately 2.7-3.4 ohms [20°C (68°F)]

Fig. 111: Measuring Resistance Between Terminal ATM Solenoid Valve Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.
