Kia Sedona (2008 year). Manual - part 114

6. IDLE SWITCH ON

7. ENGINE RPM 0

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0750.

DTC P0760 SHIFT CONTROL SOLENOID VALVE C CIRCUIT MALFUNCTION

COMPONENT LOCATION

Fig. 100: Identifying Shift Control Solenoid Valve Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The Automatic transmission changes the gear position of the transmission by utilizing a combination of clutches
and brakes, which are controlled by solenoid valves. This automatic transmission consists of a: LR (Low and
Reverse Brake), 2ND (2nd Brake), UD (Under Drive Clutch), OD (Over Drive Clutch), REV (Reverse Clutch),
and a RED (Reduction Brake, only for 5 speed transmissions).

The 2ND Brake is engaged in the 2nd gear and 4th gear positions.

DTC DESCRIPTION

The TCM checks the Under Drive Clutch Control Signal by monitoring the feedback signal from the solenoid
valve drive circuit. If an unexpected signal is monitored, (For example, high voltage is detected when low
voltage is expected or low voltage is detected when high voltage is expected) the TCM judges that 2nd Brake
drive control solenoid circuit is malfunctioning and sets this code.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



Check voltage range



Open or short in circuit



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 115

© 2006 Mitchell Repair Information Company, LLC.

SPECIFICATION

Refer to DTC P0750.

SCHEMATIC DIAGRAM

Refer to DTC P0750.

SIGNAL WAVEFORM

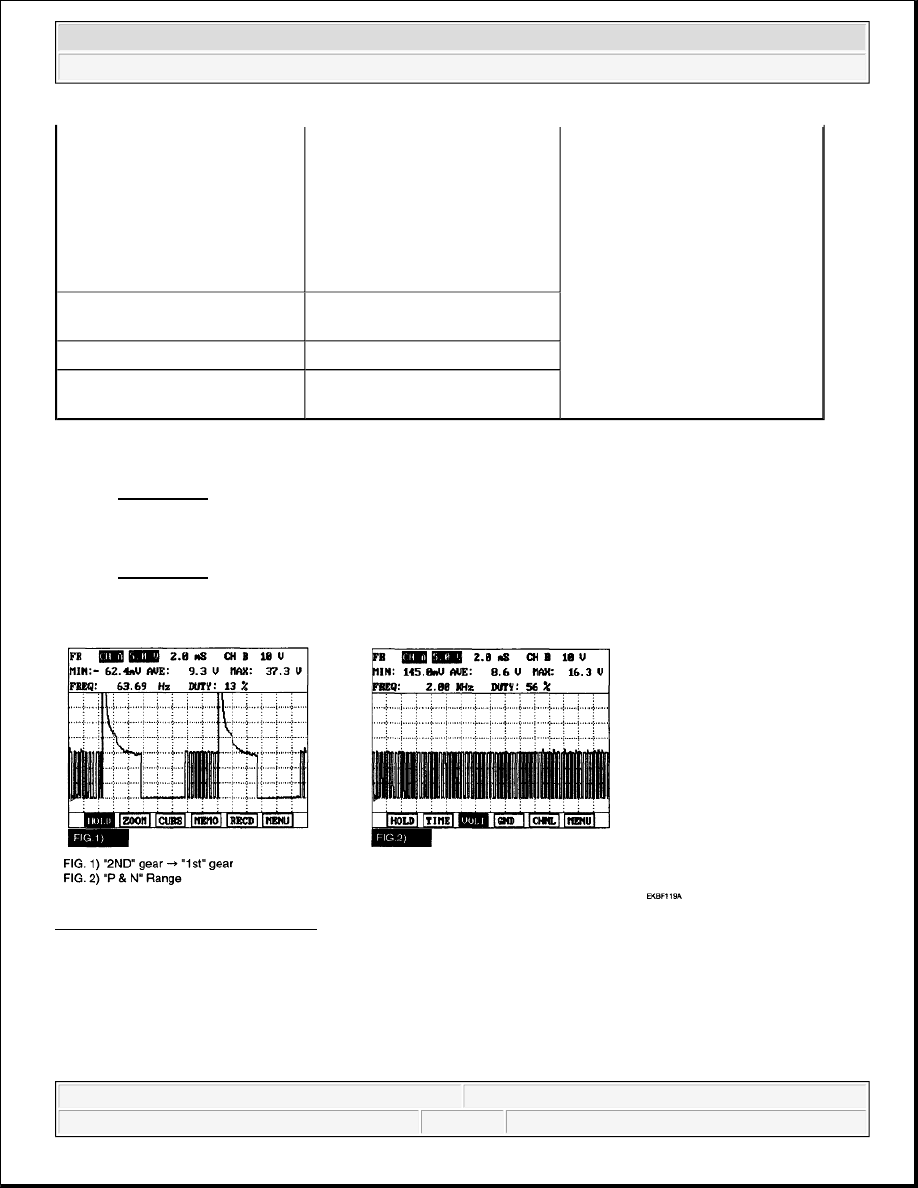

Fig. 101: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON".

3. Monitor the "2nd SOL. VALVE" parameter on the scan tool.

Enable Conditions



16V > Voltage Battery >
11V



In gear state (no gear
shifting) 500 msec is passed
from turn on the relay



A/T Relay = ON



Engine state = RUN



Faulty 2ND SOLENOID
VALVE



Faulty PCM/TCM

Threshold value



Out of available voltage
range

Diagnostic Time



More than 5 seconds

Fail Safe



Locked in 3rd gear. (Control
relay off)



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 116

© 2006 Mitchell Repair Information Company, LLC.

4. Shift gear at each position.

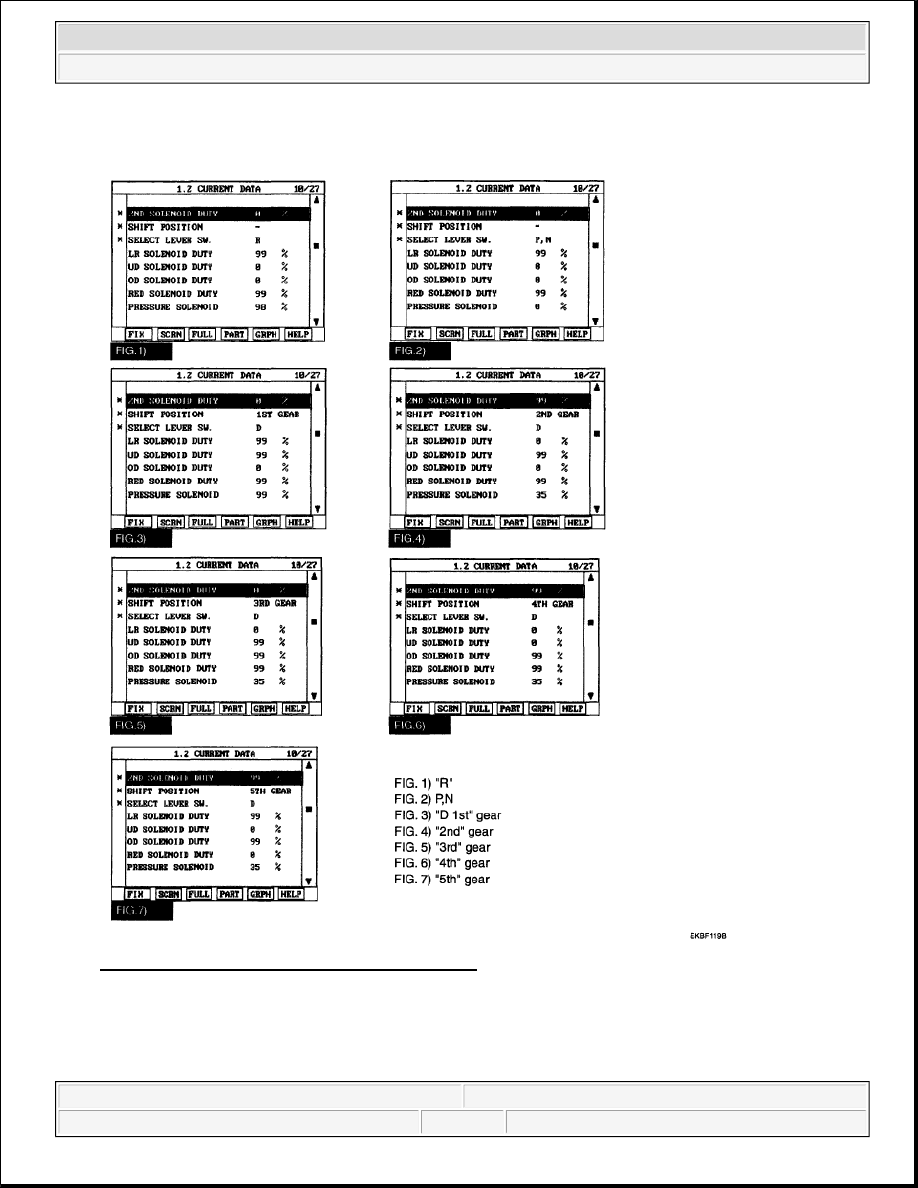

Fig. 102: Scan Tool Display - END Solenoid Duty
Courtesy of KIA MOTORS AMERICA, INC.

5. Does "2nd SOLENOID DUTY" follow the reference data?

YES



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 117

© 2006 Mitchell Repair Information Company, LLC.



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was
repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness,
poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as
necessary and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0750.

POWER SUPPLY CIRCUIT INSPECTION

Refer to DTC P0755.

SIGNAL CIRCUIT INSPECTION

1. Check signal circuit open inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM" connector.

3. Measure resistance between terminal "4" of the ATM SOLENOID VALVE harness connector and

terminal "45" of the PCM/TCM harness connector.

Specification: approx. 0 ohms

Fig. 103: Measuring Resistance Between Terminal ATM Solenoid Valve And PCM/TCM
