5. Does "UD SOLENOID DUTY" follow the reference data?

YES



Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was
repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor
connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary
and go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Go to "TERMINAL & CONNECTOR INSPECTION" procedure.

TERMINAL & CONNECTOR INSPECTION

Refer to DTC P0750.

POWER SUPPLY CIRCUIT INSPECTION

1. Disconnect "A/T SOLENOID VALVE" connector.

2. Measure voltage between terminal "5" of the sensor harness connector and chassis ground.

3. Turn ignition switch OFF --> ON.

Specification: 12V is measured only for approx. 0.5sec

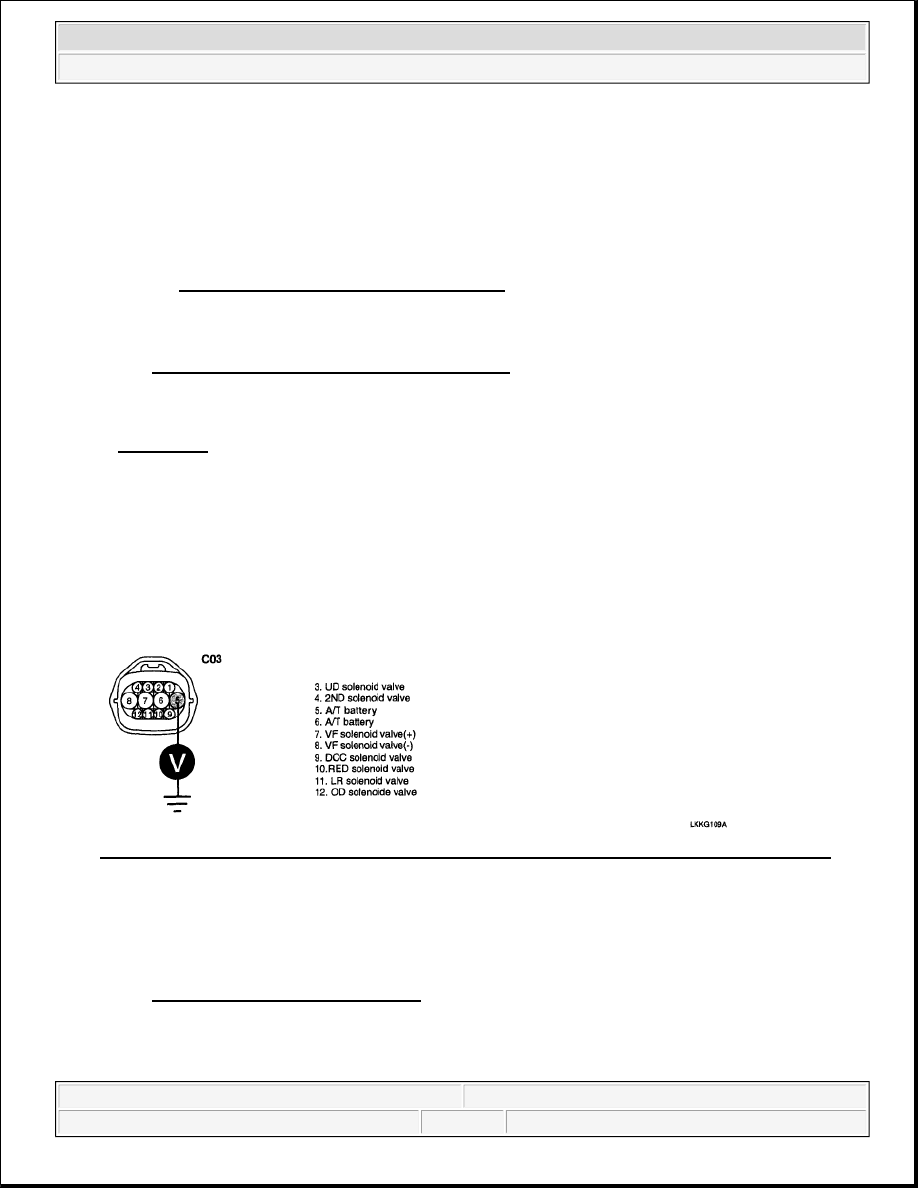

Fig. 96: Measuring Voltage Between Terminal Sensor Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is voltage within specifications?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO



Check that A/T-20A fuse in engine room junction is installed or not blown.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 111

© 2006 Mitchell Repair Information Company, LLC.



Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

SIGNAL CIRCUIT INSPECTION

1. Check signal circuit open inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "3" of the ATM SOLENOID VALVE harness connector and

terminal "3" of the PCM/TCM harness connector.

Specification: approx. 0 ohms

Fig. 97: Measuring Resistance Between Terminal ATM Solenoid Valve And PCM/TCM
Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to step 2.

NO



Check for open in harness. Repair as necessary and go to "VERIFICATION OF VEHICLE
REPAIR" procedure.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 112

© 2006 Mitchell Repair Information Company, LLC.

2. Check signal circuit short inspection

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector.

3. Measure resistance between terminal "3" of the ATM SOLENOID VALVE harness and chassis

ground.

Specification: Infinite

Fig. 98: Measuring Resistance Between Terminal ATM Solenoid Valve Harness And Chassis
Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for short to ground in harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

COMPONENT INSPECTION

1. CHECK SOLENOID VALVE

1. Ignition "OFF".

2. Disconnect "A/T SOLENOID VALVE" connector.

3. Measure resistance between terminal "3" and terminal "5" of the ATM SOLENOID VALVE

harness connector.

Specification: Approximately 2.7-3.4 ohms [20°C (68°F)]



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:54 PM

Page 113

© 2006 Mitchell Repair Information Company, LLC.

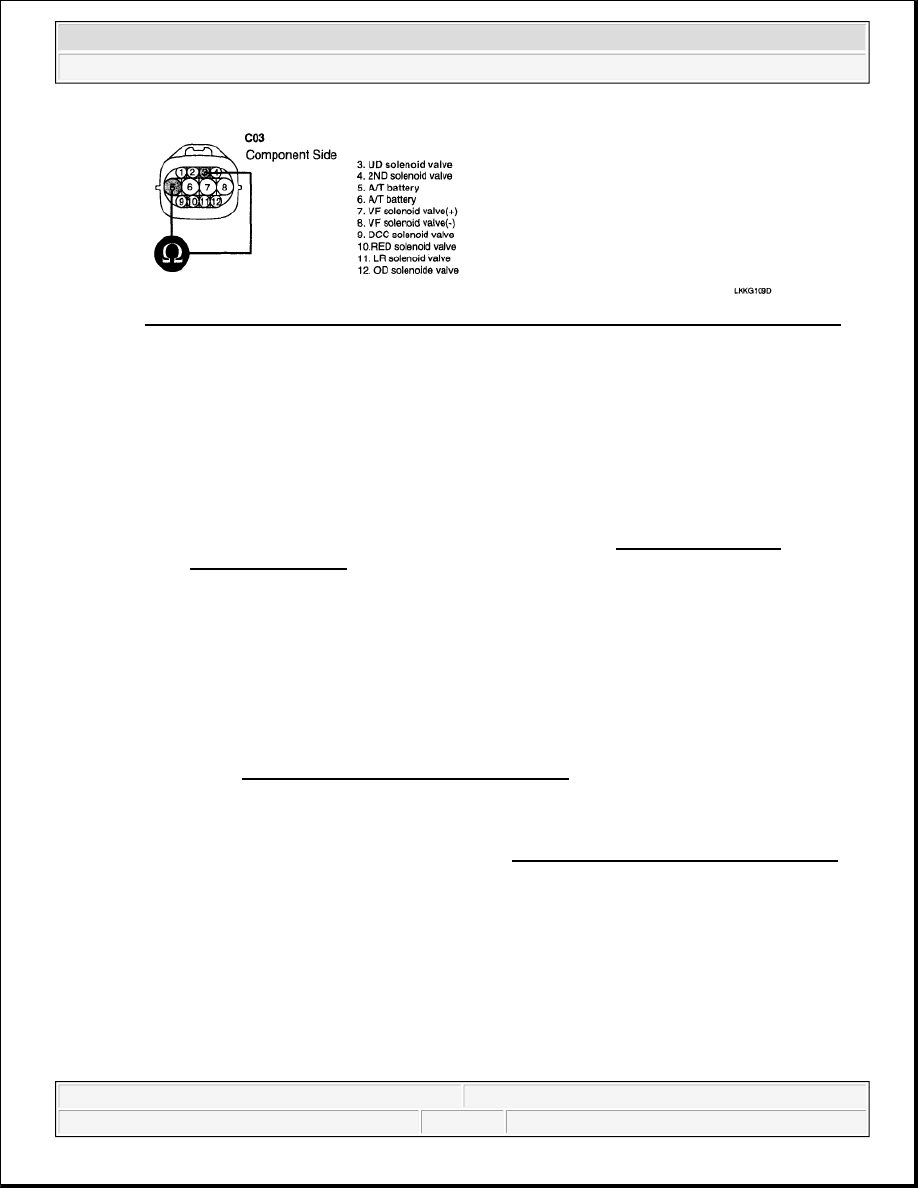

Fig. 99: Measuring Resistance Between Terminal ATM Solenoid Valve Harness Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Is resistance within specification?

YES



Go to step 2.

NO



Replace UD SOLENOID VALVE as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. CHECK PCM/TCM

1. Connect scan tool to data link connector (DLC).

2. Ignition "ON" & Engine "OFF".

3. Select ATM solenoid valve actuator test and operate actuator test.

4. Can you hear operating sound for UD SOLENOID VALVE actuator testing function?

YES



Go to "VERIFICATION OF VEHICLE REPAIR" procedure.

NO



Replace PCM/TCM as necessary and go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

ACTUATOR TEST CONDITION

1. IG SWITCH ON

2. TRANSAXLE RANGE SWITCH is normal

3. P RANGE

4. Vehicle Speed 0 mph (0 km/h)

5. Throttle position sensor < 1V
