Fig. 59: Identifying Gear 4 Incorrect Ratio Component Location
Courtesy of KIA MOTORS AMERICA, INC.

GENERAL DESCRIPTION

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the
4th gear ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 RPM and
the 4th gear ratio is 1.233, then the input speed is 1,233 RPM.

DTC DESCRIPTION

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by
the 4th gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical
troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

DTC DETECTING CONDITION

DTC DETECTING CONDITION CHART

Item

Detecting Condition

Possible cause

DTC Strategy



4th gear incorrect ratio



Faulty Input speed sensor



Faulty output speed sensor



Faulty UD clutch or 2nd
brake

Enable Conditions



Engine speed > 450 RPM



Output speed > 300 RPM



Shift stage 4th. gear



Input speed > 0 RPM



A/T oil temp output > or = -
23°C(-9.4°F)



11V < or = Battery Voltage <
or = 16V



TRANSAXLE RANGE
SWITCH is normal and above
2 sec is passed from IG ON



| input speed - output speed x



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 71

© 2006 Mitchell Repair Information Company, LLC.

SIGNAL WAVEFORM

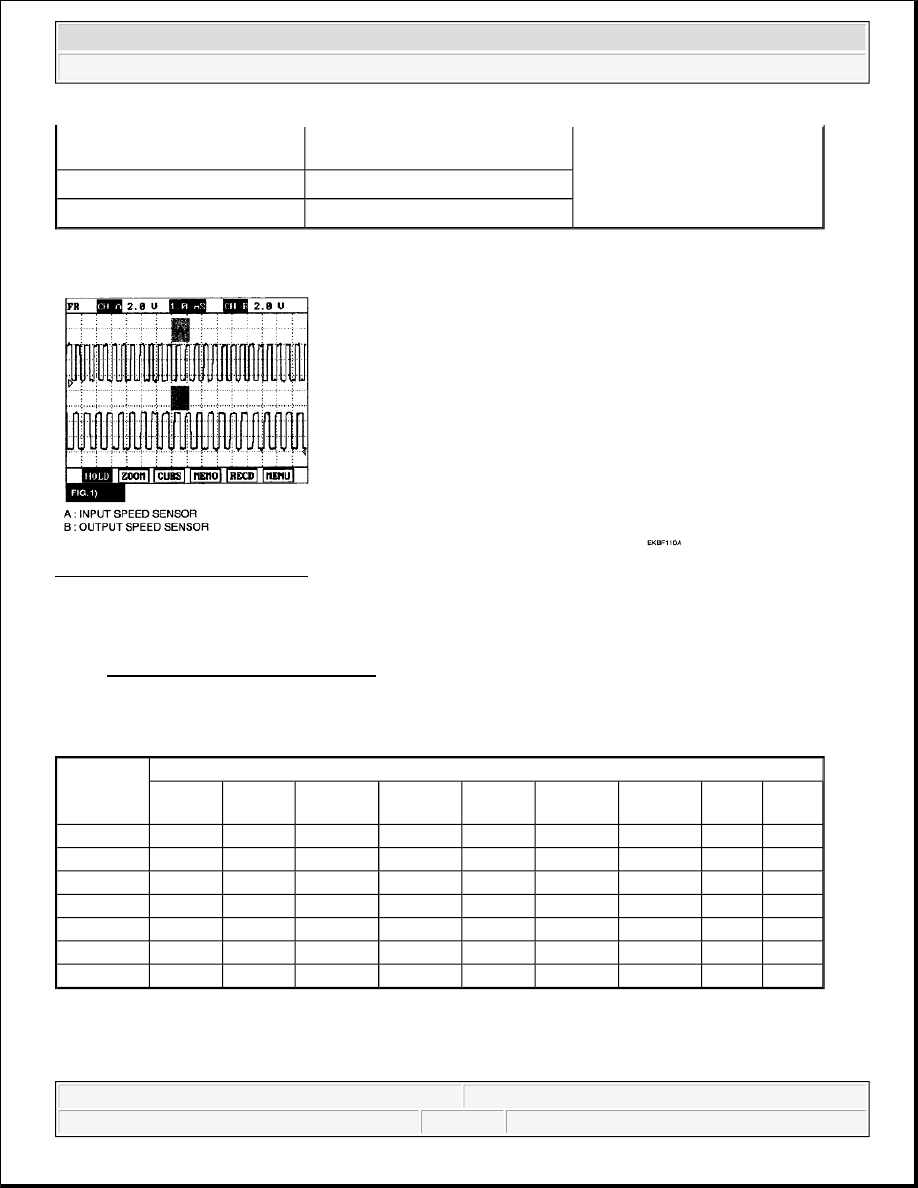

Fig. 60: Signal Waveform Graph
Courtesy of KIA MOTORS AMERICA, INC.

MONITOR SCAN TOOL DATA

Go to "SIGNAL CIRCUIT INSPECTION" procedure.

OPERATING ELEMENT OF EACH SHIFTING RANGE

OPERATING ELEMENT OF EACH SHIFTING RANGE

Low & Reverse Brake is released when vehicle speed over the 5 MPH (7 km/h)

SIGNAL CIRCUIT INSPECTION

Threshold value

4th gear ratio | > or = 200
RPM

Diagnostic Time



More than 4 sec

Fail Safe



Locked into 3rd gear

GEAR

POSITION

ELEMENT

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH 0WC1 0WC2

1st

o



o



o





•

•

2nd



o

o



o







•

3rd





o

o

o







•

4th



o



o

o







•

5th



o



o



o







REV

o







o



o





N, P

o







o











2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 72

© 2006 Mitchell Repair Information Company, LLC.

1. Connect scan tool.

2. Engine "ON".

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scan tool.

4. Accelerate the Engine speed until about 2000 RPM in the 4th gear.

Specification: INPUT SPEED - (OUTPUT SPEED x GEAR RATIO) < or = 200 RPM

Fig. 61: Scan Tool Display - Engine RPM
Courtesy of KIA MOTORS AMERICA, INC.

5. Is "INPUT & OUTPUT SPEED SENSOR" within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT &
OUTPUT SPEED SENSOR. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

COMPONENT INSPECTION



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 73

© 2006 Mitchell Repair Information Company, LLC.

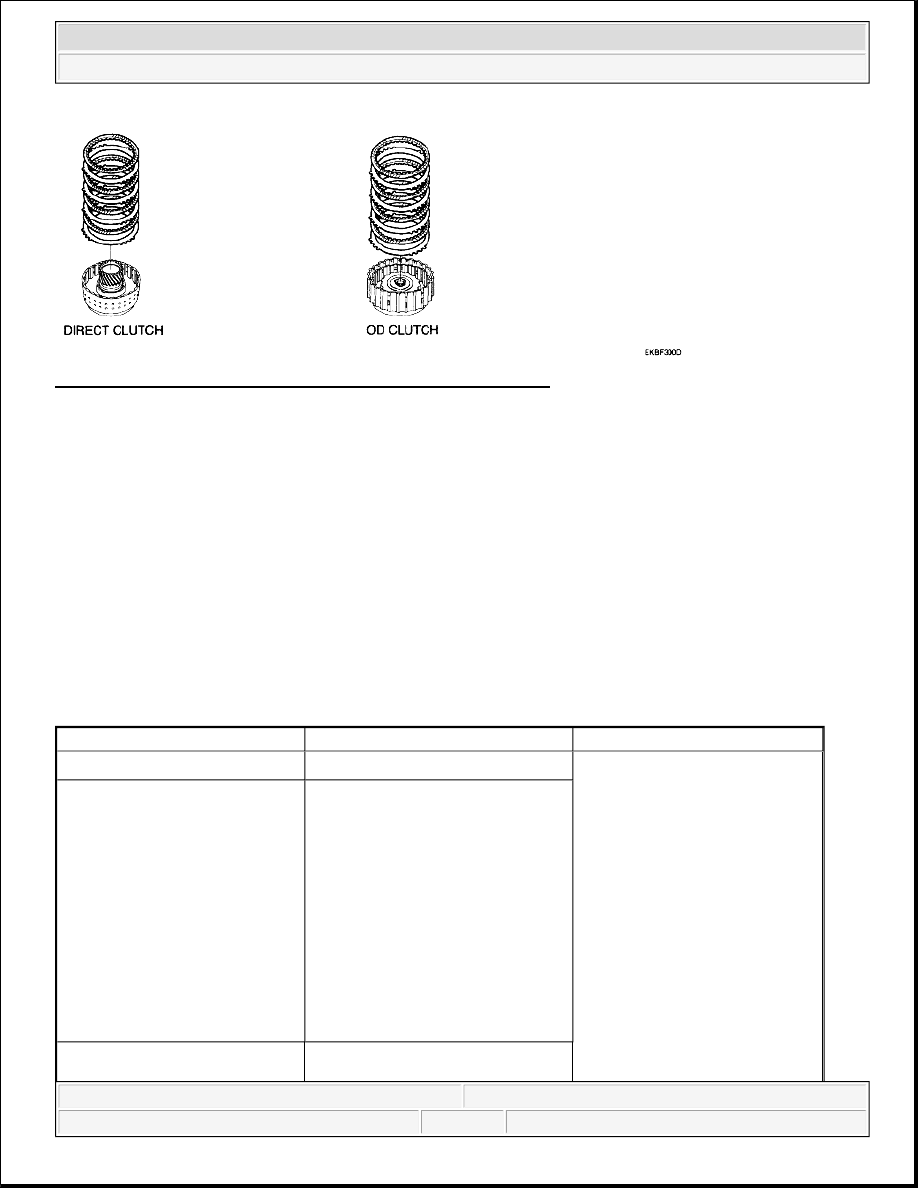

Fig. 62: Identifying Connect Oil Pressure Gauge To "2nd" And "OD" Port
Courtesy of KIA MOTORS AMERICA, INC.

1. Connect oil pressure gauge to "2ND" and "OD" and "RED" port.

2. Engine "ON".

3. Drive a car with gear position 4 in "SPORTS MODE".

4. Compare it with reference data .

Specification: refer to DTC P0731.

5. Is oil pressure value within specifications?

YES



Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

NO



Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0731.

DTC P0735 GEAR 5 INCORRECT RATIO
