MONITOR SCAN TOOL DATA

1. Connect scan tool to data link connector (DLC).

2. Engine "ON".

3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR

POSITION" parameter on the scan tool.

4. Disconnect the solenoid valve connector and perform the "STALL TEST".

Specification: 2200-2900 engine RPM

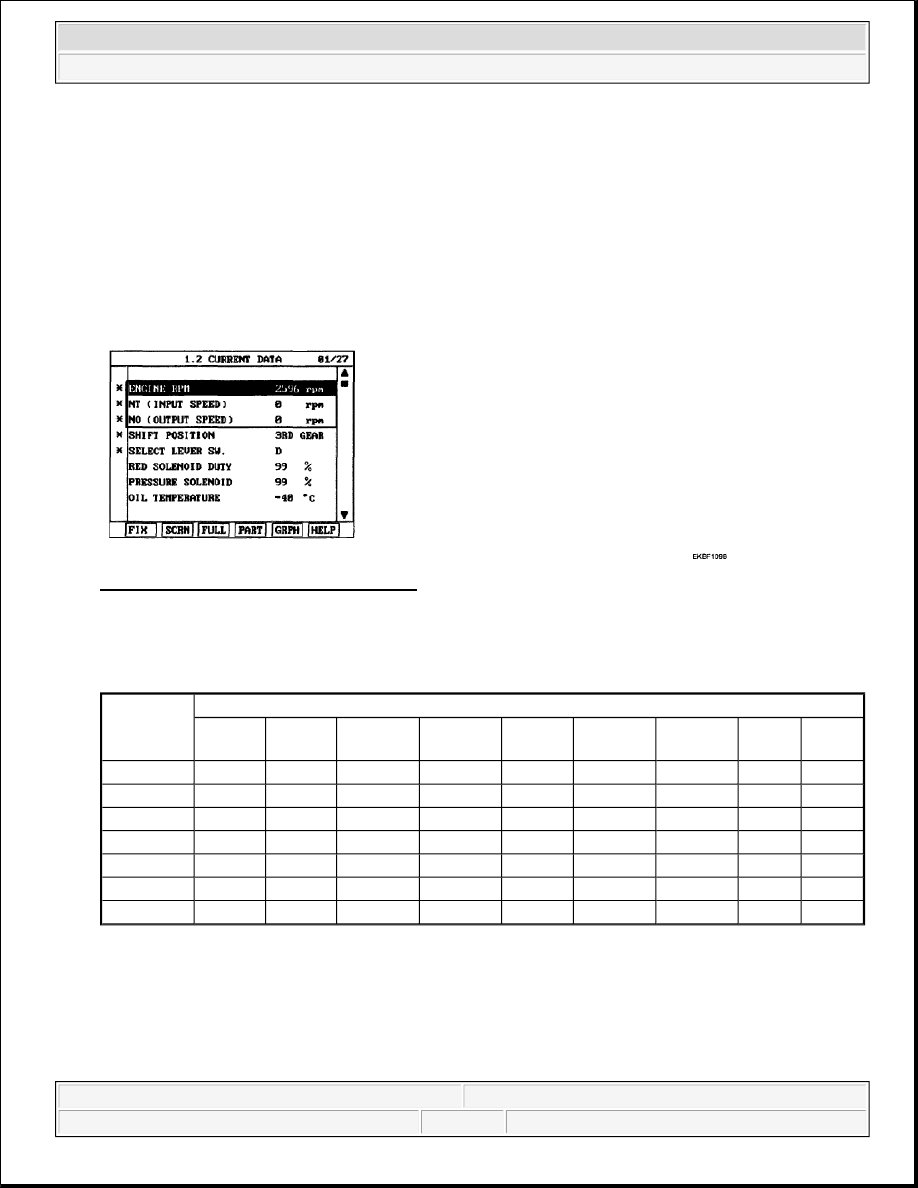

Fig. 56: Scan Tool Display - Engine RPM
Courtesy of KIA MOTORS AMERICA, INC.

OPERATING ELEMENT OF EACH SHIFTING RANGE

OPERATING ELEMENT OF EACH SHIFTING RANGE

Low & Reverse Brake is released When the vehicle speed over the 5 MPH (7 km/h)

Stall test procedure in D3 and reason

Procedure

GEAR

POSITION

ELEMENT

L/R

BRAKE

2ND

BRAKE

U/D

CLUTCH

O/D

CLUTCH

RED

BRAKE

DIR

CLUTCH

REV

CLUTCH OWC1 OWC2

1st

o



o



o





•

•

2nd



o

o



o







•

3rd





o

o

o







•

4th



o



o

o







•

5th



o



o



o







REV

o







o



o





N, P

o







o











2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 67

© 2006 Mitchell Repair Information Company, LLC.

1. Warm up the engine.

2. After making 3rd gear hold by disconnecting the solenoid connector, and Then depress the foot

brake pedal fully After that, step on the accelerator pedal to the maximum.

* The slippage of 3rd gear operating parts can be detected by stall test in D3.

Reason for stall test

1. If there is no mechanical defaults in A/T, all slippages occur in torque converter.

2. Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to

wheel's lock.

3. If OD clutch system (3rd gear operating part) has faults, input speed revolution will be out of

specification.

4. If output speed revolution is output. It means that the foot brake force is not applied fully.

Remeasuring is required.

5. Is "STALL TEST" within specification?

YES



Go to "SIGNAL CIRCUIT INSPECTION" procedure.

NO



Go to "COMPONENT INSPECTION" procedure.

SIGNAL CIRCUIT INSPECTION

CAUTION:

1. Do not let anybody stand in front of or behind the vehicle while

this test is being carried out.

2. Check the A/T fluid level and temperature and the engine

coolant temperature.



Fluid level: At the hot mark on the oil level gauge.



Fluid temperature: 176-212°F (80-100°C).



Engine coolant temperature: 176-212°F (80-100°C).

3. Chock both rear wheel (left and right).

4. Pull the parking brake lever on with the brake pedal fully

depressed.

5. The throttle should not be left fully open for more than eight

second.

6. If stall test Is being performed more than once, move the

selector lever to N and run the engine at 1000 RPM to allow the
transaxle fluid to cool prior to subsequent tests.



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 68

© 2006 Mitchell Repair Information Company, LLC.

1. Connect scan tool.

2. Engine "ON".

3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scan tool.

4. Accelerate the Engine speed until about 2000 RPM in the 3rd gear.

Specification: INPUT SPEED - (OUTPUT SPEED x GEAR RATIO) < or = 200 RPM

Fig. 57: Scan Tool Display - Engine RPM
Courtesy of KIA MOTORS AMERICA, INC.

5. Is "INPUT & OUTPUT SPEED SENSOR" within specifications?

YES



Go to "COMPONENT INSPECTION" procedure.

NO



Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT &
OUTPUT SPEED SENSOR. Repair as necessary and Go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

COMPONENT INSPECTION



2008 Kia Sedona EX

2008 TRANSMISSION Automatic Transaxle System - Sedona



Microsoft



Monday, May 24, 2010 3:47:53 PM

Page 69

© 2006 Mitchell Repair Information Company, LLC.

Fig. 58: Identifying Connect Oil Pressure Gauge To "UD" And "OD"Port
Courtesy of KIA MOTORS AMERICA, INC.

1. Connect oil pressure gauge to "UD" and "OD" and "RED" port.

2. Engine "ON".

3. Drive a car with gear position 3 in "SPORTS MODE".

4. Compare it with reference data.

Specification: refer to DTC P0731.

5. Is oil pressure value within specifications?

YES



Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

NO



Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC P0731.

DTC P0734 GEAR 4 INCORRECT RATIO

COMPONENT LOCATION
