Fig. 1: Identifying Supplemental Restraint System Control Module Location
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.

2. Remove ignition key from the vehicle.

3. Disconnect the DAB, PAB, SAB, CAB and BPT connectors.

4. Remove the floor console and heater ducts. Refer to FLOOR CONSOLE REPLACEMENT and

INTERIOR .

5. Press the lock (1), then pull back the connector lever (2) until it clicks.

Fig. 2: Pulling Back Connector Lever
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect the SRSCM harness connector (A) and (B) from the SRSCM.

Fig. 3: Identifying Supplemental Restraints System Control Module Harness Connector



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control Module - Sedona



Microsoft



Monday, May 24, 2010 3:53:40 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Courtesy of KIA MOTORS AMERICA, INC.

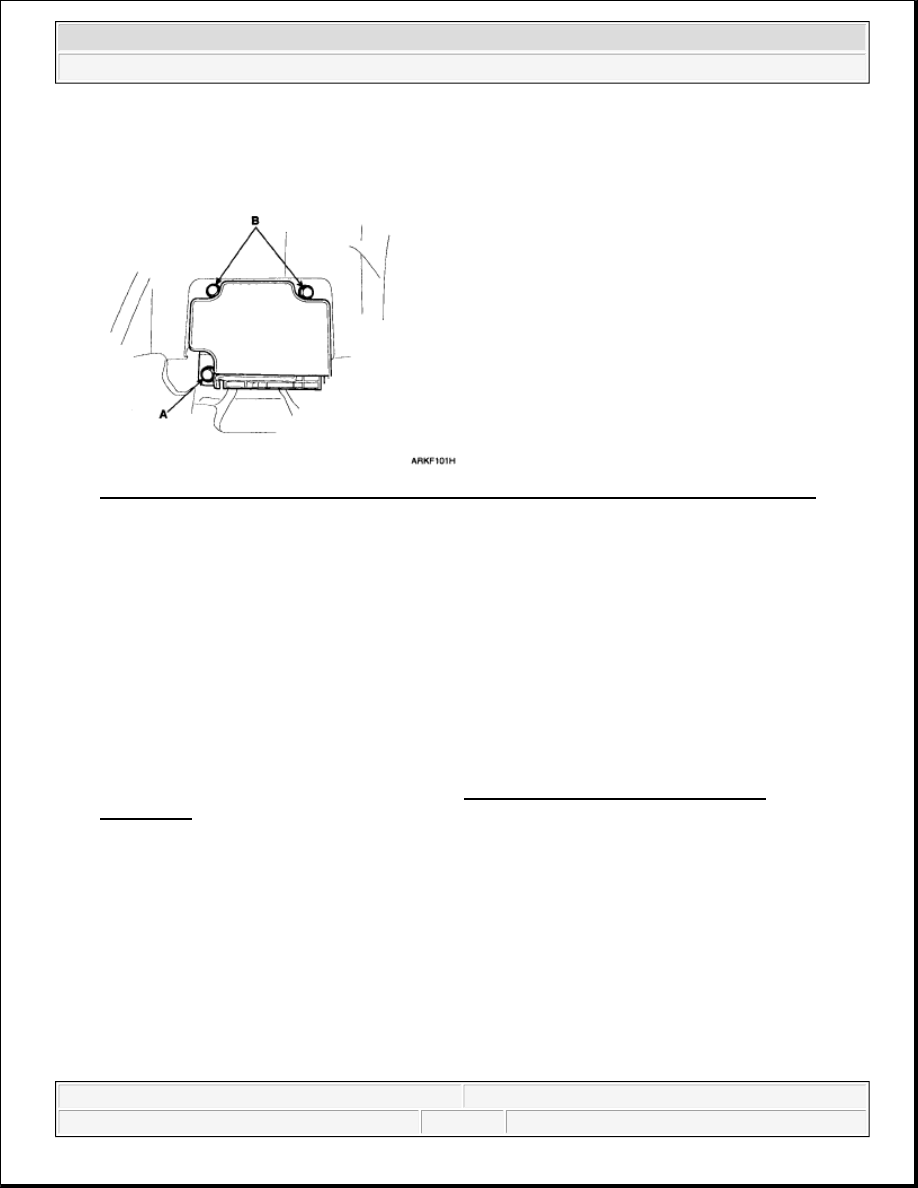

7. Remove the SRSCM mounting bolt (A) and nuts (B) from the SRSCM, then remove the SRSCM.

Fig. 4: Identifying Supplemental Restraints System Control Module Mounting Bolt And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.

2. Remove ignition key from the vehicle.

3. Install the SRSCM with the SRSCM mounting bolt and nuts.

Tightening Torque:

1.0-1.4 kgf.m (9.5-13.6 N.m, 7.0-10.0 lb. ft)

4. Connect the SRSCM harness connector.

5. Install the heater ducts and floor console. Refer to FLOOR CONSOLE REPLACEMENT and

INTERIOR .

6. Connect the DAB, PAB, SAB, CAB and BPT connectors.

7. Reconnect the battery negative cable.

8. After installing the SRSCM, confirm proper system operation:



Turn the ignition switch ON; the SRS indicator light should be turned on for about 6 seconds and
then go off.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control Module - Sedona



Microsoft



Monday, May 24, 2010 3:53:40 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

2008 RESTRAINTS

Airbag - General - Sedona

DESCRIPTION

The Supplemental Restraint System (SRS) is designed to supplement the seat belt to help reduce the risk or
severity of injury to the driver and passenger by activating and deploying the driver, passenger, side airbag and
belt pre-tensioner in certain frontal or side collisions.

The SRS (Airbag) consists of: a driver side airbag module located in the center of the steering wheel, which
contains the folded cushion and an inflator unit; a passenger side airbag module located in the passenger side
crash pad contains the folded cushion assembled with inflator unit; side airbag modules located in the driver and
passenger seat contain the folded cushion and an inflator unit ; curtain airbag modules located inside of the
headliner which contains folded cushions and inflator units. The impact sensing function of the SRSCM is
carried out by electronic accelerometer that continuously measure the vehicle's acceleration and delivers a
corresponding signal through amplifying and filtering circuitry to the microprocessor.

SRSCM (SRS CONTROL MODULE)

SRSCM will detect front impact with front impact sensor, and side impact with side impact sensor, and
determine airbag module deployment.

1. DC/DC converter: DC/DC converter in power supply unit includes up/down transformer converter, and

provide ignition voltage for 2 front airbag ignition circuits and the internal operation voltage of the
SRSCM. If the internal operation voltage is below critical value setting, it will perform resetting.

2. Safety sensor: Safety sensor is located in airbag ignition circuit. Safety sensor will operate airbag circuit

at any deployment condition and release airbag circuit safely at normal driving condition. Safety sensor is
a double contact electro-mechanical switch that will close detecting deceleration above certain criteria.

3. Back up power supply: SRSCM has separate back up power supply, that will supply deployment energy

instantly in low voltage condition or upon power failure by front crash.

4. Self diagnosis: SRSCM will constantly monitor current SRS operation status and detect system failure

while vehicle power supply is on, system failure may be checked with trouble codes using scan tool. (Hi-
Scan)

5. Airbag warning lamp on: Upon detecting error, the module will transmit signal to SRSCM indicator lamp

located at cluster. MIL lamp will indicate driver SRS error. Upon ignition key on, SRS lamp will turn on
for about six seconds.

6. Trouble code registration: Upon error occurrence in system, SRSCM will store DTC corresponding to the

error. DTC can be cleared only by Hi-Scan. However, if an internal fault code is logged or if a crash is
recorded the fault clearing should not happen.

7. Self diagnostic connector: Data stored in SRSCM memory will be output to Hi-Scan or other external

output devices through connector located below driver side crash pad.

8. Once airbag is deployed, SRSCM should not be used again but replaced.

9. SRSCM will determine whether passenger put on seat belt by the signal from built-in switch in seat belt

buckle, and deploy front seat airbag at each set crash speed.



2008 Kia Sedona EX

2008 RESTRAINTS Airbag - General - Sedona





2008 Kia Sedona EX

2008 RESTRAINTS Airbag - General - Sedona



Microsoft



Monday, May 24, 2010 3:52:09 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 3:52:12 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

10. Side airbag deployment will be determined by SRSCM that will detect satellite sensor impact signal upon

side crash, irrespective to seat belt condition.

SPECIFICATIONS

RESISTANCE SPECIFICATIONS

TIGHTENING TORQUES

TIGHTENING TORQUES SPECIFICATION

SPECIAL SERVICE TOOLS

SPECIAL SERVICE TOOLS DESCRIPTION

Item

Resistance (ohms)

Driver Airbag (DAB)

1.6-4.7

Passenger Airbag (PAB)

1.6-4.7

Side Airbag (SAB)

1.6-4.7

Curtain Airbag (CAB)

1.6-4.7

Seat Belt Pretensioner (BPT)

1.6-4.7

Item

kgf.m

N.m

lb-ft

Driver Airbag (DAB)

0.8-1.1

7.9-10.8

5.8-8.0

Passenger Airbag (PAB)

Bolt: 1.2-1.3

12.0-13.0

8.9-9.6



Nut: 0.7-0.8

7.0-8.0

5.2-5.9

Curtain Airbag (CAB)

1.9-2.7

18.6-26.5

13.7-19.5

Side Airbag (SAB)

1.9-2.7

18.6-26.5

13.7-19.5

Seat Belt Anchor Bolt
(BPT)

4.0-5.5

39.2-53.9

28.9-39.8

SRSCM Mounting Bolt

1.0-1.4

9.5-13.6

7.0-10.0

Front Impact Sensor (FIS)
Mounting Bolt

1.0-1.4

9.5-13.6

7.0-10.0

Side Impact Sensor (SIS)
Mounting Bolt

1.0-1.4

9.5-13.6

7.0-10.0

Tool (Number and Name)

Illustration

Use

Deployment tool
0957A-34100A

Airbag deployment tool

Deployment adapter
0757A-38510

Use with deployment tool (DAB,

PAB)
