circuit resulting in the ability of producing two separate and distinct logic level signals.

The STPS output signal is altered by the proximity of a separate ferro-magnetic shunt, which is linked via the
seat track. The logic signal produced is the result of the proximity device being activated or deactivated.

When the seat is in the forward position zone of the track, the sensor gives a low current (prohibit) signal. When
the seat is in the rear position zone of the track, it gives a high current (enable) signal.

COMPONENTS

Fig. 8: Identifying Seat Track Position Sensor And Driver Seat
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the front seat assembly. Refer to SEATS .

3. Loosen the two STPS screws, then remove the STPS after disconnecting the STPS connector.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

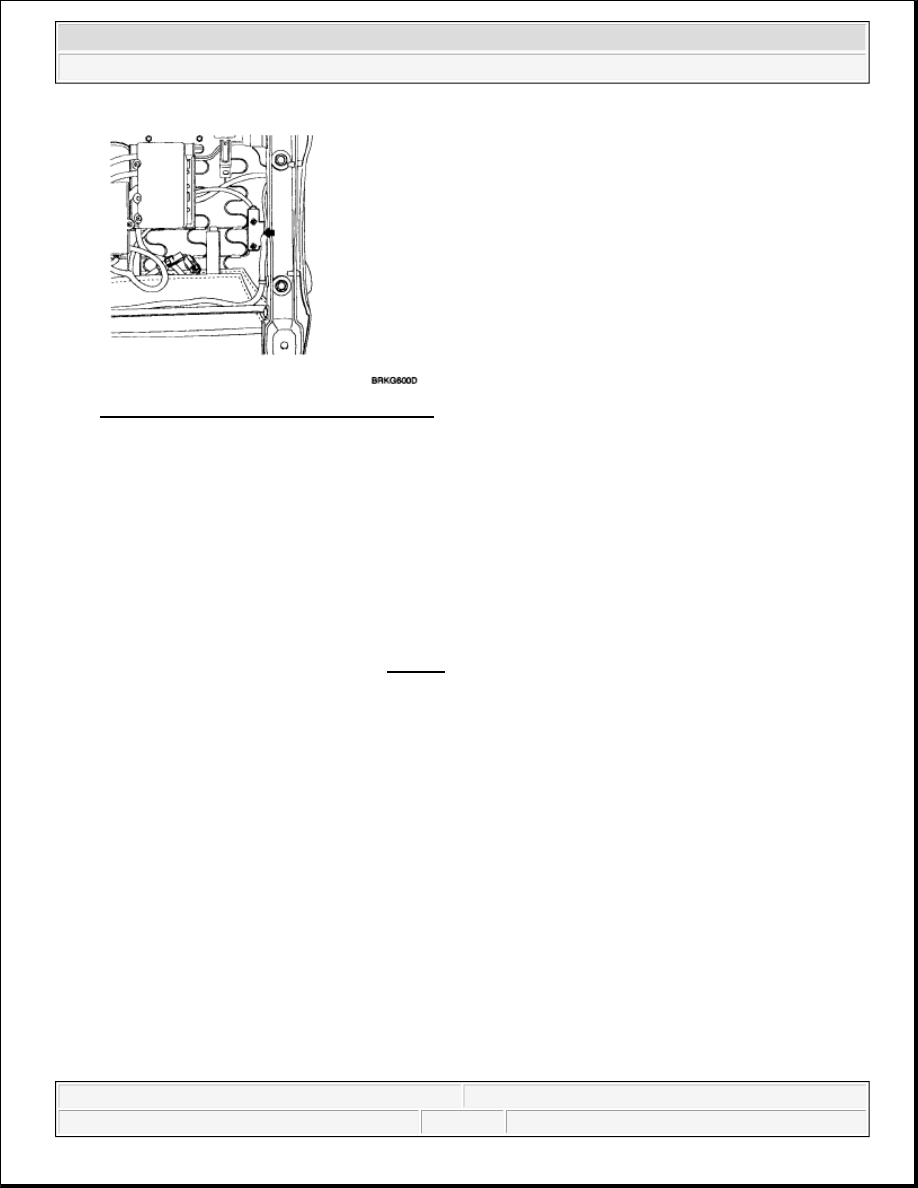

Fig. 9: Locating Seat Track Position Sensor
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the ignition key from the vehicle.

3. Install the STPS with two screws.

4. Install the front seat assembly. Refer to SEATS .

5. Reconnect the battery negative cable.

6. After installing the Seat Track Position Sensor, confirm proper system operation:

Turn the ignition switch ON, the SRS indicator should be turned on for about six seconds and then go off.

SEAT BELT BUCKLE SWITCH (BBS)

DESCRIPTION

The SRSCM shall monitor the status of the driver and front passenger seat belt buckle. The SRSCM provides
one pin each for the driver and front passenger seat belt buckle status input. The seat belt buckle circuit operates
from internal boost voltage supplied by the SRSCM, and uses chassis ground for the signal return. The buckle
status shall modify the SRSCM deployment. If the buckle status is unbuckled, the corresponding pretensioner
will be deactivated.

COMPONENTS

CAUTION: Ensure that the harness is installed and routed properly to prevent

damage to the wiring.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 10: Identifying Seat Belt Buckle Switch And Front Seat
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the front seat assembly. Refer to SEATS .

3. Remove the seat recliner cover.

Fig. 11: Locating Seat Recliner Cover
Courtesy of KIA MOTORS AMERICA, INC.

4. Loosen the seat belt buckle mounting bolt and remove the seat belt buckle switch.



2008 Kia Sedona EX

2008 RESTRAINTS SRS Control System - Sedona



Microsoft



Monday, May 24, 2010 3:54:16 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

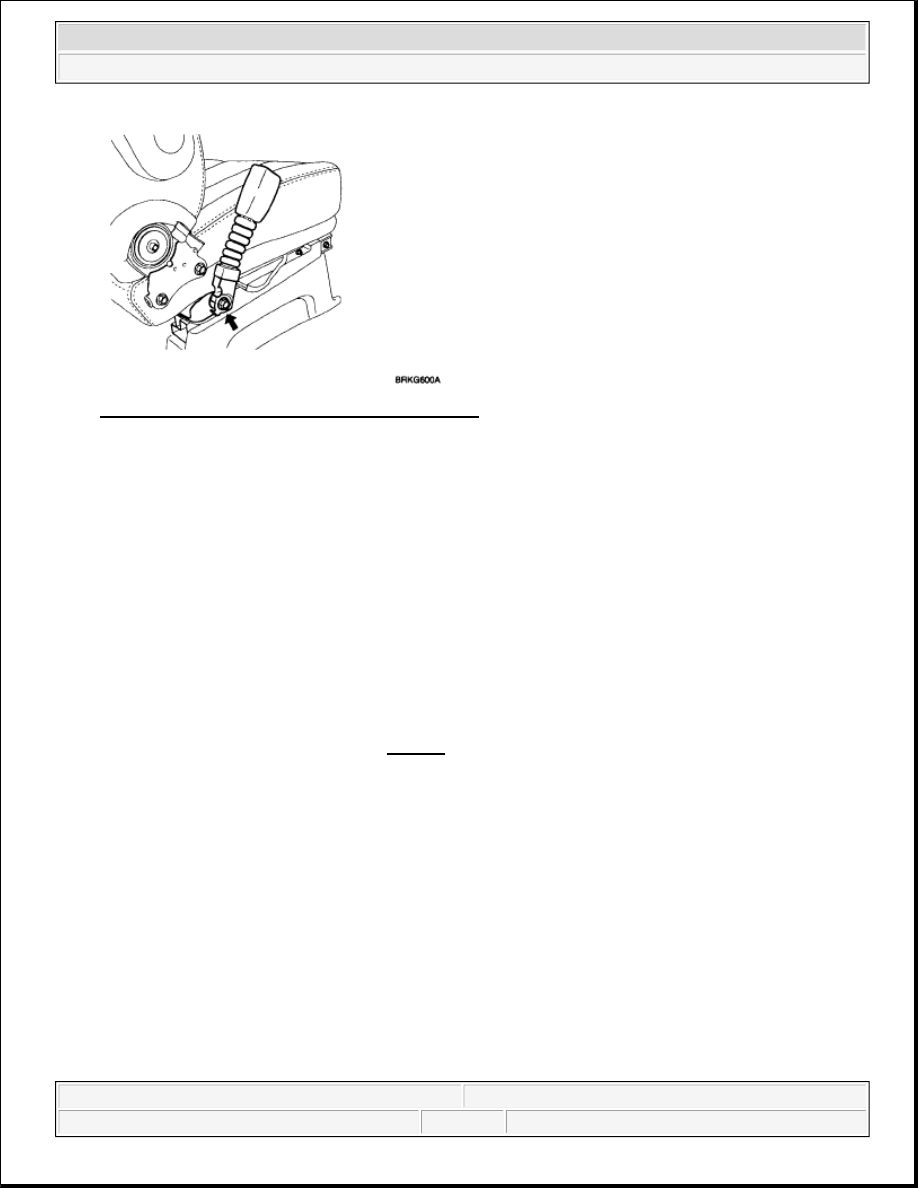

Fig. 12: Locating Seat Belt Buckle Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.

2. Remove the ignition key from the vehicle.

3. Install the seat belt buckle switch.

Tightening Torque: 4.0-5.5 kgf.m (28.9-39.8 lb.ft)

4. Install the seat recliner cover with two screws.

5. Install the front seat assembly. Refer to SEATS .

6. Reconnect the battery negative cable.

7. After installing the Seat Belt Buckle Switch, confirm proper system operation:

Turn the ignition switch ON, the SRS indicator should be turned on for about six seconds and then go off.

OCCUPANT CLASSIFICATION SENSOR (OCS)

DESCRIPTION

In contrast to the initial one-stage airbag systems, newer restraint systems involve complex logic to select, or
alternatively suppress, various levels of safety system deployment. Inherent to an Advanced Restraint System is
the ability to discern information regarding passenger occupancy. It is intended that these inputs be provided
through the OC system. The object of such safety system is to reduce the risk and level of injuries by
automatically adapting the airbag(s) and seat belt pretensioner to the driving status of the vehicle, its occupants,
and the crash severity. The current OC system covered in this specification continually senses and classifies the

CAUTION: Ensure that the harness is installed and routed properly to prevent

damage to the wiring.
