Kia Carens. Manual - part 247

  2001 > 1.8L DOHC >



Removal

A-pillar trim

1. Unfasten A-pillar trim with a trim removal tool.

2. Remove A-pillar trim.

Removal

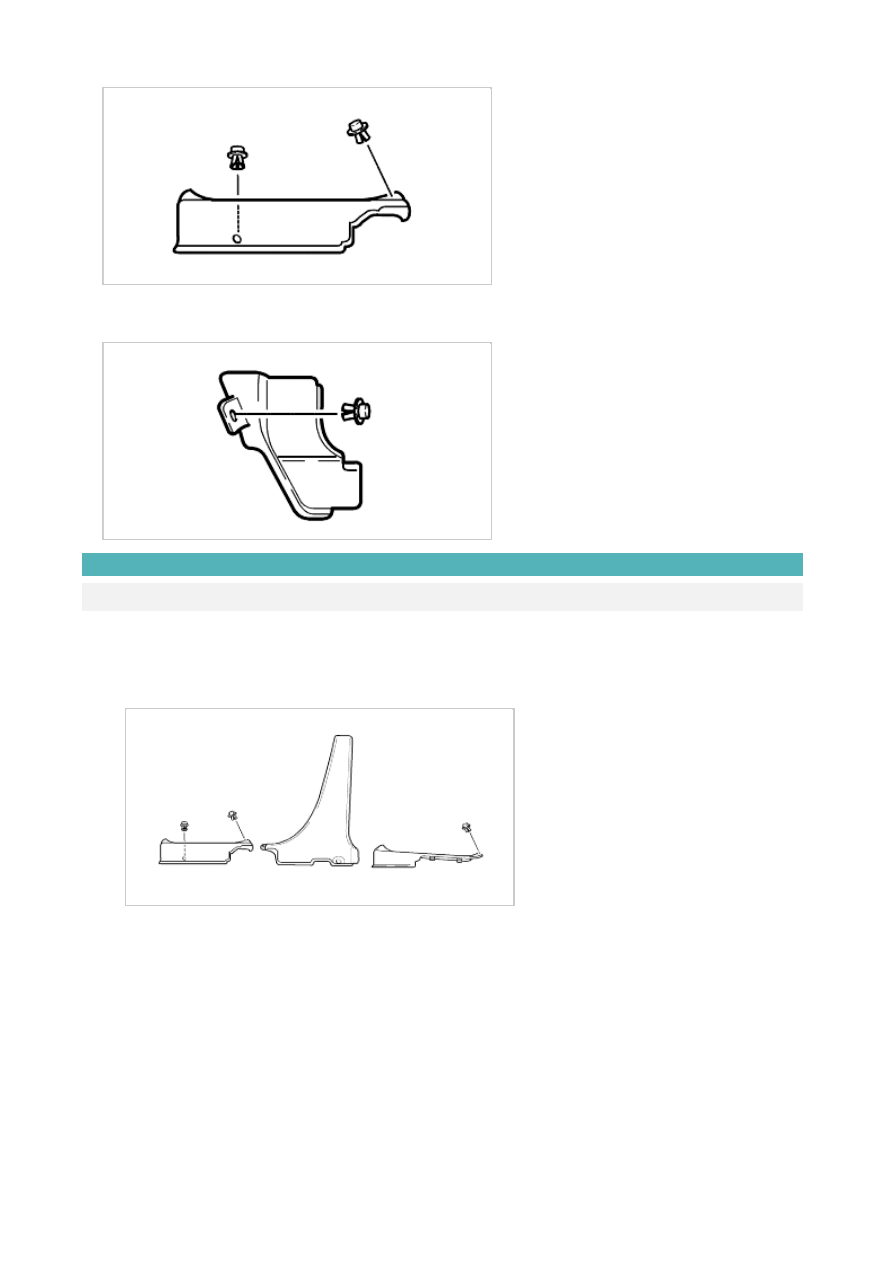

B-pillar lower trim

1. Remove two fastener from front scuff plate.

2. Remove front scuff plate.

3. Remove one fastener from rear scuff plate.

4. Unfasten B-pillar lower trim.

5. Remove B-pillar lower trim.

Removal

Front side trim

1. Remove two fasteners on front scuff plate.

2. Remove front scuff plate.

3. Remove one fastener on front side trim.

4. Remove front side trim.

Removal

B-pillar upper trim

1. Unfasten B-pillar lower trim.

2. Remove B-pillar lower trim.

3. Remove seat belt anchor bolt:

A. Unfasten seat belt.

4. Remove one screw from B-pillar upper trim.

5. Remove B-pillar upper trim.

Removal

C-pillar trim

1. Remove trunk end trim.

2. Remove two screw and one fastener from rear quarter trim.

3. Remove rear quarter trim.

4. Remove seat belt anchor bolt.

Tightening torque : 40~47 lb-ft (54~64 N-m, 5.5~6.5 kg-m)

5. Remove seat belt.

6. Unfasten C-pillar trim.

7. Remove C-pillar trim.

Removal

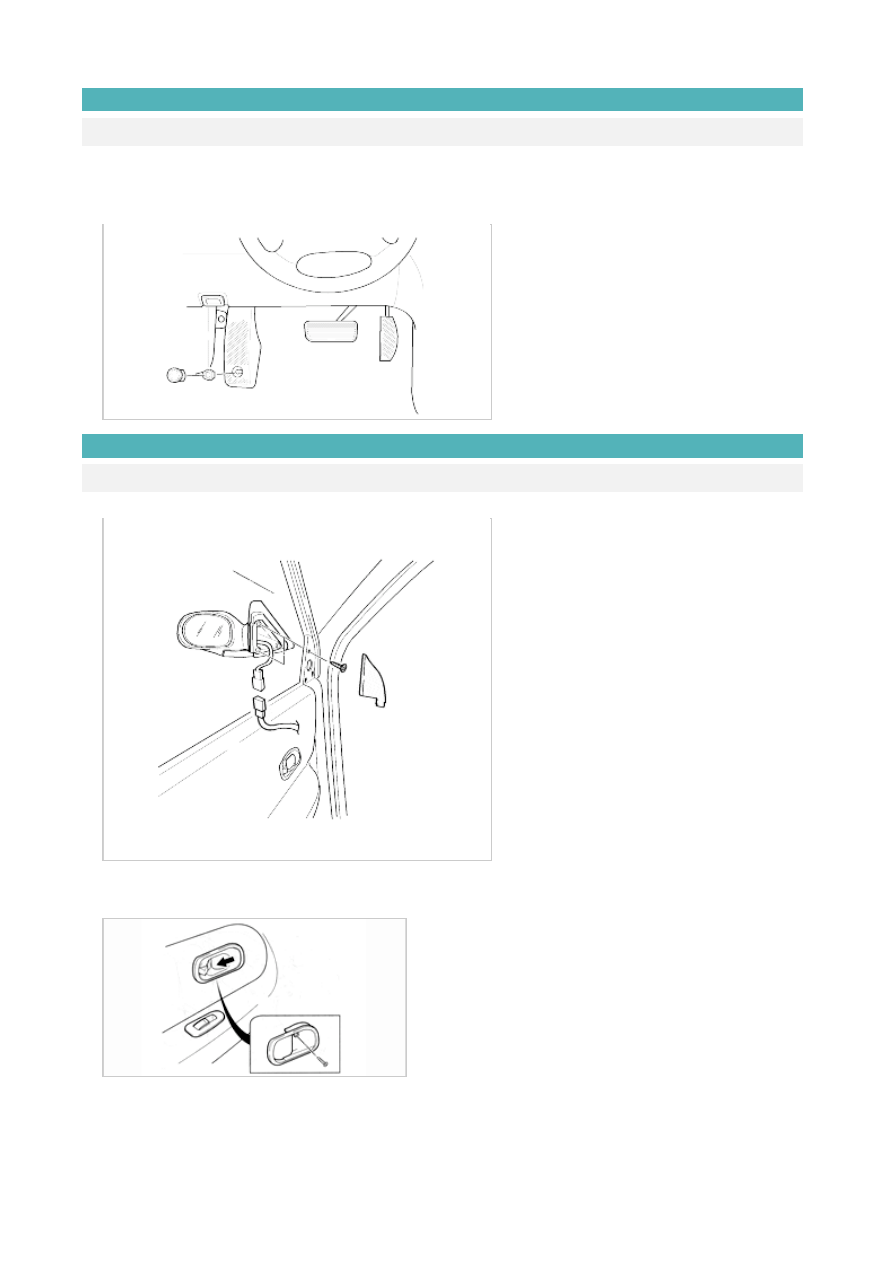

Footrest trim

1. Remove rubber cap.

2. Remove one nut.

3. Remove footrest trim.

Removal

Front door trim

1. Remove garnish.

2. Remove one screw on inside door handle cover.

3. Remove inside door handle cover.

4. Remove one screw on pull door handle .

5. Remove pull door handle .
