Kia Carens. Manual - part 191

  2001 > 1.8L DOHC >



Inspection

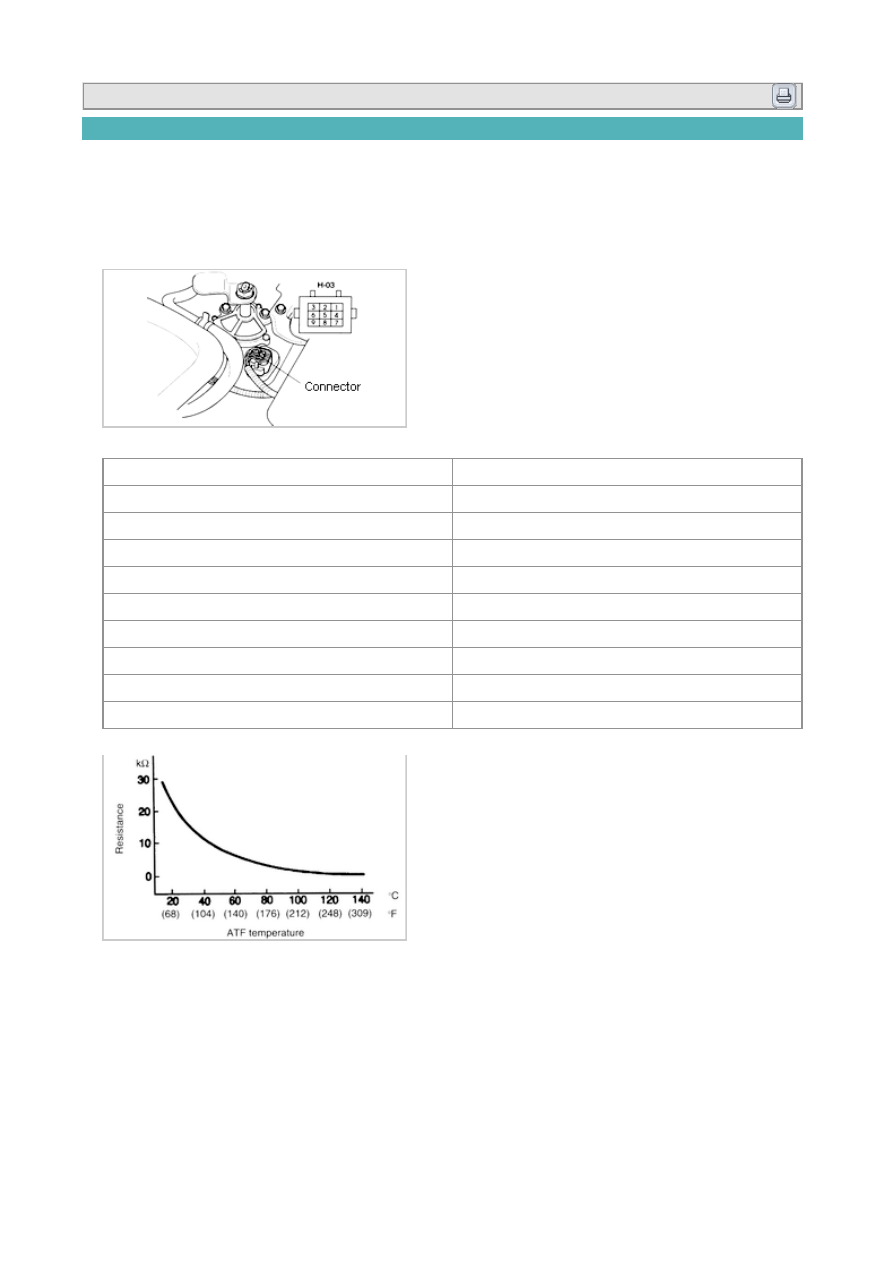

Resistance inspection

1. Remove air cleaner assembly.

2. Connect ohmmeter between terminals 5 and 8 of connector.

3. Measure resistance while warming up ATF (driving vehicle).

4. Verify that the resistance drops as shown in following table and graph.

5. If not as specified, replace transaxle fluid temperature sensor and connector wiring as an assembly.

ATF temperature °C (°F)

Resistance (KΩ)

-20 (-4)

146.67~189.12

0 (32)

56.757~70.225

20 (68)

24.461~29.205

40 (104)

11.536~13.352

60 (140)

5.8719~6.6124

80 (176)

3.1902~3.5064

100 (212)

1.8336~1.9721

120 (248)

1.1068~1.1674

140 (284)

0.69439~0.72580

6. Install air cleaner assembly.

Automatic Transaxle System

Automatic Transaxle Control System - Inhibiter Switch


Automatic Transaxle System

  2001 > 1.8L DOHC >



Inspection

Operation inspection

1. Verify that the starter operates only with ignition switch in START position and selector lever in P or N

position.

2. Verify that the back-up lights illuminate when shifted to R position with ignition switch in ON position.

3. Verify that the position of selector lever and shift pattern indicator of instrument cluster correspond.

4. If not as specified, Check the transaxle range switch.

Continuity inspection

1. Disconnect negative battery cable.

2. Disconnect transaxle range switch connector.

3. Check for continuity at transaxle range switch.

4. If not as specified, replace or adjust transaxle range switch.

5. Connect transaxle range switch connector.

6. Connect negative battery cable.

Adjustment

1. Disconnect negative battery cable.

2. Pull data link connector upward from MAF sensor.

3. Disconnect air temperature sensor connector and MAF sensor connector.

4. Remove fresh air duct and air cleaner assebly.

5. Remove nut. Disconnect selector cable.

6. Rotate manual shaft to N position.

7. Disconnect transaxle range switch connector.

8. Loosen transaxle rnage switch mounting bolts.

9. Connect ohmmeter between terminals 5 ad 7.

10. Adjust switch to point where ther is continuity between terminals.

11. Tighten two transaxle range switch mounting bolts.

Tightening torque : 70~95 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

12. Verify that the selector lever range position and transaxle range switch correspond.

13. Connect transaxle range switch connector.

14. Connect selector cable and tighten nut.

Tightening torque : 24~33 lb-ft (32~46 N·m, 3.2~4.7 kg-m)

15. Install air cleaner assembly, and fresh air duct.

16. Connect air temperature sensor connector and MAF sensor connector.

17. Install data link connector to MAF sensor.

18. Connect negative battery cable.
