Kia Carens. Manual - part 189

  2001 > 1.8L DOHC >



Inspection

Input/Turbine speed sensor

Resistance inspection

1. Disconnect negative battery cable.

2. Pull data link connector upward from MAF sensor.

3. Disconnect air temperature sensor connector and MAF sensor connector.

4. Remove air cleaner assembly.

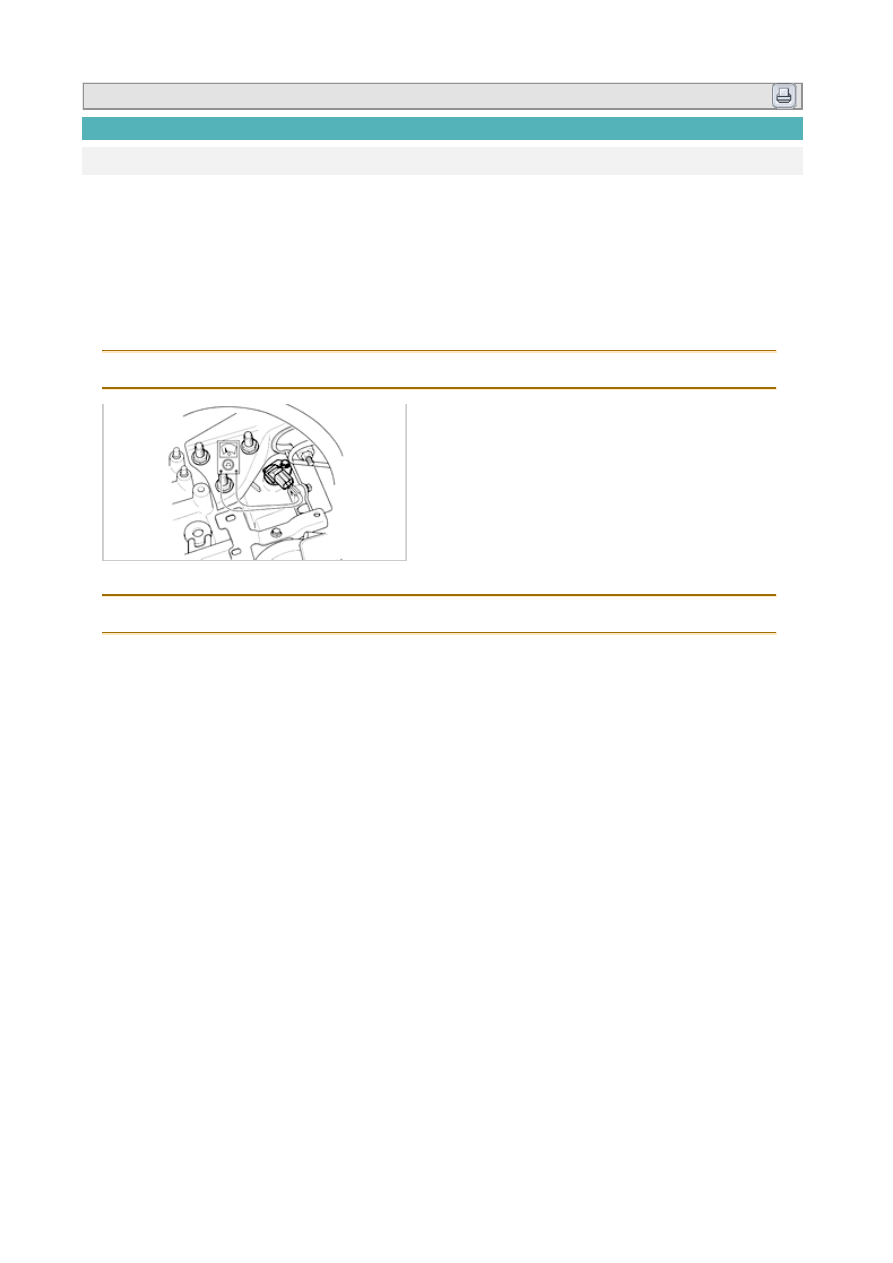

5. Disconnect input/turbine speed sensor connector.

6. Measure resistance between terminals 1 and 2.

Resistance : 360±30Ω (20°C)

7. If not as specified, replace input/turbine speed sensor.

Tightening torque : 69.6~94.8 lb-in (8~11 N·m, 80~110 kg-cm)

8. Install air cleaner assembly.

9. Connect air temperature sensor connector and MAF sensor connector.

10. Install data link connector to MAF sensor.

11. Connect negative battery cable.

Automatic Transaxle System

Automatic Transaxle Control System - Output Shaft
Speed Sensor



Automatic Transaxle System

  2001 > 1.8L DOHC >



Inspection

Voltage inspection

1. Turn ignition to ON and use a voltmeter to back probe pin. 1.

2. Have an assistant rotate one drive wheel, checking other drive wheel, if necessary. This will rotate vehicle

speed sensor.

3. Voltmeter reading should alternate between approximately 1 and 10 volts.

4. If this requirement is not met, replace vehicle speed sensor.

Automatic Transaxle System

Automatic Transaxle Control System - Transaxle Control
Module



Automatic Transaxle System
