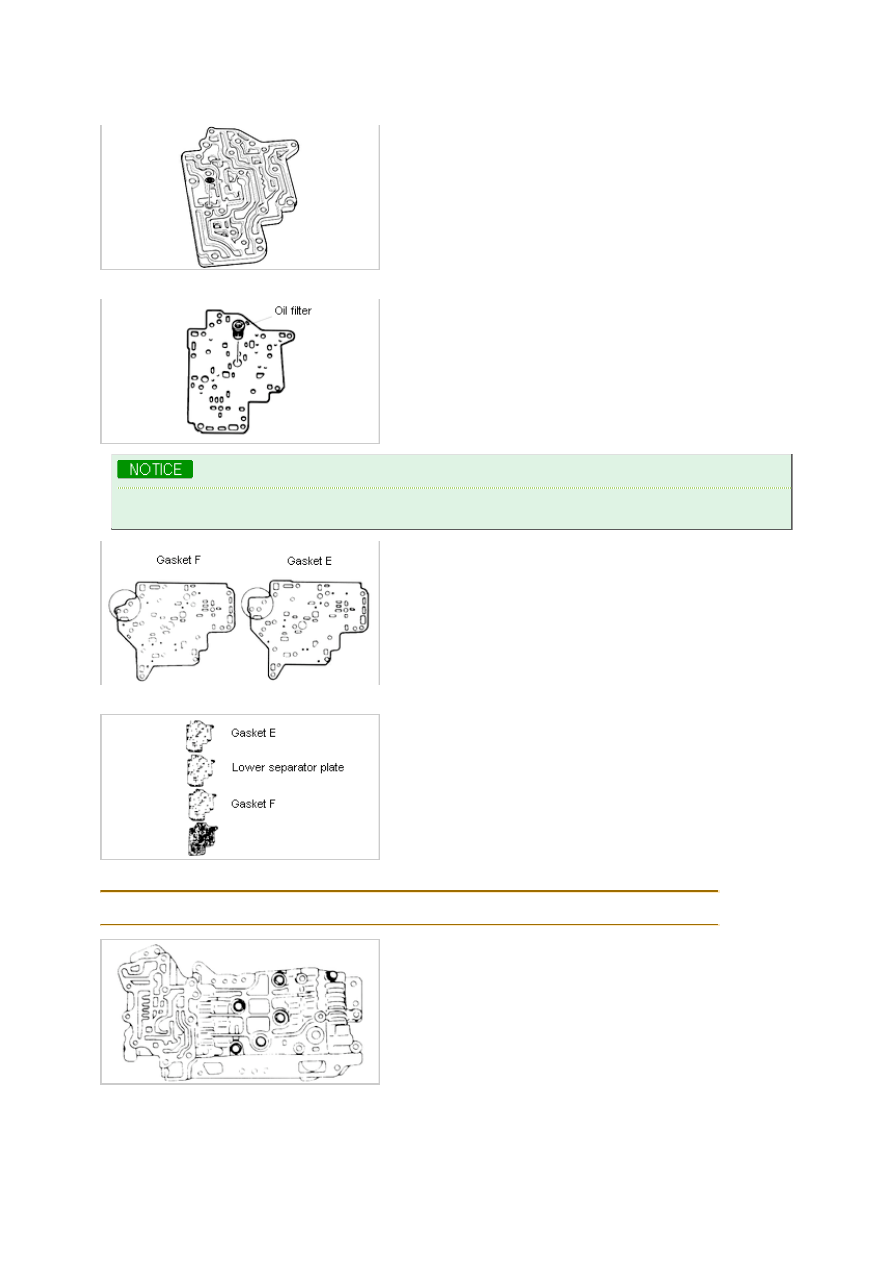

1. Install oil strainer into lower control valve body, refer to oil strainer installation positions.

2. Set oil filter into lower separator plate.

Gasket F and gasket E are not interchangeable.
They are dientified by their shape in area designated in illustration.

3. Set new gasket F, lower separator plate, and new gasket E onto lower valve body.

4. Set premain control valve body onto lower valve body and install seven bolts.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

5. Install two rubber balls and oil strainers into their proper positions in premain control valve body.

(Refer to Rubber Ball and Oil Strainer Installation Positions.)

6. Install rubber balls into their proper positions in main control valve body. (Refer to main control valve body.)

Gasket C and gasket D are not interchangeable.
They are identified by their shape in area designated in illustration.

7. Set the new gasket C, main separator plate, and gasket D onto main control valve body.

8. Secure gasket C, main separator plate and gasket D to main control valve body with two screws in locations shown.

Tightening torque : 11.3~16.5 lb-in (1.27~1.86 N·m, 13~19 kg-cm)

9. Set main control valve body onto premain control vavle body.

Match bolt head letters as shown.

10. Loosely tighten bolts, refer to bolt installation positions and external parts locations.

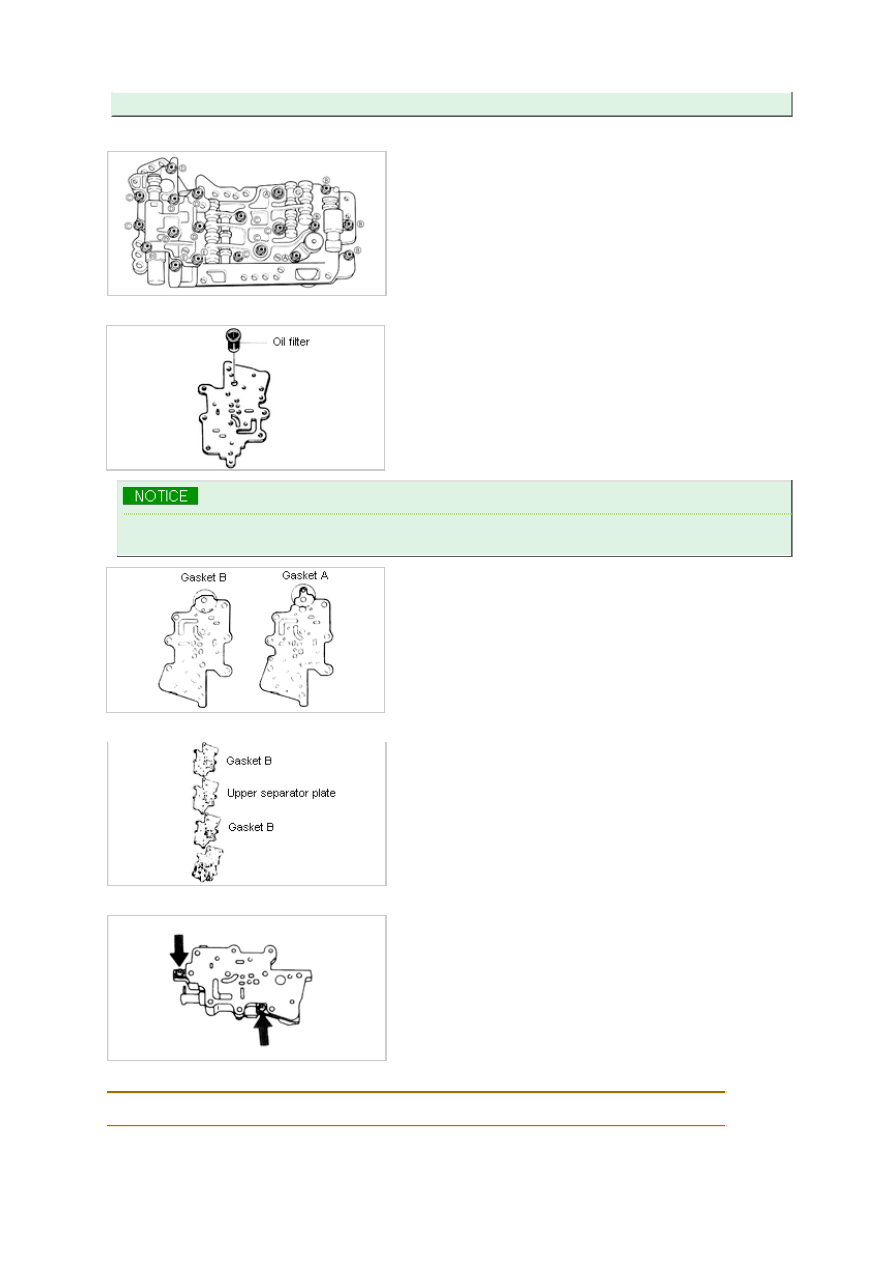

11. Set the oil filter in upper separator plate.

Gasket A and gasket B are not interchangeable.
They are identified by their shape in area designated in illustration.

12. Set new gasket A, upper separator plate, and new gasket B onto upper control valve body.

13. Secure gasket A, upper separator plate and gasket B to upper control valve body with two screws in locations shown.

14. Set upper control valve body onto main control valve body and install nine bolts.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

Match bolt head letters as shown.

15. Loosely tighten lower control valve body bolts.

(Refer to bolt installation positions and external parts locations.)

16. Install linear solenoid valve.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

17. Install shift solenoids B and C, oil strainers, and bracket.

18. Tighten mounting bolts.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

19. Install torque converter clutch solenoid and oil strainer.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

20. Install shift solenoid A and oil strainer onto upper valve body.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)
