Kia Carens. Manual - part 133

  2001 > 1.8L DOHC >



Oil seal

Removal and replacement

1. Remove driveshaft.

2. Remove oil seal with a screwdriver.

3. Tap new oil seal into transaxle case with SST (0K201 170 AA1).

1) Tap in until SST (0K201 170 AA1) contacts case.
2) Coat oil seal lip with ATF.

Control valve body

Clean transaxle exterior thoroughly with a steam cleaner or cleaning solvents before removal.

1. Support engine with SST (0K201 170 AA0).

2. Raise vehicle and support it with safety stands.

3. Drain ATF into a suitable container.

4. Remove both gravel shield from under engine.

(Seven bolts each)

5. Remove two nuts from No.2 engine mount to mounting member.

6. Remove engine mounting member-to-chassis bolts (two front) and nuts (two rear) then remove engine

mounting member.

7. Remove oil pan (19 bolts) and gasket.

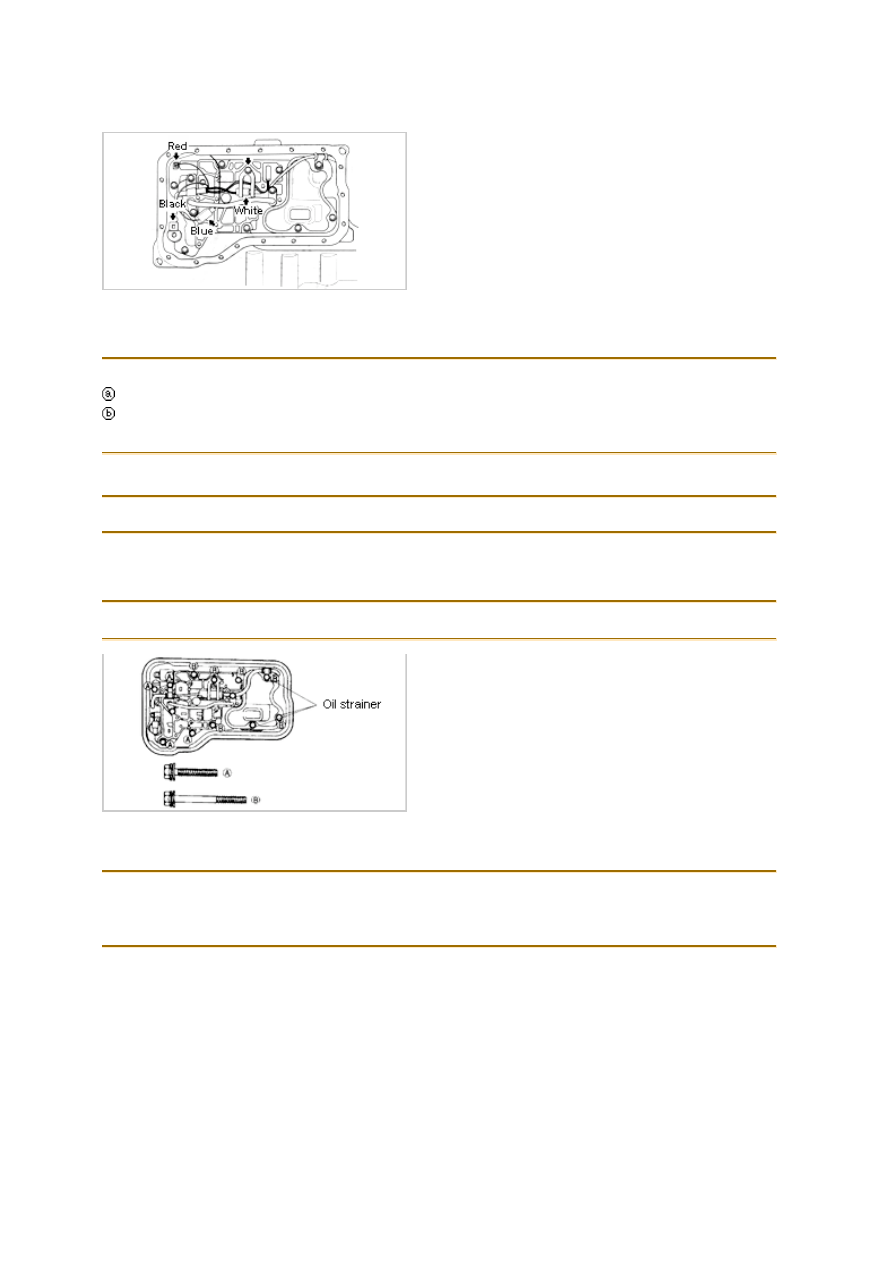

8. Disconnect all electrical connectors, remove eight bolts, and remove control valve body.

Replacement

1. Install control valve body, (8) bolts, and wiring clips as shown.

Bolt length (measured from below the head)

 : 1.18 in (30 mm)
 : 1.97 in (50 mm)

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

2. Install oil strainer, and (3) bolts.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

3. Connect connectors.

4. Install oil pan (19 bolts) and a new gasket.

Tightening torque : 74.4~94.8 lb-in (8.4~10.7 N·m, 8.5~110 kg-cm)

5. Loosely install nuts A and bolts B of engine mounting member.

6. Install engine mounting member.

Tightening torque :
A : 28~38 lb-ft (38~51 N·m, 3.8~5.3 kg-m)
B : 48~65 lb-ft (64~89 N·m, 6.5~9.1 kg-m)

7. Install both gravel shield to under engine. (seven bolts each)

8. Remove SST (0K201 170 AA0) from engine.

9. Pour in ATF. Check ATF level with engine idling and check for leaks, refer to Automatic Transmission Fluid.

10. Drive vehicle and check shift points, shift schedule, and shift quality.

  2001 > 1.8L DOHC >



Description and operation

Cross-sectional view

Power flow diagram
