6. Remove dust cover with a chisel.

A.

1) Do not remove wheel studs unless necessary.
2) Do not reuse wheel studs if removed.

7. Remove wheel studs with a press.

RESSEMBLY

1. Press in new wheel studs.

2. Mark new dust cover to match the removed dust cover.

3. Align mark on new dust cover with knuckle.

4. Install new dust cover with suitable tool.

5. Install new wheel bearing with suitable tool.

6. Install front wheel hub assembly with suitable tool.

1) Use a new oil seal and apply grease to seal.
2) Install oil seal that it is flush with knuckle.

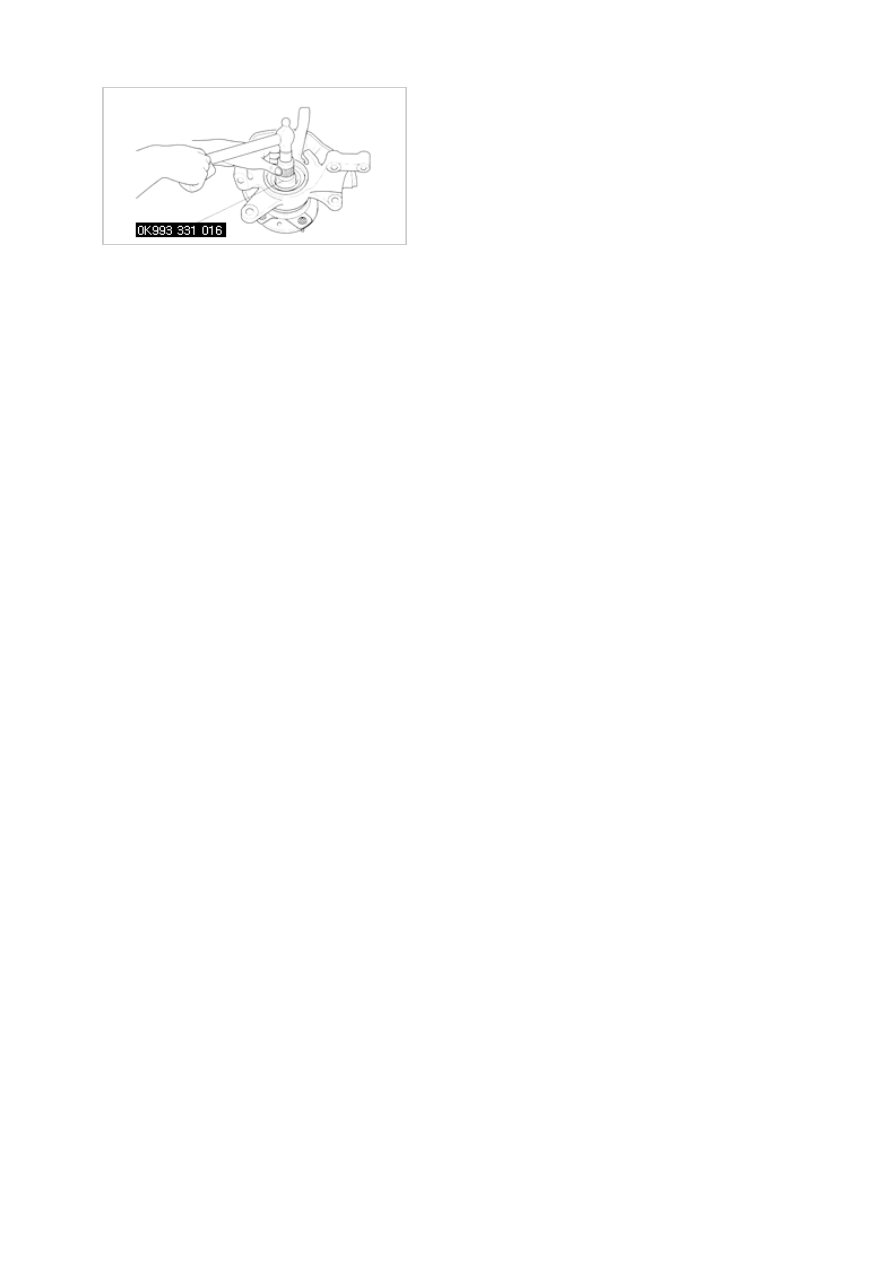

7. Install new oil seal with SST (OK993 331 016).
