Front Axle Assembly

Driveshaft and Axle

Front Axle Assembly

Front Hub / Axle

Driveshaft and Axle

  2001 > 1.8L DOHC >

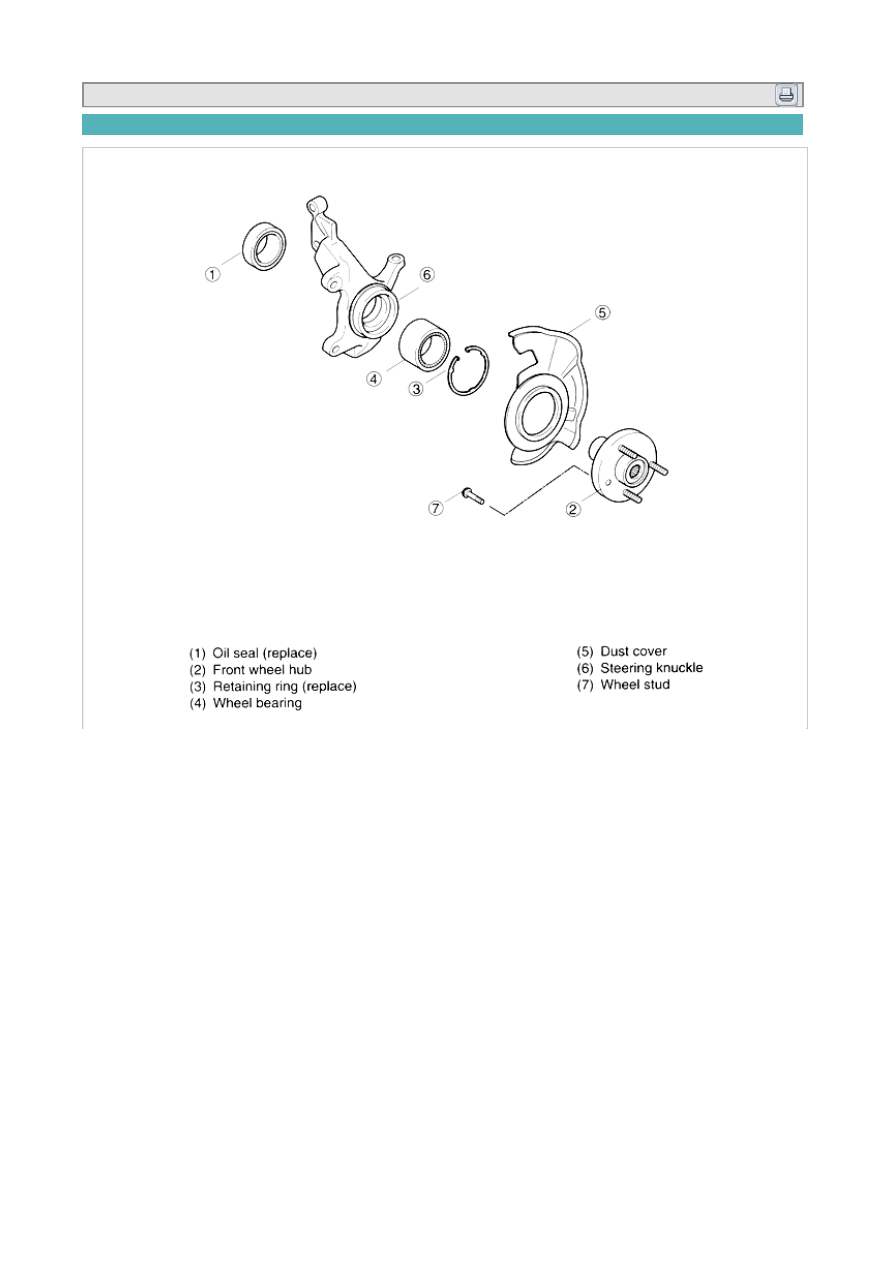

COMPONENT

  2001 > 1.8L DOHC >



DISASSEMBLY

1. Remove oil seal from front wheel hub.

2. Remove front wheel hub assembly with suitable tool.

3. Remove retaining ring.

If the bearing inner race remains on wheel hub, grind a section of inner race until approximately 0.020in
(0.5mm) remains. Remove race with a chisel.

4. Remove wheel bearing suitable tool.

1) Do not remove dust cover unless necessary.
2) Do not reuse dust cover if removed.

5. Mark relative positions of dust cover and knuckle for proper reassembly.
