5. Connect negative battery terminal.

THE FUEL SYSTEM REMAINS UNDER PRESSURE WHEN THE ENGINE IS NOT RUNNING.
RELEASE FUEL SYSTEM PRESSURE BEFORE DISCONNECTINGANY FUEL LINE TO REDUCE
THE CHANCE OF PERSONAL INJURY OR FIRE DAMAGE TO VEHICLE COMPONENTS.

6. Connect data link connect terminals FUEL PUMP and B+ with jumper wire.

7. Turn ignition switch ON.

8. Measure fuel pump maximum pressure.

Fuel pump maximum pressure : 65~94 psi(450~650 kPa, 4.5~6.5 kg-m)

9. If not within specification, replace fuel delivery module.

Removal

Fuel delivery module

FUEL IS EXPLOSIVE. AN EMPTY FUEL TANK CAN STILL CONTAIN EXPLOSIVE GASES.SUPPLY
AEQUATE ENTILATION TO THE WORK AREA. DO NOT SMOKE AND KEEP SPARKS AND OPEN
FLAMES AWAY. PURGE FUMES FROM THE HANK AS SOON AS POSSIBLE.

1. Release fuel system pressure. Refer to "Releasing fuel system pressure".

2. Disconnect negative battery cable.

3. Remove rear seat cushion.

4. Disconnect fuel delivery module connectors.

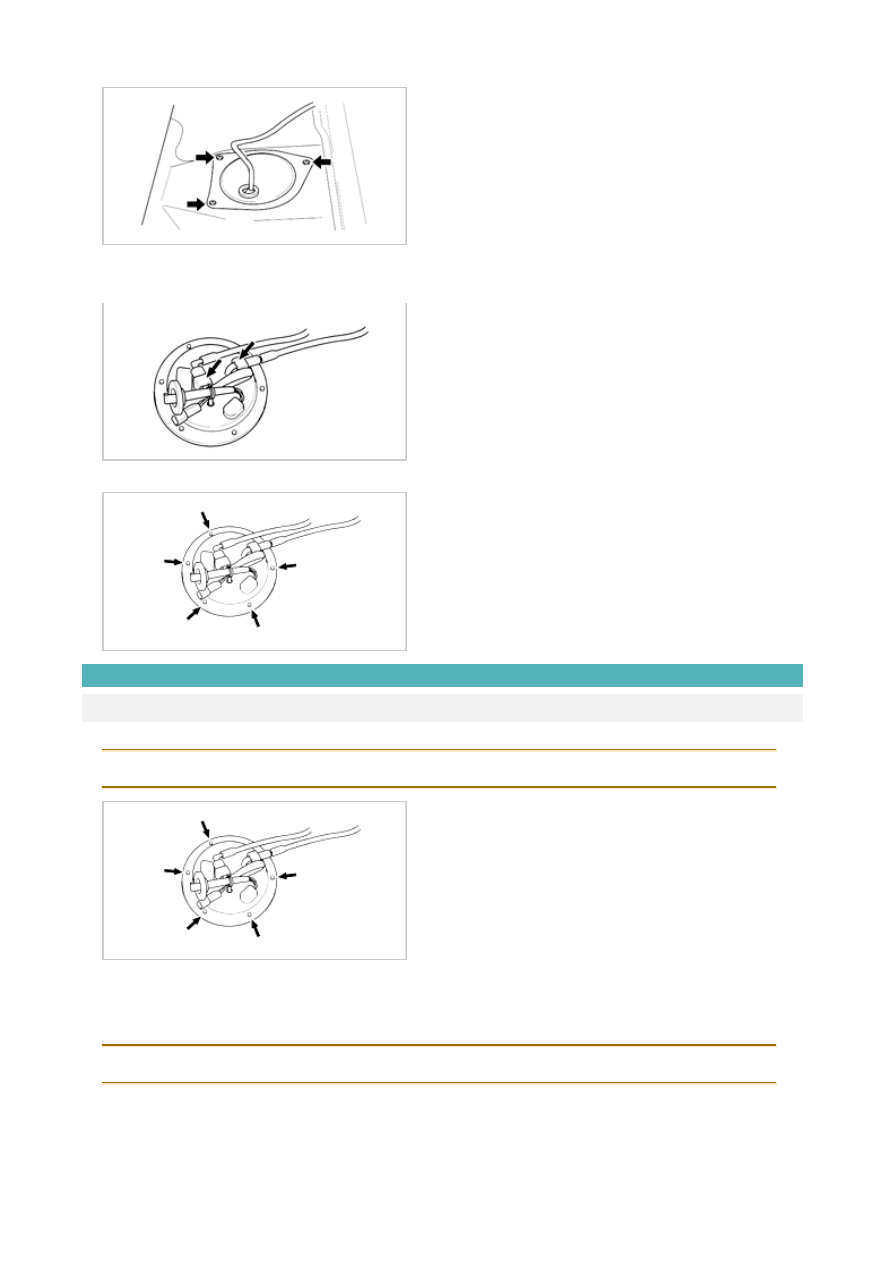

5. Remove three screws attaching access cover.

6. Remove rubber grommet and wires from access cover and remove access cover.

7. Disconnect to fuel hoses from to fuel delivery module.

8. Remove six screws attaching fuel delivery module and remove fuel delivery module from fuel tank.

Installation

Fuel delivery module

1. Install fuel delivery module and tighten six screws.

Tightening torque : 7.7~12.2 lb-ft (10.8~16.7N·m, 1.1~1.7 kg-m)

2. Reconnect two fuel hoses to fuel delivery module.

3. Install rubber grommet and wire onto access cover.

4. Install access cover and tighten three screws for access cover.

Tightening torque : 7.7~12.2 lb-ft (108~16.7 N·m, 1.1~1.7 kg-m)

5. Reconnect one connectors to fuel delivery module.

6. Position wires and secure to floor with tape.

7. Install rear seat cushion.

8. Connect negative battery cable.
