• Do not force tools between cylinder block and oil pan because this damage sealing surfaces.
• Do not damage sealing surfaces when removing old sealant.

7. Remove oil strainer.

INSTALLATION

• If oil pan reused remove all foreign material from sealing surfaces of cylinder block and oil pan.
• If bolts are reused remove old sealant from bolt threads.

1. Install oil strainer.

Tightening torque : 5.8~8.7lb-ft (7.8~11.8N·m, 0.8~1.2kg-m)

2. Apply a continuious bead of silicone sealant to baffle plate along inside of bolt holes on contact surface.

The oil pan nust be installed no longer than 5 minutes after silicone sealant is applied.

3. Install oil pan.

Tightening torque :
(A), (B), (C), (D) : 5.8~8.0lb-ft (7.8~10.8N·m, 0.8~1.1kg-m)
(E) : 28~38lb-ft (38~51N·m, 3.8~5.3kg-m)

4. Install front exhaust pipe.

Tightening torque :
(A), (B) : 27.5~38.3lb-ft (37.3~51.9N·m, 3.8~5.3kg-m)
(C) : 31.1~44.8lb-ft (42.2~60.8N·m, 4.3~6.2kg-m)

5. Install LH and RH side splash shields.

Tightening torque : 12~18lb-ft (16~24N·m, 1.6~2.4kg-m)

6. Fill with specified amount and type of engine oil.

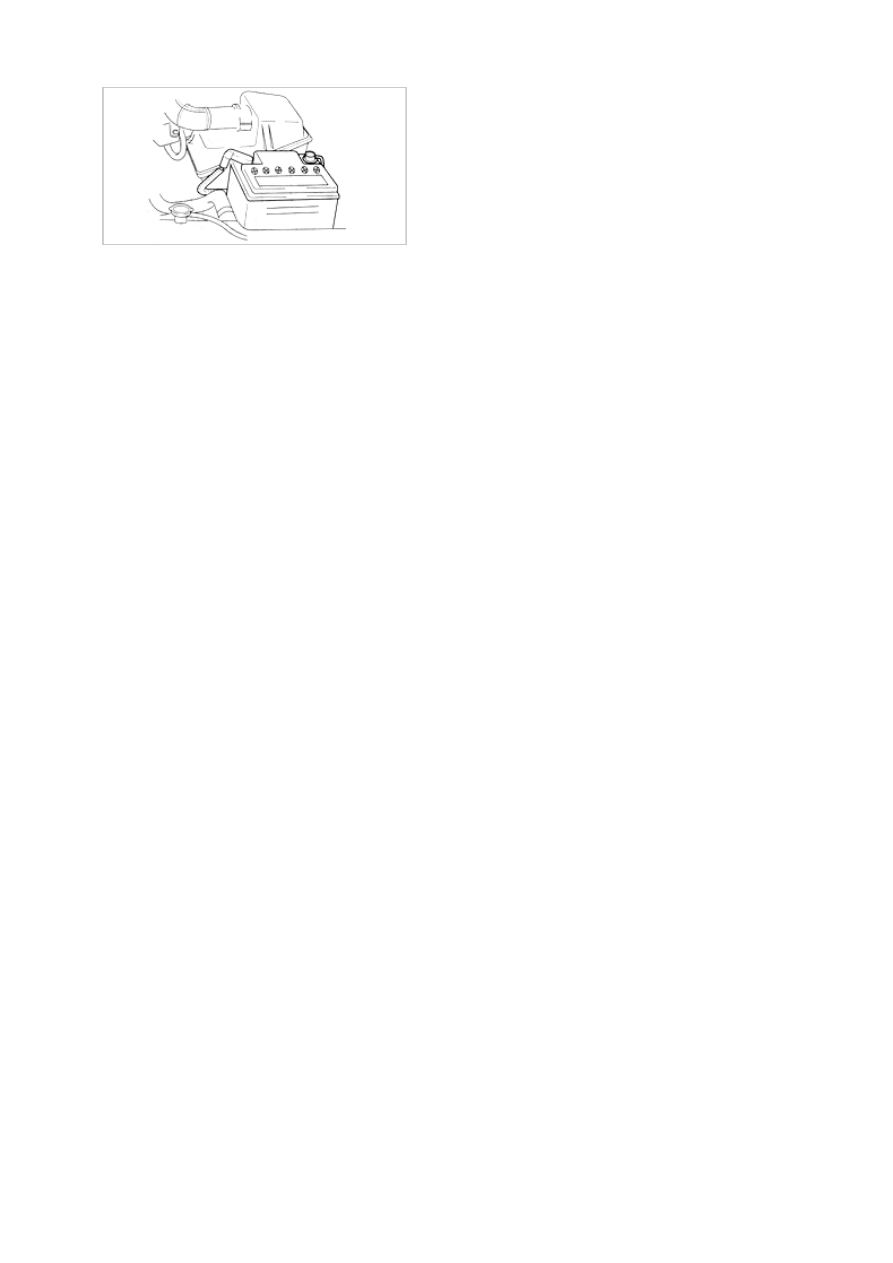

7. Connect negative battery cable.

8. Start engine and check for leaks.

9. Check oil level and add oil if necessary.
